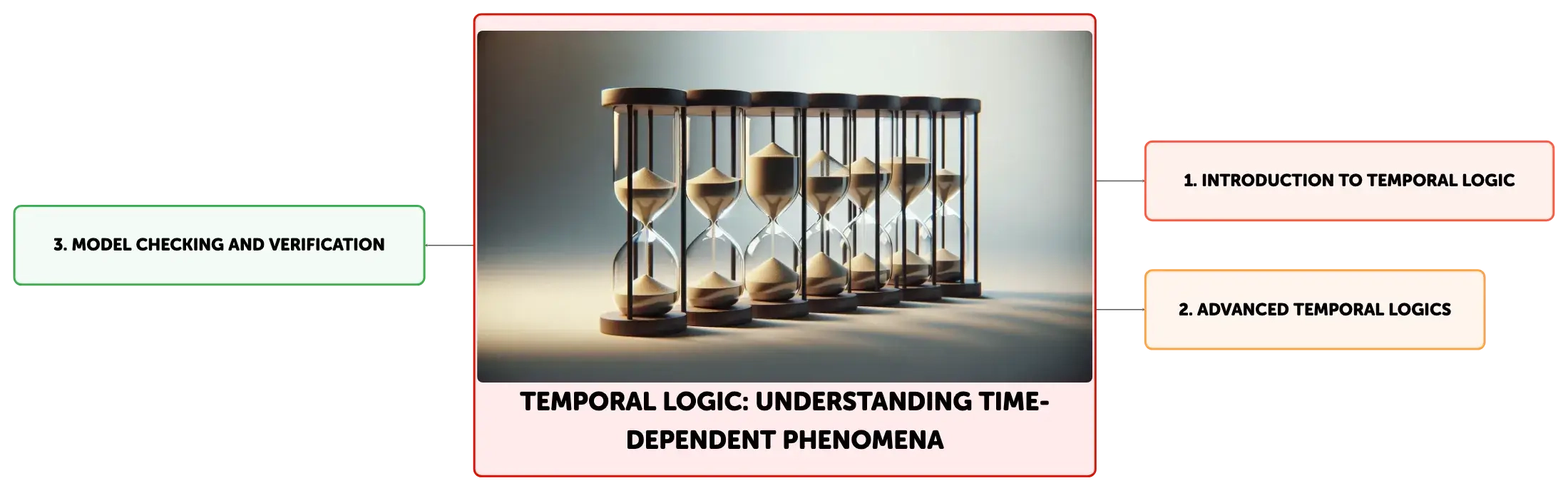

Temporal Logic: Understanding Time-Dependent Phenomena

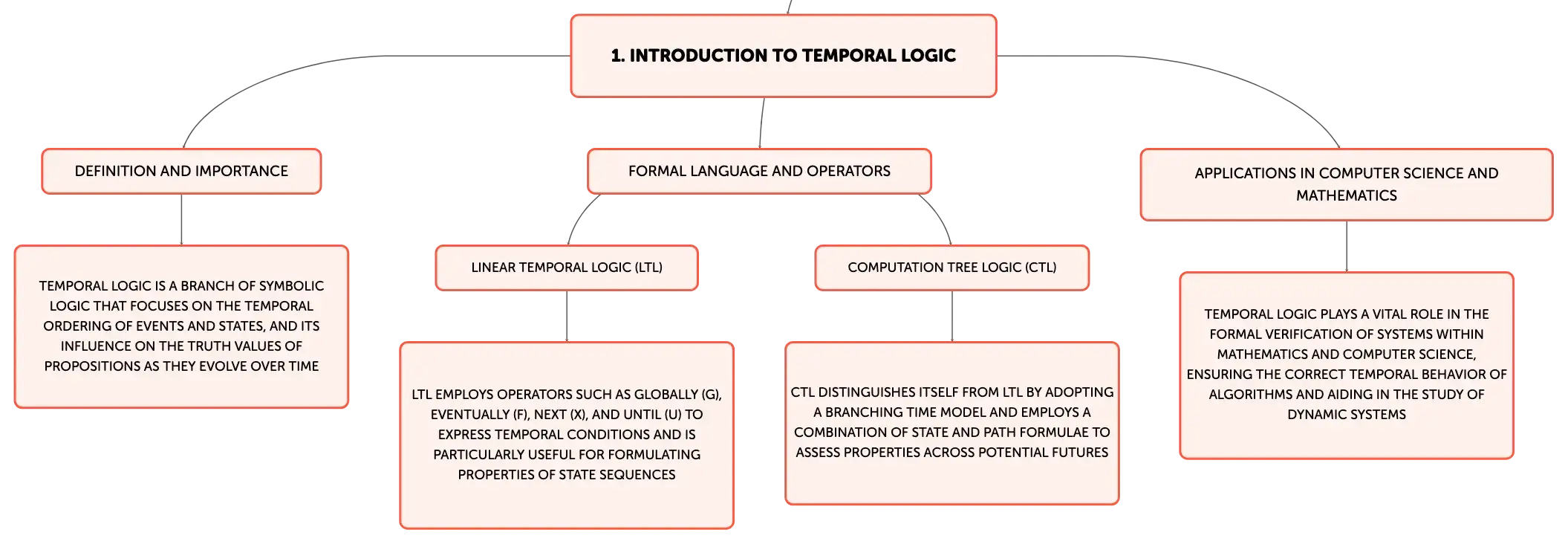

Introduction to Temporal Logic in Mathematics and Computer Science

Temporal logic is an essential branch of symbolic logic that focuses on the temporal ordering of events and states, and its influence on the truth values of propositions as they evolve over time. It extends beyond the static truths of classical logic by incorporating the dynamic aspect of time, which is pivotal in fields such as computer science for system design and verification, and in artificial intelligence for simulating temporal behaviors. Temporal logic introduces a formal language with temporal operators to express concepts like 'before', 'after', 'always', and 'eventually', enabling precise reasoning about time-dependent phenomena.

Linear Temporal Logic (LTL) and Its Applications

Linear Temporal Logic (LTL) considers time as a linear progression of discrete moments and is particularly useful for formulating properties of state sequences. It employs operators such as Globally (G), Eventually (F), Next (X), and Until (U) to express temporal conditions. For instance, the LTL formula G (request → F grant) asserts that a grant should eventually follow each request. LTL's linear conception of time is especially beneficial for the verification of sequential systems, including software and hardware, where the order of events is crucial.

The Significance of Temporal Logic in System Verification

Temporal logic plays a vital role in the formal verification of systems within mathematics and computer science, where the timing and order of operations are critical. In the realm of computing, it is employed to ensure the correct temporal behavior of algorithms, especially in concurrent systems where operations may overlap. In mathematics, temporal logic aids in the study of dynamic systems by providing a structured approach to analyze temporal changes. Model checking, a technique that uses temporal logic, is instrumental in verifying that a system's model adheres to specified properties, thus guaranteeing safety and reliability in critical applications like autonomous vehicle control systems.

Computation Tree Logic (CTL) and Its Branching Time Model

Computation Tree Logic (CTL) distinguishes itself from LTL by adopting a branching time model, which contemplates various potential future paths from any given point. CTL employs a combination of state and path formulae to assess properties across these potential futures. Operators such as Exists Next (EX), Exists Globally (EG), and For All Eventually (AF) facilitate the exploration of properties that might be true in certain or all possible futures. CTL's exploration of multiple outcomes is invaluable for model checking in intricate systems, where it is imperative to ensure correctness across all conceivable scenarios.

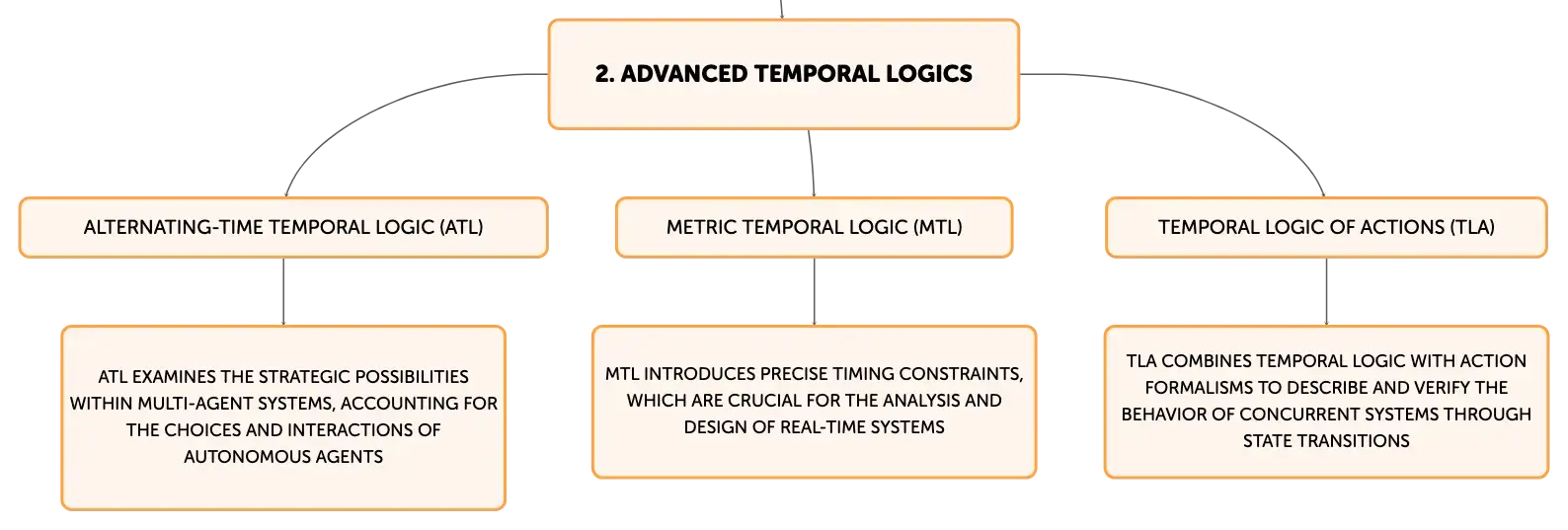

Exploring Advanced Temporal Logics: ATL, MTL, and TLA

Advanced temporal logics, including Alternating-Time Temporal Logic (ATL), Metric Temporal Logic (MTL), and Temporal Logic of Actions (TLA), provide nuanced tools for the analysis of time-sensitive systems. ATL examines the strategic possibilities within multi-agent systems, accounting for the choices and interactions of autonomous agents. MTL introduces precise timing constraints, which are crucial for the analysis and design of real-time systems. TLA combines temporal logic with action formalisms to describe and verify the behavior of concurrent systems through state transitions. These sophisticated logics enable a more profound comprehension of temporal dynamics across a spectrum of applications, from interactive systems to those with stringent timing demands.

Concluding Insights on Temporal Logic

Temporal logic offers a diverse array of logical systems that are indispensable for grasping the temporal characteristics of events and processes. Foundational logics like LTL and CTL address linear and branching time models, respectively, while ATL, MTL, and TLA cater to more specialized requirements such as strategic analysis, precise timing, and action-based transitions. Collectively, these logical frameworks constitute a robust toolkit for modeling, specifying, and verifying systems where time is a defining element, ensuring their proper function across various temporal contexts.
