The Kekule Structure of Benzene

The Kekule structure, a representation of benzene's molecular structure, is pivotal in organic chemistry. It depicts benzene as a hexagon of carbon atoms with alternating single and double bonds, a concept that led to the discovery of aromaticity and resonance theory. These theories explain benzene's uniform bond lengths, planar geometry, and stability, which are crucial for its chemical reactivity and educational utility in teaching aromatic substitution reactions.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The ______ structure, introduced by ______ ______ ______, is a key concept in organic chemistry for understanding molecular structure.

Click to check the answer

Kekule Friedrich August Kekule

2

Kekule's dream-inspired model significance

Click to check the answer

Kekule's model explained benzene's chemical inertness, a major 19th-century breakthrough.

3

Aromaticity concept origin

Click to check the answer

Aromaticity arose to account for benzene's uniform bond lengths and strengths, not explained by Kekule.

4

Resonance theory in benzene structure

Click to check the answer

Resonance theory posits benzene as a hybrid of structures, explaining its stability and unique reactivity.

5

The ______ structure is crucial for chemists to understand and visualize molecular structures and their reactions.

Click to check the answer

Kekule

6

Benzene is distinguished from other cyclic compounds by its planar geometry, uniform bond lengths, and ______ stability due to electron delocalization.

Click to check the answer

aromatic

7

Kekule structure vs. Resonance theory in benzene

Click to check the answer

Kekule suggests alternating single/double bonds; resonance shows hybridization, intermediate bond order.

8

Consequence of pi electron overlap in benzene

Click to check the answer

Continuous pi electron cloud leads to high stability and flat geometry.

9

Benzene's reaction preference

Click to check the answer

Aromatic stability makes benzene favor substitution over addition reactions.

10

Despite its simplicity, the ______ structure aids in understanding reactions like ______ and ______, which are key to aromatic compound studies.

Click to check the answer

Kekule nitration Friedel-Crafts alkylation

11

Uniform bond lengths in benzene

Click to check the answer

X-ray crystallography revealed benzene's bonds are equal, contradicting Kekule's alternating pattern.

12

Resonance model explanation for benzene

Click to check the answer

Describes benzene's stability through delocalized electrons, providing a more accurate depiction than Kekule's structure.

13

Resonance stabilization in benzene

Click to check the answer

The concept that benzene's stability arises from the delocalization of electrons across the molecule.

14

The ______ structure is a fundamental concept in organic chemistry, crucial for understanding benzene's molecular structure and behavior.

Click to check the answer

Kekule

15

Although now surpassed by theories of electron ______ and ______, the initial model remains a vital educational tool for explaining molecular complexities.

Click to check the answer

delocalization resonance

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Thin Layer Chromatography (TLC)

View document

Chemistry

Heteroatoms in Organic Chemistry

View document

Chemistry

Alkene Nomenclature

View document

Chemistry

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

View document

The Kekule Structure and Its Significance in Benzene Chemistry

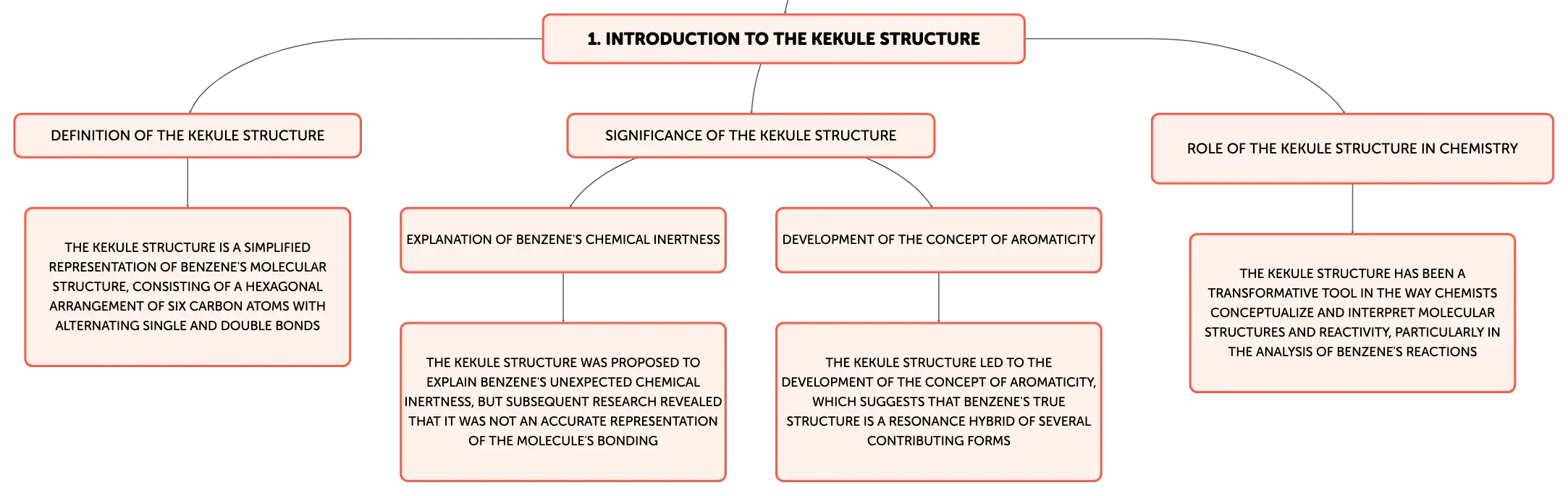

The Kekule structure, proposed by Friedrich August Kekule, is a seminal concept in organic chemistry that has greatly enhanced our comprehension of molecular architecture. This structural representation of benzene consists of a hexagonal arrangement of six carbon atoms, each alternating between single and double bonds, with one hydrogen atom bonded to each carbon. Although this depiction is a simplification, it serves as an essential pedagogical model and a foundational step towards grasping the actual bonding in benzene, which is more accurately represented by a resonance hybrid of structures.
Three-dimensional molecular model with a hexagonal ring of black spheres joined by silver rods and white spheres linked alternately.

Advancements in Understanding Benzene's Molecular Structure

Kekule's visionary model of benzene, allegorically inspired by a dream of a serpent seizing its own tail, marked a significant advancement in the 19th century by accounting for benzene's unexpected chemical inertness. Subsequent research, however, indicated that all of benzene's carbon-carbon bonds are equivalent, implying uniform bond lengths and strengths that the Kekule structure's alternating bonds could not explain. This revelation led to the development of the concept of aromaticity and the resonance theory, which suggests that benzene's true structure is a resonance hybrid of several contributing forms, reflecting a delocalized electron system that underpins benzene's stability and distinctive chemical reactivity.

The Impact of the Kekule Structure on Organic Chemistry

The Kekule structure has been a transformative tool in the way chemists conceptualize and interpret molecular structures and reactivity. It is particularly instructive in the analysis of benzene's reactions, underscoring the importance of the alternating double and single bonds. The derived concept of aromaticity, rooted in the Kekule model, differentiates benzene from other cyclic compounds by highlighting its planar geometry, consistent bond lengths, and the aromatic stability associated with electron delocalization.

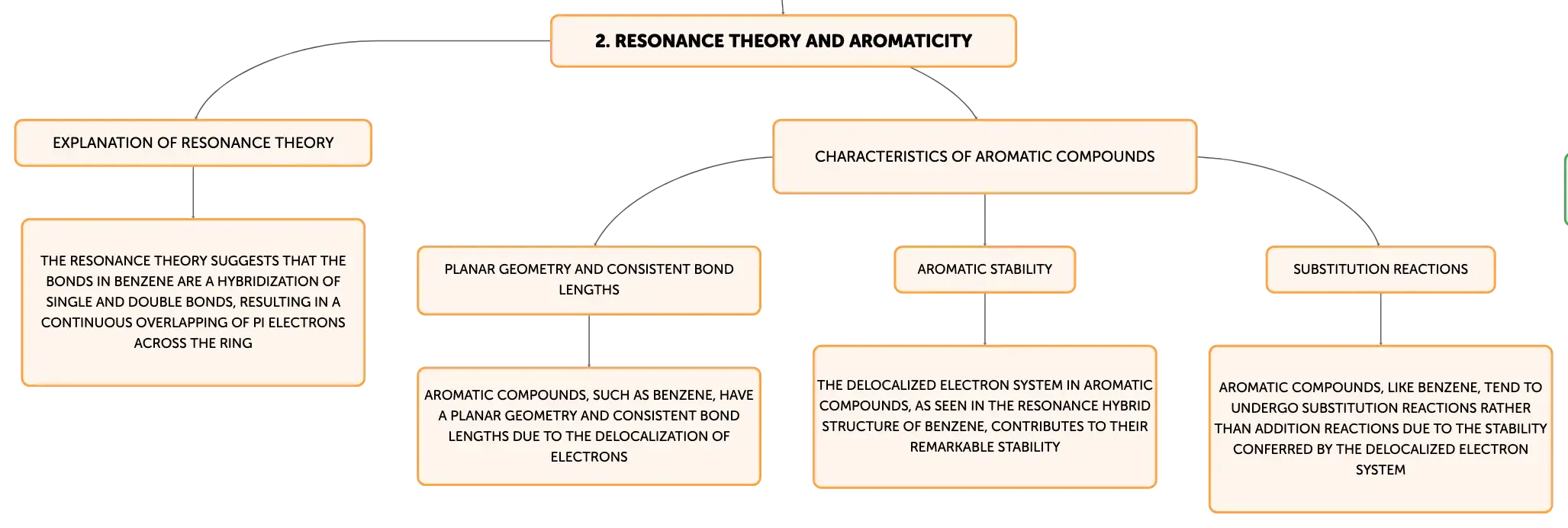

Resonance Theory and Benzene's Bond Character

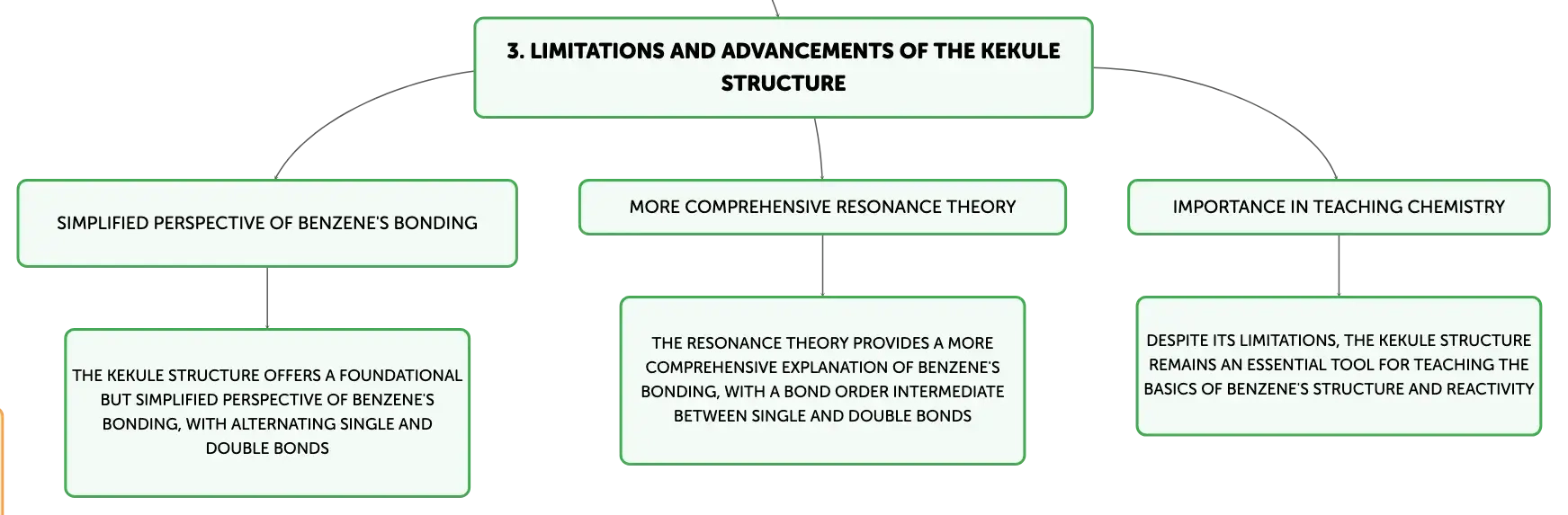

The Kekule structure offers a foundational but simplified perspective of benzene's bonding. The more comprehensive resonance theory elucidates that the bonds in benzene are a hybridization of single and double bonds, with a bond order intermediate between the two. This results in a continuous overlapping of pi electrons across the ring, conferring upon benzene remarkable stability and a flat molecular geometry, which is the basis for its aromaticity and its tendency to undergo substitution rather than addition reactions.

Educational Utility of the Kekule Structure

Despite its conceptual limitations, the Kekule structure remains a valuable heuristic for visualizing benzene's basic framework and facilitating the teaching of its chemistry. It is especially useful in depicting electrophilic aromatic substitution reactions, such as nitration and Friedel-Crafts alkylation, which are central to the study of aromatic compounds. While these reactions involve the entire delocalized electron system, the Kekule structure simplifies the representation of the reactants and products, aiding in the comprehension of these processes.

The Kekule Structure and Insights into Benzene's Stability

The Kekule structure's portrayal of alternating single and double bonds initially provided a basis for contemplating benzene's exceptional stability. The subsequent discovery of uniform bond lengths through X-ray crystallography suggested a more cohesive bonding pattern. The resonance model, with its concept of delocalized electrons, offers a more nuanced explanation for benzene's stability, known as resonance stabilization. Although the Kekule structure is not the most precise depiction, it has been an essential milestone in the progression towards a more profound understanding of molecular stability and behavior.

Concluding Reflections on the Kekule Structure of Benzene

The Kekule structure of benzene has been a cornerstone in organic chemistry, offering fundamental insights into molecular structure and behavior. It has guided the exploration of benzene's reactivity and contributed to the elucidation of its stability and aromatic characteristics. While more accurate theories incorporating electron delocalization and resonance have surpassed the model, its simplicity and pedagogical value continue to render it an indispensable tool for introducing the complexities of molecular structures and interactions to students.
