Electromotive Force (EMF)

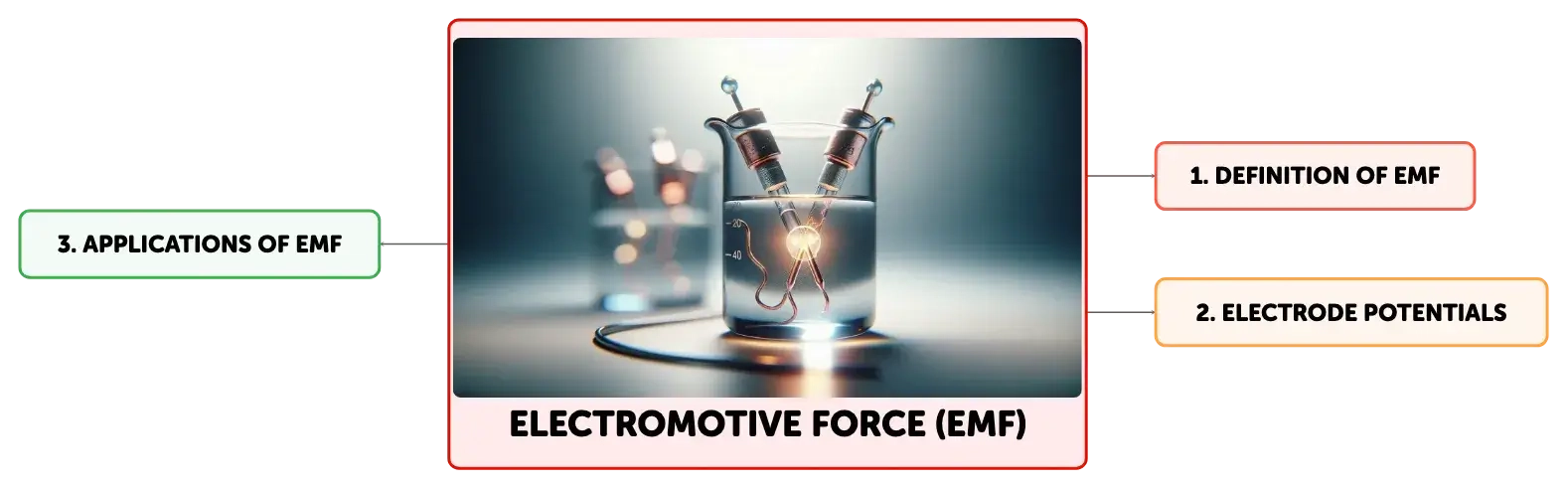

Exploring the Concept of Electromotive Force (EMF) in Electrochemical Cells

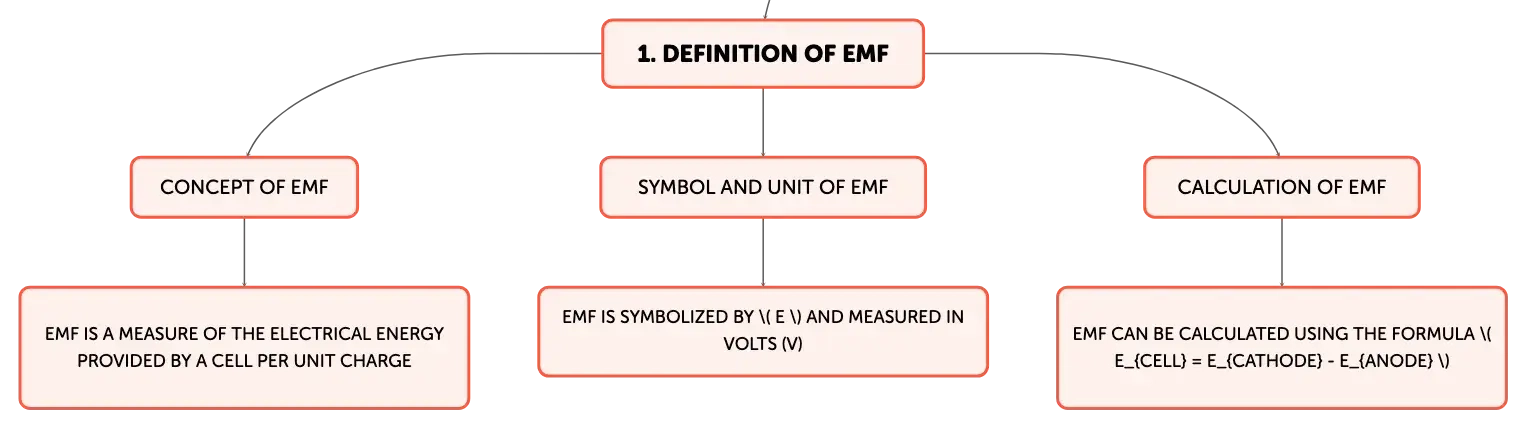

Electromotive force (EMF) is a central concept in electrochemistry, representing the maximum potential difference between two electrodes when no current is flowing in the external circuit. Contrary to what the term might suggest, EMF is not a physical force but a measure of the electrical energy provided by a cell per unit charge. It is symbolized by \( E \) and is measured in volts (V). The EMF of an electrochemical cell is determined by the intrinsic properties of the materials involved and the reactions at the electrodes. It can be calculated using the formula \( E_{cell} = E_{Cathode} - E_{Anode} \), where \( E_{Cathode} \) and \( E_{Anode} \) are the reduction potentials of the cathode and anode, respectively. This potential difference drives the movement of electrons from the anode to the cathode when the circuit is complete, resulting in an electric current.

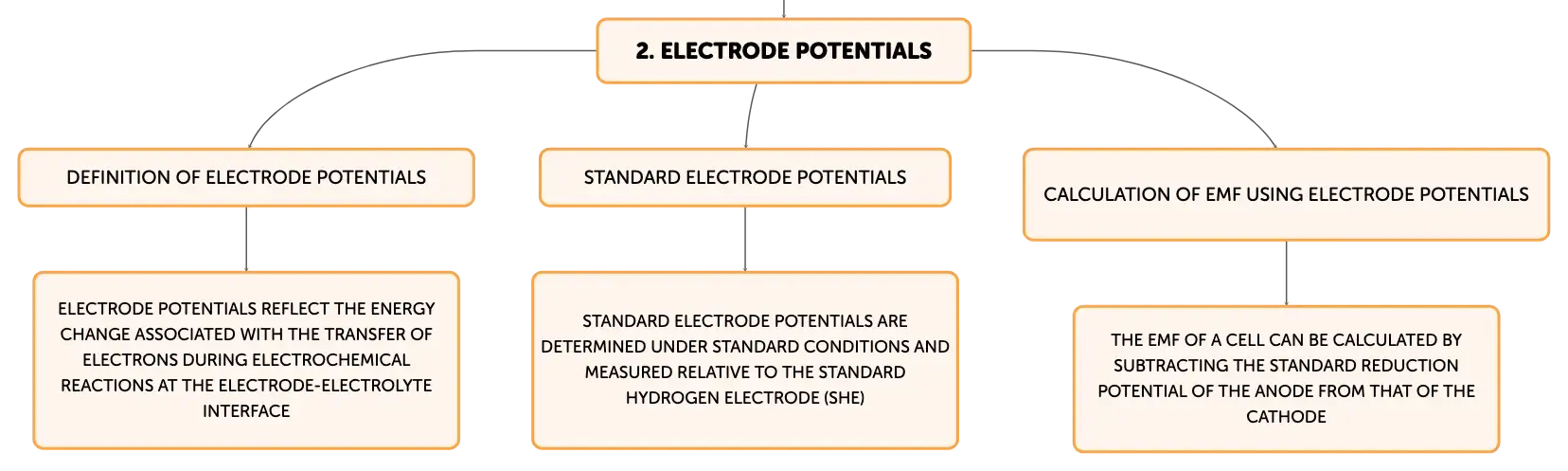

The Significance of Electrode Potentials in Determining EMF

Electrode potentials are crucial for understanding the EMF of an electrochemical cell. These potentials reflect the energy change associated with the transfer of electrons during the electrochemical reactions at the electrode-electrolyte interface. The tendency of an electrode to lose or gain electrons is quantified by its oxidation and reduction potentials, respectively. Standard electrode potentials are determined under standard conditions (1 M concentration, 1 atm pressure, and 25°C) and are measured relative to the Standard Hydrogen Electrode (SHE), which has an arbitrarily assigned potential of zero volts. The EMF of a cell is the net difference in standard electrode potentials between the cathode and anode, providing a quantitative measure of the cell's ability to do electrical work.

Calculating Cell EMF Using Standard Reduction Potentials

The EMF of an electrochemical cell can be accurately calculated using the standard reduction potentials of the half-reactions involved. These potentials, listed in tables of standard electrode potentials, indicate the relative ability of different substances to gain electrons (be reduced). The standard reduction potential for each half-reaction is a measure of the energy change when one mole of electrons is transferred to the substance under standard conditions. To find the cell's EMF, one subtracts the standard reduction potential of the anode (oxidation half-reaction) from that of the cathode (reduction half-reaction). This calculation yields the total electromotive force available to drive the flow of electrons through the external circuit.

Methods and Units for Measuring EMF

The EMF of an electrochemical cell can be measured with high precision using a potentiometer, which compares the cell's potential to a known reference voltage without drawing current from the cell. Alternatively, a voltmeter can be used, though it may introduce a small error by drawing a slight current. The unit of EMF is the volt (V), equivalent to one joule per coulomb (J/C), which relates the concept of EMF to the energy expended in moving a charge through the potential difference. This measurement is fundamental in characterizing the energy conversion efficiency of electrochemical cells.

The Concept of Back EMF in Electrolytic Cells

Back EMF is a phenomenon encountered in electrolytic cells, where it represents the opposing potential that develops as a result of the products of electrolysis adsorbing onto the electrodes. This opposition can reduce the efficiency of the electrolysis process by effectively reducing the net voltage applied across the cell. To maintain the desired reaction rate, the external voltage must be increased to counteract the back EMF. Understanding and managing back EMF is essential for optimizing industrial electrolysis processes.

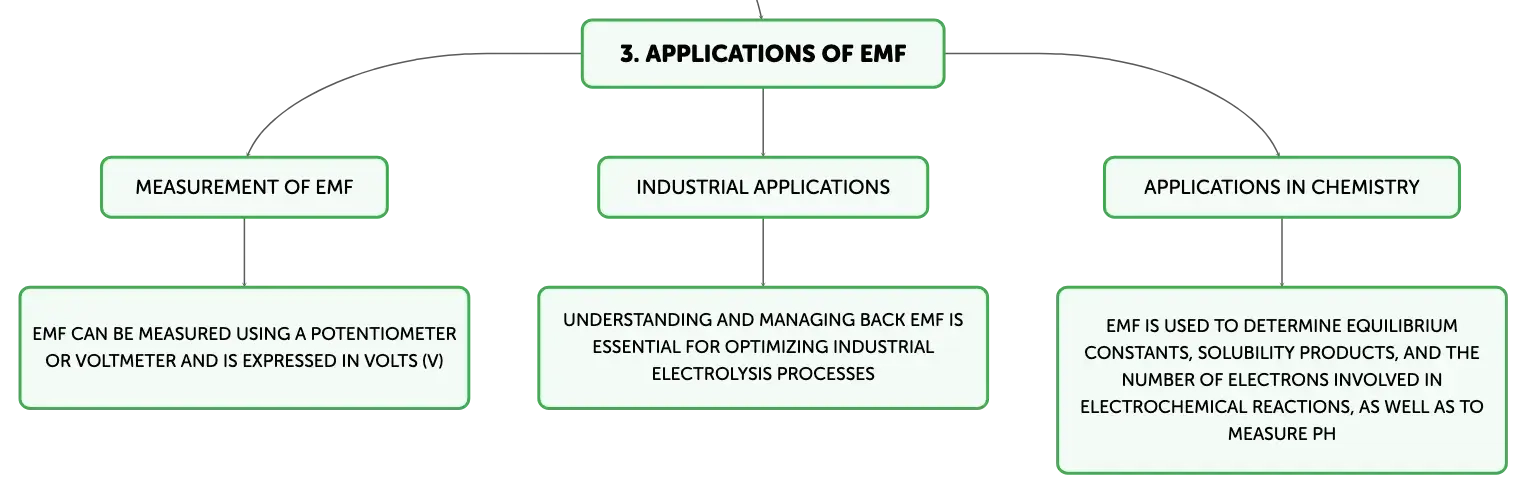

Practical Applications of EMF Measurements in Chemistry

EMF measurements have diverse applications in the field of chemistry. They are instrumental in determining the equilibrium constant for redox reactions, calculating the solubility product of sparingly soluble salts, and identifying the number of electrons involved in electrochemical reactions. EMF can also be used to measure the pH of a solution when using a pH-sensitive electrode. Furthermore, the sign of the EMF in a galvanic cell indicates the spontaneity of the reaction, with a positive EMF suggesting a spontaneous process. Conversely, a negative EMF in an electrolytic cell indicates a non-spontaneous process that requires external energy input. These applications highlight the importance of EMF in both theoretical and applied electrochemistry.
