Exploring the Fundamentals of Electroencephalograms (EEGs) and Event-Related Potentials (ERPs)

Electroencephalograms (EEGs) and Event-Related Potentials (ERPs) are instrumental techniques in neurophysiology for monitoring brain activity. EEGs capture the ongoing electrical fluctuations produced by the synchronous activity of neurons, which are recorded as waveforms. These waveforms are characterized by their frequency and amplitude, resulting in distinct patterns such as alpha, beta, theta, and delta waves, each associated with different states of brain activity. EEGs are invaluable in sleep research and the diagnosis of neurological disorders like epilepsy, where characteristic disruptions in normal brain wave patterns are observed.

Patient lying on a medical table with electrodes connected to the scalp for EEG in a calm and professional clinical environment.

The Methodology Behind EEGs and ERPs

The EEG procedure involves the strategic placement of electrodes across the scalp, which are connected to an amplifier and a recording device. A conductive gel or paste is often used to enhance the electrical conductivity between the electrodes and the skin. The recorded electrical signals are then visualized as waveforms representing the brain's electrical activity. ERPs are derived from EEG recordings but are specifically time-locked to external stimuli. By averaging the EEG response over multiple instances of a particular stimulus, ERPs can isolate the brain's specific responses to that stimulus, providing insight into cognitive processes.

Differentiating EEGs from ERPs

EEGs and ERPs are both based on the measurement of electrical activity in the brain via electrodes, but they serve different purposes. EEGs offer a continuous overview of brain activity, which can be analyzed to detect abnormalities or patterns related to various brain states. ERPs, by contrast, are event-specific potentials extracted from the EEG by averaging the response to repeated stimuli. This technique enhances the signal-to-noise ratio, allowing for the examination of the brain's responses to particular events or tasks.

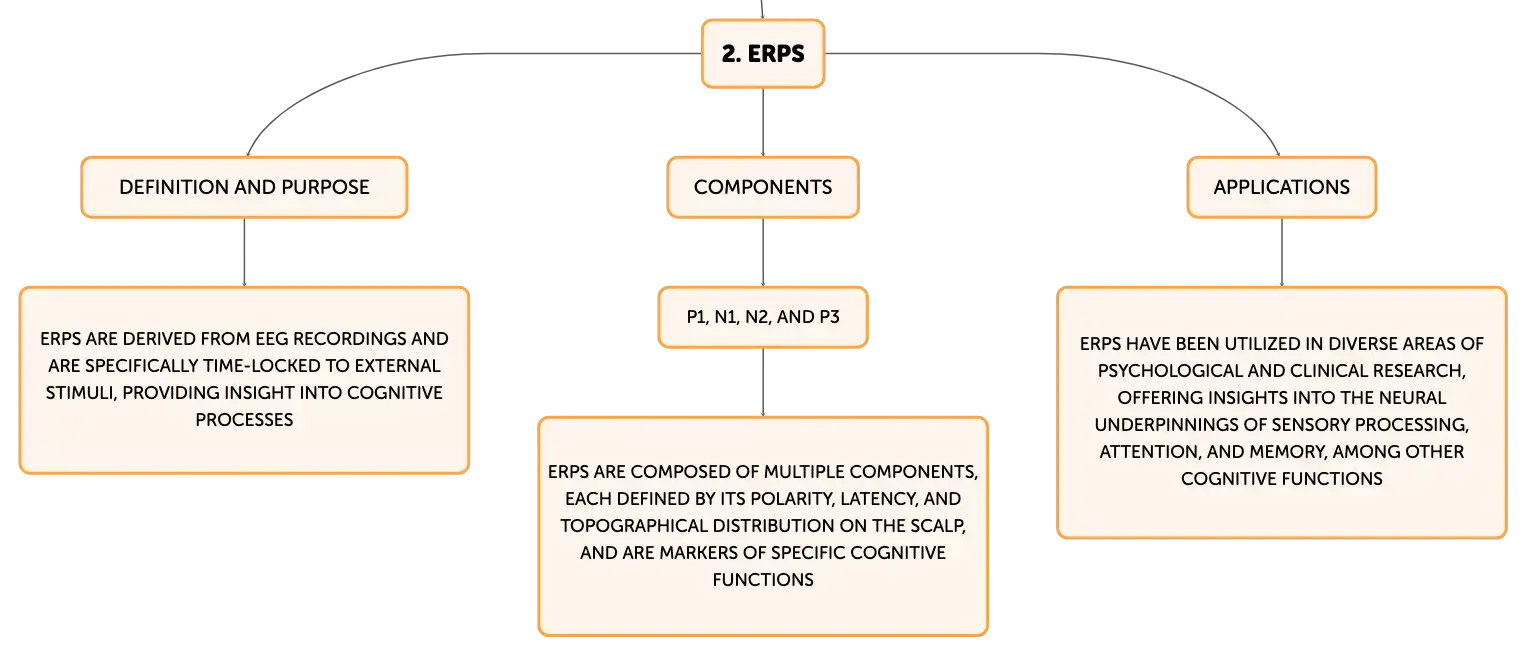

Components and Clinical Applications of Event-Related Potentials

ERPs are composed of multiple components, each defined by its polarity (positive or negative), latency (timing), and topographical distribution on the scalp. These components, such as P1, N1, N2, and P3, are markers of specific cognitive functions. For instance, the N2 component is often associated with conflict monitoring and cognitive control, while the P3 is related to attention and the processing of significant events. ERPs have been utilized in diverse areas of psychological and clinical research, offering insights into the neural underpinnings of sensory processing, attention, and memory, among other cognitive functions.

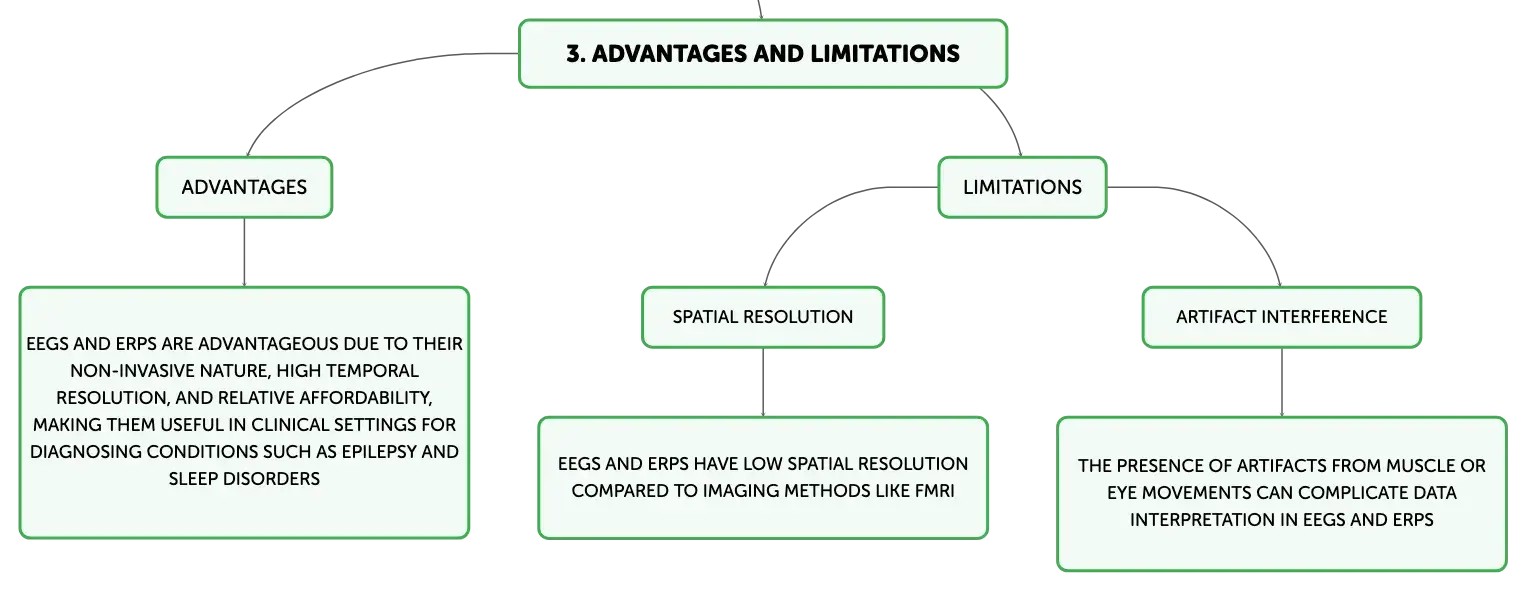

Advantages and Limitations of EEGs and ERPs

EEGs and ERPs are advantageous due to their non-invasive nature, high temporal resolution, and relative affordability. They are particularly useful in clinical settings for diagnosing conditions such as epilepsy and sleep disorders. ERPs benefit from the signal clarity achieved through averaging, which allows for the precise timing of cognitive processes. However, both techniques are constrained by their low spatial resolution compared to imaging methods like fMRI. Additionally, the requirement for electrode placement can be uncomfortable for some individuals, and the presence of artifacts from muscle or eye movements can complicate data interpretation.

Concluding Insights on EEGs and ERPs

EEGs and ERPs are critical tools in the field of cognitive neuroscience and clinical neurology, each with distinct applications and benefits. EEGs provide a broad picture of brain activity, useful for monitoring overall brain function and diagnosing neurological disorders. ERPs offer a more focused approach, allowing researchers to dissect the brain's responses to specific cognitive events. Despite their spatial limitations, these electrophysiological methods continue to be indispensable for advancing our understanding of brain dynamics and aiding in the diagnosis and treatment of brain-related conditions.
