Lattice Energy and Ionic Compounds

Exploring the Concept of Lattice Energy in Ionic Compounds

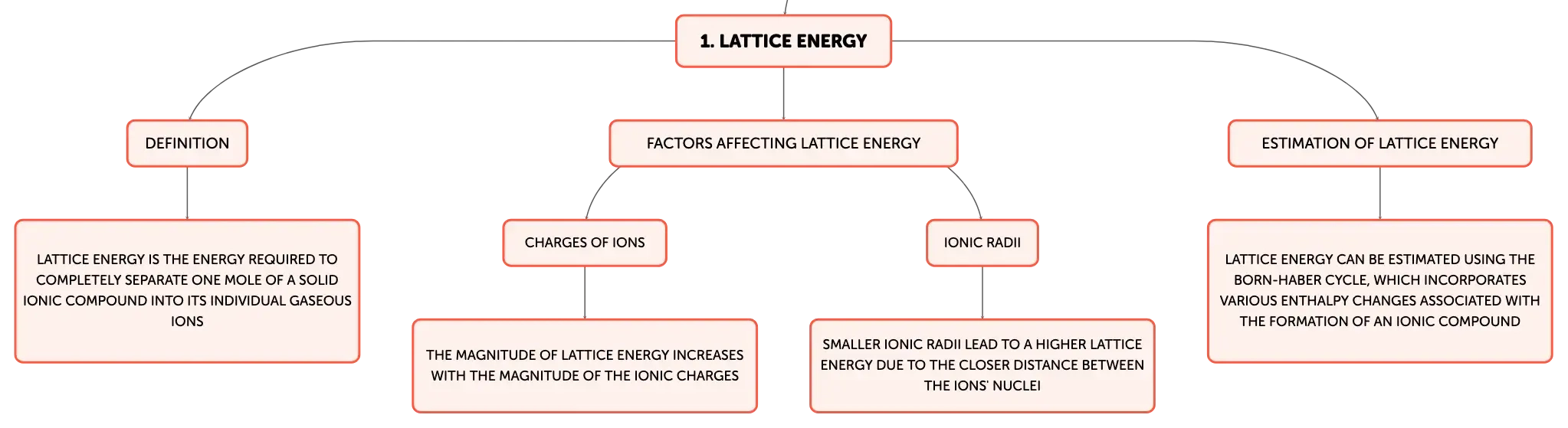

Lattice energy is a fundamental concept in the study of ionic compounds, which are materials composed of ions held together by strong electrostatic forces in a well-organized crystal lattice. In this lattice, cations and anions are systematically arranged such that each cation is surrounded by anions, and vice versa, to maximize the attractive forces and minimize repulsion. Lattice energy, denoted as \( \Delta H_{latt} \), is defined as the energy required to completely separate one mole of a solid ionic compound into its individual gaseous ions. It is a direct measure of the strength of the ionic bonds within the crystal lattice and is inversely related to the stability of the ionic compound. High lattice energies correspond to ionic compounds with high melting and boiling points, such as sodium chloride (NaCl), indicating strong ionic bonds that require substantial energy to disrupt.

The Nature of Ionic Bonding and the Role of Electronegativity

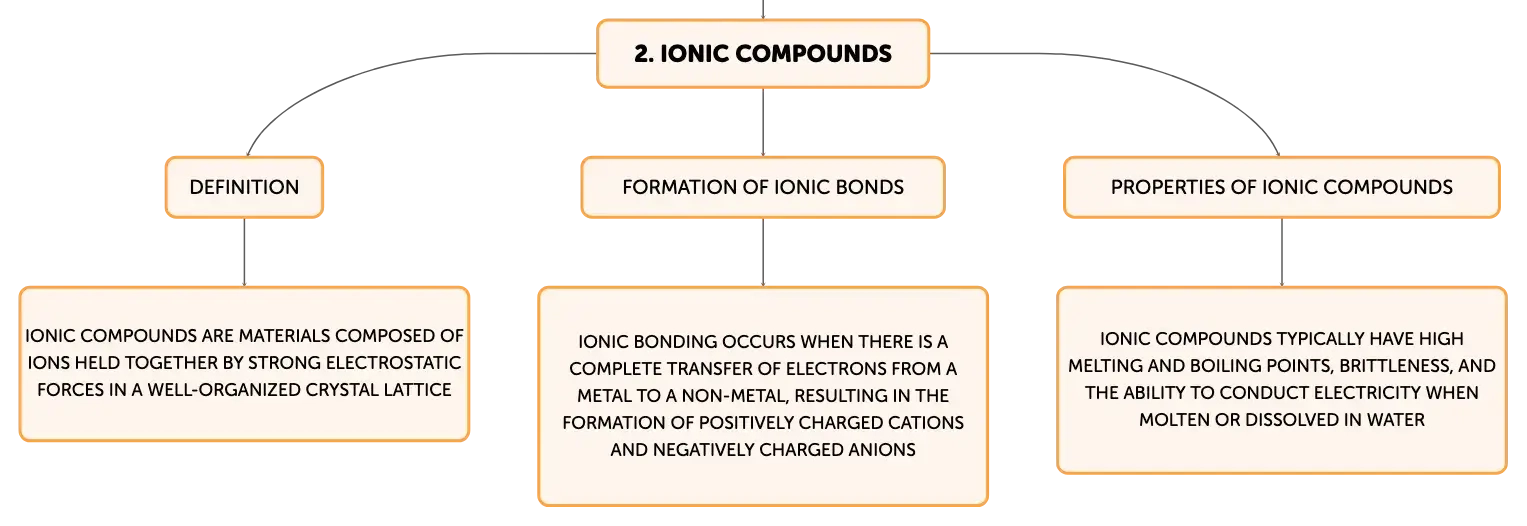

Ionic bonding is the electrostatic attraction that occurs between atoms when there is a complete transfer of electrons from a metal to a non-metal, resulting in the formation of positively charged cations and negatively charged anions. This transfer is typically driven by a significant difference in electronegativity, which is the tendency of an atom to attract electrons towards itself. Electronegativity values increase from left to right across a period and from bottom to top within a group on the periodic table. A bond is generally classified as ionic when the electronegativity difference between the bonding atoms is greater than 1.7. For instance, in potassium chloride (KCl), the electronegativity difference between potassium (EN = 0.8) and chlorine (EN = 3.16) is approximately 2.36, which is well above the threshold, resulting in the formation of an ionic bond. Ionic compounds are typically solid at room temperature and exhibit characteristic properties such as brittleness, high melting and boiling points, and the ability to conduct electricity when molten or dissolved in water.

Determinants of Lattice Energy in Ionic Solids

The magnitude of lattice energy in ionic solids is determined by several factors, most notably the charges of the ions and their ionic radii. The lattice energy increases with the magnitude of the ionic charges; the greater the charge, the stronger the electrostatic attraction between the ions, and thus the higher the lattice energy. Similarly, smaller ionic radii lead to a decrease in the distance between the ions' nuclei, enhancing the electrostatic attraction and resulting in a higher lattice energy. These principles enable chemists to compare the lattice energies of different ionic solids and to understand the underlying forces that influence their formation, stability, and physical properties.

Estimating Lattice Energy through the Born-Haber Cycle

Direct measurement of lattice energy is not feasible; however, it can be estimated using the Born-Haber cycle, a hypothetical series of steps that represents the formation of an ionic compound from its constituent elements in their standard states. The cycle incorporates the enthalpy changes associated with sublimation, bond dissociation, ionization, and electron affinity. The lattice energy is inferred from the sum of these enthalpy changes, adjusted by the enthalpy of formation of the ionic compound. For example, the lattice energy of sodium chloride (NaCl) can be estimated through the Born-Haber cycle, with the resulting value reflecting the energy released when NaCl is formed from sodium and chlorine in their gaseous ionic forms.

The Importance of Lattice Energy in Chemistry

Lattice energy is a vital concept for chemists in understanding the strength of ionic bonds and the energetics involved in the formation and disruption of ionic compounds. It is crucial in the synthesis and design of new materials, as well as in the analysis of their properties and potential applications. Lattice energy also provides insight into the physical characteristics of ionic compounds, such as their hardness, brittleness, and thermal behavior. A thorough grasp of lattice energy and its implications allows students and researchers to delve into the intricacies of ionic solids and the cohesive forces that maintain their structure.
