Phase Diagrams and Matter States

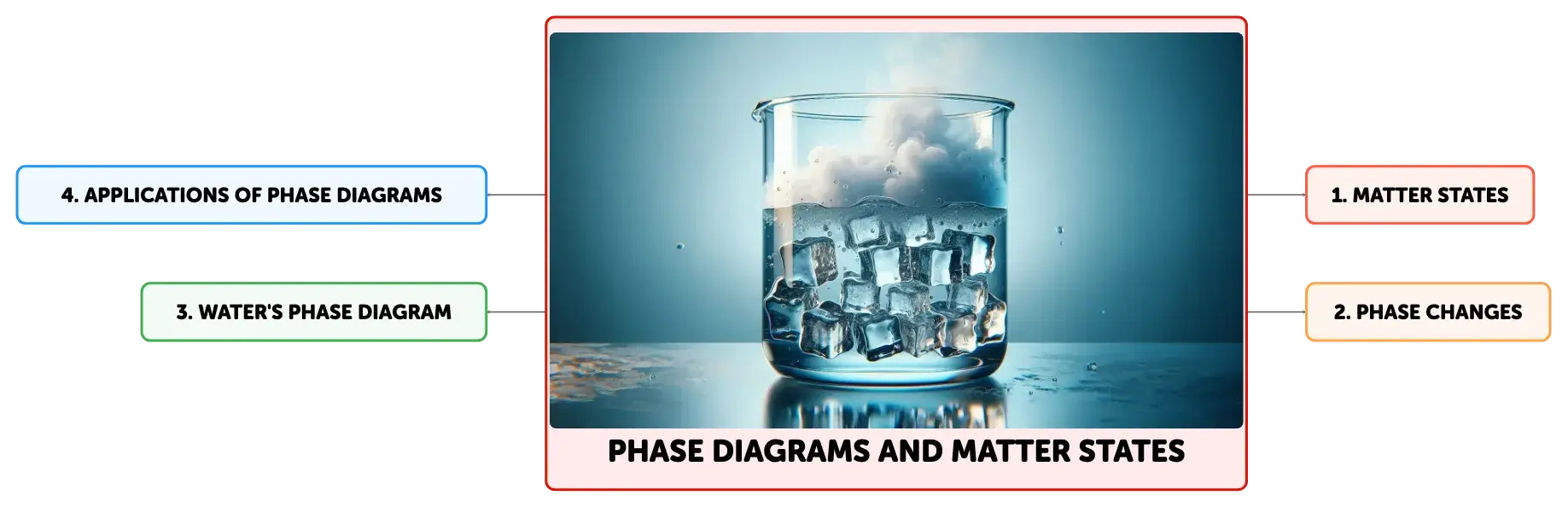

Concept Map
Understanding the states of matter—solid, liquid, and gas—and their phase transitions is crucial in science. This overview delves into the significance of phase diagrams, with a special focus on water's unique diagram, revealing how temperature and pressure influence matter's state. Practical applications of these diagrams span from material science to culinary arts, highlighting their importance in various fields.
Summary
Outline
Exploring the States of Matter and Phase Transitions
Matter is commonly found in three principal states: solid, liquid, and gas. These states are distinguished by the arrangement and behavior of their constituent particles. In a solid, particles are tightly packed in a fixed arrangement and can only vibrate in place. In a liquid, particles are less tightly packed than in a solid and can move around each other, allowing the liquid to flow. In a gaseous state, particles are widely separated and move rapidly in all directions. Phase changes occur when matter transitions from one state to another due to the absorption or release of energy, typically in the form of heat. For example, heating a solid may cause it to melt into a liquid, while cooling a gas may cause it to condense into a liquid. These changes are a result of the increase or decrease in the kinetic energy of the particles, which affects their interactions and spacing.The Significance of Phase Diagrams in Understanding Matter
Phase diagrams are crucial graphical representations that map the phase behavior of substances as a function of temperature and pressure. These diagrams show the boundaries between different states of matter and the conditions under which each state is stable. For example, the line separating the solid and liquid regions indicates the melting point at various pressures, and the line separating the liquid and gas regions indicates the boiling point. Phase diagrams also reveal how changes in pressure can lead to phase transitions, such as how increasing pressure can cause a gas to become a liquid or a solid, similar to the effect of lowering temperature. By analyzing phase diagrams, scientists and engineers can predict the state of a substance under a wide range of conditions, which is essential for many practical applications.Deciphering Water's Unique Phase Diagram
The phase diagram of water is particularly interesting due to its unique properties. It features a triple point, the specific combination of temperature and pressure where solid ice, liquid water, and water vapor can coexist in equilibrium. Another notable point is the critical point, above which the distinction between liquid and gas phases disappears, and water becomes a supercritical fluid with properties of both phases. The diagram also delineates the lines of equilibrium for sublimation (solid to gas), deposition (gas to solid), vaporization (liquid to gas), and condensation (gas to liquid), as well as the melting and freezing processes. Water's solid phase is especially complex, with more than a dozen known ice polymorphs, each with a different crystal structure and density, which can be represented on an extended phase diagram.Enhancing Comprehension Through Phase Diagram Practice Problems
Engaging with practice problems is an effective way to deepen one's understanding of phase diagrams. These problems may involve identifying the phase of a substance like water at a given temperature and pressure, determining the possible phases under certain conditions, or predicting the phase transitions that occur with changes in temperature at a constant pressure. Such exercises not only improve proficiency in interpreting phase diagrams but also enhance the ability to apply this knowledge to practical situations, such as material science and chemical engineering.Practical Applications of Phase Diagrams in Various Fields
Phase diagrams have significant implications beyond the classroom, impacting various scientific fields and everyday life. They are instrumental in predicting the behavior of substances under different environmental conditions, which is vital for designing experiments, developing industrial processes, and even understanding culinary techniques. For instance, phase diagrams explain why cooking times and temperatures may need adjustment at high altitudes, where atmospheric pressure is lower. The insights provided by phase diagrams are invaluable for a multitude of applications, including the synthesis of new materials, the study of geological phenomena, and the optimization of food storage and preservation methods.Concluding Insights on Water's Phase Diagram
In conclusion, phase diagrams are indispensable tools that provide a visual representation of how a substance's phase changes with temperature and pressure. The phase diagram of water is a key example, with its distinctive triple and critical points, as well as the various phase boundaries that define the conditions for transitions between solid, liquid, and gas. These diagrams are essential for predicting the state of matter in diverse environments and hold great importance for scientific research, technological development, and practical everyday applications.
Show More

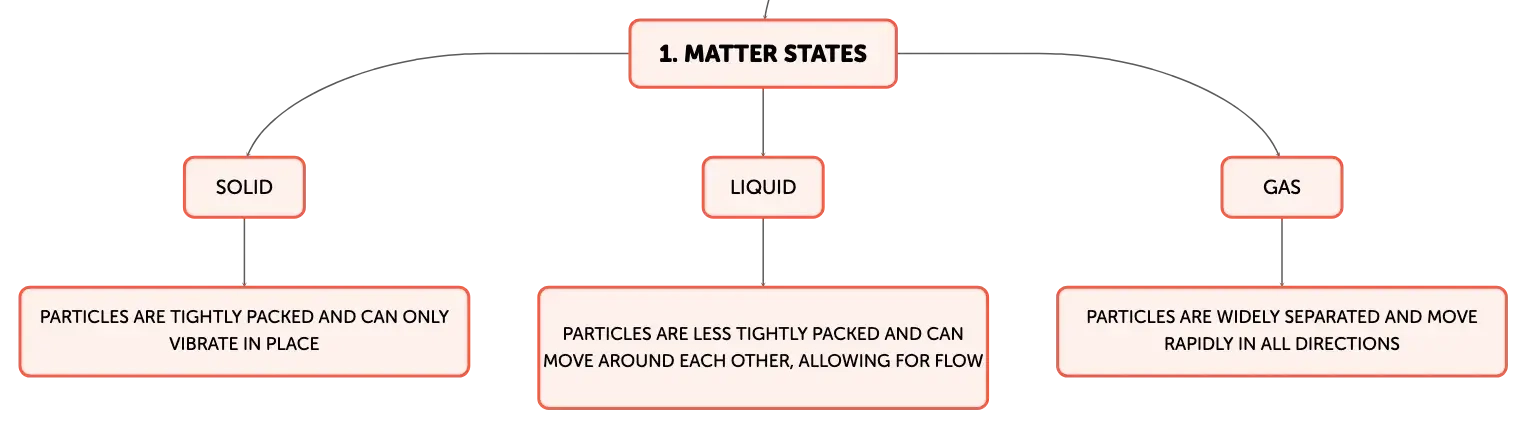

Matter States
Solid
Particles are tightly packed and can only vibrate in place
Liquid
Particles are less tightly packed and can move around each other, allowing for flow
Gas
Particles are widely separated and move rapidly in all directions

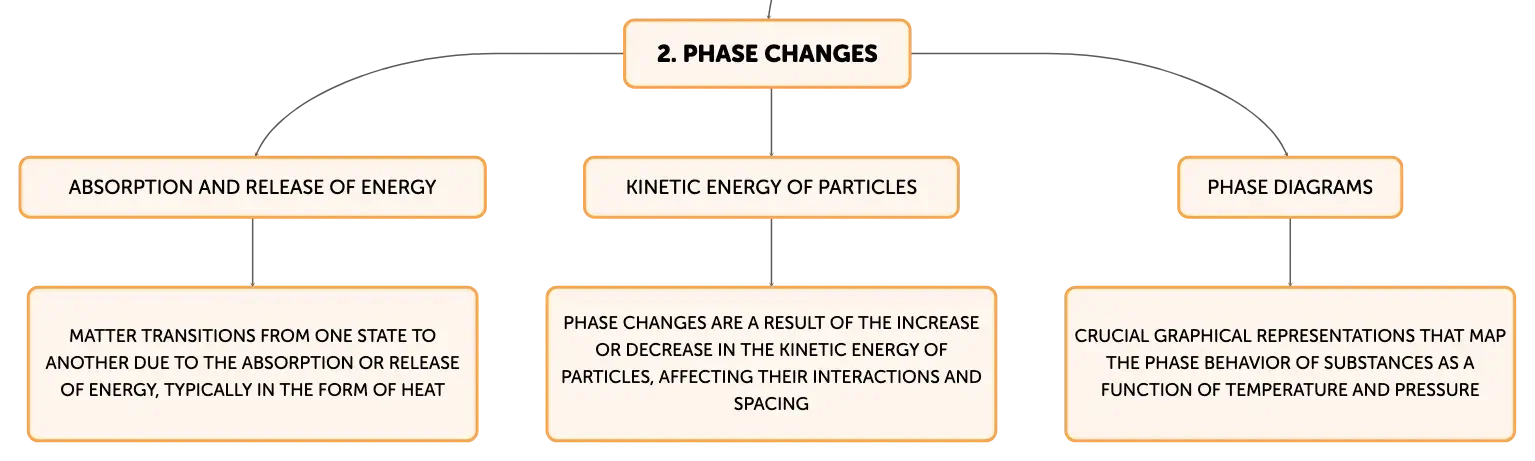

Phase Changes
Absorption and Release of Energy
Matter transitions from one state to another due to the absorption or release of energy, typically in the form of heat
Kinetic Energy of Particles
Phase changes are a result of the increase or decrease in the kinetic energy of particles, affecting their interactions and spacing
Phase Diagrams
Crucial graphical representations that map the phase behavior of substances as a function of temperature and pressure

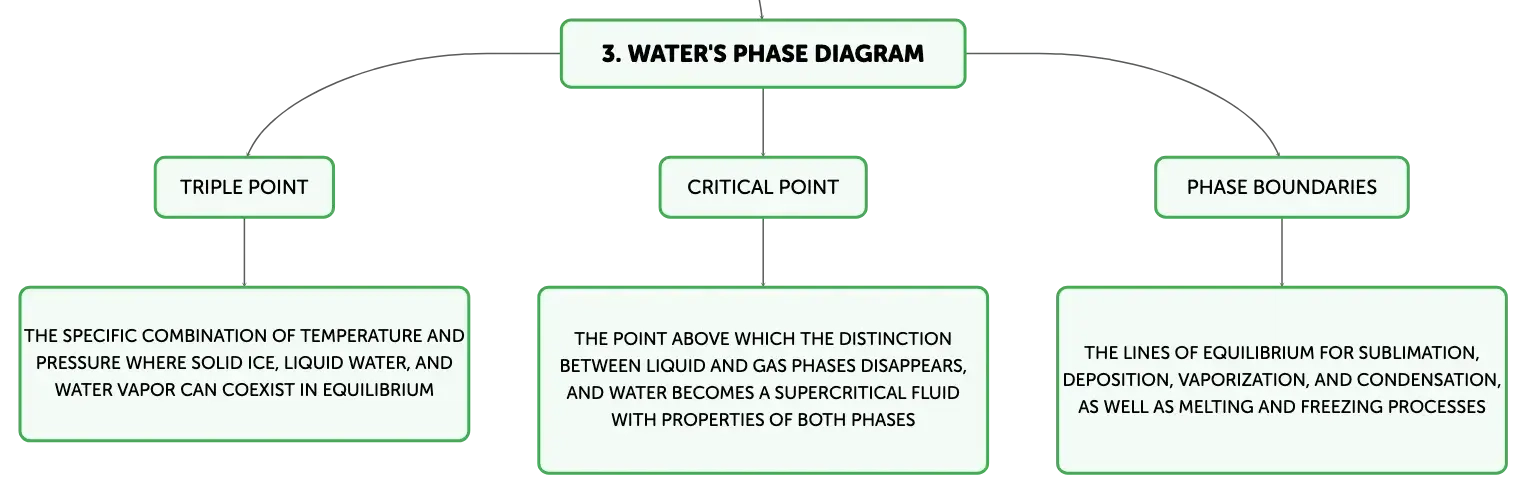

Water's Phase Diagram
Triple Point
The specific combination of temperature and pressure where solid ice, liquid water, and water vapor can coexist in equilibrium
Critical Point
The point above which the distinction between liquid and gas phases disappears, and water becomes a supercritical fluid with properties of both phases
Phase Boundaries
The lines of equilibrium for sublimation, deposition, vaporization, and condensation, as well as melting and freezing processes

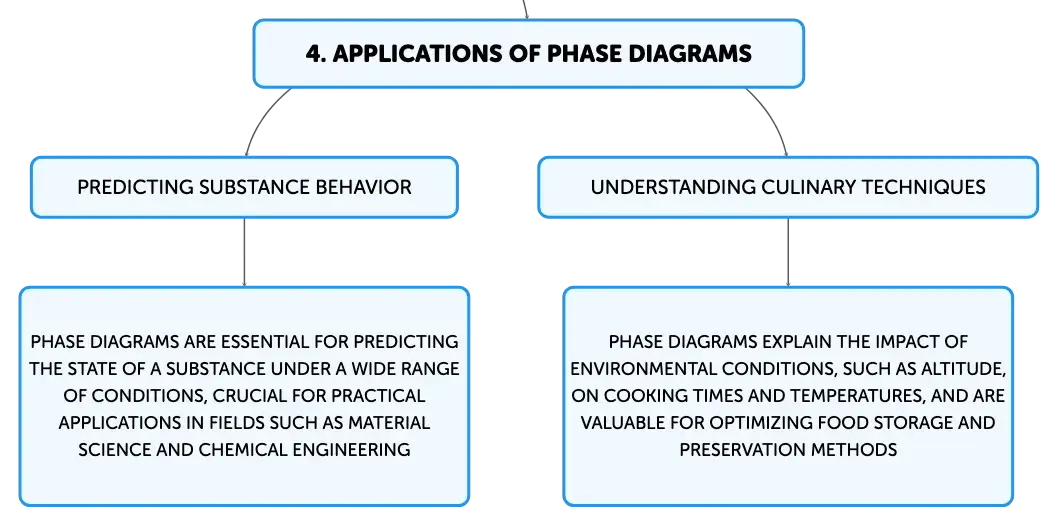

Applications of Phase Diagrams
Predicting Substance Behavior
Phase diagrams are essential for predicting the state of a substance under a wide range of conditions, crucial for practical applications in fields such as material science and chemical engineering
Understanding Culinary Techniques
Phase diagrams explain the impact of environmental conditions, such as altitude, on cooking times and temperatures, and are valuable for optimizing food storage and preservation methods
Phase Diagrams and Matter States
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Solid State Particle Arrangement
Particles tightly packed in fixed arrangement, only vibrate in place.
01
Liquid State Particle Behavior
Particles less tightly packed than solid, move around each other, allowing flow.
02
Gas State Particle Movement
Particles widely separated, move rapidly in all directions.
