Principles of Paper Chromatography

Paper chromatography is a widely used analytical technique that separates components of a mixture based on their solubility. It relies on the partitioning of substances between a mobile phase, usually a solvent, and a stationary phase, which is a paper impregnated with a polar substance such as water. As the solvent moves up the paper by capillary action, it carries along the different components of the mixture. These components move at various rates due to their differing affinities for the mobile and stationary phases, leading to their separation. The resulting pattern, known as a chromatogram, allows for the determination of retention factors (Rf values), which are instrumental in identifying the substances present.

Paper chromatography experiment with vertical stripe and colored spots separating in a solvent, in a defocused laboratory.

The Role of Stationary and Mobile Phases

The stationary phase in paper chromatography consists of a paper matrix that holds water molecules within its cellulose fibers, creating a polar environment. This environment can engage in hydrogen bonding and dipole-dipole interactions with the analytes. The mobile phase is a solvent chosen based on its ability to dissolve the mixture's components and carry them through the stationary phase. The choice of solvent can be polar or nonpolar, depending on the nature of the substances being analyzed. The differential affinity of each component for the stationary and mobile phases affects their rate of migration, which is quantified by their Rf values.

Determination and Significance of Rf Values

Rf values are calculated by dividing the distance a substance has traveled from the application point by the distance the solvent front has moved. These dimensionless numbers are characteristic for each substance under consistent experimental conditions, making them useful for identification purposes. Substances with higher Rf values have a greater solubility in the mobile phase, while those with lower Rf values are more attracted to the stationary phase. By comparing the Rf values obtained from an experiment to those of known substances, one can deduce the identity of the components in the mixture.

Conducting Paper Chromatography

To perform paper chromatography, a baseline is drawn on the chromatography paper, and a small amount of the sample mixture is applied as a spot above this line. The paper is then suspended in a container with a suitable solvent, with the solvent level below the baseline to prevent the sample from dissolving into the solvent pool. A cover is often used to maintain a saturated atmosphere and minimize solvent evaporation. As the solvent ascends by capillary action, it separates the mixture into individual components, which can be visualized and analyzed after the solvent has nearly reached the top of the paper.

Chromatogram Analysis and Component Identification

The chromatogram is analyzed by examining the number and position of the spots, each representing a different component of the mixture. The number of spots indicates the number of unique substances present. Identification is typically achieved by comparing the Rf values of the spots to those of known standards under the same experimental conditions. Alternatively, a reference substance may be chromatographed alongside the sample for direct comparison. Employing two-way chromatography, which uses two orthogonal solvents in sequence, can enhance the separation of components with similar Rf values, facilitating more accurate identification.

Benefits and Uses of Paper Chromatography

Paper chromatography is advantageous due to its cost-effectiveness, simplicity, and the small amount of sample required. Although it may not provide the precision of more advanced chromatographic techniques like gas chromatography or high-performance liquid chromatography, it is an effective method for the qualitative analysis of both organic and inorganic compounds. Its applications are varied, including the separation of plant pigments, purification of substances, drug analysis, and environmental testing. Paper chromatography also serves as an excellent educational tool, introducing students to the fundamental concepts of chromatography.

Paper Chromatography

Concept Map

Summary

Outline

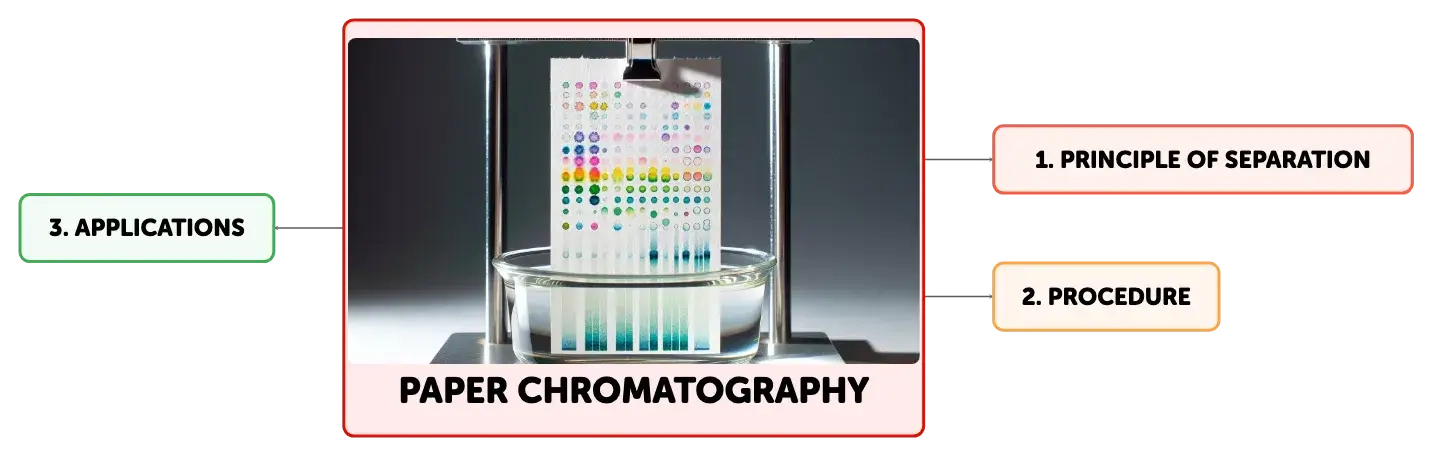

Paper Chromatography

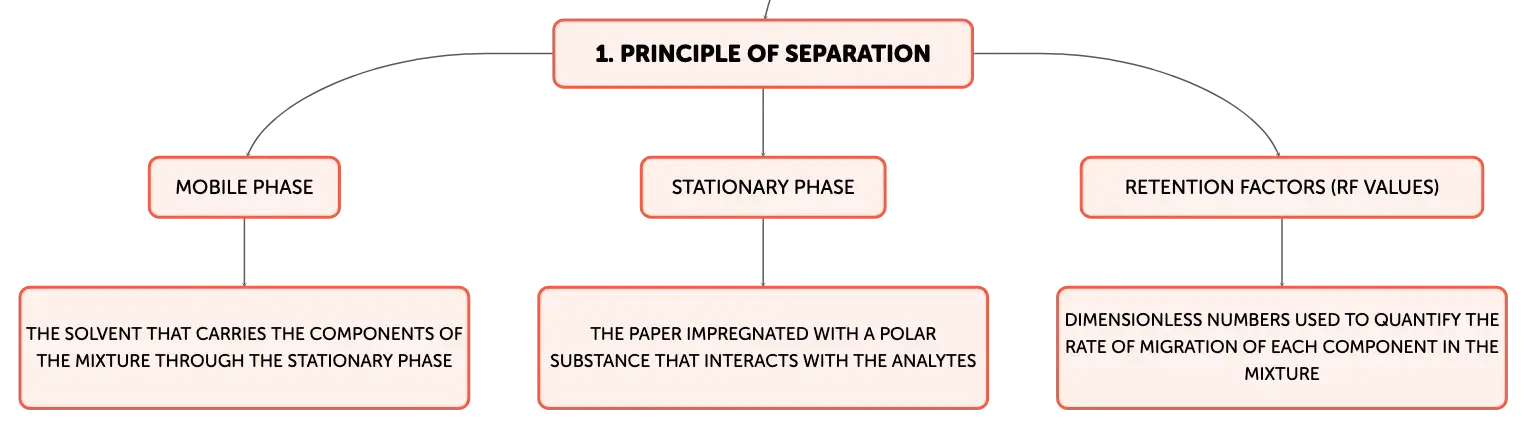

Principle of Separation

Mobile Phase

Stationary Phase

Retention Factors (Rf values)

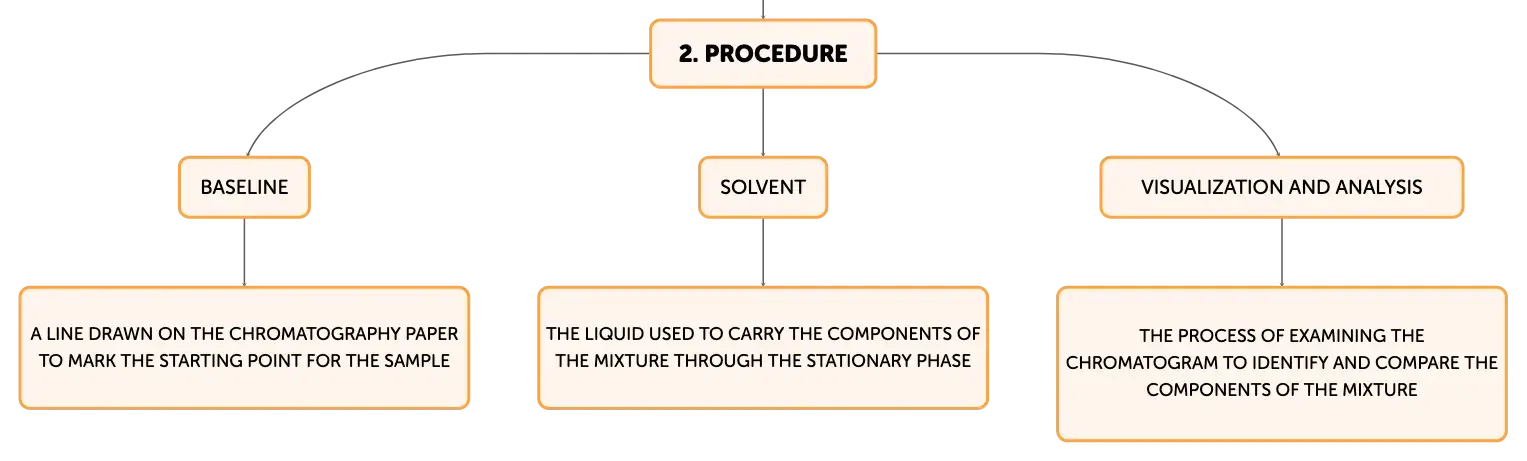

Procedure

Baseline

Solvent

Visualization and Analysis

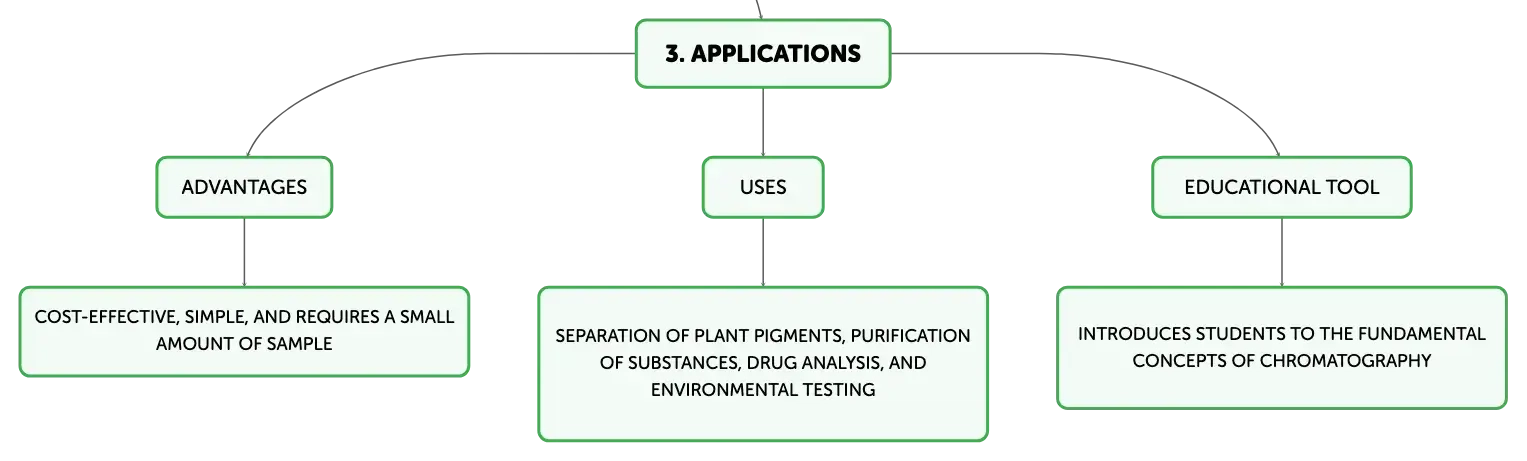

Applications
