Resonance in molecular chemistry is a key concept for understanding electron distribution in molecules like ozone, nitrate, and benzene. It explains why a single Lewis structure cannot fully represent certain molecules, necessitating the use of resonance structures to depict the true, delocalized nature of electron distribution. The resonance hybrid, an average of these structures, provides a more accurate representation of molecular stability and bond characteristics.

Summary

Outline

The Concept of Resonance in Molecular Structures

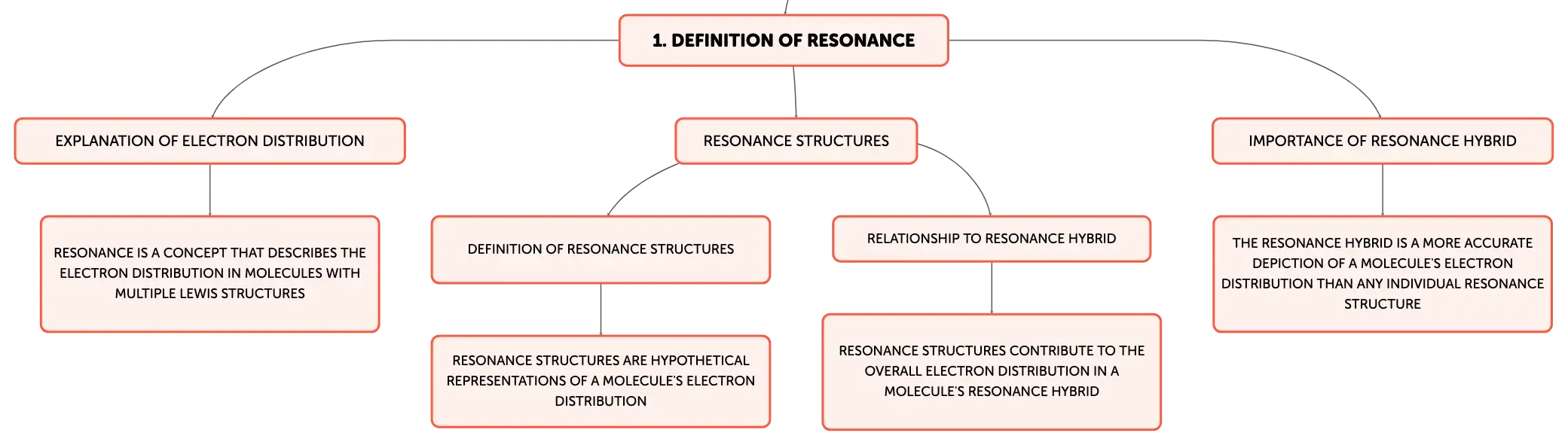

Resonance is a fundamental concept in molecular chemistry that explains the electron distribution in molecules where a single Lewis structure is insufficient to represent their actual electron configuration. These molecules are better described by a set of two or more Lewis structures, termed resonance structures, which are hypothetical and do not exist in isolation. The true structure of the molecule is a resonance hybrid, which is a composite of all the resonance structures and represents a more accurate depiction of the electron distribution within the molecule. This hybrid structure is more stable than any individual resonance structure due to the delocalization of electrons across multiple atoms, which lowers the potential energy of the molecule.

Glass bottle with blue and green marbled liquids on laboratory bench with colored test tubes, digital scale and scientific glassware.

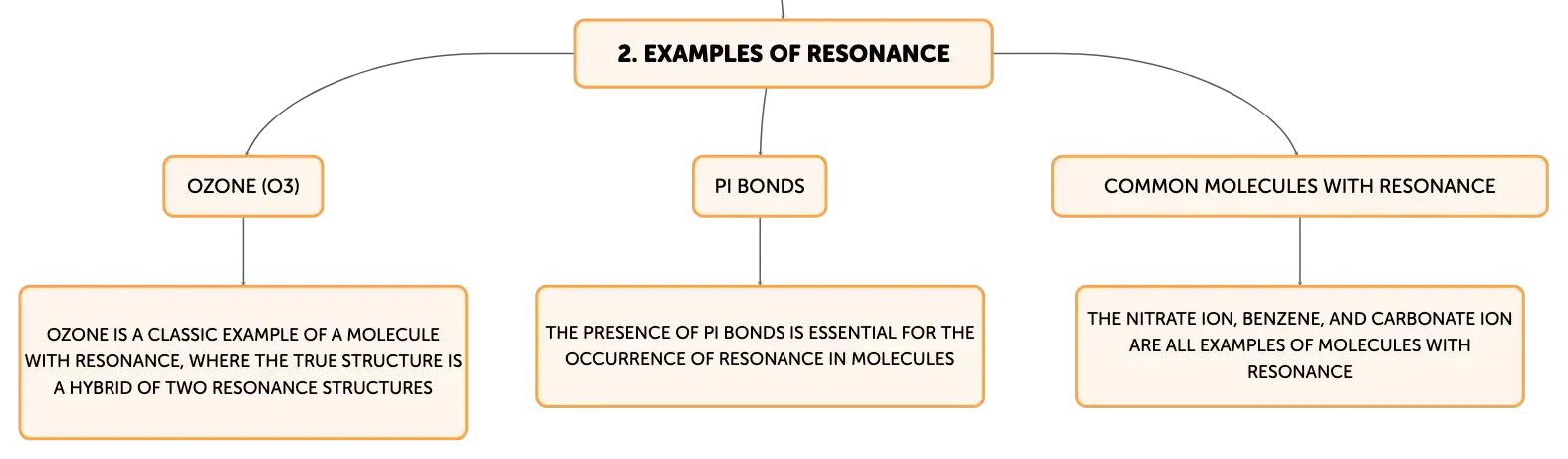

Resonance in the Ozone Molecule

Ozone (O3) serves as a classic example of a molecule that exhibits resonance. When drawing the Lewis structure for ozone, one encounters two possible structures that differ only in the placement of the double bond between the oxygen atoms. These two structures are resonance structures, and neither one alone accurately represents the true nature of ozone. Instead, the actual structure of ozone is a resonance hybrid of these two structures, with bond characteristics that are intermediate between a single and a double bond. This results in both O-O bonds in ozone having the same length and strength, which is consistent with experimental observations.

Pi Bonding and Electron Delocalization in Resonance

The occurrence of resonance is intimately linked to the presence of pi bonds, which are formed by the lateral overlap of p orbitals on adjacent atoms. In molecules with resonance, the pi electrons are not confined to a single bond or location but are delocalized over several atoms. This delocalization allows the electrons to be shared over a larger volume of space, which stabilizes the molecule by reducing electron-electron repulsion and lowering the overall energy. The concept of electron delocalization is crucial for understanding the enhanced stability of the resonance hybrid compared to any single resonance structure.

Depicting Resonance Structures and the Resonance Hybrid

To represent molecules with resonance, chemists draw all valid resonance structures and use double-headed arrows to denote their relationship to the resonance hybrid. It is important to note that these structures are not real entities that the molecule oscillates between; rather, they are a means to visualize the possible distributions of electrons. The resonance hybrid is a singular, stable structure that reflects the average electron distribution of all resonance structures. Misinterpretation of resonance structures as discrete states can lead to confusion; they are simply tools for understanding the true, delocalized nature of the electron distribution in the molecule.

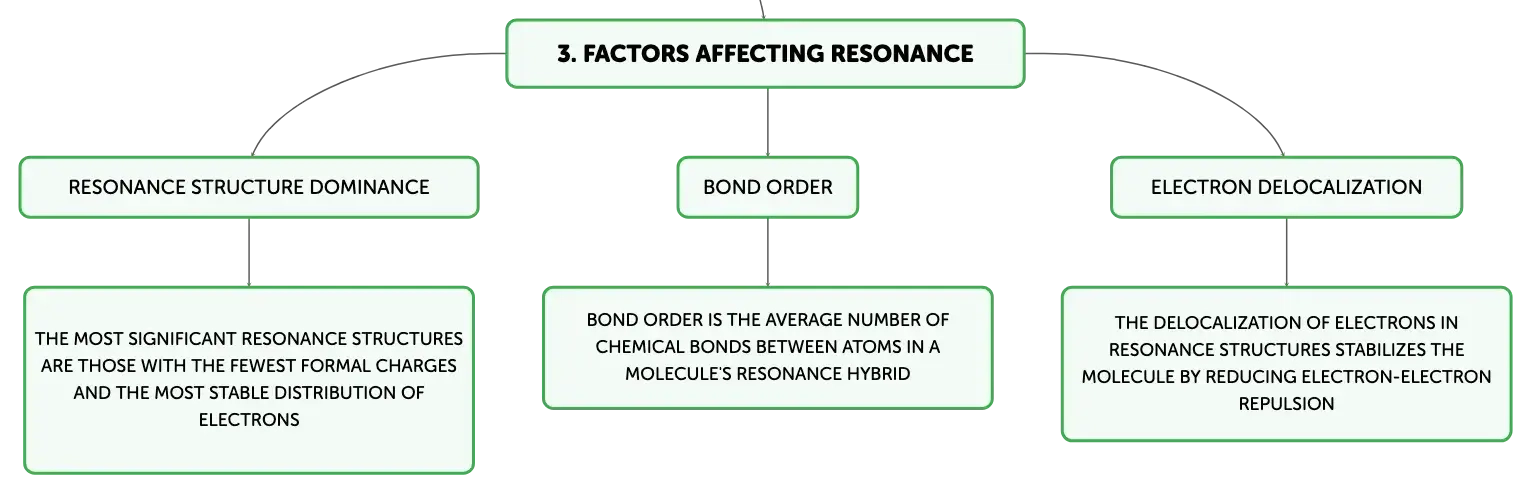

Evaluating Resonance Structures: Dominance and Equivalence

Not all resonance structures contribute equally to the resonance hybrid. The most significant contributors are generally those with the fewest formal charges, which are calculated based on the assumption of an equal distribution of electrons in bonds. When resonance structures have the same formal charges, the structure with the negative charge on the more electronegative atom is more stable and thus more significant. If all resonance structures have equivalent formal charges and are equally stable, they contribute equally to the hybrid. The concept of resonance structure dominance is essential for predicting the most likely electron distribution in the resonance hybrid.

Bond Order in Molecules Exhibiting Resonance

The bond order in a molecule with resonance is the average number of chemical bonds between a pair of atoms across all resonance structures. To calculate bond order, one must identify all resonance structures, determine the bond order in each structure, sum these bond orders, and divide by the number of structures. This average bond order reflects the intermediate bond characteristics of the resonance hybrid, providing insight into the actual bond lengths and strengths in the molecule.

Resonance in Familiar Molecules and Ions

Resonance is a widespread phenomenon in chemistry, observed in many common molecules and ions. The nitrate ion (NO3-) has three resonance structures, each contributing equally to the hybrid, resulting in an N-O bond order of 1.33. Benzene (C6H6) is another example, with two resonance structures that lead to a C-C bond order of 1.5 in the hybrid molecule. The carbonate ion (CO32-) also has three resonance structures, with a C-O bond order of 1.33 in the hybrid. These examples highlight the prevalence of resonance in chemical species and underscore its importance for accurately representing molecular structures.

Key Insights into Resonance in Chemistry

Resonance is a critical concept in chemistry that provides a more complete and accurate representation of molecules with delocalized electrons. It involves the combination of multiple resonance structures into a single, more stable hybrid structure with properties that are an average of the contributing structures. A thorough understanding of resonance is vital for interpreting molecular structures, assessing stability, and calculating bond orders. The study of resonance is indispensable for students of chemistry, as it is fundamental to the description of molecular behavior and properties in a wide array of chemical compounds.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

In molecular chemistry, ______ describes how electrons are distributed in molecules that cannot be depicted by a single ______ structure.

Resonance

Lewis

Definition of resonance in molecules

Resonance in molecules refers to a situation where more than one valid Lewis structure can be drawn for a molecule, indicating delocalized electrons.

Lewis structure variability in ozone

Ozone has two resonance structures that differ by the placement of the double bond among the oxygen atoms.
