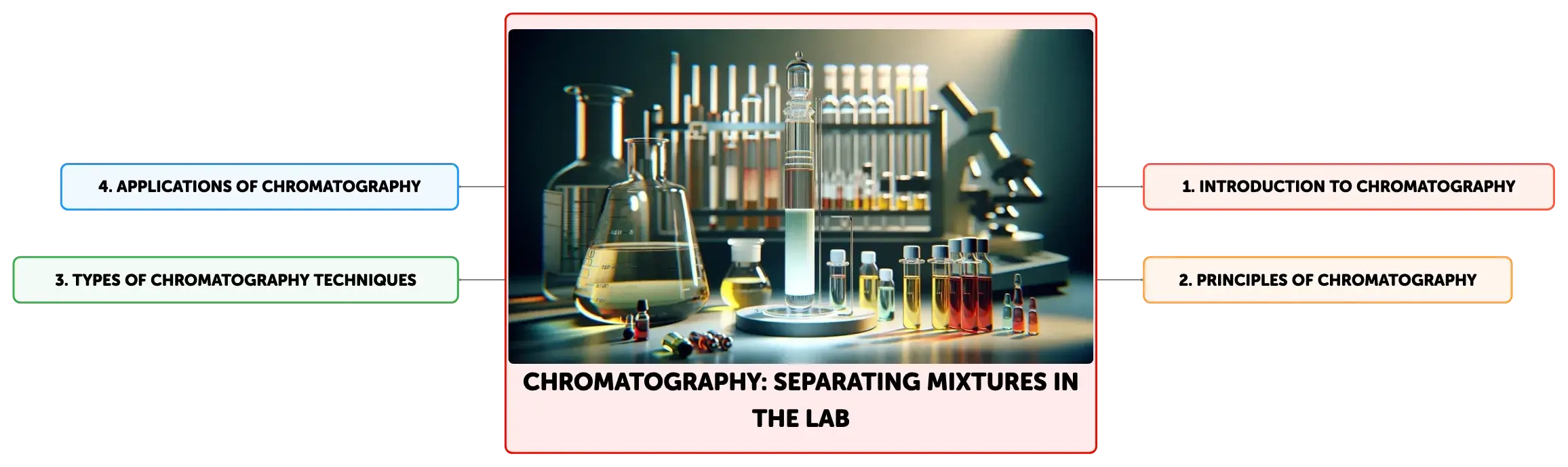

Chromatography: Separating Mixtures in the Lab

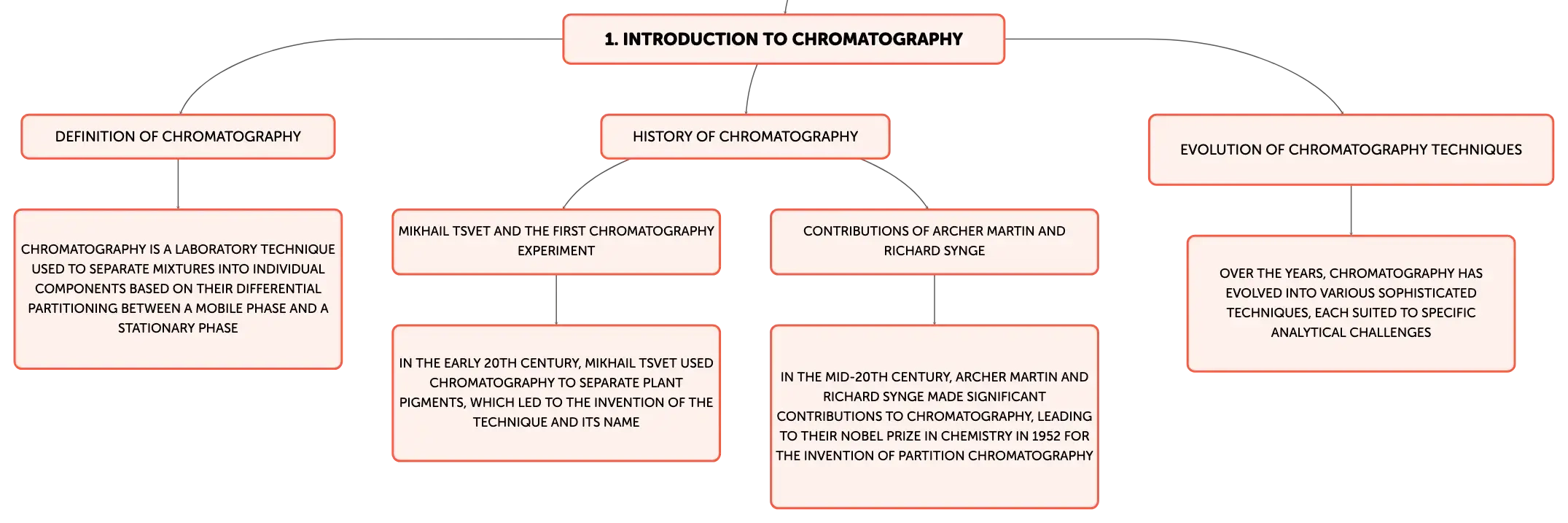

Exploring the Basics of Chromatography

Chromatography is a widely used laboratory technique for the separation of a mixture into its individual components. This process relies on the differential partitioning between a mobile phase and a stationary phase. The mobile phase, which can be a liquid or a gas, moves the mixture through the stationary phase, typically a solid or viscous liquid immobilized on a support. As each component in the mixture has a different affinity for the stationary and mobile phases, they move at different rates and separate from each other. The resulting chromatogram provides a visual profile of the separated substances, allowing for analysis and identification.

The Evolution of Chromatography

Chromatography was first conceptualized and employed by Mikhail Tsvet in the early 20th century. Tsvet used the technique to separate plant pigments, such as chlorophyll, which inspired the name chromatography, combining the Greek words for 'color' ('chroma') and 'writing' ('graphein'). The method has since evolved, with significant contributions from Archer Martin and Richard Synge in the mid-20th century, leading to their Nobel Prize in Chemistry in 1952 for the invention of partition chromatography. Over the years, chromatography has developed into various sophisticated techniques, each suited to specific analytical challenges.

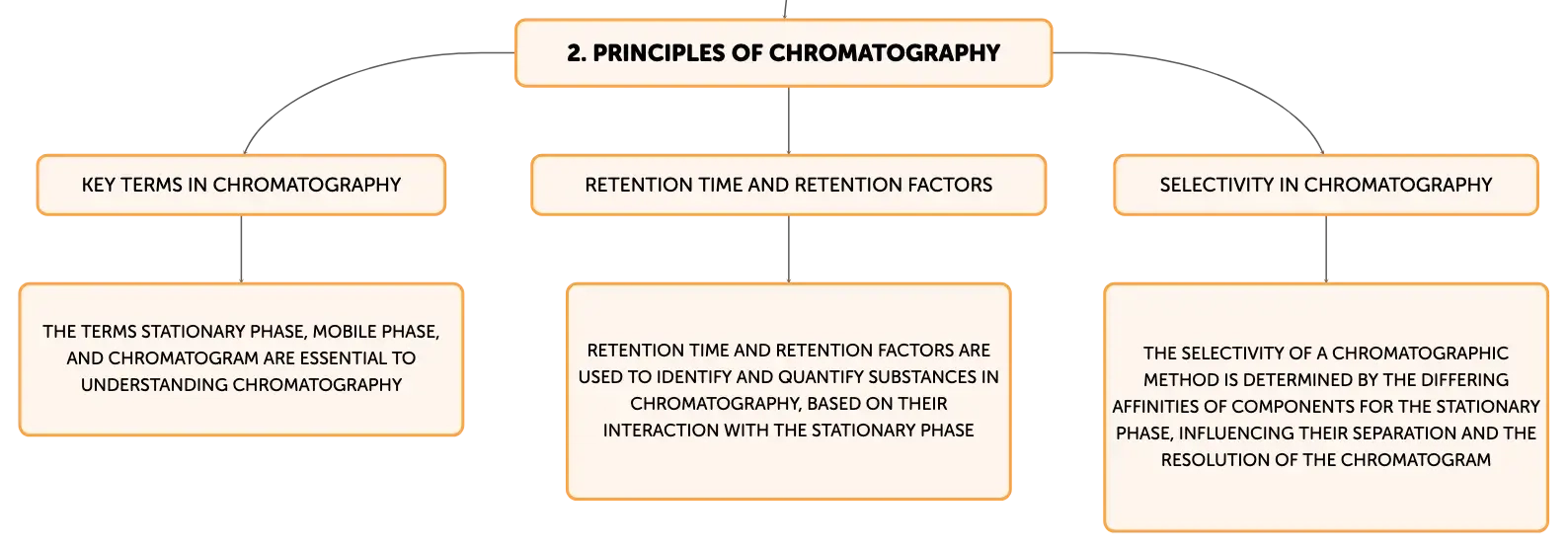

Fundamental Concepts and Terminology in Chromatography

Key to understanding chromatography are the terms stationary phase, mobile phase, and chromatogram. The stationary phase is the non-moving layer that the mobile phase flows through. The mobile phase is the solvent or carrier gas that transports the analytes. A chromatogram is the recorded output that shows the separation of the mixture's components, typically as peaks or bands. The retention time, or the time it takes for a component to pass through the system, is indicative of its interaction with the stationary phase and is used to help identify and quantify the substances present.

Quantifying Separation: Retention Factors and Selectivity

The degree of separation of components in chromatography can be quantified by retention factors, also known as Rf values in planar chromatography, or by retention times in column chromatography. These values provide a ratio that reflects the relative travel of a substance compared to the mobile phase front. Rf values are dimensionless and are specific to a substance under consistent experimental conditions, aiding in the identification of compounds. The selectivity of a chromatographic method is determined by the differing affinities of components for the stationary phase, influencing their separation and the resolution of the chromatogram.

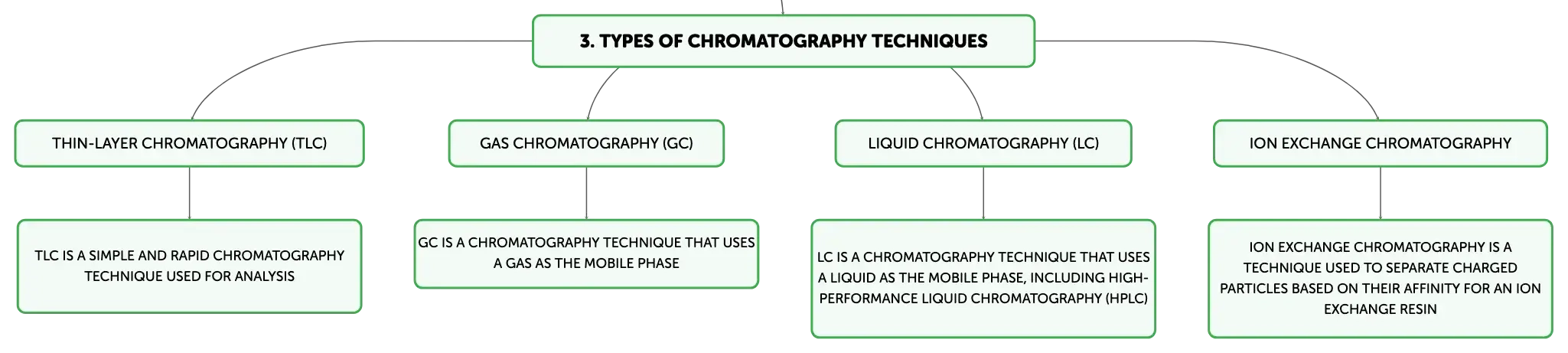

Diverse Chromatographic Techniques for Varied Applications

Chromatography encompasses a range of techniques, each tailored to particular analytical requirements. These include thin-layer chromatography (TLC), gas chromatography (GC), liquid chromatography (LC), including high-performance liquid chromatography (HPLC), and ion exchange chromatography, among others. The choice of method depends on the physical and chemical properties of the components to be separated, the nature of the mixture, and the objectives of the analysis. For example, TLC is valued for its simplicity and rapid analysis, while HPLC is favored for its high resolution and sensitivity.

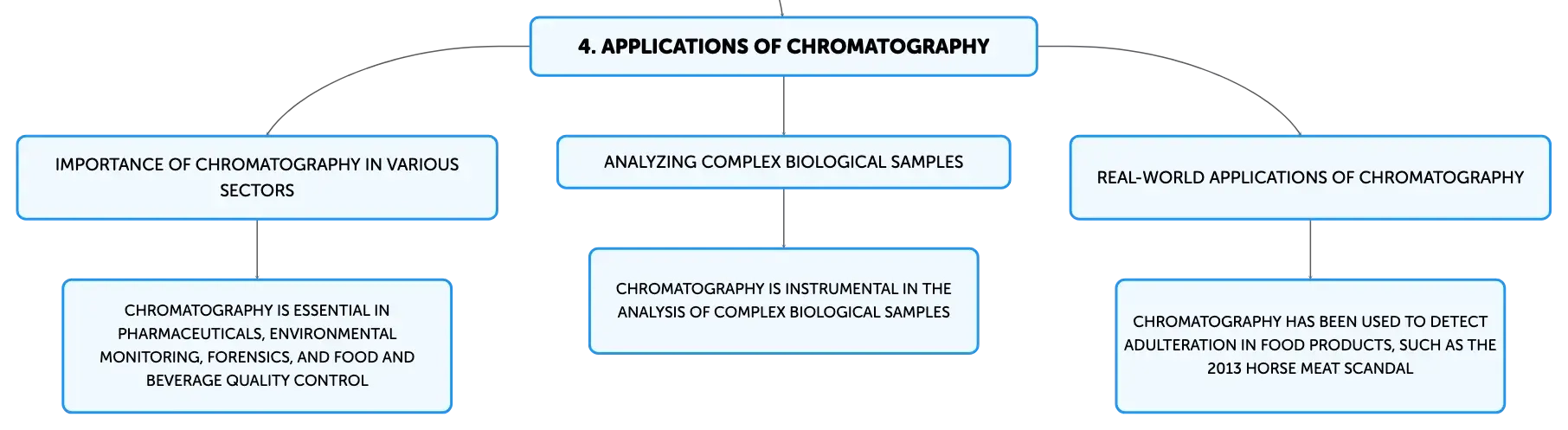

Chromatography's Role in Diverse Scientific and Industrial Applications

Chromatography is indispensable in various sectors, including pharmaceuticals, environmental monitoring, forensics, and food and beverage quality control. It is instrumental in the analysis of complex biological samples, the detection of contaminants in water, the identification of drugs in forensic investigations, and the assurance of product consistency in manufacturing processes. A notable application was its use in detecting adulteration during the 2013 horse meat scandal, where chromatographic techniques were crucial in identifying horse DNA in products mislabeled as containing beef.

The Educational and Practical Importance of Chromatography

Chromatography is not only a fundamental tool in scientific research and industry but also serves as an important educational concept. It illustrates the principles of solute-solvent interactions, the importance of chemical properties in separation processes, and the practical application of these concepts in real-world scenarios. The technique's versatility and the ability to tailor it to specific analytical needs make it an essential topic for students in chemistry and related fields. Understanding chromatography is crucial for those pursuing careers in analytical science and its various applications.
