Orbital Hybridization: Understanding Chemical Bonding

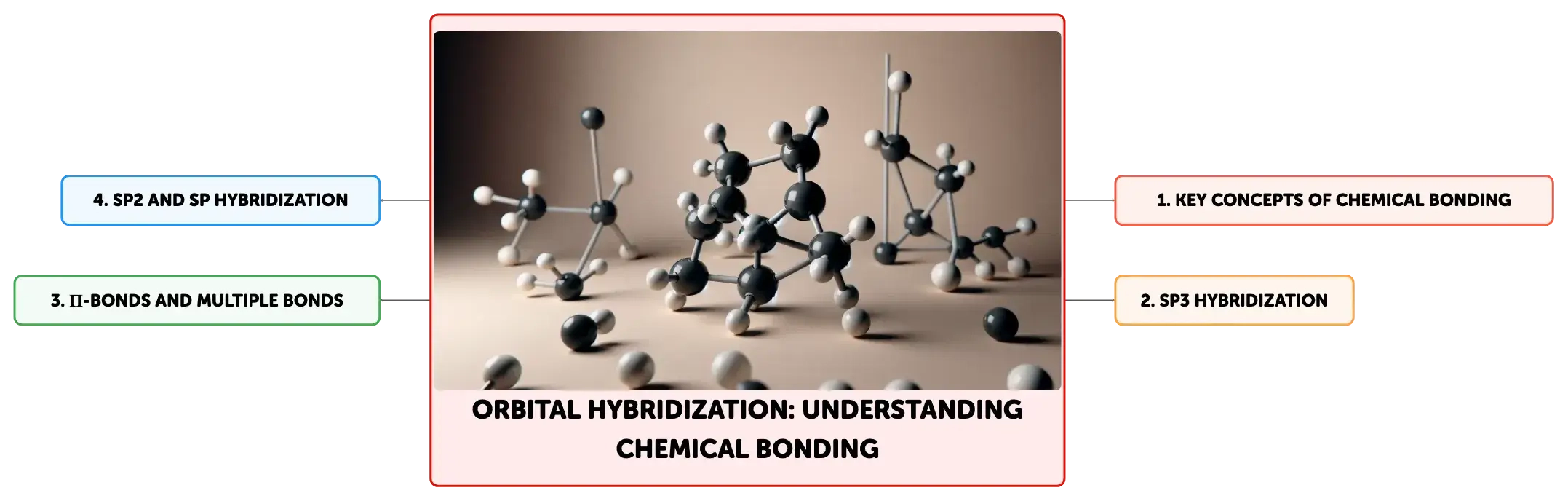

Concept Map
Orbital hybridization is a fundamental concept in chemistry that explains how atomic orbitals merge to form hybrid orbitals, leading to the formation of σ- and π-bonds. It refines valence bond theory, accounting for the geometry and energy of bonds. Sp3, sp2, and sp hybridizations correspond to single, double, and triple bonds, shaping the molecular geometry into tetrahedral, trigonal planar, and linear forms, respectively.
Summary
Outline
Fundamentals of Orbital Hybridization in Chemical Bonding
Orbital hybridization is a key concept in chemical bonding that describes the merging of atomic orbitals to form new, equivalent hybrid orbitals conducive to bond formation. This theory refines the valence bond theory by explaining the geometry and energy equivalence of bonds in molecules. Valence bond theory identifies σ-bonds, which result from the head-on overlap of orbitals, and π-bonds, which form through the side-on overlap of orbitals. Hybridization accounts for molecular bonding patterns by combining s, p, and sometimes d orbitals to create hybrid orbitals such as sp3, sp2, and sp, corresponding to the formation of single, double, and triple bonds, respectively.The Role of sp3 Hybridization in Single Bonds
Sp3 hybridization occurs when one s-orbital and three p-orbitals from the same atom mix to yield four sp3 hybrid orbitals of equal energy. This process is essential for atoms like carbon in methane (CH4), enabling the formation of four equivalent bonds. In its ground state, carbon has two electrons in the 2s orbital and two in the 2p orbitals. Sp3 hybridization promotes one of the 2s electrons to the 2p level, resulting in four unpaired electrons that are then redistributed into the four sp3 orbitals. The tetrahedral arrangement of these orbitals, with bond angles of 109.5°, facilitates the formation of σ-bonds with hydrogen atoms.Significance of π-Bonds in Hybridization
π-Bonds are integral to the structure of molecules with multiple bonds, forming from the parallel overlap of p-orbitals. In double bonds, one of the bonds is a σ-bond and the other is a π-bond, while in triple bonds, one is a σ-bond and two are π-bonds. π-Bonds allow for electron density on both sides of the bonding axis, which is a distinctive feature compared to σ-bonds. Understanding the nature of π-bonds is crucial for comprehending the electronic structure and properties of molecules with double and triple bonds.Exploring sp2 Hybridization in Double Bonds
Sp2 hybridization involves the combination of one s-orbital with two p-orbitals to form three sp2 hybrid orbitals, which lie in a plane at 120° angles to each other. In ethene (C2H4), each carbon atom undergoes sp2 hybridization, creating three σ-bonds with two hydrogen atoms and one carbon atom. The unhybridized p-orbital on each carbon atom participates in the formation of the π-bond that constitutes the double bond between the carbon atoms. The trigonal planar geometry of sp2 hybridized molecules reflects the lower energy and greater stability of the sp2 orbitals compared to the unhybridized p-orbitals.Characteristics of sp Hybridization in Triple Bonds
Sp hybridization is characterized by the combination of one s-orbital with one p-orbital, forming two sp hybrid orbitals aligned linearly at 180°. In acetylene (C2H2), each carbon atom has two sp orbitals and two unhybridized p-orbitals. The sp orbitals form σ-bonds with hydrogen atoms and with each other, while the unhybridized p-orbitals overlap to create two π-bonds, completing the carbon-carbon triple bond. The linear geometry of sp hybridized molecules is a consequence of the high s-character of the sp orbitals, which confers lower energy and greater stability.Hybridization and Molecular Geometry
The hybridization of an atom directly influences the molecular geometry and bond angles of a molecule. Sp3 hybridization leads to a tetrahedral configuration with bond angles of 109.5°, typical for molecules with single bonds. Sp2 hybridization results in a trigonal planar shape with 120° bond angles, as seen in double-bonded molecules. Sp hybridization produces a linear arrangement with 180° bond angles, characteristic of triple-bonded compounds. These geometries are consistent with the principles of electron pair repulsion, which dictate that electron pairs arrange themselves to minimize repulsion, thereby determining the molecule's shape.Key Takeaways on Bond Hybridization
Orbital hybridization is a central concept in understanding chemical bonding, elucidating the formation of σ- and π-bonds and the equalization of bond energies through hybrid orbitals. Sp3 hybridization facilitates the formation of four single bonds, sp2 hybridization accommodates one double bond and two single bonds, and sp hybridization is associated with one triple bond and one single bond. The geometries of tetrahedral, trigonal planar, and linear correspond to the hybridizations of sp3, sp2, and sp, respectively, and are predictive of the bond angles and molecular shapes observed in different compounds.
Show More

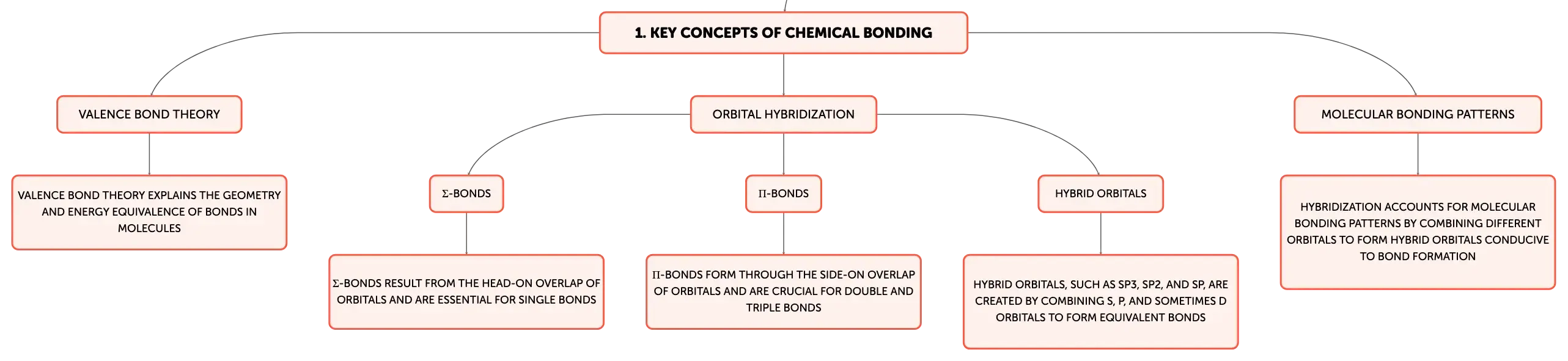

Key Concepts of Chemical Bonding
Valence Bond Theory
Valence bond theory explains the geometry and energy equivalence of bonds in molecules
Orbital Hybridization
σ-Bonds
σ-Bonds result from the head-on overlap of orbitals and are essential for single bonds
π-Bonds
π-Bonds form through the side-on overlap of orbitals and are crucial for double and triple bonds
Hybrid Orbitals
Hybrid orbitals, such as sp3, sp2, and sp, are created by combining s, p, and sometimes d orbitals to form equivalent bonds
Molecular Bonding Patterns
Hybridization accounts for molecular bonding patterns by combining different orbitals to form hybrid orbitals conducive to bond formation

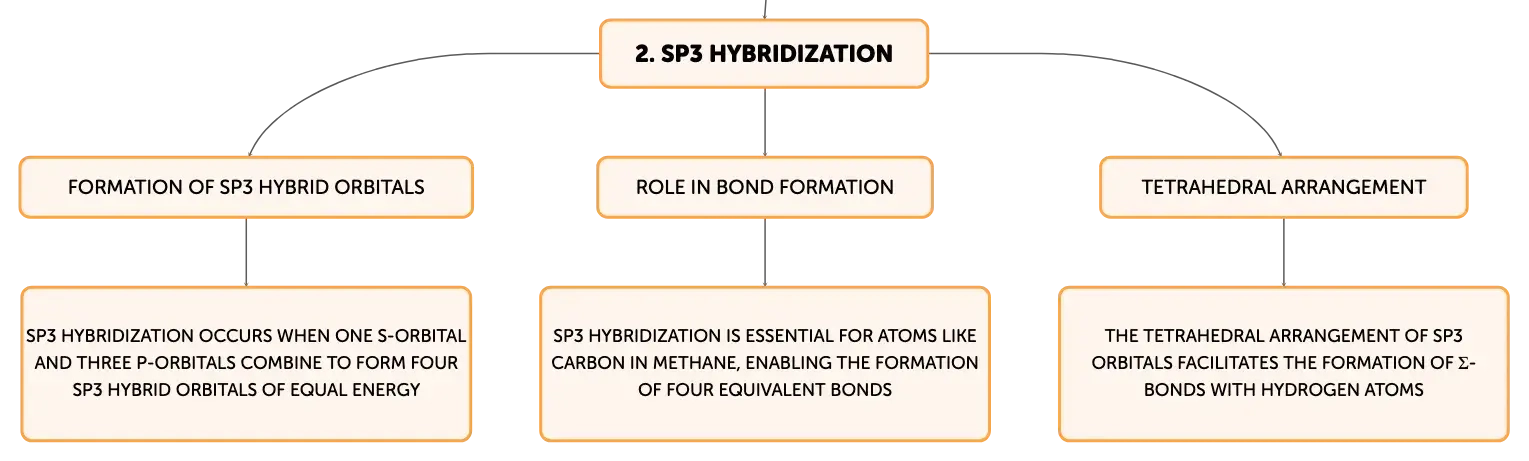

Sp3 Hybridization
Formation of sp3 Hybrid Orbitals
Sp3 hybridization occurs when one s-orbital and three p-orbitals combine to form four sp3 hybrid orbitals of equal energy
Role in Bond Formation
Sp3 hybridization is essential for atoms like carbon in methane, enabling the formation of four equivalent bonds
Tetrahedral Arrangement
The tetrahedral arrangement of sp3 orbitals facilitates the formation of σ-bonds with hydrogen atoms

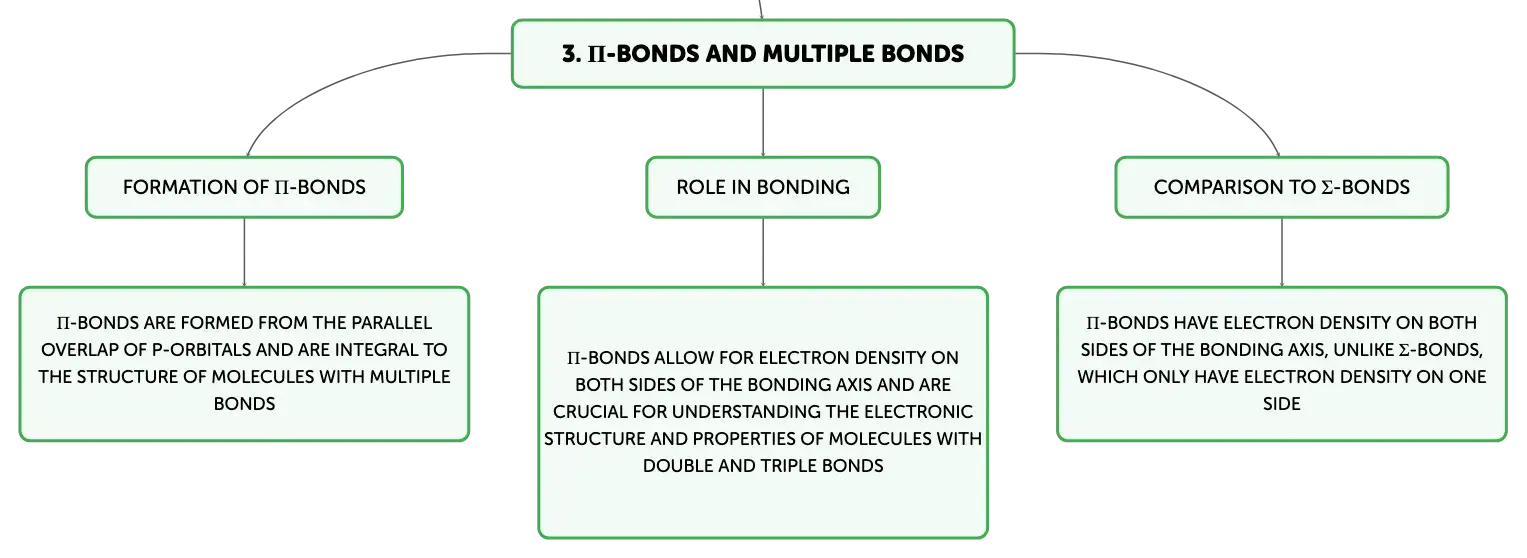

π-Bonds and Multiple Bonds
Formation of π-Bonds
π-Bonds are formed from the parallel overlap of p-orbitals and are integral to the structure of molecules with multiple bonds
Role in Bonding
π-Bonds allow for electron density on both sides of the bonding axis and are crucial for understanding the electronic structure and properties of molecules with double and triple bonds
Comparison to σ-Bonds
π-Bonds have electron density on both sides of the bonding axis, unlike σ-bonds, which only have electron density on one side

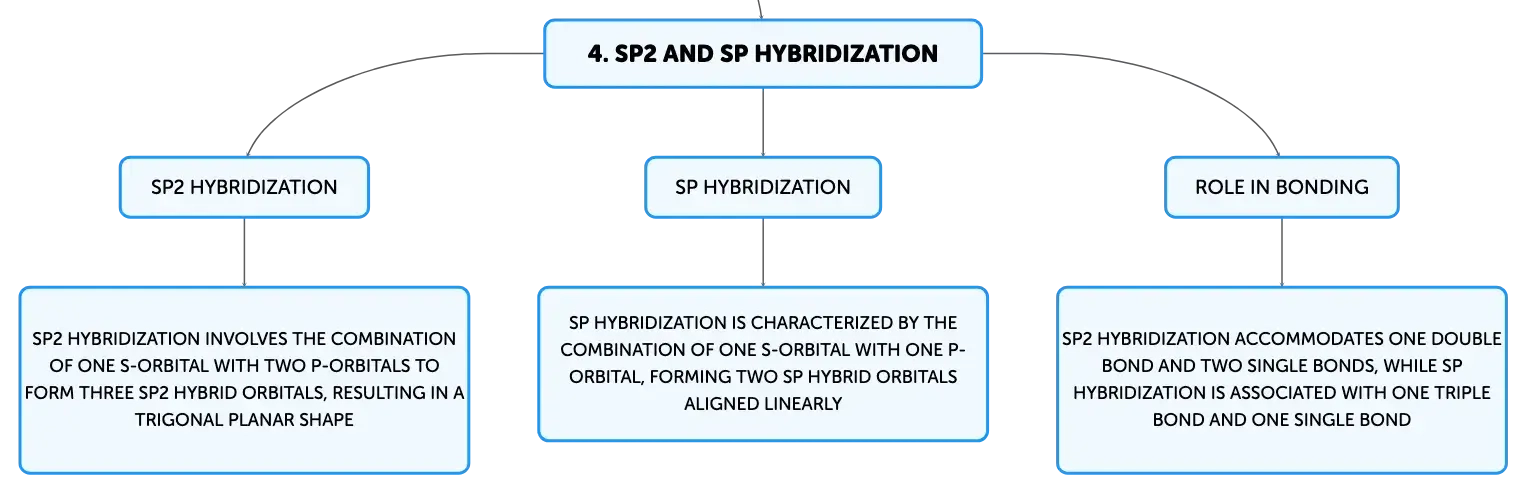

Sp2 and Sp Hybridization
Sp2 Hybridization
Sp2 hybridization involves the combination of one s-orbital with two p-orbitals to form three sp2 hybrid orbitals, resulting in a trigonal planar shape
Sp Hybridization
Sp hybridization is characterized by the combination of one s-orbital with one p-orbital, forming two sp hybrid orbitals aligned linearly
Role in Bonding
Sp2 hybridization accommodates one double bond and two single bonds, while sp hybridization is associated with one triple bond and one single bond
Orbital Hybridization: Understanding Chemical Bonding
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Hybrid orbitals like ______, ______, and ______ correspond to single, double, and triple bonds in molecules.
sp3
sp2
sp
01
Definition of sp3 hybridization
Mixing of one s-orbital and three p-orbitals to form four equivalent sp3 hybrid orbitals.
02
Electron configuration of carbon before sp3 hybridization
Ground state carbon has 2 electrons in 2s orbital and 2 in 2p orbitals.
