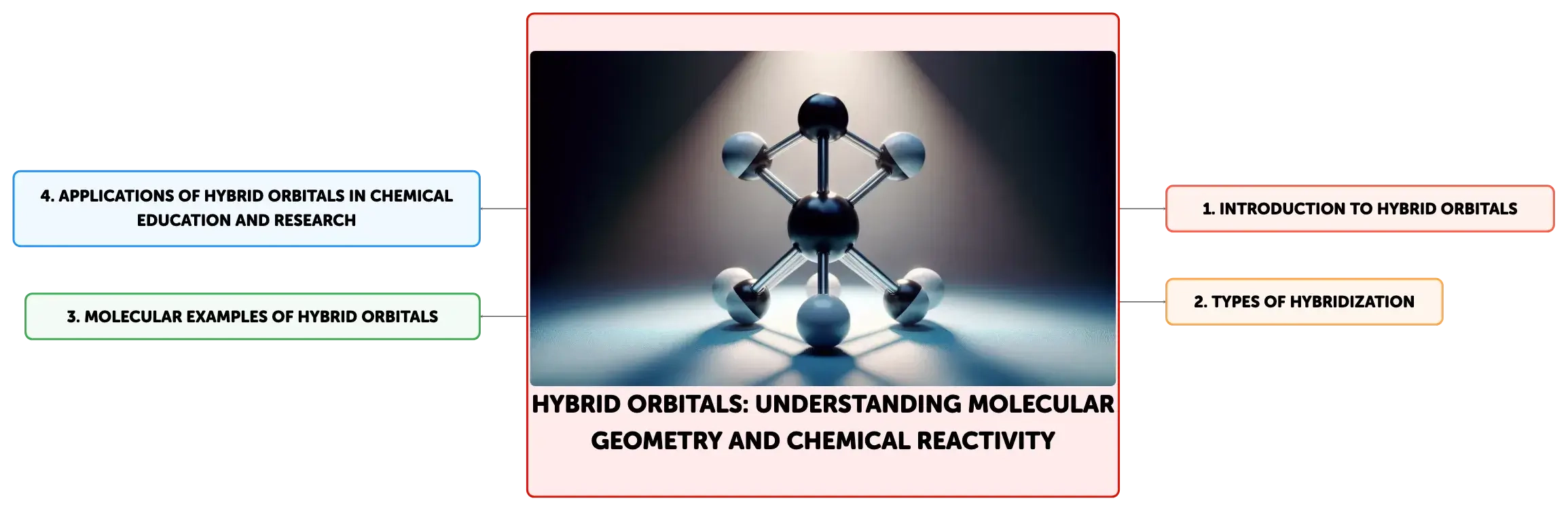

Hybrid Orbitals: Understanding Molecular Geometry and Chemical Reactivity
Concept Map
Hybrid orbitals play a crucial role in determining the molecular geometry and chemical reactivity of molecules. They arise from the mixing of atomic orbitals to form new, equivalent orbitals that dictate the spatial arrangement of electrons. This text delves into the varieties of hybridization, such as sp, sp2, and sp3, and their impact on molecular shapes, from linear to tetrahedral. It also explores how these orbitals influence covalent bonding, bond angles, and stability, providing examples like methane and ethene to illustrate these concepts in real-world compounds.
Summary
Outline
The Fundamentals of Hybrid Orbitals in Chemistry
Hybrid orbitals are an integral concept in chemistry that explain the spatial arrangement and bonding behavior of electrons in molecules. Orbital hybridization occurs when atomic orbitals of an atom, typically the central atom in a molecule, mix to form new orbitals of equivalent energy and identical shape. This process, which was elucidated by Linus Pauling, results in hybrid orbitals that are more effective in forming stable covalent bonds, thereby influencing the molecular geometry. The theory of hybrid orbitals provides a comprehensive understanding of how electrons are reorganized when atoms bond to form molecules.Hybridization Varieties and Resulting Molecular Shapes
The type of hybridization an atom undergoes determines the molecular geometry it can form. Sp hybridization involves the merging of one s orbital with one p orbital, producing two degenerate orbitals and leading to a linear arrangement of atoms. Sp2 hybridization combines one s orbital with two p orbitals to form three hybrid orbitals, which are arranged in a trigonal planar fashion. Sp3 hybridization occurs when one s orbital mixes with three p orbitals, resulting in four equivalent hybrid orbitals that are oriented in a tetrahedral manner. Recognizing these hybridization patterns is crucial for predicting the three-dimensional arrangement and chemical properties of molecules.Influence of Hybrid Orbitals on Covalent Bonding
Hybrid orbitals are central to the formation of covalent bonds, as they allow for the optimal overlap of electron clouds between bonding atoms. This reorganization of electron density creates orbitals that are more directional and capable of forming stronger sigma bonds, which are characterized by the head-to-head overlap of orbitals. The specific hybridization of an atom directly affects the bond angles and thus the overall shape and stability of the molecule. This understanding is vital for grasping how molecules are held together and how they interact with one another.Real-World Examples of Hybridization in Molecules
The principles of hybrid orbitals are illustrated in everyday chemical compounds. Methane (CH4) is a prime example, where the carbon atom undergoes sp3 hybridization, forming four equivalent orbitals that bond with hydrogen atoms to create a tetrahedral structure. In ethene (C2H4), each carbon atom is sp2 hybridized, allowing for the formation of three sigma bonds with two hydrogen atoms and another carbon atom, while the remaining unhybridized p orbitals overlap side-to-side to form a pi bond, resulting in a double bond and a planar structure. These instances underscore the role of hybrid orbitals in dictating the geometry and chemical reactivity of molecules.Predicting Molecular Geometry with Hybrid Orbitals
Hybrid orbitals are essential tools in predicting the structure of molecules, a fundamental aspect of chemical education. The Valence Shell Electron Pair Repulsion (VSEPR) theory, which integrates the concept of hybrid orbitals, offers a systematic approach to deducing molecular geometry. By determining the steric number, which is the sum of bonded atoms and lone pairs surrounding a central atom, chemists can infer the type of hybridization and the resultant molecular shape. This predictive capability is crucial for the advancement of molecular understanding and the innovation of new chemical materials.The Role of Hybrid Orbitals in Chemical Reactivity
Beyond molecular structure, hybrid orbitals significantly influence chemical reactivity. The directional nature of hybrid orbitals dictates the reactivity patterns of molecules, affecting sites of nucleophilic attack and electrophilic reactions. The connection between hybrid orbitals and the formation of sigma bonds is also instrumental in understanding reaction mechanisms, such as free radical substitution and electrophilic addition. These insights are foundational in organic chemistry, where bond formation and breaking are central to the synthesis of diverse organic compounds.
Show More

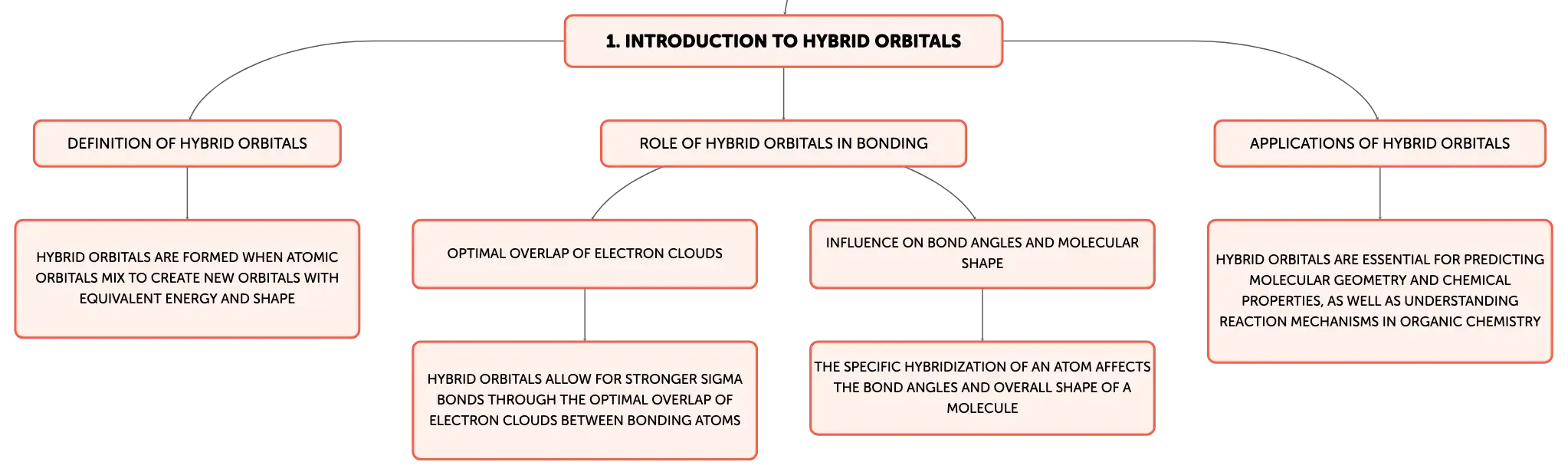

Introduction to Hybrid Orbitals
Definition of Hybrid Orbitals
Hybrid orbitals are formed when atomic orbitals mix to create new orbitals with equivalent energy and shape
Role of Hybrid Orbitals in Bonding
Optimal Overlap of Electron Clouds
Hybrid orbitals allow for stronger sigma bonds through the optimal overlap of electron clouds between bonding atoms
Influence on Bond Angles and Molecular Shape
The specific hybridization of an atom affects the bond angles and overall shape of a molecule
Applications of Hybrid Orbitals
Hybrid orbitals are essential for predicting molecular geometry and chemical properties, as well as understanding reaction mechanisms in organic chemistry

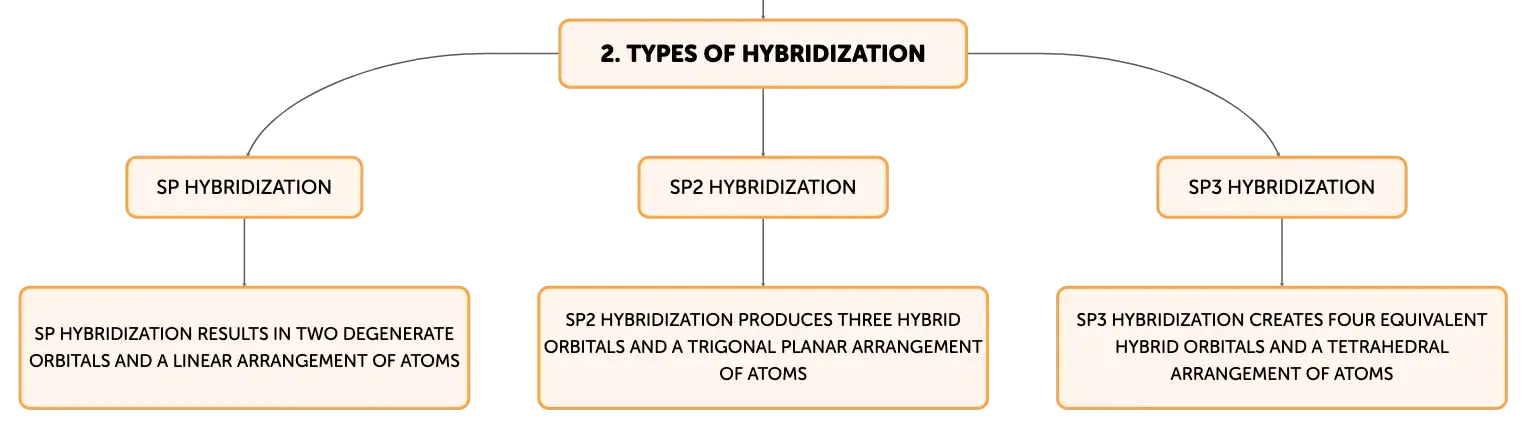

Types of Hybridization
Sp Hybridization
Sp hybridization results in two degenerate orbitals and a linear arrangement of atoms
Sp2 Hybridization
Sp2 hybridization produces three hybrid orbitals and a trigonal planar arrangement of atoms
Sp3 Hybridization
Sp3 hybridization creates four equivalent hybrid orbitals and a tetrahedral arrangement of atoms

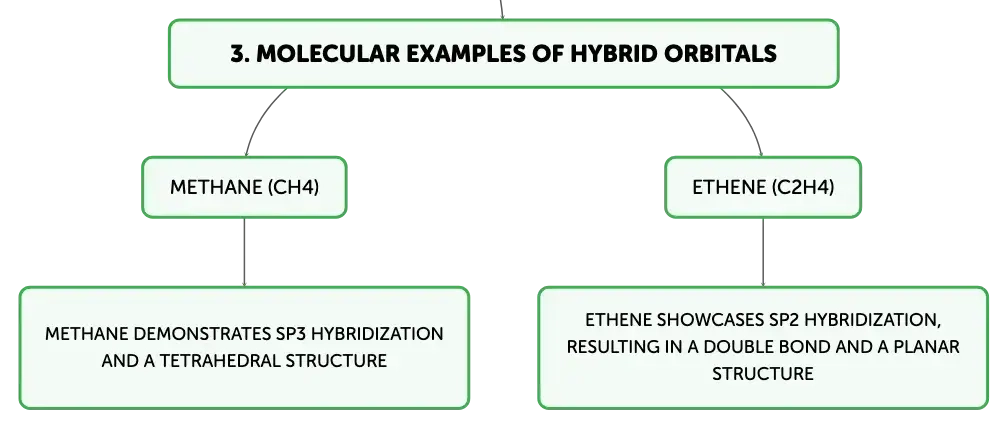

Molecular Examples of Hybrid Orbitals
Methane (CH4)
Methane demonstrates sp3 hybridization and a tetrahedral structure
Ethene (C2H4)
Ethene showcases sp2 hybridization, resulting in a double bond and a planar structure

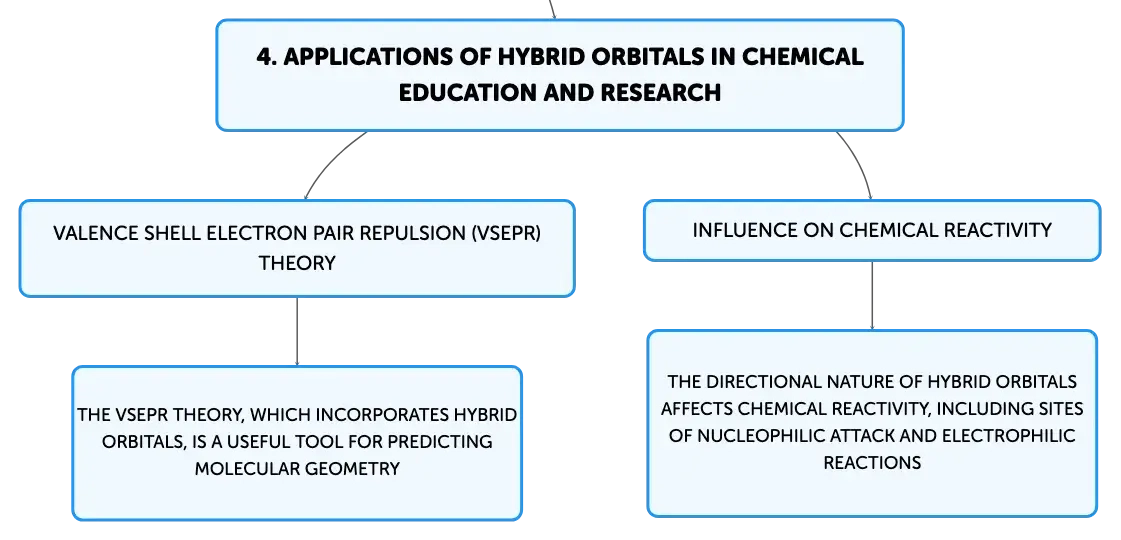

Applications of Hybrid Orbitals in Chemical Education and Research
Valence Shell Electron Pair Repulsion (VSEPR) Theory
The VSEPR theory, which incorporates hybrid orbitals, is a useful tool for predicting molecular geometry
Influence on Chemical Reactivity
The directional nature of hybrid orbitals affects chemical reactivity, including sites of nucleophilic attack and electrophilic reactions
Hybrid Orbitals: Understanding Molecular Geometry and Chemical Reactivity
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The concept of ______ orbitals is crucial for understanding the electron configuration and bonding in molecules.
hybrid
01
______ ______ introduced the concept that atomic orbitals mix to create new, equivalent energy orbitals, impacting molecular shape.
Linus
Pauling
02
Define sp hybridization and its molecular geometry.
Sp hybridization: one s orbital merges with one p orbital, forming two degenerate orbitals, resulting in a linear geometry.
