Slope Fields in Differential Equations
Slope fields, or direction fields, are a crucial visual tool in calculus for understanding differential equations. They represent the slopes of potential solutions at various points on a Cartesian plane, offering insights into the behavior of equations. This graphical method is invaluable in fields like physics and biology, aiding in the visualization of general trends and solution paths without requiring explicit solutions. Advanced techniques and computational tools further enhance the analysis and interpretation of these mathematical constructs.
See moreIntroduction to Slope Fields in Differential Equations

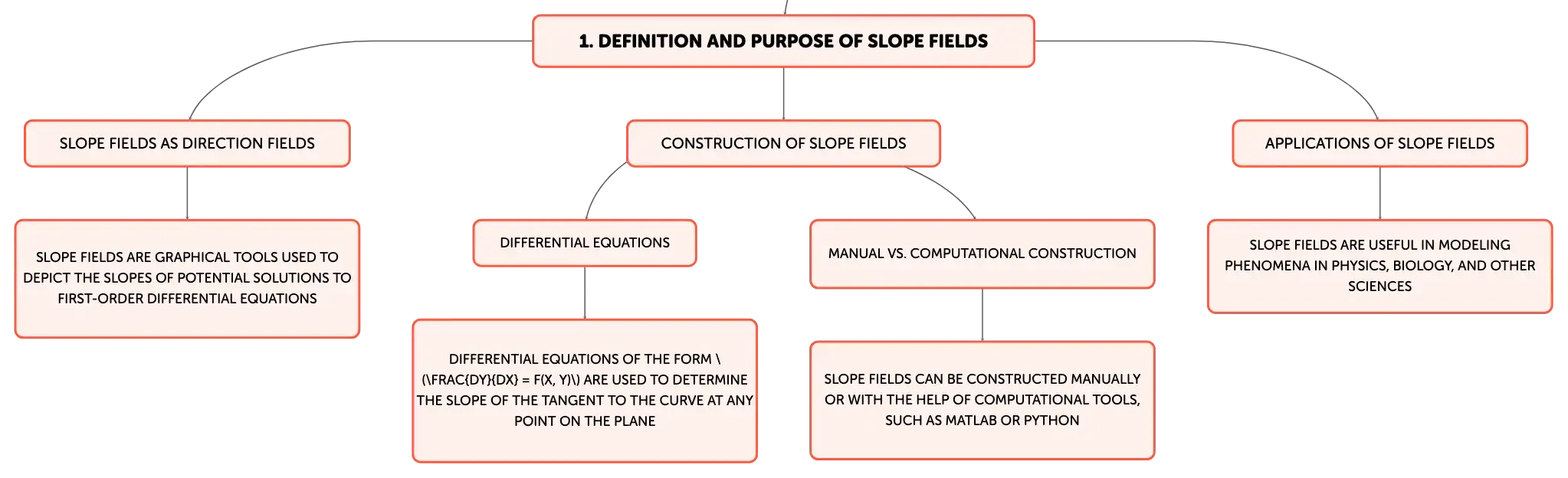

Slope fields, also known as direction fields, serve as an essential graphical tool in the study of differential equations within calculus. They depict the slopes of potential solutions to first-order differential equations at various points in the Cartesian plane. By drawing short line segments at predetermined grid points, each segment's slope is determined by the differential equation at that point, providing a visual guide to the behavior of solutions. This technique allows students to visualize the general trends of solutions across different regions without the need for explicit solutions, thereby facilitating a more intuitive understanding of differential equations.Constructing and Analyzing Slope Fields
The construction of a slope field begins with a differential equation of the form \(\frac{dy}{dx} = f(x, y)\). This equation defines the slope of the tangent to the curve at any point \((x, y)\) on the plane. For instance, given the equation \(\frac{dy}{dx} = y - x\), one calculates the slope at numerous points and represents these slopes with line segments. The resulting pattern provides insight into the behavior of the equation's solutions, especially near critical points or along particular paths. Slope fields are particularly useful in modeling phenomena in physics, biology, and other sciences. While manual construction can be labor-intensive, computational tools can generate slope fields efficiently, aiding in the analysis and interpretation of differential equations.Graphical Representation of Differential Solutions

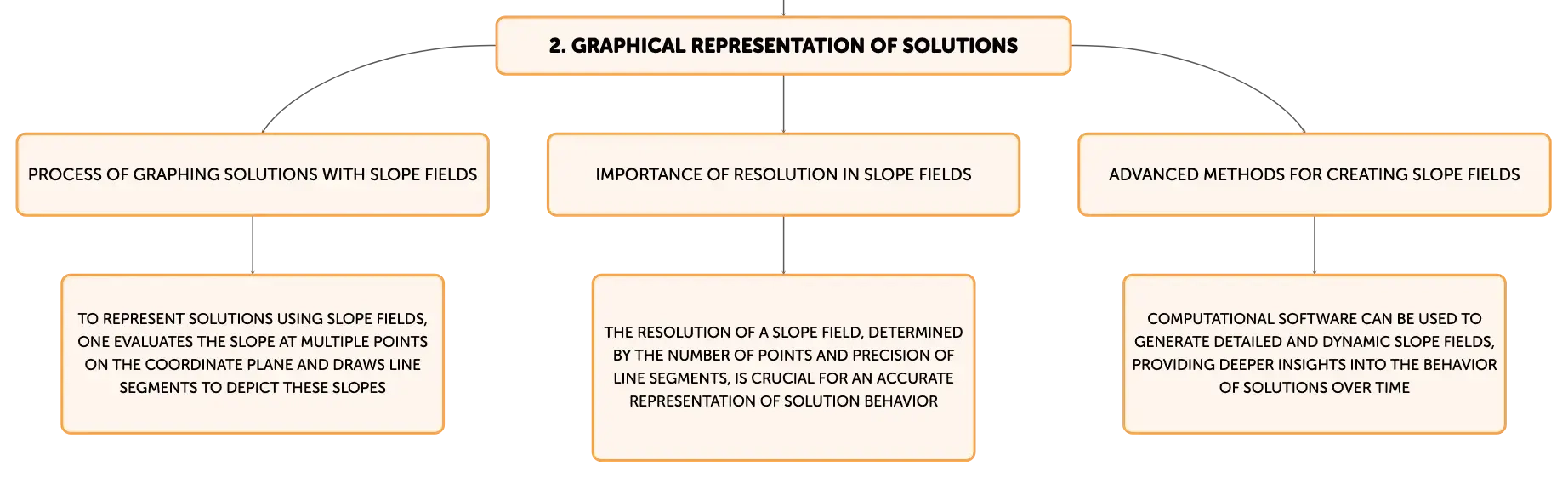

To graphically represent solutions using slope fields, one evaluates the slope at a multitude of points on the coordinate plane as dictated by the differential equation. This creates a field of line segments, each indicative of the slope at that point, which collectively reveal the potential behavior of the equation's solutions. The resolution of the slope field, determined by the number of points and precision of the line segments, is crucial for a clear and accurate representation. A well-constructed slope field can significantly enhance the understanding of the equation's dynamics and the nature of its solutions.Techniques for Graphing Solutions with Slope Fields
The technique of graphing solutions with slope fields involves choosing a region on the coordinate plane, computing the slopes at various points based on the differential equation, and drawing line segments to represent these slopes. This process is iterated to populate the chosen region with a visual depiction of solution behavior. Advanced methods may utilize computational software such as MATLAB or Python to create detailed and dynamic slope fields, which can illustrate how solutions evolve over time and provide deeper insights into the system's behavior.Practical Examples and Applications of Slope Fields

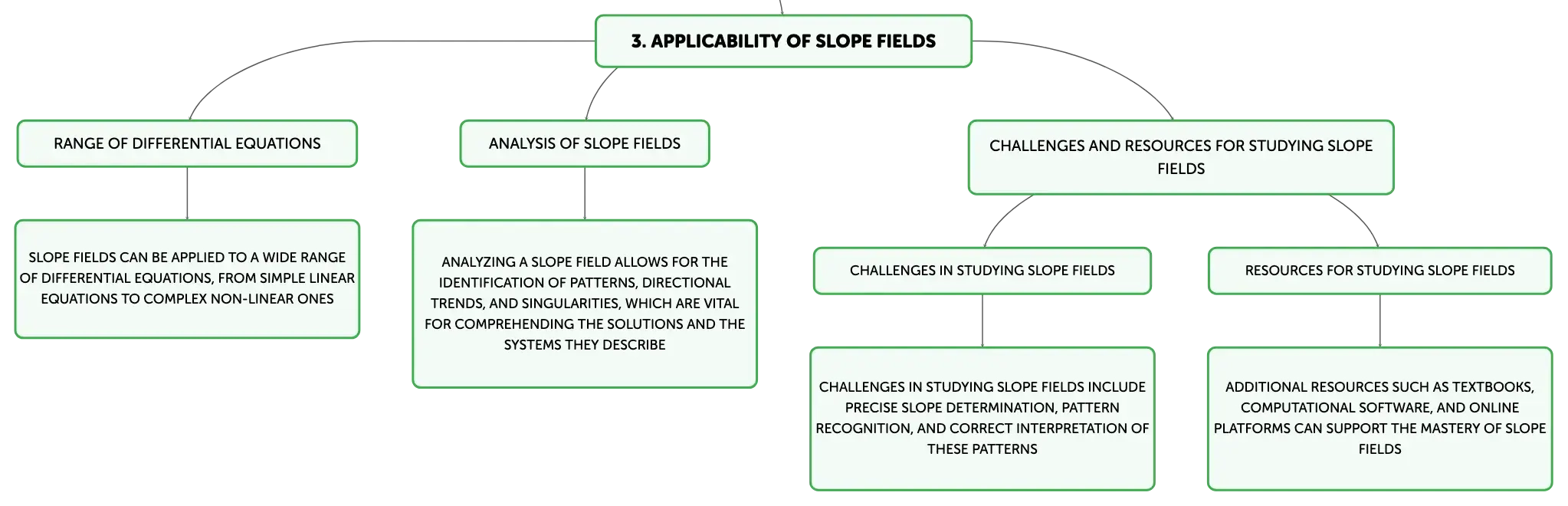

Slope fields are applicable to a wide range of differential equations, from simple linear equations to complex non-linear ones. For a linear equation like \(\frac{dy}{dx} = ax + b\), the slope field will typically display a pattern of lines with consistent variation, simplifying the prediction of solution paths. Conversely, non-linear equations such as \(\frac{dy}{dx} = xy^2\) produce more intricate patterns that can reveal the system's unique dynamics. Analyzing a slope field allows for the identification of patterns, directional trends, and singularities, which are vital for comprehending the solutions and the systems they describe.Deepening the Understanding of Slope Fields
Delving deeper into the study of slope fields uncovers a rich interplay between mathematical analysis and visual interpretation. Advanced study involves tackling more complex differential equations, discerning emergent patterns, and applying numerical methods to calculate slopes accurately. Challenges in this area include precise slope determination, pattern recognition in densely populated fields, and correct interpretation of these patterns. Additional resources such as specialized textbooks, computational software, and online educational platforms can support the mastery of slope fields. Participation in academic communities further enriches the learning experience by providing a variety of perspectives and insights into the graphical analysis of differential equations.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In a Cartesian plane, slope fields illustrate the slopes of potential solutions to ______ differential equations at various points.
Click to check the answer
2
A ______ of line segments in a slope field represents the slope at various points, showing the potential behavior of the ______ solutions.
Click to check the answer
3
Slope fields graphing technique
Click to check the answer
4
Slope computation in slope fields
Click to check the answer
5
Purpose of dynamic slope fields
Click to check the answer
6
Complex Differential Equations in Slope Fields
Click to check the answer
7
Emergent Patterns in Slope Fields
Click to check the answer
8
Numerical Methods for Slope Calculation
Click to check the answer
