Ionic Solids: Structure and Properties

Concept Map

Algorino

Edit available

Ionic solids are crystalline materials with a regular lattice of cations and anions bonded by ionic interactions. Their structure is determined by ionic charges and ion sizes, leading to high melting points, hardness, and brittleness. Ionic solids conduct electricity when molten or dissolved.

Summary

Outline

The Nature and Structure of Ionic Solids

Ionic solids are a class of crystalline materials that consist of a regular array of cations and anions held together by ionic bonds. These bonds arise from the electrostatic attraction between ions with opposite charges. The structure of ionic solids is a highly ordered, repeating lattice that extends in three dimensions. This structure is distinct from other types of crystalline materials, such as molecular solids, covalent network solids, and metallic solids, which are held together by different intermolecular forces and chemical bonds.
Magnified colored salt crystals: transparent cube of sodium chloride, purple hexagons of potassium permanganate, orange rhombuses of strontium carbonate.

Lattice Arrangement in Ionic Solids

The lattice of an ionic solid is a geometric arrangement of ions that maximizes the electrostatic attraction between oppositely charged ions while minimizing repulsion between ions of the same charge. The lattice can be visualized using models that represent the ions as spheres of appropriate relative sizes, reflecting the actual spatial distribution of ions within the solid. The stability of the lattice is due to each ion being surrounded by ions of opposite charge, which is a consequence of the ions seeking the lowest energy configuration.

Formation of Ionic Crystal Lattices

Ionic crystal lattices are the result of the orderly pattern of ions that make up the solid state of ionic compounds. The formation of these lattices is governed by the minimization of potential energy within the system, which occurs when ions arrange themselves to achieve a balance between attractive and repulsive forces. The coordination number, or the number of oppositely charged ions surrounding a given ion, plays a crucial role in determining the geometry of the lattice. Misrepresentations of ionic structures, such as an incorrect NaF lattice, fail to capture the true nature of the forces and coordination numbers that define the actual structure.

Determinants of Ionic Solid Structures

The structure of ionic solids is influenced by the ionic charges and the relative sizes of the ions. The strength of the electrostatic forces, as described by Coulomb's Law, increases with higher charges and decreases with larger distances between ions. The ratio of the sizes of the cations to anions affects the coordination number and the overall packing efficiency of the lattice. For instance, in the NaCl structure, the smaller sodium ions (Na+) are positioned between the larger chloride ions (Cl-), which dictates the cubic arrangement of the lattice. These factors are critical in predicting the physical properties of the ionic solid.

Physical Properties of Ionic Solids

The unique lattice structure of ionic solids gives rise to their characteristic physical properties. Ionic solids generally have high melting and boiling points due to the strong ionic bonds that require substantial energy to disrupt. They are also hard, yet brittle, as the rigid lattice can shatter when subjected to shear forces that cause like-charged ions to align. In the solid state, ionic compounds do not conduct electricity because the ions are immobile. However, in molten form or when dissolved in water, the ions are free to move, allowing the material to conduct electricity.

Summary of Ionic Solid Structures

Ionic solids are defined by their crystalline structure, composed of a repeating pattern of cations and anions bonded by ionic interactions. The structure's stability and the physical properties of the solid are determined by the charges and sizes of the ions. Ionic solids are known for their high melting points, hardness, and brittleness, as well as their electrical conductivity when in liquid form or aqueous solution. A comprehensive understanding of the structure and behavior of ionic solids is essential for the fields of materials science and inorganic chemistry.

Show More

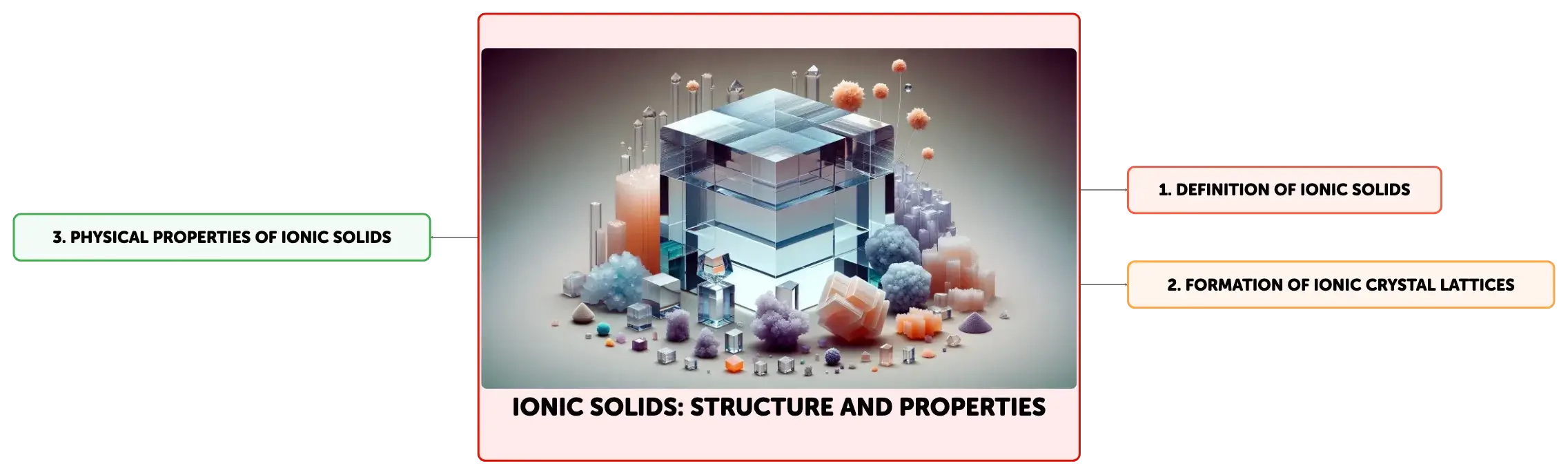

    Ionic Solids: Structure and Properties

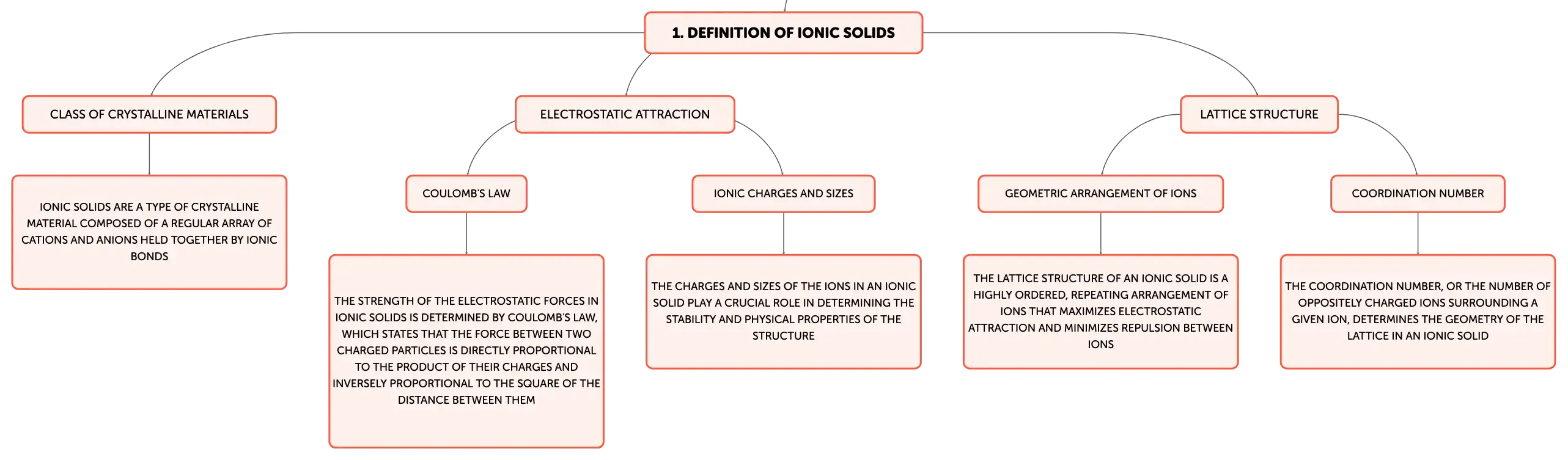

  • Definition of Ionic Solids

  • Class of Crystalline Materials

  • Ionic solids are a type of crystalline material composed of a regular array of cations and anions held together by ionic bonds

  • Electrostatic Attraction

  • Coulomb's Law

  • The strength of the electrostatic forces in ionic solids is determined by Coulomb's Law, which states that the force between two charged particles is directly proportional to the product of their charges and inversely proportional to the square of the distance between them

  • Ionic Charges and Sizes

  • The charges and sizes of the ions in an ionic solid play a crucial role in determining the stability and physical properties of the structure

  • Lattice Structure

  • Geometric Arrangement of Ions

  • The lattice structure of an ionic solid is a highly ordered, repeating arrangement of ions that maximizes electrostatic attraction and minimizes repulsion between ions

  • Coordination Number

  • The coordination number, or the number of oppositely charged ions surrounding a given ion, determines the geometry of the lattice in an ionic solid

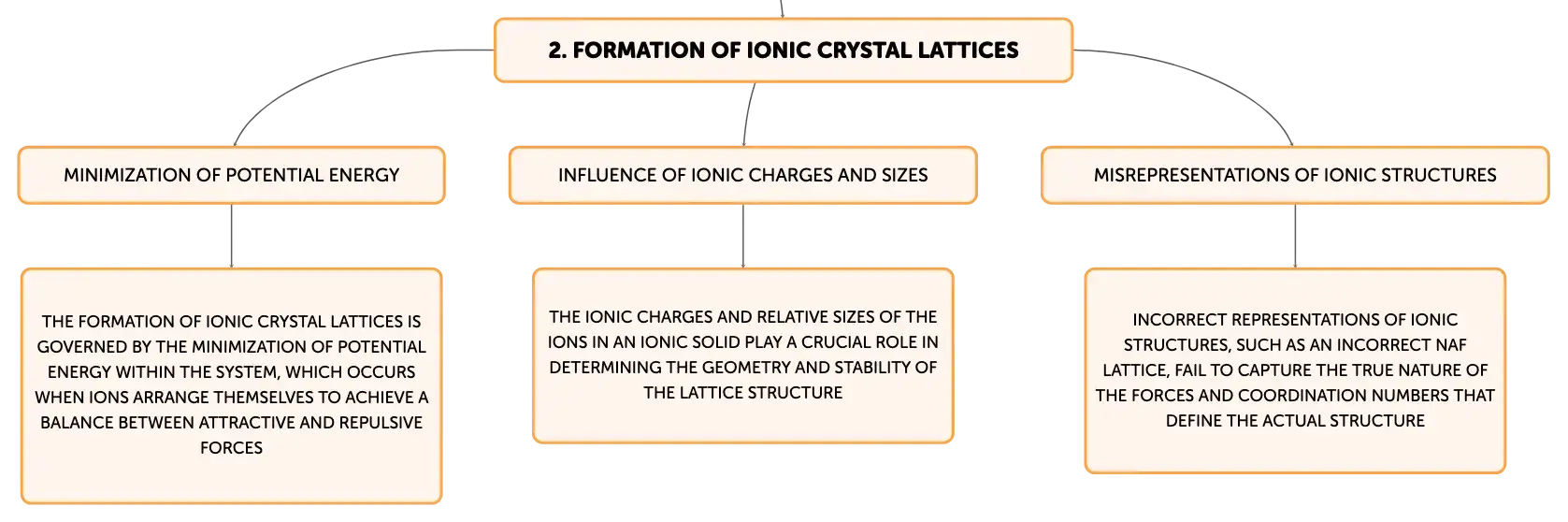

  • Formation of Ionic Crystal Lattices

  • Minimization of Potential Energy

  • The formation of ionic crystal lattices is governed by the minimization of potential energy within the system, which occurs when ions arrange themselves to achieve a balance between attractive and repulsive forces

  • Influence of Ionic Charges and Sizes

  • The ionic charges and relative sizes of the ions in an ionic solid play a crucial role in determining the geometry and stability of the lattice structure

  • Misrepresentations of Ionic Structures

  • Incorrect representations of ionic structures, such as an incorrect NaF lattice, fail to capture the true nature of the forces and coordination numbers that define the actual structure

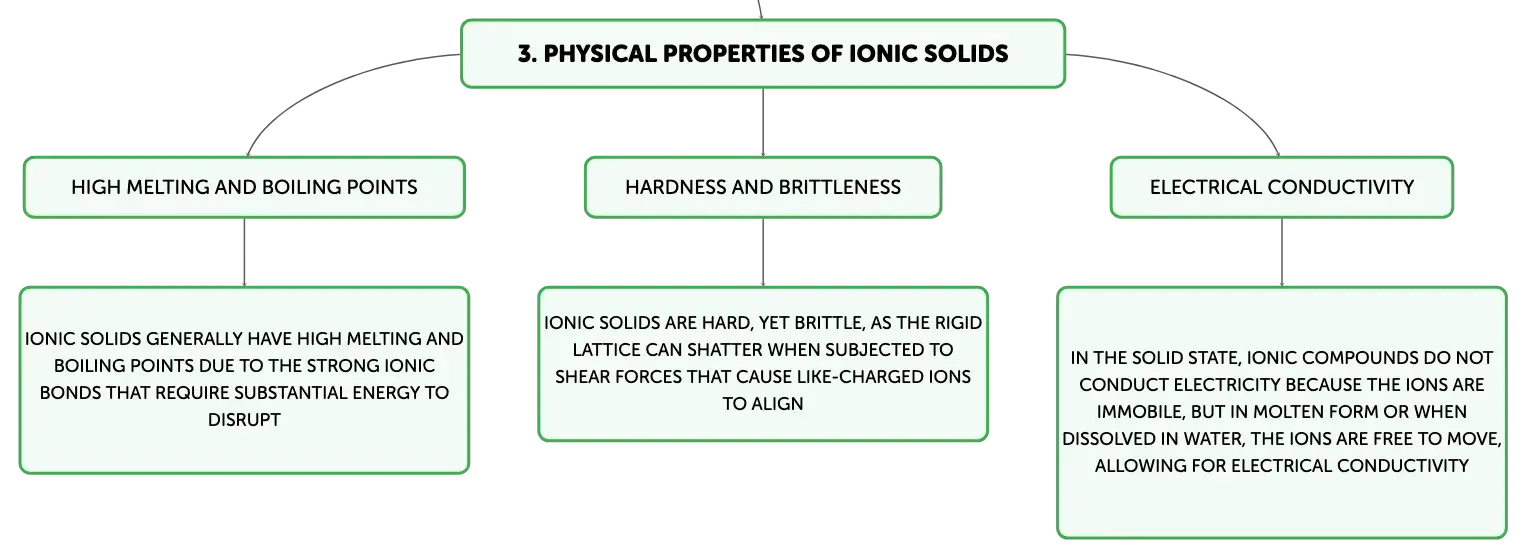

  • Physical Properties of Ionic Solids

  • High Melting and Boiling Points

  • Ionic solids generally have high melting and boiling points due to the strong ionic bonds that require substantial energy to disrupt

  • Hardness and Brittleness

  • Ionic solids are hard, yet brittle, as the rigid lattice can shatter when subjected to shear forces that cause like-charged ions to align

  • Electrical Conductivity

  • In the solid state, ionic compounds do not conduct electricity because the ions are immobile, but in molten form or when dissolved in water, the ions are free to move, allowing for electrical conductivity

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Unlike ______, covalent network, and metallic solids, ______ solids are structured through ionic bonds rather than other intermolecular forces.

molecular

ionic

01

Ionic Solid Lattice Definition

Geometric arrangement of ions maximizing electrostatic attraction between opposites and minimizing same-charge repulsion.

02

Ionic Solid Lattice Visualization

Models with spheres representing ions show relative sizes and spatial ion distribution in the solid.

03

Lowest Energy Configuration in Ionic Lattices

Stability from each ion surrounded by opposite charges, seeking minimal energy state.

04

In ______ compounds, the solid state is composed of an orderly pattern of ions known as ______ ______.

ionic

ionic

crystal lattices

05

Effect of ionic charges on electrostatic forces

Higher ionic charges increase electrostatic force strength per Coulomb's Law.

06

Impact of ion size on lattice coordination number

Smaller cation-to-anion size ratio leads to higher coordination numbers and more efficient packing.

07

Influence of ion size on lattice structure example

In NaCl, smaller Na+ ions fit between larger Cl- ions, resulting in a cubic lattice arrangement.

08

Although ionic compounds are ______ in their solid state, they can conduct electricity when ______ or dissolved in water.

non-conductive

molten

09

Ionic Solids Crystalline Structure

Composed of repeating cations and anions pattern, bonded by ionic interactions.

10

Factors Determining Ionic Solids Stability

Stability influenced by charges and sizes of ions within the crystalline structure.

11

Ionic Solids Electrical Conductivity Conditions

Conduct electricity when in liquid form or dissolved in aqueous solution, not in solid state.
