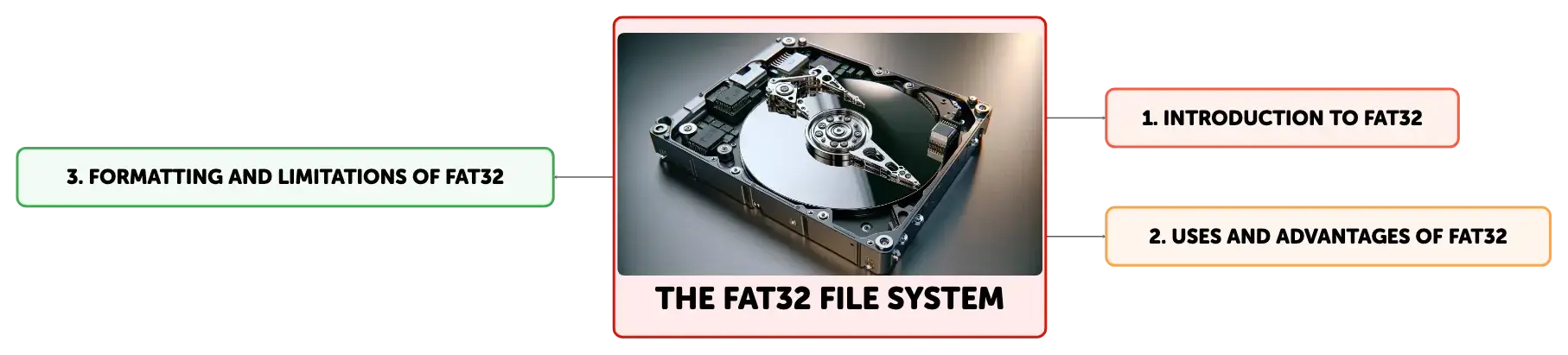

The FAT32 File System

Exploring the FAT32 File System

The FAT32 file system, standing for File Allocation Table 32, was introduced by Microsoft in 1996 as an enhancement to the FAT16 file system used in MS-DOS and early versions of Windows. It is designed to handle larger volumes and files than its predecessor, supporting drives up to 16 Terabytes (although Windows implementations cap this at 2 Terabytes) and file sizes up to 4 Gigabytes. FAT32 assigns files to clusters and maintains a directory of these clusters in the File Allocation Table, which is crucial for the operating system to locate and manage files. Due to its broad compatibility, FAT32 is used in a variety of devices, from PCs to digital cameras and even some smartphones, across different operating systems including Windows, macOS, and many distributions of Linux.

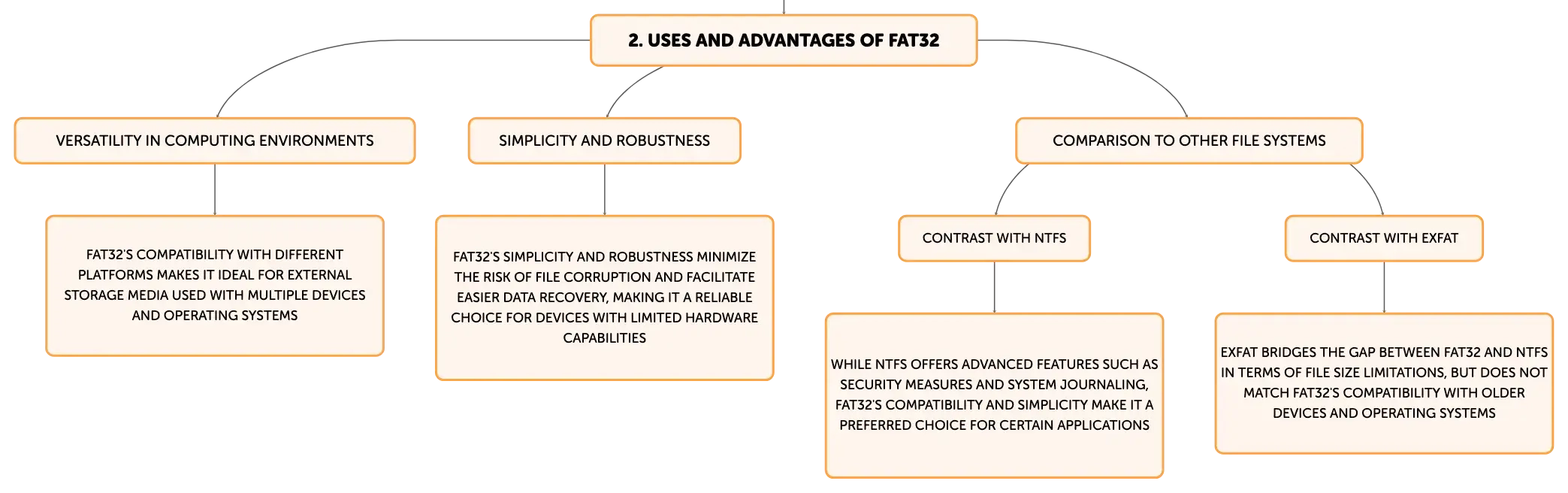

The Importance of FAT32 in Data Storage and Device Interoperability

FAT32 is a vital file system in computer science, particularly for data storage and retrieval across diverse computing environments. Its universal support across various platforms makes it an ideal file system for external storage media that must function with multiple devices and operating systems. While FAT32 does not include modern features such as built-in security measures or system journaling, its simplicity and robustness minimize the risk of file corruption and facilitate easier data recovery in case of errors. This makes it a reliable choice for devices with limited hardware capabilities and for users who prioritize wide compatibility and straightforward data management.

FAT32 Versus NTFS and ExFAT: A Comparative Overview

FAT32 is frequently contrasted with NTFS and ExFAT, two other file systems developed by Microsoft. NTFS, which stands for New Technology File System, is preferred in Windows environments for its support of large volumes and files, robust security features including encryption and permissions, and system journaling for improved data integrity. ExFAT, or Extended File Allocation Table, is optimized for flash drives and SD cards, accommodating files larger than 4GB and is particularly useful for large multimedia files. While ExFAT bridges the gap between FAT32 and NTFS in terms of file size limitations, it does not match FAT32's near-universal compatibility, especially with older devices and operating systems.

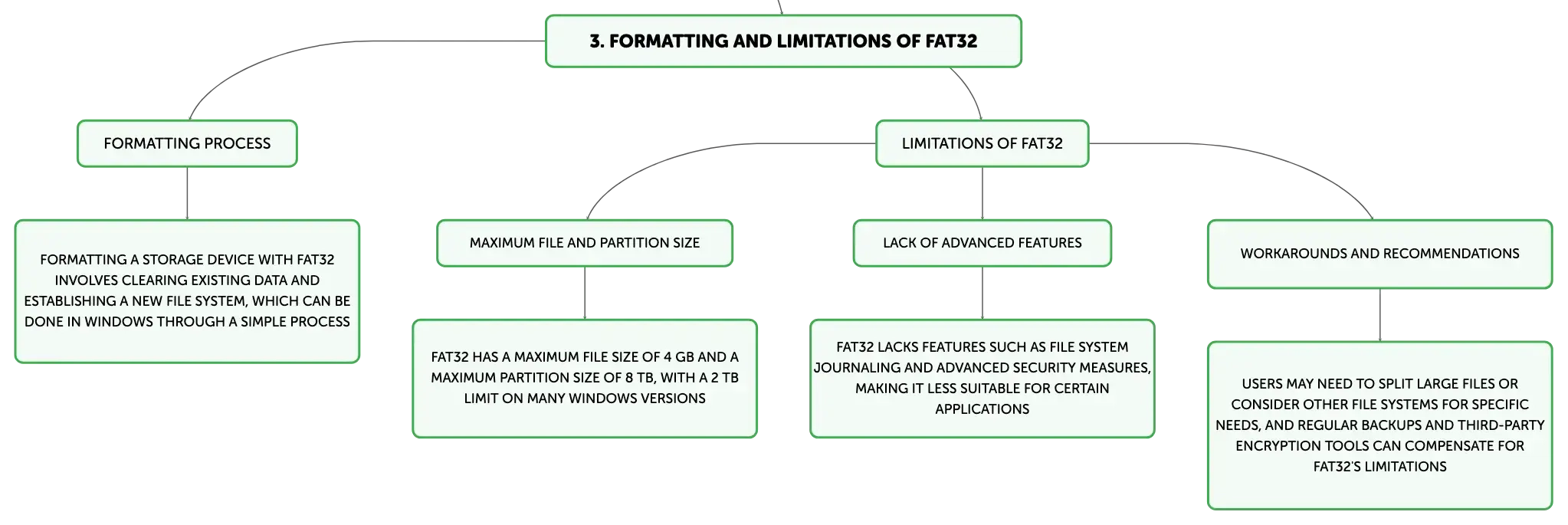

How to Format a Storage Device with FAT32

Formatting a storage device with FAT32 is a straightforward process that prepares the device for use by clearing existing data and establishing a new file system. In Windows, this can be done by connecting the device, right-clicking on it in 'My Computer' or 'This PC', selecting 'Format', choosing FAT32 from the file system options, and deciding on a quick or full format. It is critical to back up any important data before formatting, as this process will completely erase all files on the device. Users should also be aware that some modern large-capacity drives may require third-party software to format as FAT32 due to the limitations of the built-in Windows formatting tools.

Limitations of FAT32 and Potential Workarounds

Despite its widespread use, FAT32 has several limitations, including a maximum file size of 4 GB and a maximum partition size of 8 TB (with a 2 TB limit on many Windows versions). It lacks the advanced features of NTFS, such as file system journaling, which provides data integrity, and the security features of file permissions and encryption. Users dealing with large files may need to split them into smaller segments or opt for NTFS or ExFAT file systems. Regular data backups are recommended to compensate for the lack of journaling, and for security, users may consider third-party encryption tools to protect sensitive information.

Concluding Insights on the FAT32 File System

In conclusion, the FAT32 file system is a legacy technology from Microsoft that continues to be relevant due to its extensive compatibility with a multitude of devices and operating systems. It organizes files into clusters and tracks them via the File Allocation Table, enabling efficient data storage and access. While it supports drives up to 16 Terabytes and files up to 4 Gigabytes, users must navigate its limitations, particularly for large file storage and security. Despite these challenges, FAT32's simplicity and broad compatibility secure its position as a practical file system for many everyday applications.
