Aluminum Extraction and Production

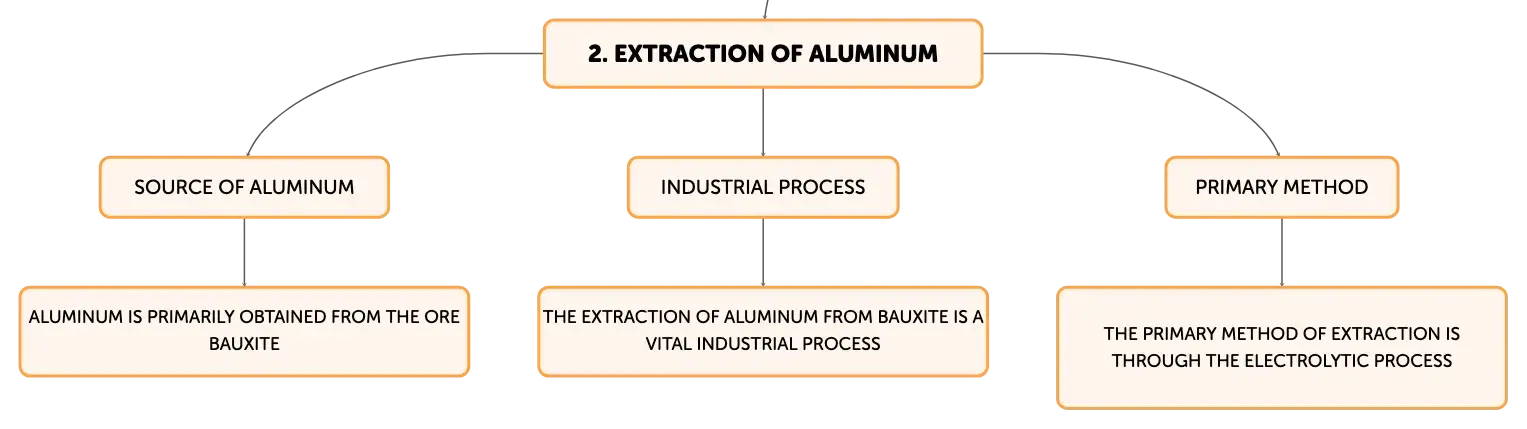

The Role of Aluminum and Its Ores in Modern Industries

Aluminum is a pivotal material in modern manufacturing and engineering, prized for its lightweight, strength, and corrosion resistance. It is the most abundant metallic element in the Earth's crust and is primarily obtained from the ore bauxite. The extraction of aluminum from bauxite is a vital industrial process that facilitates its use in various sectors, such as aerospace, automotive, consumer electronics, and construction. The primary method of extraction is through the electrolytic process, which is crucial for converting bauxite into aluminum, making it an indispensable resource in our daily lives.

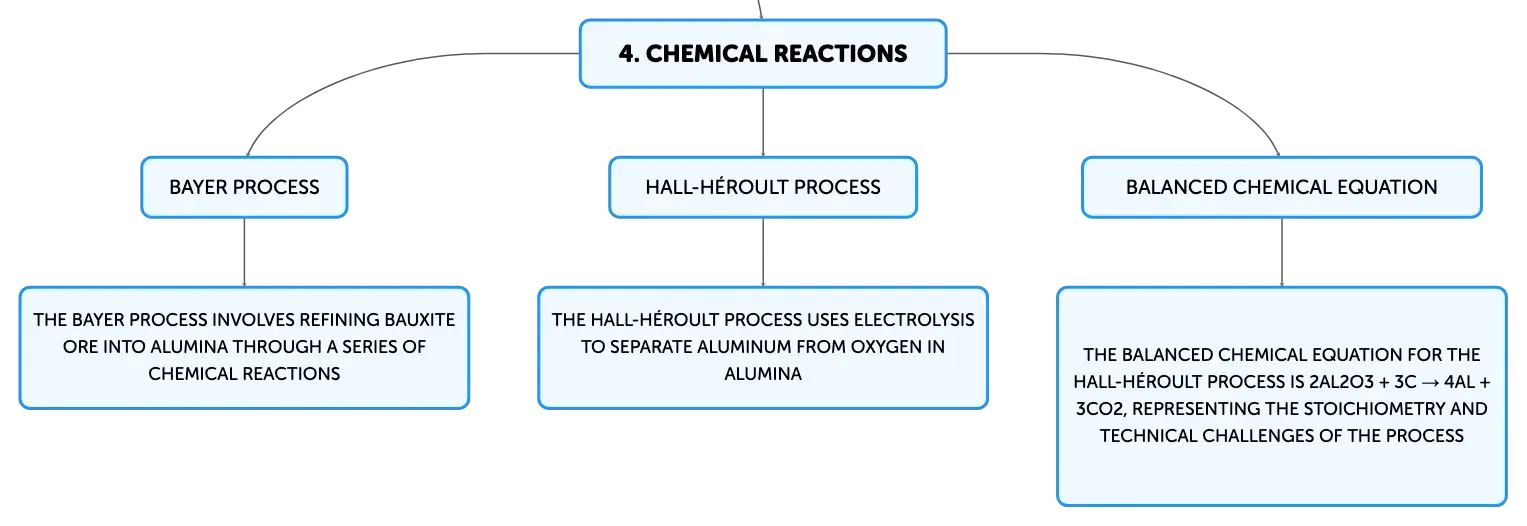

The Bayer and Hall-Héroult Processes: Key Stages in Aluminum Production

The production of aluminum from its ore involves two principal stages: the Bayer process and the Hall-Héroult process. The Bayer process begins with the refining of bauxite ore into alumina (aluminum oxide) by crushing, washing, and reacting it with sodium hydroxide at high temperatures and pressures. The resulting alumina is then precipitated and calcined to remove water, yielding a white powder. The Hall-Héroult process follows, where alumina is dissolved in molten cryolite and subjected to electrolysis. This process separates the aluminum from the oxygen in the alumina, producing pure aluminum metal at the cathode and carbon dioxide at the anode, as represented by the chemical equation: 2Al2O3 + 3C → 4Al + 3CO2 at approximately 950°C.

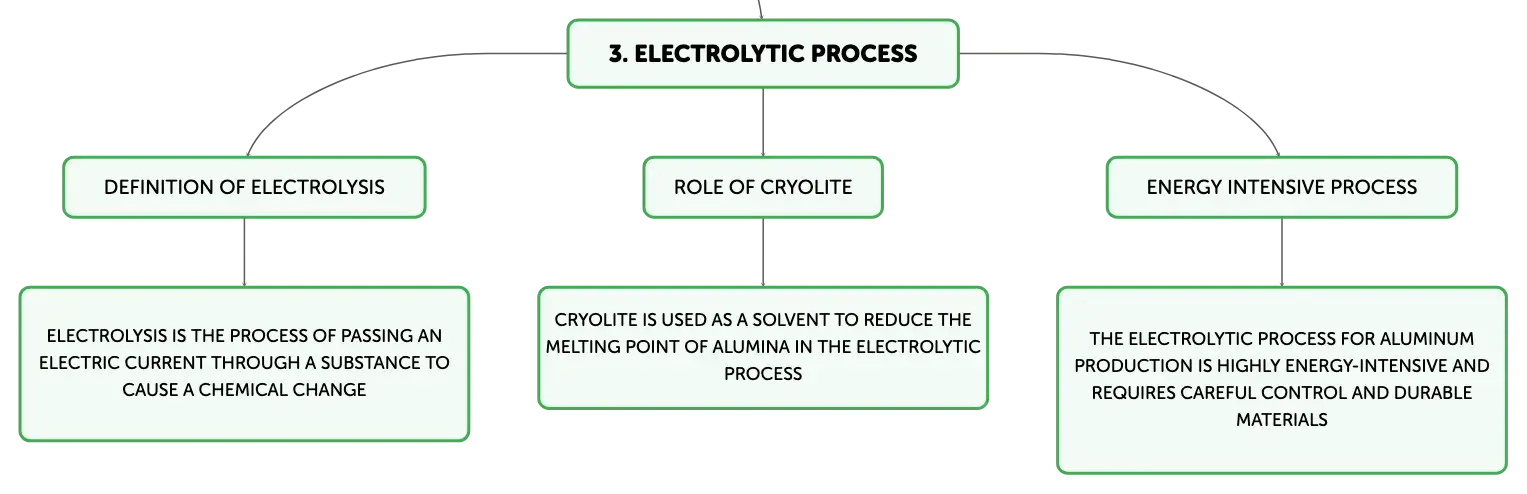

Electrolysis: The Heart of Aluminum Extraction

Electrolysis is a fundamental process in the production of aluminum, allowing for its extraction on an industrial scale. This process involves passing an electric current through a substance to cause a chemical change. In aluminum production, electrolysis is used to decompose alumina into aluminum and oxygen. The process occurs in large electrolytic cells or pots, where molten cryolite serves as a solvent for alumina, reducing its melting point and improving conductivity. Aluminum ions are reduced at the cathode, forming molten aluminum, which is collected from the bottom of the cell. The process is highly energy-intensive and requires careful control and durable materials to ensure efficiency and safety.

The Crucial Function of Cryolite in Aluminum Electrolysis

Cryolite is an essential component in the electrolytic reduction of alumina to aluminum. Its main role is to dissolve alumina and lower its melting point from 2054°C to around 950°C, which decreases the energy required to maintain the molten state and increases the solution's conductivity. This efficiency is vital for the electrolysis process. Although natural cryolite reserves are nearly depleted, synthetic cryolite is used to sustain the production of aluminum, underscoring its importance in the industry.

The Versatile Use and Recycling of Aluminum

Aluminum's diverse applications span numerous industries due to its beneficial properties. It is utilized in transportation for improving fuel efficiency in vehicles and aircraft, in construction for its durability and malleability, in electrical systems for its conductivity, and in packaging and consumer goods for its lightweight and recyclability. Aluminum is also environmentally friendly, as it can be recycled indefinitely with just 5% of the original energy used in its extraction, promoting sustainable practices and reducing the environmental footprint of products.

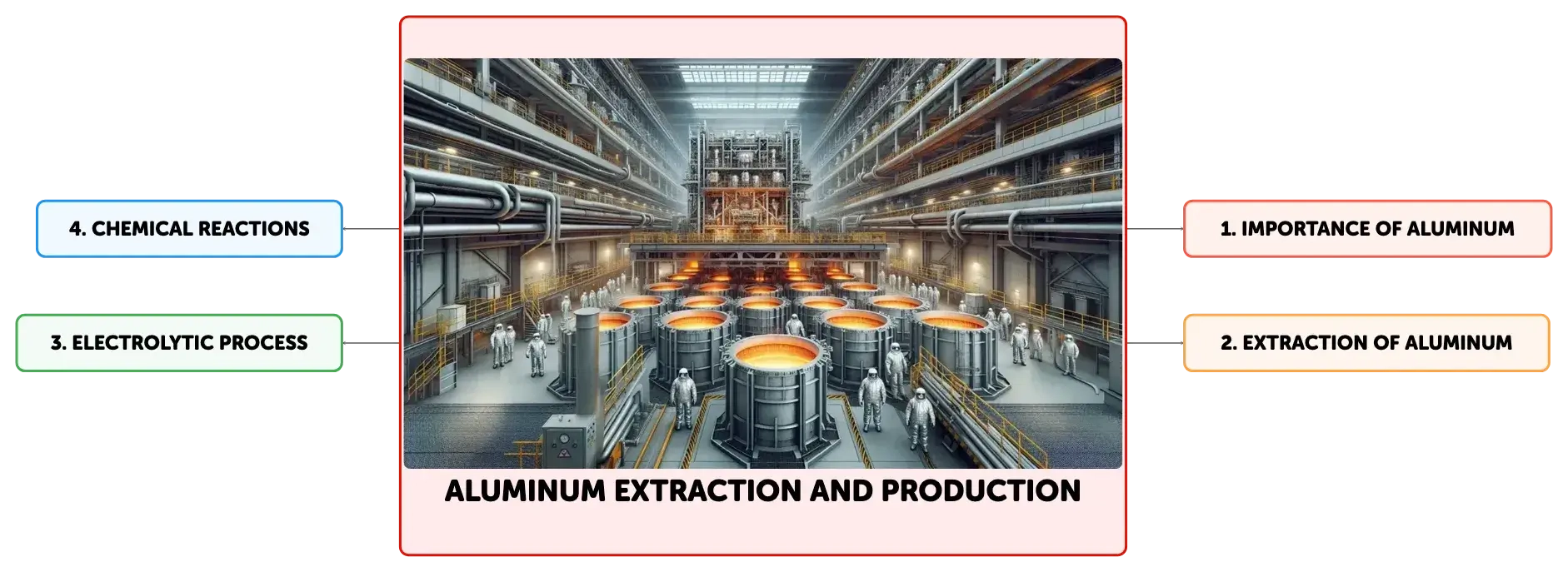

Diagrammatic Representation of Aluminum Extraction Processes

Diagrams play a vital role in elucidating the complex procedures involved in aluminum extraction. They offer visual representations of the Bayer and Hall-Héroult processes, detailing the equipment, conditions, and chemical reactions at each stage. These diagrams help to convey the scale and robustness of the equipment, such as the electrolytic cells that contain molten cryolite and operate under high currents, and they emphasize the precision and control required for efficient aluminum production.

The Stoichiometry of Aluminum Extraction

The balanced chemical equation for the extraction of aluminum is a succinct expression of the reactions that occur during the electrolytic reduction of aluminum oxide. It adheres to the law of conservation of mass by ensuring that the number of atoms for each element is equal on both sides of the reaction. For the Hall-Héroult process, the equation is balanced as follows: 2Al2O3 + 3C → 4Al + 3CO2. This equation encapsulates the stoichiometry of the process and the technical challenges that must be managed to produce aluminum efficiently, such as precise temperature control, electrical current regulation, and electrolyte composition.
