VSEPR theory is a cornerstone of chemistry, explaining how the repulsion between electron pairs in an atom's valence shell dictates molecular geometry. It reveals why lone pairs cause greater repulsion, affecting bond angles and resulting in diverse molecular shapes. From linear CO2 to angular H2O, VSEPR theory aids in predicting the 3D structures of molecules, which is crucial for various scientific fields.
Summary
Outline
Exploring Molecular Geometry with VSEPR Theory
Valence Shell Electron Pair Repulsion (VSEPR) theory is an essential model in chemistry that provides insight into the three-dimensional arrangement of atoms within a molecule. It explains molecular shapes by considering the repulsion between electron pairs located in the valence shell of atoms. According to VSEPR theory, electron pairs, including both bonding pairs involved in covalent bonds and non-bonding lone pairs, will position themselves to minimize repulsion, thus determining the molecule's geometry. Mastery of VSEPR theory is vital for understanding molecular interactions and properties, which are key in disciplines such as medicinal chemistry, materials science, and environmental studies.The Role of Electron Pair Repulsion in Determining Molecular Shape
The foundational principle of VSEPR theory is that electron pairs surrounding a central atom repel each other due to their like charges. The spatial arrangement of these electron pairs, both bonding and lone pairs, influences the molecular geometry. Notably, lone pairs exert a greater repulsive force than bonding pairs, affecting the bond angles and resulting in a variety of molecular shapes. For example, a molecule with four bonding pairs, such as methane (CH4), typically exhibits a tetrahedral geometry with bond angles of approximately 109.5°. However, the introduction of lone pairs can compress these angles, leading to different molecular geometries.Visualizing Molecules in Three Dimensions
Chemists employ various conventions to depict the three-dimensional structures of molecules in two-dimensional formats. Bonds in the plane of the paper or screen are shown with solid lines, while wedged lines represent bonds projecting out of the plane toward the observer. Conversely, hatched or dashed lines indicate bonds receding into the plane. Lone pairs are often represented by pairs of dots or a line. These visual cues are crucial for understanding the spatial arrangement of atoms in a molecule, which is fundamental for predicting molecular behavior and interactions.Common Molecular Shapes in the Absence of Lone Pairs
The shape of a molecule can vary depending on the number of bonding electron pairs around the central atom and the absence of lone pairs. With two bonding pairs, molecules like beryllium chloride (BeCl2) adopt a linear geometry with a bond angle of 180°. Three bonding pairs lead to a trigonal planar shape, as seen in boron trifluoride (BF3), with bond angles of 120°. Four bonding pairs result in a tetrahedral geometry, exemplified by methane (CH4), with bond angles of 109.5°. Molecules with five bonding pairs, such as phosphorus(V) pentachloride (PCl5), display a trigonal bipyramidal shape, while those with six bonding pairs, like sulfur hexafluoride (SF6), exhibit an octahedral geometry with 90° bond angles.Impact of Lone Pairs on Molecular Geometry
Lone pairs significantly influence the geometry of molecules by altering bond angles. Ammonia (NH3), with one lone pair and three bonding pairs, has a trigonal pyramidal shape with a bond angle slightly less than 109.5°, typically around 107°. Water (H2O), which has two lone pairs and two bonding pairs, assumes a bent or angular shape with a bond angle of about 104.5°. The repulsion between lone pairs and bonding pairs leads to these deviations from the idealized geometries that would be expected in the absence of lone pairs. Generally, each lone pair can reduce the bond angle by about 2° to 2.5° in molecules with four electron pairs.Practical Examples of Molecular Shapes
The VSEPR theory is exemplified in various molecules encountered in everyday life and industrial applications. Carbon dioxide (CO2) is linear because it has two double bonds, which are considered as single electron pair regions in VSEPR theory, resulting in a bond angle of 180°. Xenon tetrafluoride (XeF4) has a square planar geometry due to the presence of two lone pairs and four bonding pairs, with the lone pairs located diametrically opposite to each other and the bonding pairs forming 90° angles. These instances highlight the utility of VSEPR theory in predicting the three-dimensional shapes of molecules from the distribution of their electron pairs.
Show More

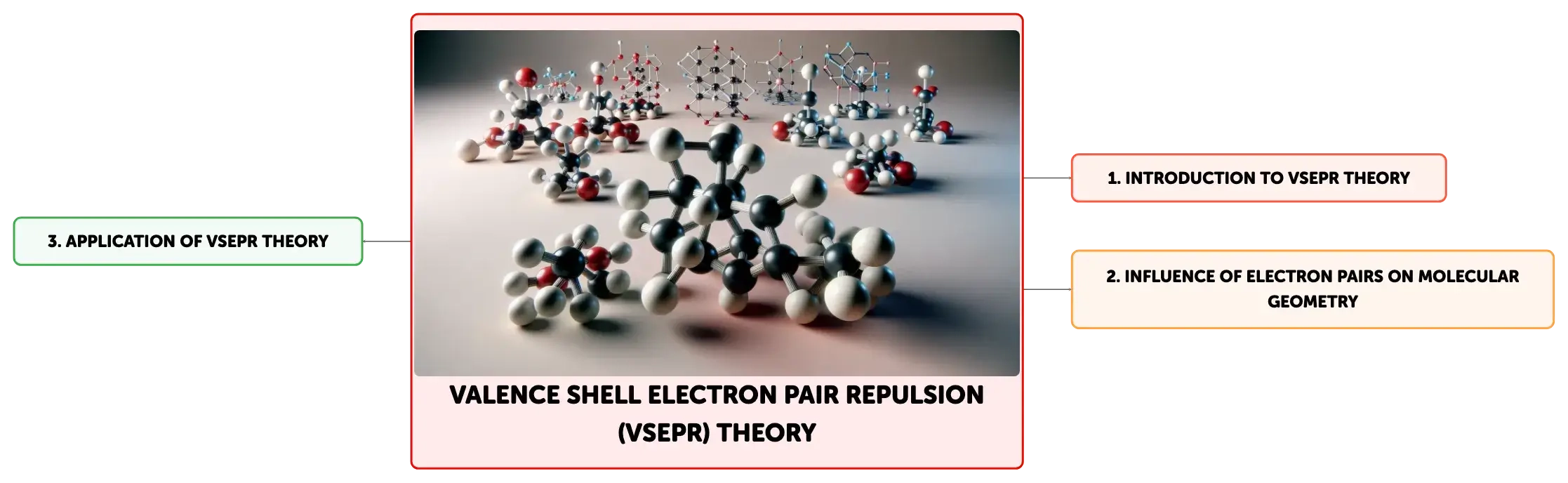

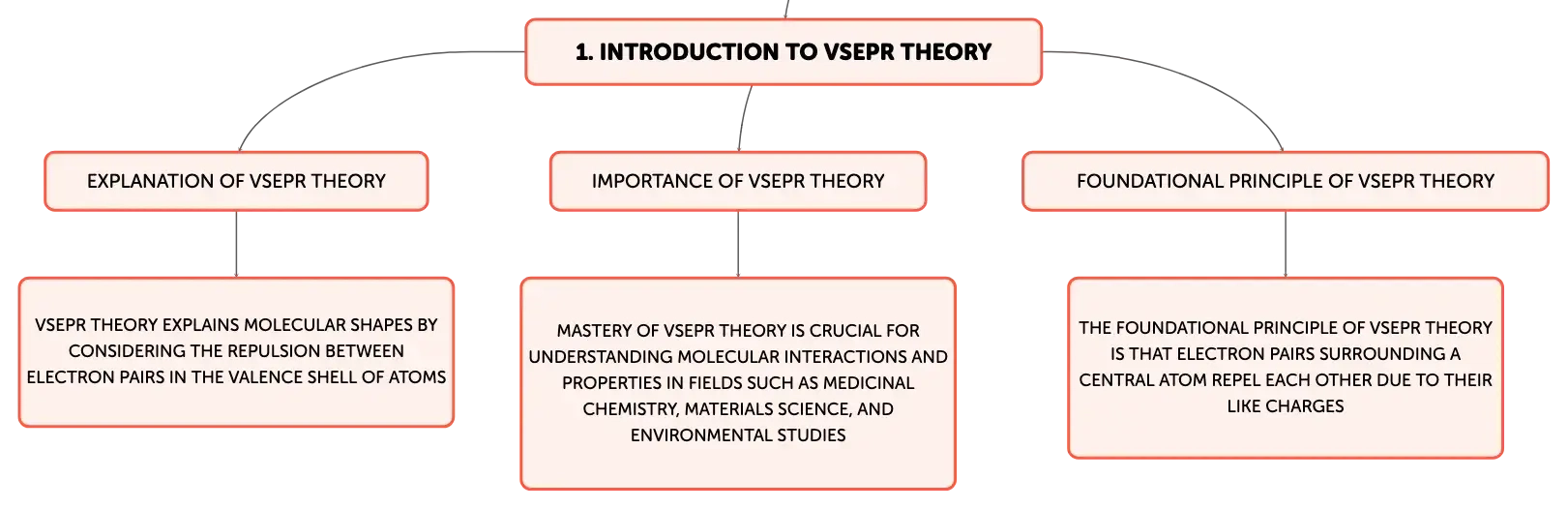

Introduction to VSEPR Theory
Explanation of VSEPR Theory
VSEPR theory explains molecular shapes by considering the repulsion between electron pairs in the valence shell of atoms
Importance of VSEPR Theory
Mastery of VSEPR theory is crucial for understanding molecular interactions and properties in fields such as medicinal chemistry, materials science, and environmental studies
Foundational Principle of VSEPR Theory
The foundational principle of VSEPR theory is that electron pairs surrounding a central atom repel each other due to their like charges

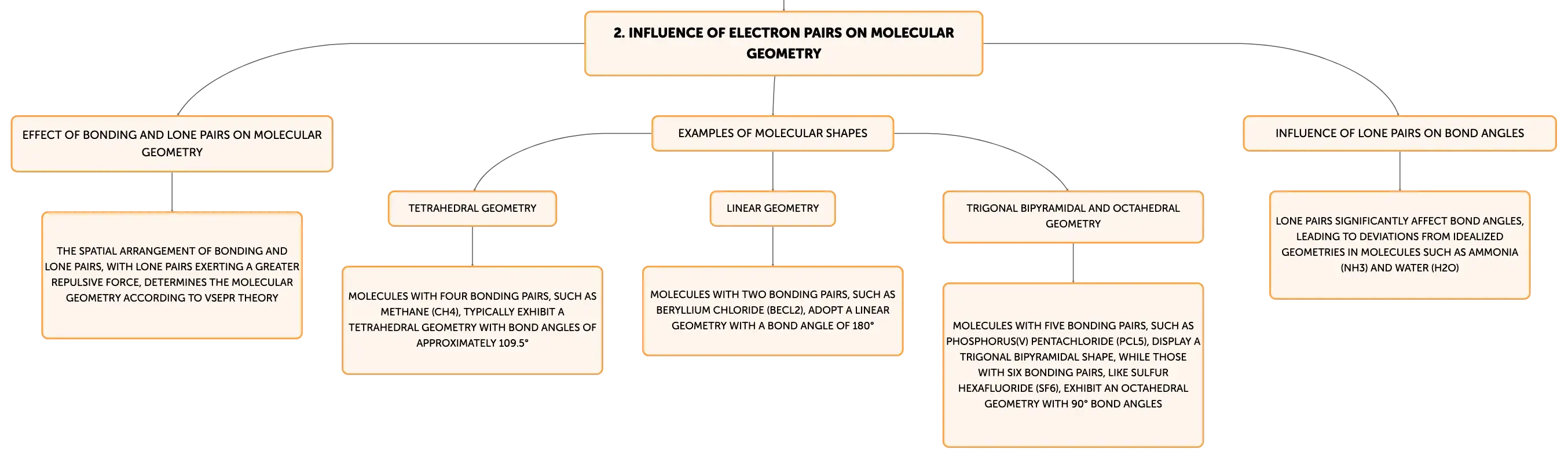

Influence of Electron Pairs on Molecular Geometry
Effect of Bonding and Lone Pairs on Molecular Geometry
The spatial arrangement of bonding and lone pairs, with lone pairs exerting a greater repulsive force, determines the molecular geometry according to VSEPR theory
Examples of Molecular Shapes
Tetrahedral Geometry
Molecules with four bonding pairs, such as methane (CH4), typically exhibit a tetrahedral geometry with bond angles of approximately 109.5°
Linear Geometry
Molecules with two bonding pairs, such as beryllium chloride (BeCl2), adopt a linear geometry with a bond angle of 180°
Trigonal Bipyramidal and Octahedral Geometry
Molecules with five bonding pairs, such as phosphorus(V) pentachloride (PCl5), display a trigonal bipyramidal shape, while those with six bonding pairs, like sulfur hexafluoride (SF6), exhibit an octahedral geometry with 90° bond angles
Influence of Lone Pairs on Bond Angles
Lone pairs significantly affect bond angles, leading to deviations from idealized geometries in molecules such as ammonia (NH3) and water (H2O)

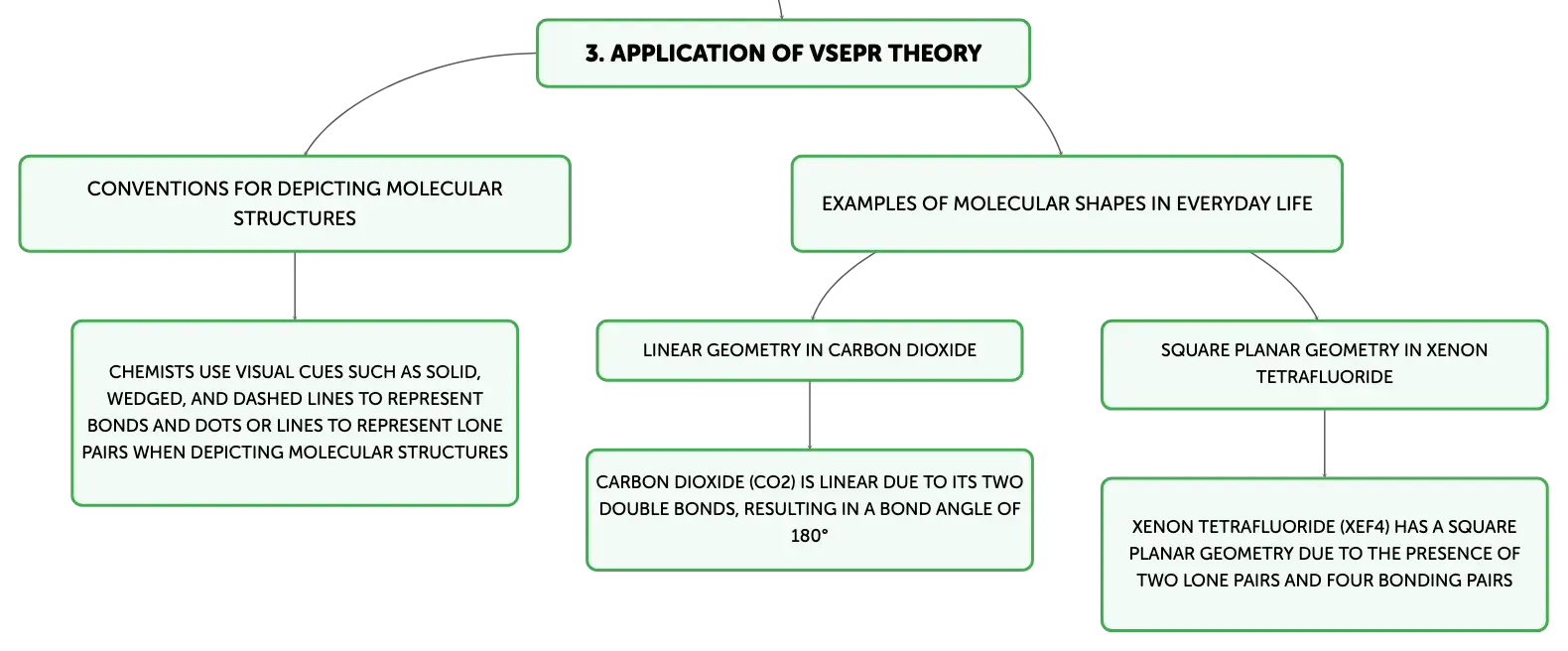

Application of VSEPR Theory
Conventions for Depicting Molecular Structures
Chemists use visual cues such as solid, wedged, and dashed lines to represent bonds and dots or lines to represent lone pairs when depicting molecular structures
Examples of Molecular Shapes in Everyday Life
Linear Geometry in Carbon Dioxide
Carbon dioxide (CO2) is linear due to its two double bonds, resulting in a bond angle of 180°
Square Planar Geometry in Xenon Tetrafluoride
Xenon tetrafluoride (XeF4) has a square planar geometry due to the presence of two lone pairs and four bonding pairs
Valence Shell Electron Pair Repulsion (VSEPR) Theory
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
VSEPR theory: Electron pair types
Electron pairs in VSEPR include bonding pairs in covalent bonds and non-bonding lone pairs.
01
VSEPR theory: Electron pair arrangement
Electron pairs arrange to minimize repulsion, influencing molecular geometry.
02
VSEPR theory application in scientific fields
VSEPR is crucial for understanding molecular interactions in medicinal chemistry, materials science, and environmental studies.
