The Born-Haber Cycle: Calculating Lattice Energy of Ionic Solids

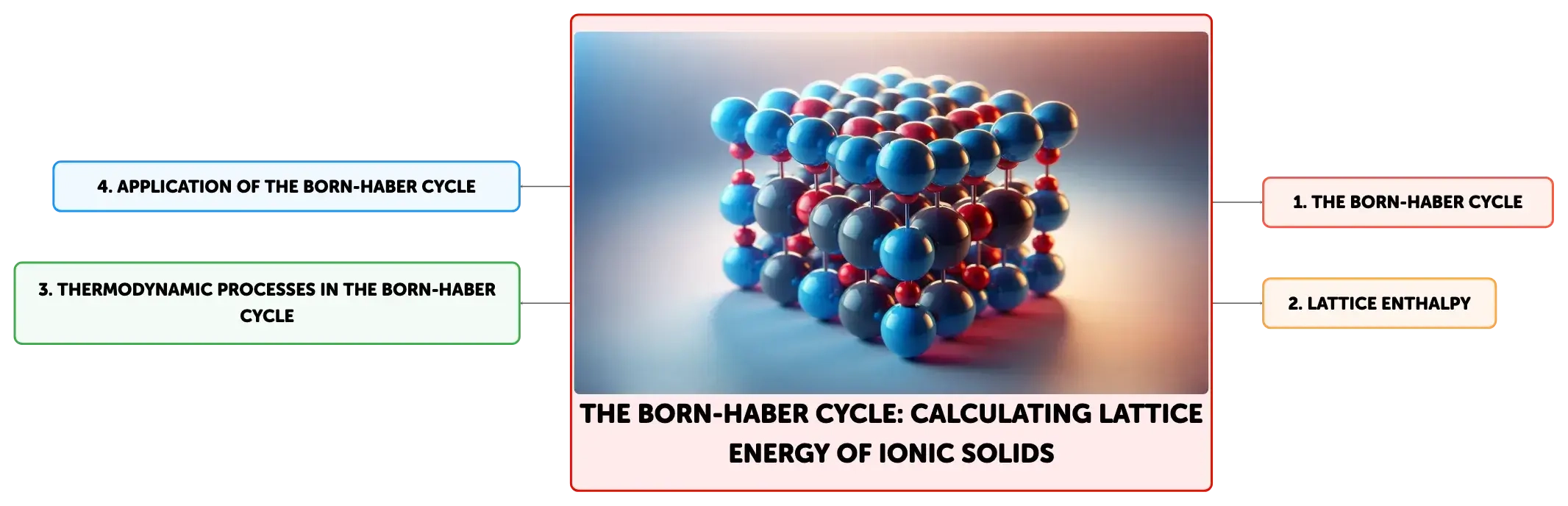

Concept Map
The Born-Haber cycle is a thermochemical concept used to calculate the lattice energy of ionic solids. It involves steps like sublimation, ionization, and electron affinity, and utilizes Hess's Law to determine the energy changes during the formation of an ionic compound. The cycle provides insights into the stability and physical properties of ionic substances, such as melting points and solubility, by depicting the sequence of enthalpy changes from element to ionic compound.
Summary
Outline
Exploring the Born-Haber Cycle
The Born-Haber cycle is an essential concept in thermochemistry, providing a method to calculate the lattice energy of ionic solids. This cycle is a hypothetical series of steps that represents the formation of an ionic compound from its constituent elements in their standard states. It involves the use of Hess's Law, which states that the total enthalpy change for a chemical reaction is the same, regardless of the route by which the chemical reaction takes place. The lattice energy, which can be defined as the energy required to separate one mole of a solid ionic compound into its gaseous ions, is a critical factor in determining the stability and properties of ionic substances.The Importance of Lattice Enthalpy
Lattice enthalpy is a fundamental property that influences the physical characteristics of ionic compounds, including melting points, boiling points, and solubility. It is an indirect measure of the electrostatic forces between ions in a crystal lattice. While lattice enthalpy itself cannot be measured directly, it can be derived from other measurable thermodynamic quantities using the Born-Haber cycle. The standard conditions for lattice enthalpy are a pressure of 1 bar (slightly different from the historical 1 atm) and a temperature of 298 K (25°C).Steps in the Born-Haber Cycle
The Born-Haber cycle integrates various thermodynamic processes, such as sublimation, ionization, and electron affinity. It begins with the sublimation of the solid element to form gaseous atoms, followed by the ionization of the metal atoms and the addition of electrons to the non-metal atoms. The cycle also includes the dissociation of diatomic molecules for non-metal elements and the formation of the ionic compound. By summing the enthalpy changes for each step, the lattice enthalpy can be calculated, providing insight into the energy changes during compound formation.Enthalpy of Formation and Atomisation
The standard enthalpy of formation is the heat change that occurs when one mole of a compound is formed from its elements in their standard states. Conversely, the standard enthalpy of atomisation is the heat change required to produce one mole of gaseous atoms from an element in its standard state. The enthalpy of atomisation is always positive, reflecting the endothermic nature of breaking chemical bonds within an element to form individual atoms.Ionisation Energy and Electron Affinity in the Cycle
Ionisation energy and electron affinity are pivotal in the Born-Haber cycle, representing the energy changes associated with the formation of ions from atoms. Ionisation energy is the energy required to remove an electron from a gaseous atom, resulting in a cation. Electron affinity is the energy change when an electron is added to a gaseous atom, leading to the formation of an anion. These steps are integral to the cycle as they reflect the transition from neutral atoms to charged ions, which are the building blocks of ionic compounds.Constructing a Born-Haber Cycle
Constructing a Born-Haber cycle involves a systematic approach to account for all relevant enthalpy changes in the formation of an ionic compound. The cycle starts with the standard enthalpy of formation, followed by the enthalpy of atomisation for each element. Next, the ionisation energies for the metal and the electron affinities for the non-metal are considered. If multiple ionisation energies or electron affinities are involved, they are included sequentially. The cycle is depicted graphically, with exothermic processes shown with downward arrows and endothermic processes with upward arrows, culminating in the determination of the lattice enthalpy.Insights from Born-Haber Cycles
The Born-Haber cycle is a vital analytical tool in chemistry, enabling the calculation of lattice enthalpies and providing insights into the energy changes during the formation of ionic compounds. Understanding the sequence of enthalpy changes and their application within the cycle allows chemists to predict and explain the properties of ionic substances. This concept is not only fundamental for theoretical calculations but also for connecting these calculations to observable physical properties, enhancing our comprehension of chemical bonding and the energetics of ionic solids.
Show More

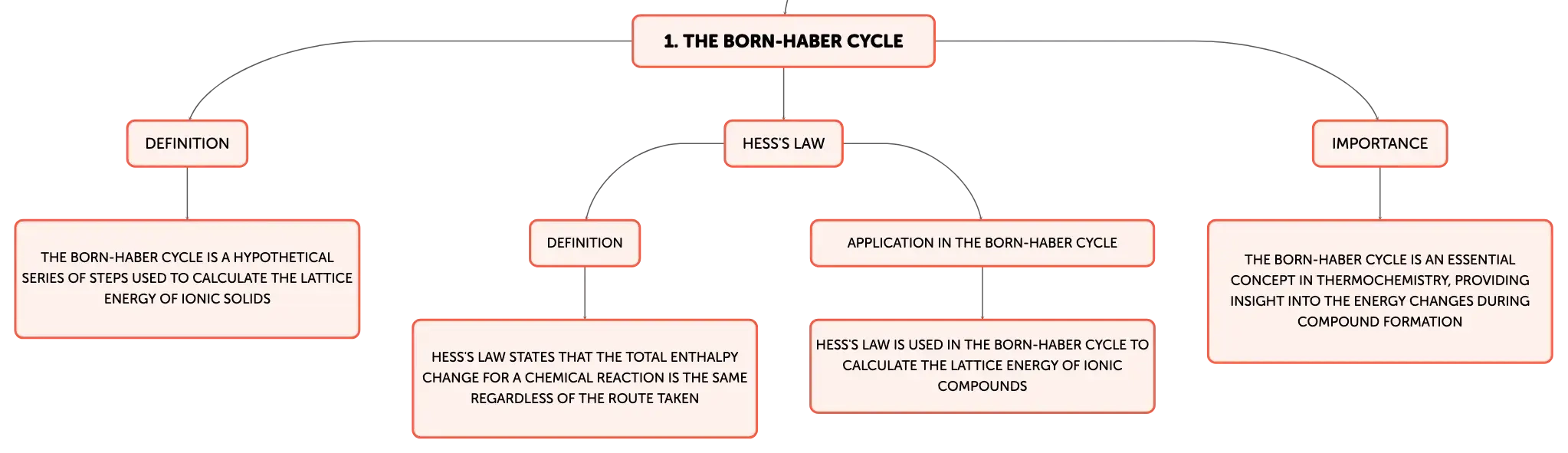

The Born-Haber Cycle
Definition
The Born-Haber cycle is a hypothetical series of steps used to calculate the lattice energy of ionic solids
Hess's Law
Definition
Hess's Law states that the total enthalpy change for a chemical reaction is the same regardless of the route taken
Application in the Born-Haber Cycle
Hess's Law is used in the Born-Haber cycle to calculate the lattice energy of ionic compounds
Importance
The Born-Haber cycle is an essential concept in thermochemistry, providing insight into the energy changes during compound formation

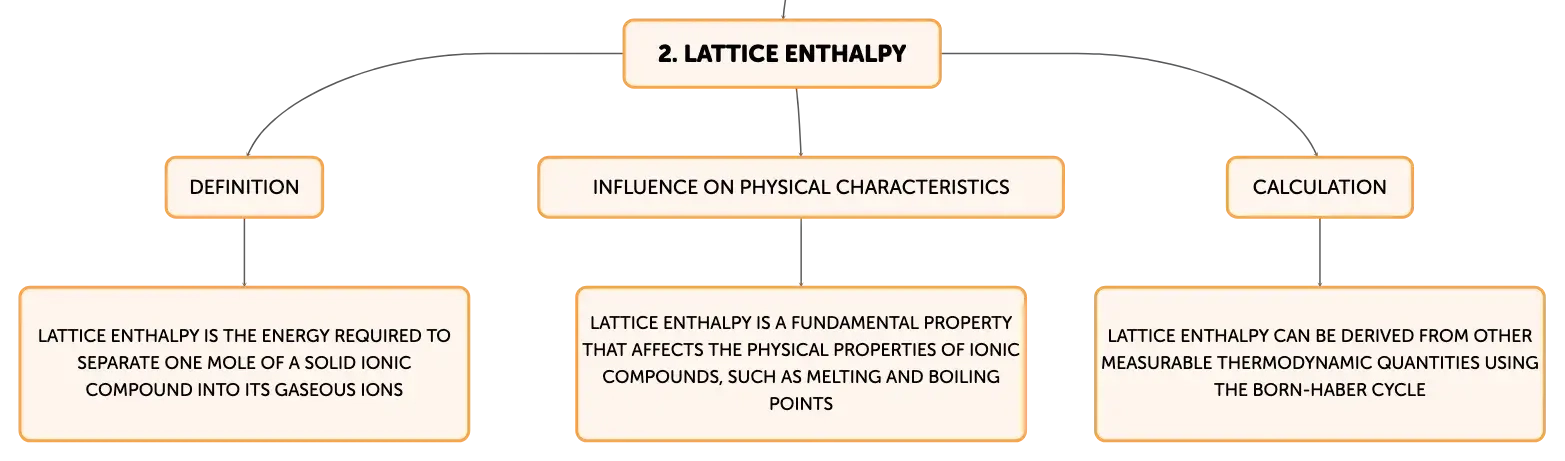

Lattice Enthalpy
Definition
Lattice enthalpy is the energy required to separate one mole of a solid ionic compound into its gaseous ions
Influence on Physical Characteristics
Lattice enthalpy is a fundamental property that affects the physical properties of ionic compounds, such as melting and boiling points
Calculation
Lattice enthalpy can be derived from other measurable thermodynamic quantities using the Born-Haber cycle

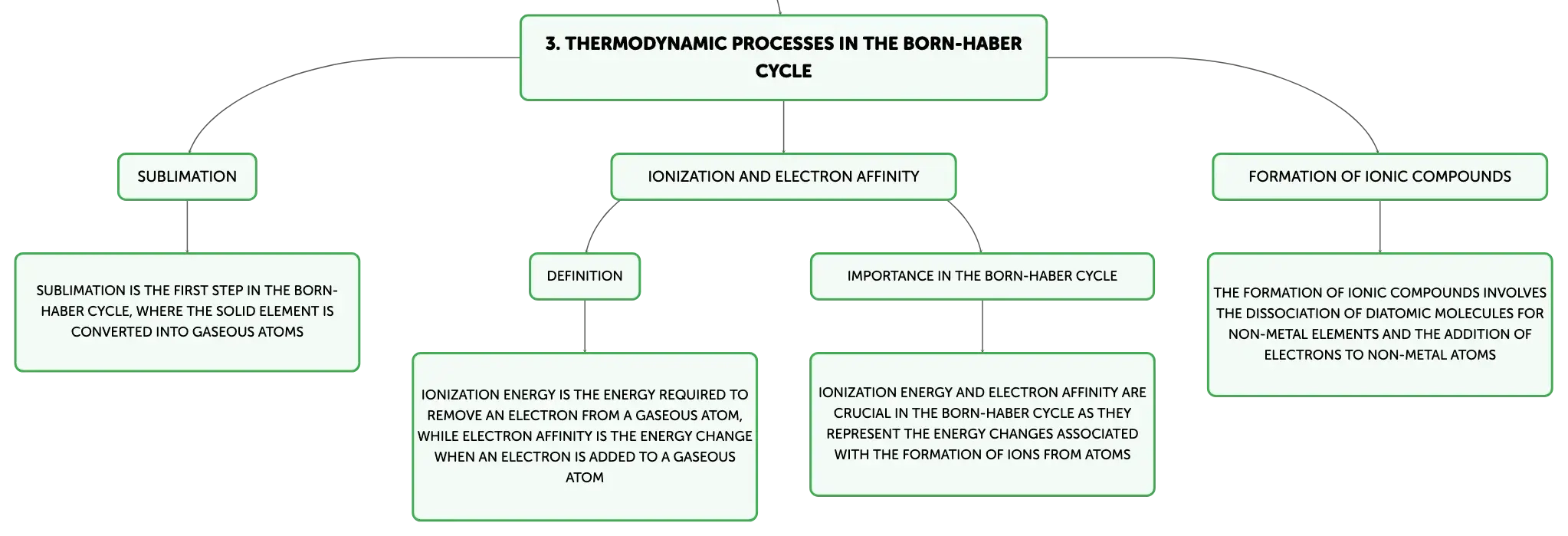

Thermodynamic Processes in the Born-Haber Cycle
Sublimation
Sublimation is the first step in the Born-Haber cycle, where the solid element is converted into gaseous atoms
Ionization and Electron Affinity
Definition
Ionization energy is the energy required to remove an electron from a gaseous atom, while electron affinity is the energy change when an electron is added to a gaseous atom
Importance in the Born-Haber Cycle
Ionization energy and electron affinity are crucial in the Born-Haber cycle as they represent the energy changes associated with the formation of ions from atoms
Formation of Ionic Compounds
The formation of ionic compounds involves the dissociation of diatomic molecules for non-metal elements and the addition of electrons to non-metal atoms

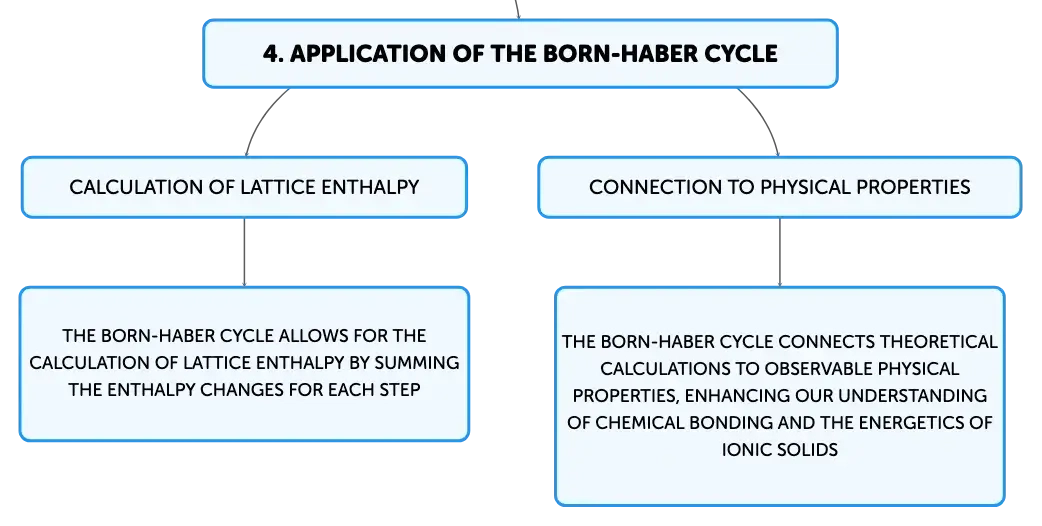

Application of the Born-Haber Cycle
Calculation of Lattice Enthalpy
The Born-Haber cycle allows for the calculation of lattice enthalpy by summing the enthalpy changes for each step
Connection to Physical Properties
The Born-Haber cycle connects theoretical calculations to observable physical properties, enhancing our understanding of chemical bonding and the energetics of ionic solids
The Born-Haber Cycle: Calculating Lattice Energy of Ionic Solids
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Define lattice energy in thermochemistry.
Lattice energy is the energy needed to separate one mole of an ionic solid into gaseous ions.
01
State Hess's Law.
Hess's Law posits that total enthalpy change of a reaction is constant, irrespective of the reaction pathway.
02
Role of lattice energy in ionic substances.
Lattice energy determines the stability and properties of ionic compounds.
