Understanding Legendre Polynomials and Rodrigues' Formula

Concept Map

Algorino

Edit available

Legendre polynomials, denoted as P_n(x), are a series of orthogonal polynomials crucial in physics, engineering, and mathematics. They solve Legendre's differential equation and are generated using Rodrigues' formula. These polynomials are integral in multipole expansions, quantum mechanics, and even in computational methods like neural network design. Their diverse representations, including power series and binomial coefficients, facilitate theoretical and practical applications.

Summary

Outline

Understanding Legendre Polynomials and Rodrigues' Formula

Legendre polynomials, symbolized as \( P_n(x) \), form a series of orthogonal polynomials that are fundamental in various fields such as physics, engineering, and mathematics. These polynomials are solutions to Legendre's differential equation, which is a type of second-order ordinary differential equation. Rodrigues' formula provides a powerful tool for generating Legendre polynomials: \( P_n(x) = \frac{1}{2^n n!} \frac{d^n}{dx^n} (x^2 -1)^n \). This expression is not only succinct but also pivotal for deriving the polynomials' properties. Legendre polynomials can be written in different explicit forms, including power series expansions and combinations of binomial coefficients. For instance, \( P_n(x) \) can be expanded as a sum of terms with coefficients derived from binomial coefficients, or as a series with coefficients \( a_k \) determined by a recursive relationship. The initial coefficients \( a_0 \) and \( a_1 \) are influenced by the parity of \( n \), which affects the form of the polynomial.
3D graph with wavy surfaces in shades of blue that increase in width along the x-axis, arranged in unlabeled Cartesian space.

Explicit Representations and Power Series of Legendre Polynomials

Legendre polynomials can be expressed in various explicit forms, each elucidating a unique aspect of their mathematical structure. One common representation is the power series, \( P_n(x) = \sum a_k x^k \), where the coefficients \( a_k \) are obtained through a recursive formula. This series is particularly useful for computational applications. Another representation showcases the symmetry of the polynomials by summing products of binomial coefficients with powers of \( x \) and \( -x \). Additionally, a representation using the floor function indicates the maximum integer not exceeding \( n/2 \), and another involves a generalized form of the binomial theorem. These diverse representations are valuable for both theoretical exploration and practical calculations involving Legendre polynomials.

The Role of Legendre Polynomials in Physics and Mathematics

Legendre polynomials are pivotal in various domains of physics and mathematics. Introduced by Adrien-Marie Legendre in 1782, they were initially used as coefficients in the series expansion of the Newtonian potential, which characterizes the gravitational potential of a point mass or the Coulomb potential of a point charge. This series is particularly beneficial for integrating over continuous distributions of mass or charge. Legendre polynomials also emerge in solving Laplace's equation for the electric potential in regions without charge and with axial symmetry. In such scenarios, the potential is represented as a series involving Legendre polynomials, with coefficients determined by the specific boundary conditions of the problem. Moreover, these polynomials are essential in quantum mechanics, particularly when solving the Schrödinger equation for systems with central potentials.

Applications of Legendre Polynomials in Multipole Expansions

Legendre polynomials are essential in multipole expansions, which describe potential fields in classical electrodynamics and other areas. The generating function for Legendre polynomials facilitates the expansion of functions that characterize the potential due to point charges or distributed masses. For instance, the electric potential from a point charge can be expanded in terms of Legendre polynomials when the observation point lies outside the sphere of influence of the charge. This normal multipole expansion simplifies the computation of potential fields. Conversely, an interior multipole expansion, which also employs Legendre polynomials, is used when the observation point is inside the sphere. These expansions are crucial for analyzing electric and gravitational fields in complex configurations.

Legendre Polynomials in Trigonometry and Neural Networks

Legendre polynomials intersect with other mathematical areas, such as trigonometry, where they can be used to expand trigonometric functions like \( \cos(n\theta) \). This relationship with Chebyshev polynomials allows for the expression of trigonometric functions in terms of Legendre polynomials, which can simplify certain calculations. In the realm of computational methods, Legendre polynomials have been applied in the design of recurrent neural networks. Here, they approximate the sliding window of inputs over time, leading to neural network architectures that can potentially surpass traditional models like long short-term memory (LSTM) units. This underscores the adaptability and enduring significance of Legendre polynomials across various scientific and engineering fields.

Show More

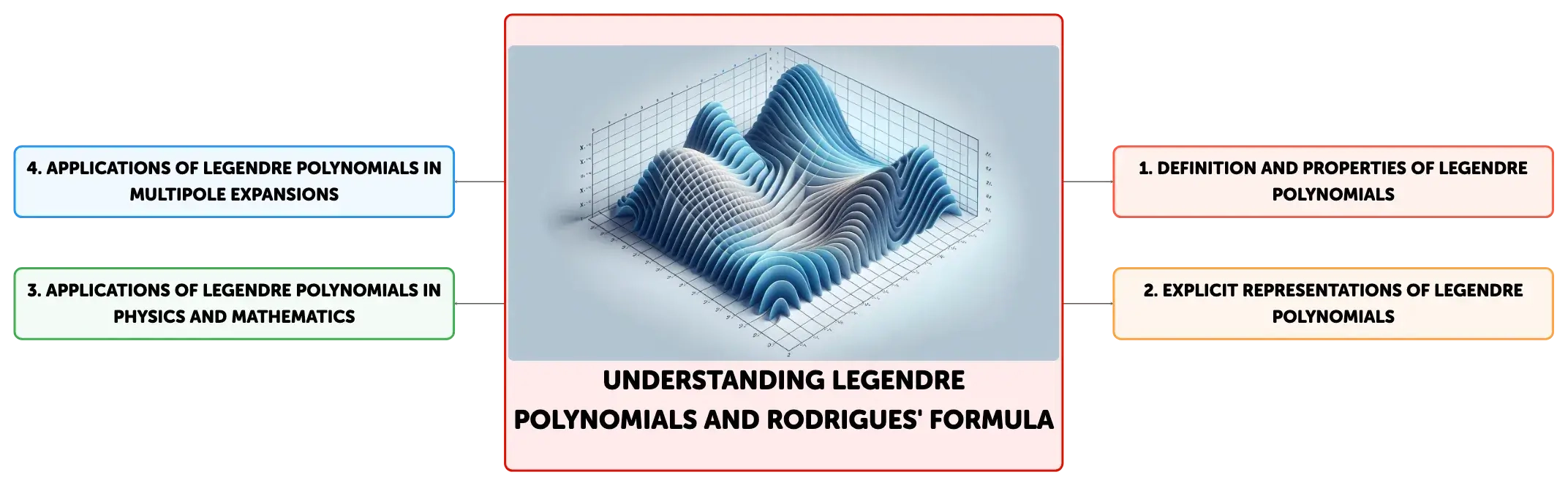

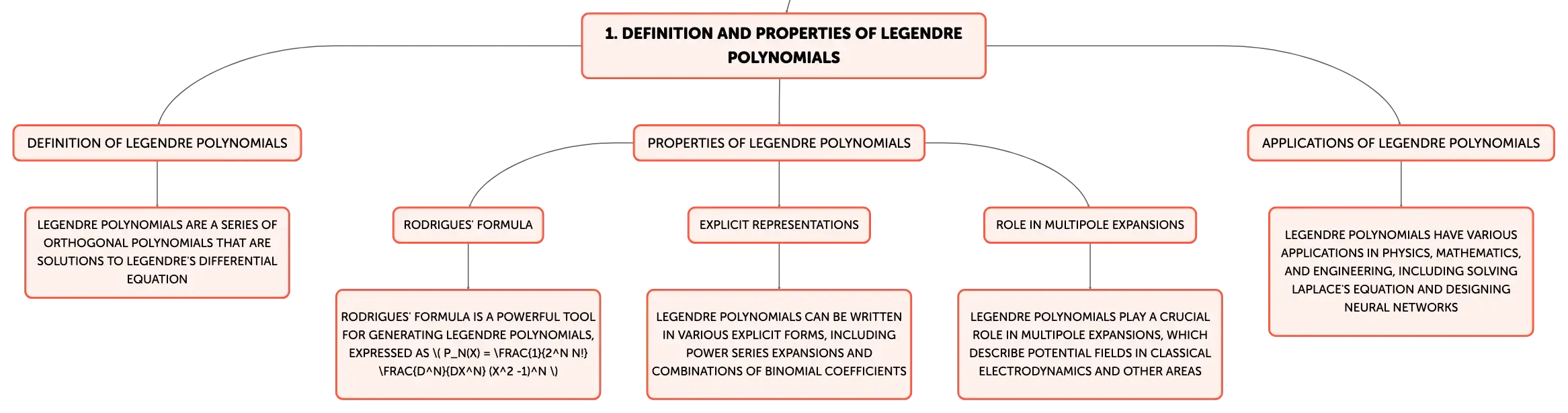

    Understanding Legendre Polynomials and Rodrigues' Formula

  • Definition and Properties of Legendre Polynomials

  • Definition of Legendre Polynomials

  • Legendre polynomials are a series of orthogonal polynomials that are solutions to Legendre's differential equation

  • Properties of Legendre Polynomials

  • Rodrigues' Formula

  • Rodrigues' formula is a powerful tool for generating Legendre polynomials, expressed as \( P_n(x) = \frac{1}{2^n n!} \frac{d^n}{dx^n} (x^2 -1)^n \)

  • Explicit Representations

  • Legendre polynomials can be written in various explicit forms, including power series expansions and combinations of binomial coefficients

  • Role in Multipole Expansions

  • Legendre polynomials play a crucial role in multipole expansions, which describe potential fields in classical electrodynamics and other areas

  • Applications of Legendre Polynomials

  • Legendre polynomials have various applications in physics, mathematics, and engineering, including solving Laplace's equation and designing neural networks

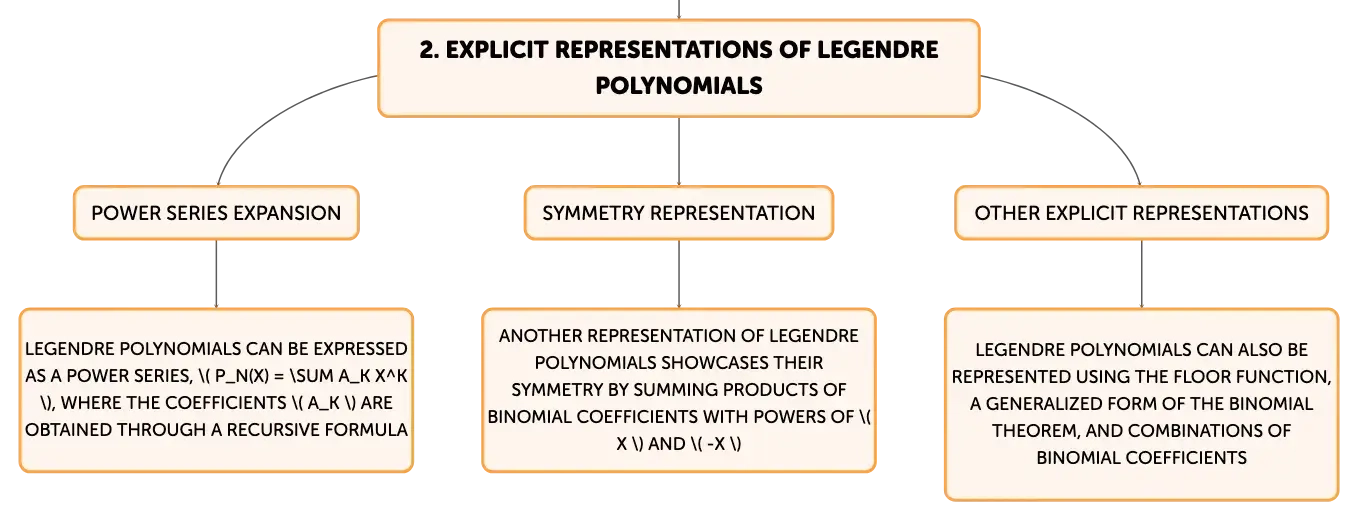

  • Explicit Representations of Legendre Polynomials

  • Power Series Expansion

  • Legendre polynomials can be expressed as a power series, \( P_n(x) = \sum a_k x^k \), where the coefficients \( a_k \) are obtained through a recursive formula

  • Symmetry Representation

  • Another representation of Legendre polynomials showcases their symmetry by summing products of binomial coefficients with powers of \( x \) and \( -x \)

  • Other Explicit Representations

  • Legendre polynomials can also be represented using the floor function, a generalized form of the binomial theorem, and combinations of binomial coefficients

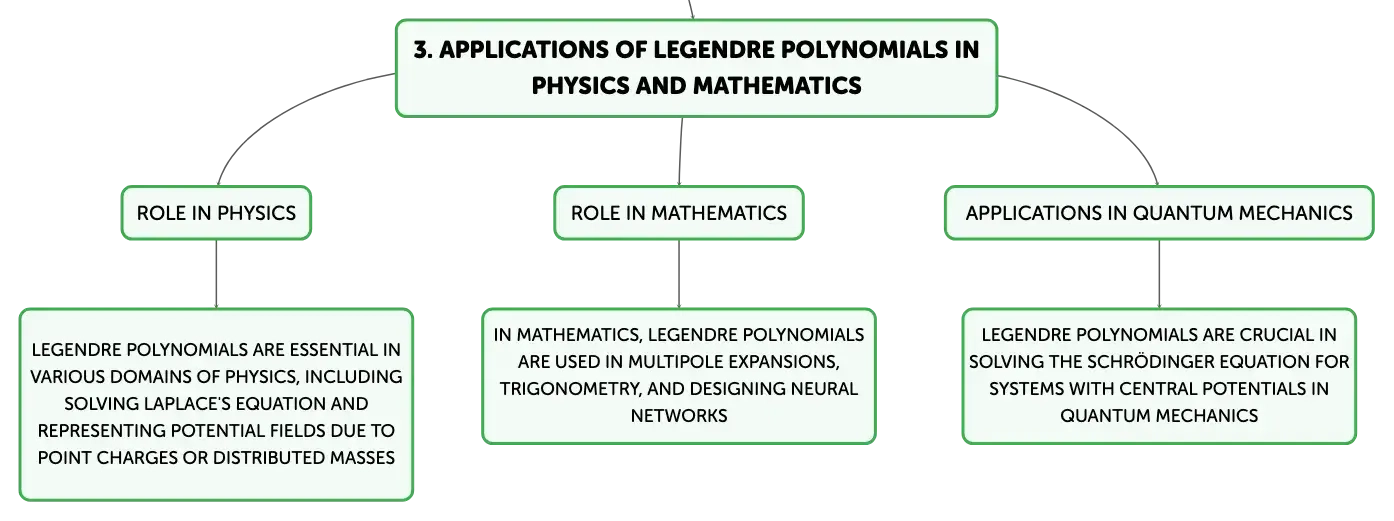

  • Applications of Legendre Polynomials in Physics and Mathematics

  • Role in Physics

  • Legendre polynomials are essential in various domains of physics, including solving Laplace's equation and representing potential fields due to point charges or distributed masses

  • Role in Mathematics

  • In mathematics, Legendre polynomials are used in multipole expansions, trigonometry, and designing neural networks

  • Applications in Quantum Mechanics

  • Legendre polynomials are crucial in solving the Schrödinger equation for systems with central potentials in quantum mechanics

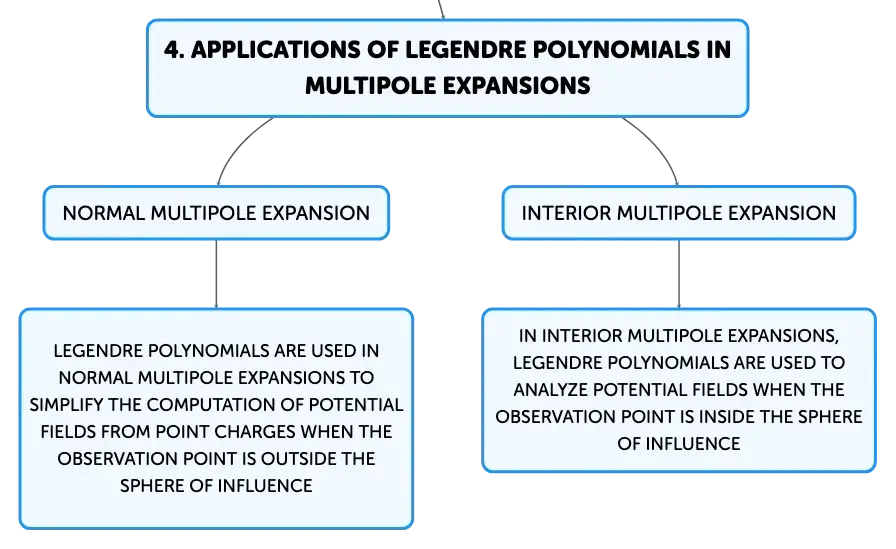

  • Applications of Legendre Polynomials in Multipole Expansions

  • Normal Multipole Expansion

  • Legendre polynomials are used in normal multipole expansions to simplify the computation of potential fields from point charges when the observation point is outside the sphere of influence

  • Interior Multipole Expansion

  • In interior multipole expansions, Legendre polynomials are used to analyze potential fields when the observation point is inside the sphere of influence

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

In the absence of charge and with axial symmetry, Legendre polynomials are used to solve ______'s equation, representing the electric potential.

Laplace

01

In ______ mechanics, Legendre polynomials play a crucial role, especially when addressing the ______ equation for systems with central potentials.

quantum

Schrödinger

02

Generating function for Legendre polynomials

Facilitates expansion of potential functions due to point charges or distributed masses.

03

Normal multipole expansion application

Used when observation point is outside the charge's sphere of influence; simplifies potential field computations.

04

Interior multipole expansion application

Employed when observation point is inside the sphere; crucial for analyzing fields in complex configurations.
