3D Geometry in Video Games

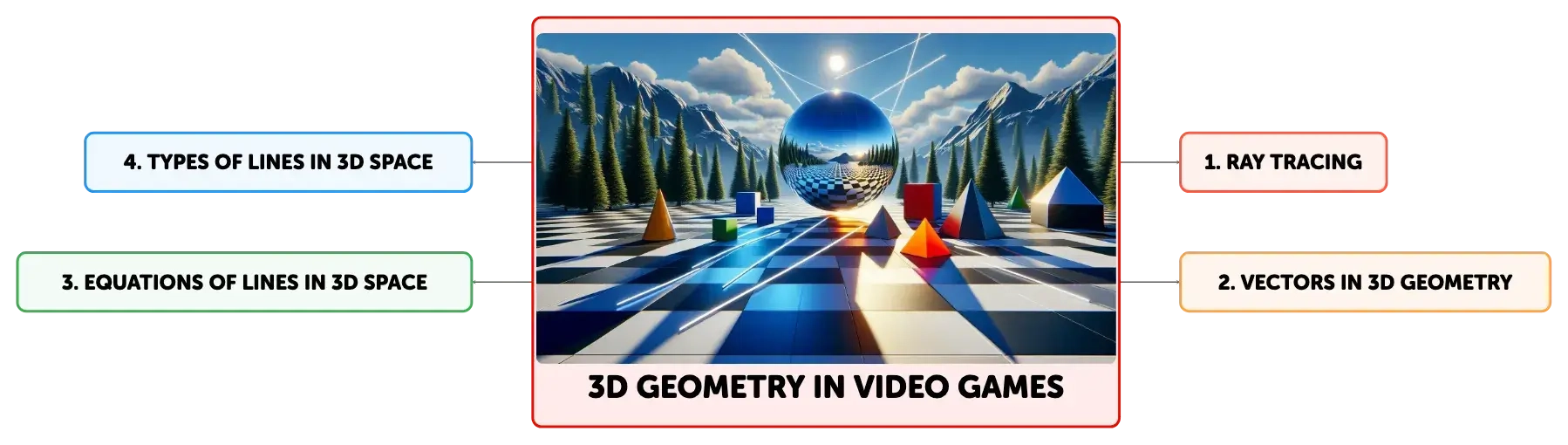

Concept Map
Exploring the intricacies of 3D geometry, this overview delves into the use of ray tracing in video games, the fundamental role of vectors, and the equations that describe lines in three-dimensional space. It covers parametric, vector, and Cartesian equations, as well as the relationships between lines, such as parallelism, intersection, and skewness. These concepts are crucial for game designers and professionals in computer graphics and engineering.
Summary
Outline
Exploring 3D Geometry in Video Game Design
Video games leverage sophisticated 3D geometry to craft engaging and lifelike environments. A key technique used is ray tracing, which emulates realistic lighting by tracing the path of light rays from a source and calculating their interactions with virtual objects. This method precisely determines the locations of shadows and reflections, significantly enhancing the visual realism of the game. Mastery of 3D geometry, especially the manipulation of lines and shapes in three dimensions, is crucial for game designers to create compelling and interactive gaming experiences.The Role of Vectors in 3D Geometry
Vectors are fundamental to 3D geometry, characterized by both direction and magnitude. They are typically represented in column vector form or as unit vectors with components along the \( \vec{i}, \vec{j}, \vec{k} \) axes. Position vectors define a point in space relative to the origin, while direction vectors indicate the orientation and magnitude of a line segment from the origin to a point. Operations such as vector addition, subtraction, and scalar multiplication are instrumental in constructing and transforming shapes within three-dimensional space.Parametric and Vector Equations for Lines in 3D
A line in 3D space can be described using parametric equations: \( x = a_1 + t b_1, y = a_2 + t b_2, z = a_3 + t b_3 \), where \( \vec{a} \) is a point on the line, \( \vec{b} \) is the direction vector, and \( t \) is a scalar parameter. This leads to the vector equation of a line, \( \vec{r} = \vec{a} + t \vec{b} \), which concisely represents the line in vector notation. These equations are essential for defining the path and orientation of lines in 3D models and environments.Cartesian Equations for Lines in 3D
The Cartesian equation of a line in 3D is given by \( \frac{x - a_1}{b_1} = \frac{y - a_2}{b_2} = \frac{z - a_3}{b_3} \), where \( b_1, b_2, b_3 \) are the non-zero components of the direction vector. This form is an alternative way to represent a line in 3D space and is useful for analyzing geometric relationships. However, it is not applicable when the line is parallel to one of the coordinate axes, as this would result in undefined expressions due to division by zero.Analyzing Relationships Between Lines in 3D Geometry
In 3D geometry, lines can be categorized as parallel, intersecting, or skew. Parallel lines have proportional direction vectors. To determine if lines intersect, one can equate their parametric equations and solve the system; a consistent solution indicates intersection. Skew lines, which do not intersect and are not parallel, are unique to three-dimensional space. Recognizing these relationships is vital for understanding the structure and navigation within 3D environments.Describing Lines Parallel to the Coordinate Axes in 3D
Lines parallel to the coordinate axes in 3D are represented using specific vector and parametric equations. For example, a line parallel to the \(x\)-axis would have a direction vector proportional to \( \vec{i} \), leading to the vector equation \( \vec{r} = \vec{a} + t \vec{i} \). A line parallel to the \(z\)-axis would similarly incorporate \( \vec{k} \) in its vector equation. These specialized equations facilitate the description of axis-aligned lines, although they do not have a corresponding Cartesian form due to the zero components in their direction vectors.Comprehensive Overview of 3D Line Equations
To summarize, lines in 3D space can be defined using parametric, vector, or Cartesian equations, each providing different perspectives on the line's characteristics and spatial orientation. The concepts of parallelism, intersection, and skewness are determined by analyzing direction vectors and solving systems of equations. Skew lines are a unique feature of 3D geometry. These principles are foundational for comprehending and manipulating lines in three-dimensional spaces, which is essential for fields such as video game development, engineering, and computer graphics.
Show More

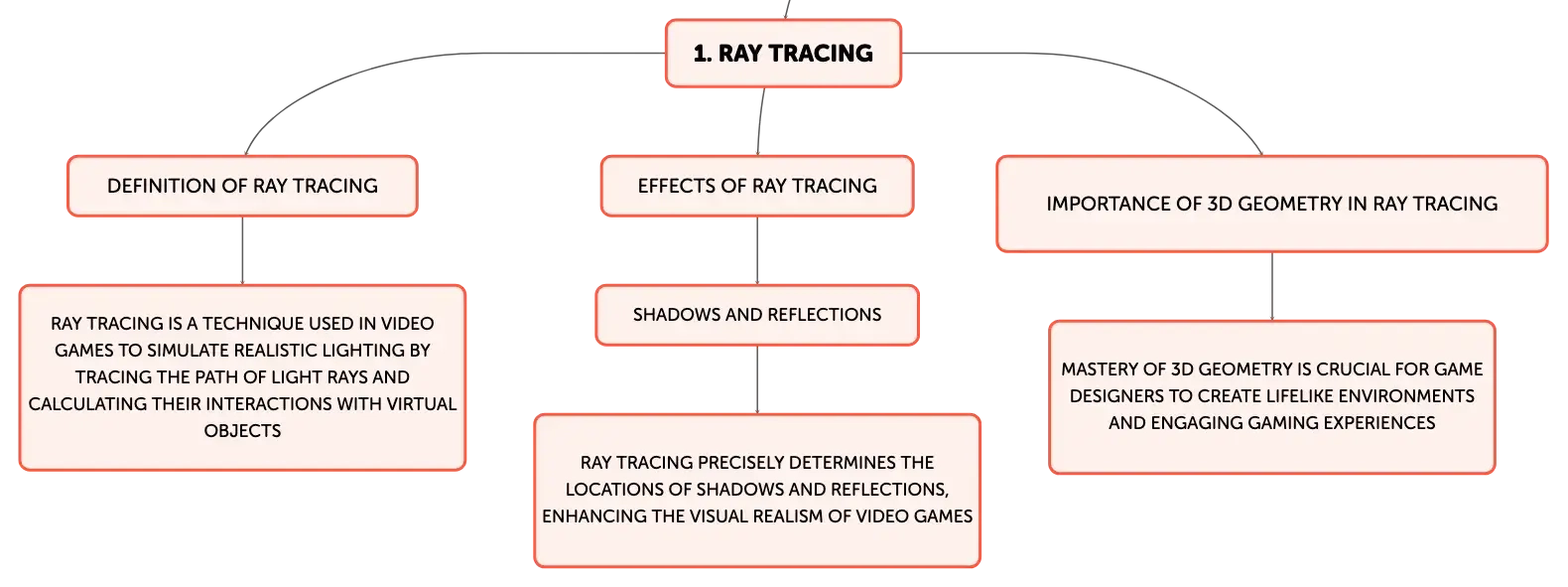

Ray Tracing
Definition of Ray Tracing
Ray tracing is a technique used in video games to simulate realistic lighting by tracing the path of light rays and calculating their interactions with virtual objects
Effects of Ray Tracing
Shadows and Reflections
Ray tracing precisely determines the locations of shadows and reflections, enhancing the visual realism of video games
Importance of 3D Geometry in Ray Tracing
Mastery of 3D geometry is crucial for game designers to create lifelike environments and engaging gaming experiences

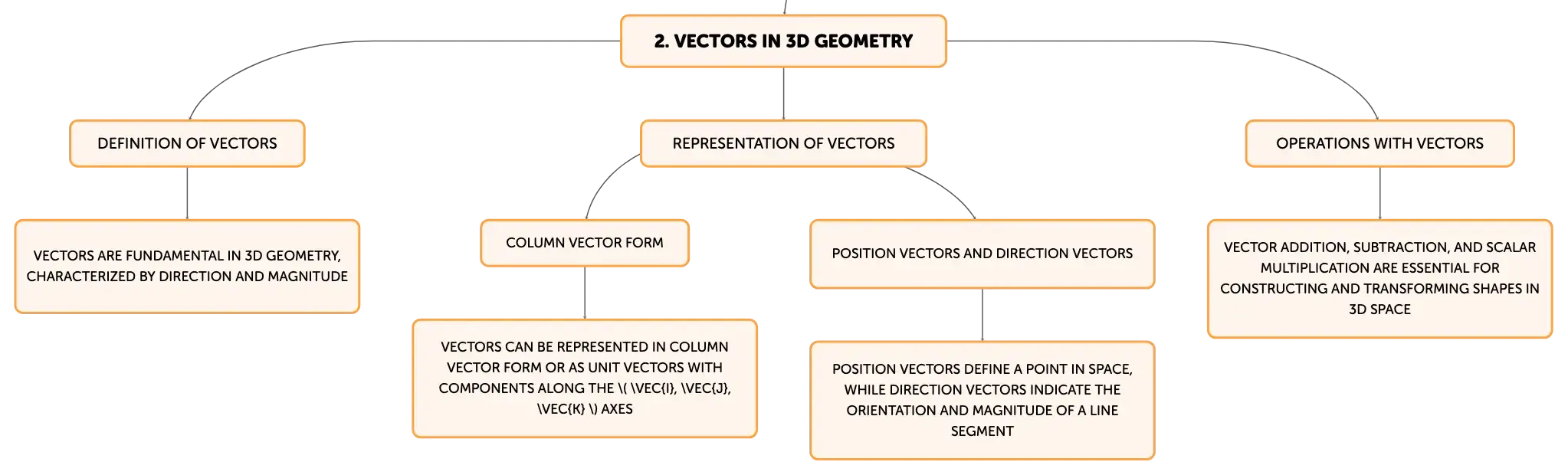

Vectors in 3D Geometry
Definition of Vectors
Vectors are fundamental in 3D geometry, characterized by direction and magnitude
Representation of Vectors
Column Vector Form
Vectors can be represented in column vector form or as unit vectors with components along the \( \vec{i}, \vec{j}, \vec{k} \) axes
Position Vectors and Direction Vectors
Position vectors define a point in space, while direction vectors indicate the orientation and magnitude of a line segment
Operations with Vectors
Vector addition, subtraction, and scalar multiplication are essential for constructing and transforming shapes in 3D space

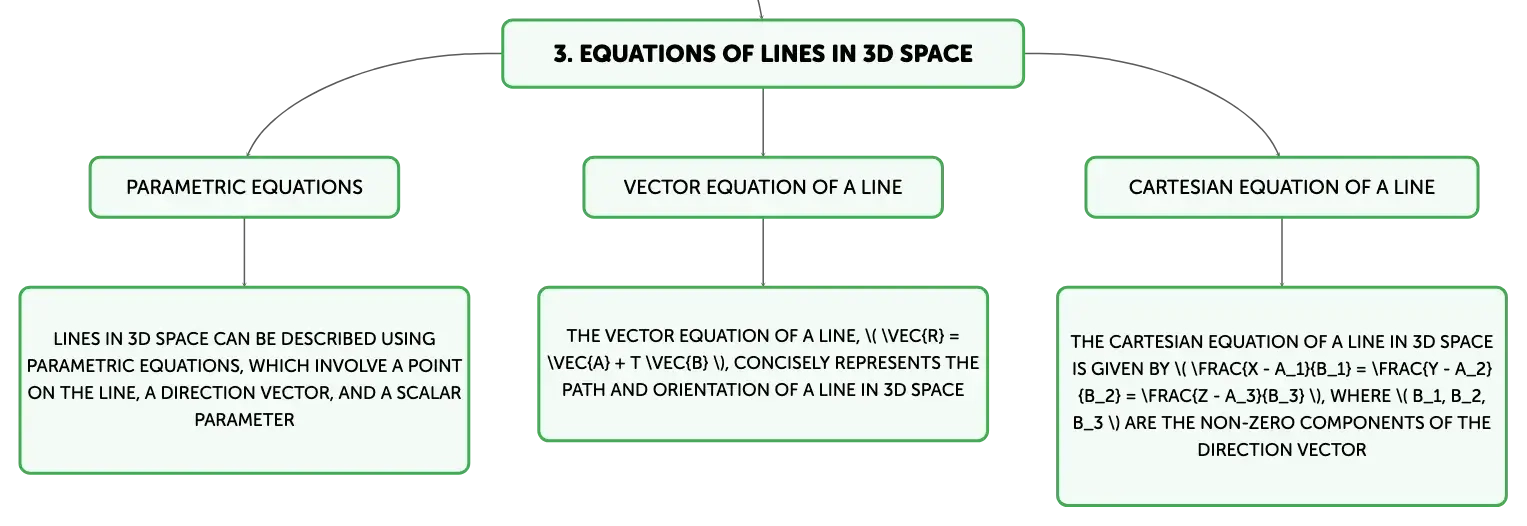

Equations of Lines in 3D Space
Parametric Equations
Lines in 3D space can be described using parametric equations, which involve a point on the line, a direction vector, and a scalar parameter
Vector Equation of a Line
The vector equation of a line, \( \vec{r} = \vec{a} + t \vec{b} \), concisely represents the path and orientation of a line in 3D space
Cartesian Equation of a Line
The Cartesian equation of a line in 3D space is given by \( \frac{x - a_1}{b_1} = \frac{y - a_2}{b_2} = \frac{z - a_3}{b_3} \), where \( b_1, b_2, b_3 \) are the non-zero components of the direction vector
Types of Lines in 3D Space
Parallel Lines
Parallel lines in 3D space have proportional direction vectors
Intersecting Lines
To determine if lines intersect, their parametric equations can be equated and solved
Skew Lines
Skew lines, which do not intersect and are not parallel, are unique to three-dimensional space
3D Geometry in Video Games
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Role of 3D geometry in video games
3D geometry is used to create lifelike environments and interactive experiences in gaming.
01
Impact of shadows and reflections on realism
Shadows and reflections, calculated via ray tracing, enhance visual realism by mimicking real-world lighting.
02
Importance of mastering 3D shapes manipulation
Game designers must manipulate lines and shapes in 3D space to craft compelling game environments.
