Ion Exchange Chromatography

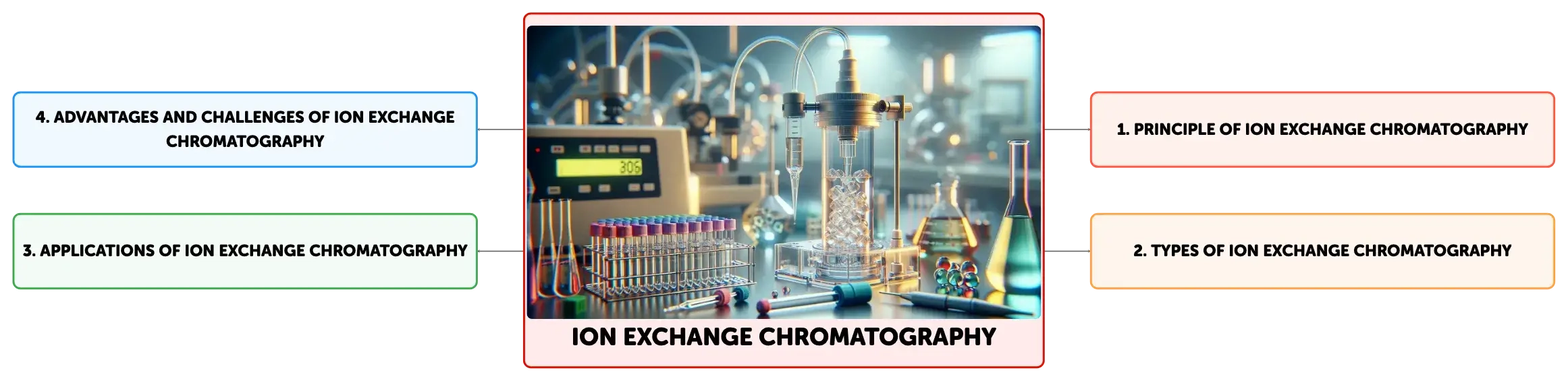

Concept Map
Ion Exchange Chromatography (IEC) is a pivotal technique for separating proteins and biomolecules based on charge. It utilizes a resin with charged groups to bind oppositely charged molecules, allowing for high specificity in purification processes. IEC is instrumental in pharmaceuticals for drug purification, in food safety, clinical diagnostics, environmental testing, and biomedical research. The method's precision in protein purification is particularly noteworthy, as it maintains the native structure and function of proteins.
Summary
Outline
Understanding the Basics of Ion Exchange Chromatography
Ion Exchange Chromatography (IEC) is an essential separation technique in analytical chemistry, particularly useful for isolating proteins and other biomolecules based on their charge. This method employs a stationary phase, typically a resin, that carries charged functional groups. Molecules in a mixture are separated by their differential affinities to these charged groups. IEC is categorized into two types: Anion Exchange Chromatography, which uses a resin with positively charged groups to attract and bind negatively charged molecules, and Cation Exchange Chromatography, which has negatively charged groups to capture positively charged species. The high degree of specificity afforded by IEC makes it an invaluable tool for the detailed analysis of complex biological mixtures.The Mechanism of Ion Exchange Chromatography
Ion Exchange Chromatography operates on the principle of reversible ionic interactions. A mixture is introduced into a column packed with ion exchange resin. Molecules with a charge opposite to that of the resin's functional groups are retained, while others pass through. The strength of retention is modulated by the pH and ionic strength of the mobile phase, which can be adjusted to optimize separation. Elution is achieved by increasing the ionic strength or altering the pH of the mobile phase, causing the bound ions to be released. The equilibrium constant for adsorption, denoted as \( K_{\text{ads}} \) (not \( K_{\text{abs}} \)), is a measure of the affinity between the ions and the resin, with higher values indicating stronger binding and longer retention times.Applications of Ion Exchange Chromatography Across Industries
Ion Exchange Chromatography has diverse applications in several fields. In the pharmaceutical sector, it is employed for the purification of drugs and the preparation of ultrapure water. The food industry uses IEC to refine proteins and amino acids, contributing to food safety and quality. In clinical laboratories, it aids in the analysis of biological fluids for diagnostic purposes. Environmental scientists utilize IEC for assessing water and soil purity, monitoring contaminants such as heavy metals and nitrates. The technique's precision in separating specific proteins is also crucial in biomedical research for understanding disease mechanisms and developing diagnostic assays.The Role of Ion Exchange Chromatography in Protein Purification
Ion Exchange Chromatography is particularly effective for purifying proteins. The process exploits the variable net charge of proteins at different pH levels. Proteins with an isoelectric point (pI) below the pH of the buffer will carry a net positive charge and bind to an anion exchange resin, whereas those with a pI above the buffer pH will carry a net negative charge and adhere to a cation exchange resin. By carefully adjusting the pH and ionic strength of the elution buffer, proteins can be selectively eluted from the column. This method allows for the purification of proteins to a high degree of purity while maintaining their native structure and function.Advantages and Challenges of Ion Exchange Chromatography
Ion Exchange Chromatography offers several advantages, including high resolution, specificity, and the ability to scale up for industrial applications. It is also known for its reproducibility and compatibility with a variety of sample types. However, the technique requires precise control of experimental conditions such as pH and ionic strength, and there can be issues with resin stability and nonspecific interactions. Despite these challenges, the benefits of IEC, such as its ability to separate ions with high selectivity, make it a preferred method for many analytical and preparative purposes.Ion Exchange Chromatography in Research and Industry
In the realm of biological research, Ion Exchange Chromatography is a cornerstone for the characterization and purification of macromolecules, including proteins and nucleic acids. It facilitates the selective purification of target proteins from complex biological mixtures and the resolution of DNA and RNA fragments by charge. In the pharmaceutical industry, IEC is integral to the development and quality control of biopharmaceuticals. It is used to purify therapeutic proteins and to ensure the purity and stability of drugs, which is critical for meeting regulatory standards and ensuring patient safety. The technique's reproducibility and high resolution are key to its widespread use in these highly regulated environments.
Show More

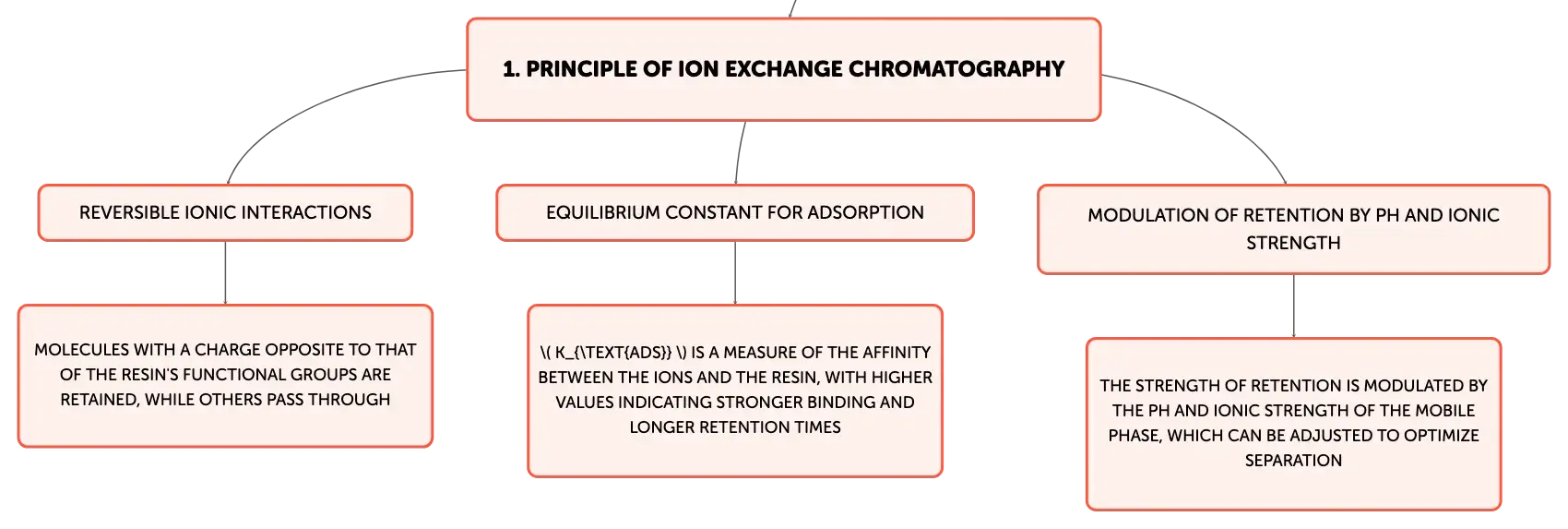

Principle of Ion Exchange Chromatography
Reversible ionic interactions
Molecules with a charge opposite to that of the resin's functional groups are retained, while others pass through
Equilibrium constant for adsorption
\( K_{\text{ads}} \) is a measure of the affinity between the ions and the resin, with higher values indicating stronger binding and longer retention times
Modulation of retention by pH and ionic strength
The strength of retention is modulated by the pH and ionic strength of the mobile phase, which can be adjusted to optimize separation

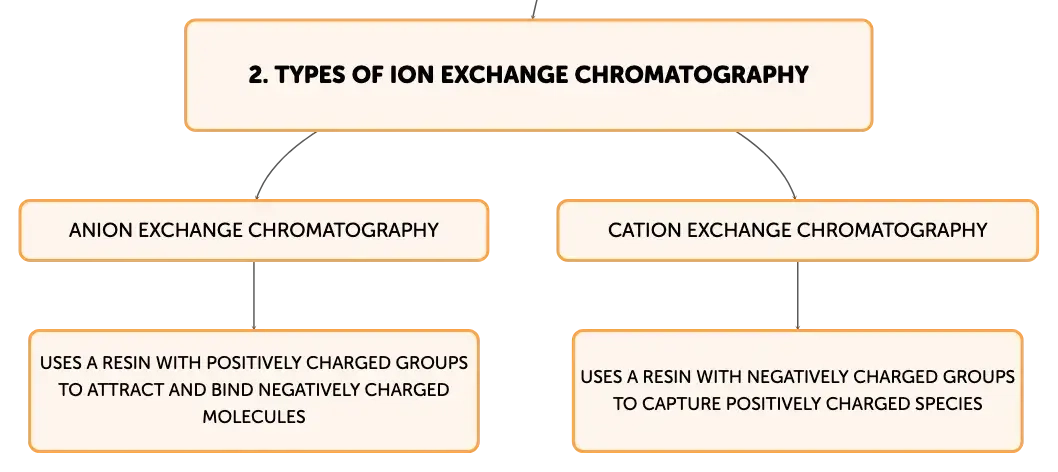

Types of Ion Exchange Chromatography
Anion Exchange Chromatography
Uses a resin with positively charged groups to attract and bind negatively charged molecules
Cation Exchange Chromatography
Uses a resin with negatively charged groups to capture positively charged species

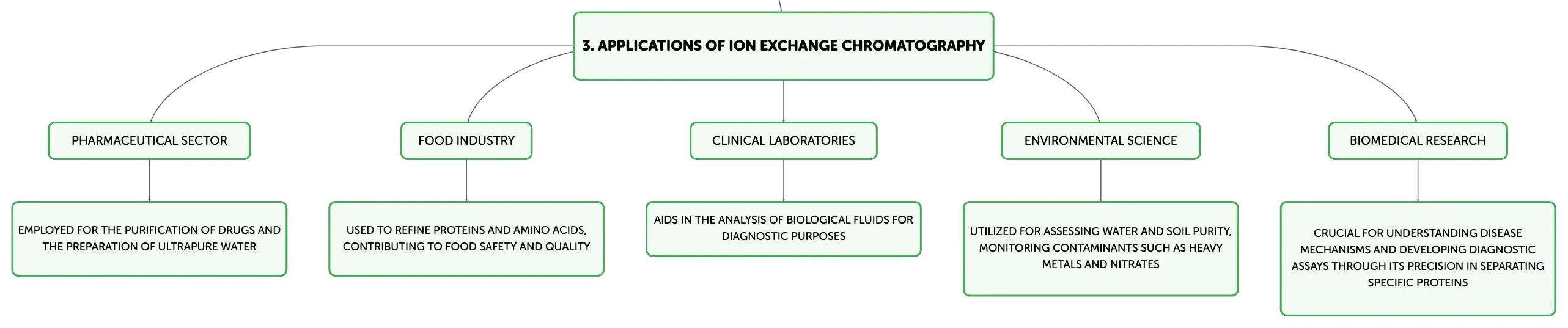

Applications of Ion Exchange Chromatography
Pharmaceutical sector
Employed for the purification of drugs and the preparation of ultrapure water
Food industry
Used to refine proteins and amino acids, contributing to food safety and quality
Clinical laboratories
Aids in the analysis of biological fluids for diagnostic purposes
Environmental science
Utilized for assessing water and soil purity, monitoring contaminants such as heavy metals and nitrates
Biomedical research
Crucial for understanding disease mechanisms and developing diagnostic assays through its precision in separating specific proteins

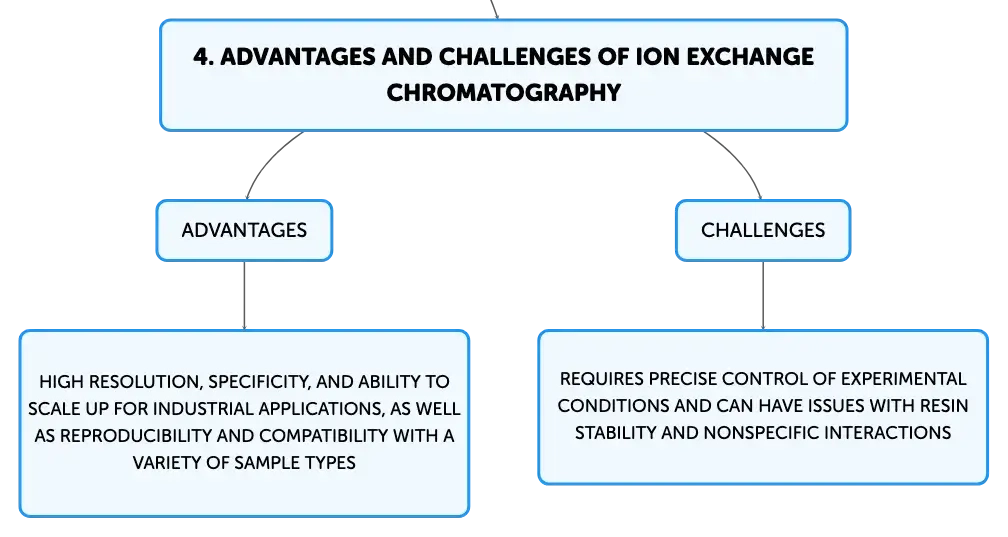

Advantages and Challenges of Ion Exchange Chromatography
Advantages
High resolution, specificity, and ability to scale up for industrial applications, as well as reproducibility and compatibility with a variety of sample types
Challenges
Requires precise control of experimental conditions and can have issues with resin stability and nonspecific interactions
Ion Exchange Chromatography
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Anion Exchange Chromatography attracts ______ charged molecules, while Cation Exchange Chromatography targets ______ charged species.
negatively
positively
01
In the ______ industry, Ion Exchange Chromatography is used to purify proteins and amino acids.
food
02
Ion Exchange Chromatography assists in examining biological fluids in ______ laboratories for diagnostic purposes.
clinical
