Proton Nuclear Magnetic Resonance (NMR) Spectroscopy

Concept Map

Proton NMR Spectroscopy is a critical technique in organic chemistry for determining molecular structures. It utilizes the magnetic properties of hydrogen-1 nuclei, with chemical shifts and electron shielding providing insights into the electronic environment of hydrogen atoms. Peak integration reveals the number of hydrogens, while spin-spin coupling indicates their connectivity. The method also distinguishes hydroxyl and amine groups and has applications in MRI, protein studies, and more.

Summary

Outline

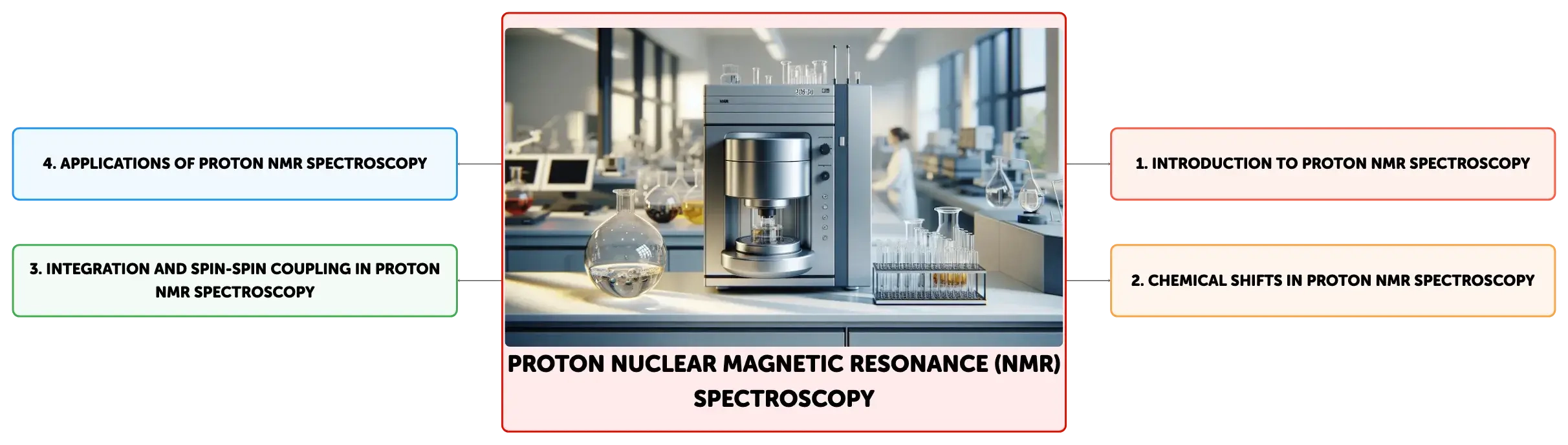

Proton Nuclear Magnetic Resonance (NMR) Spectroscopy

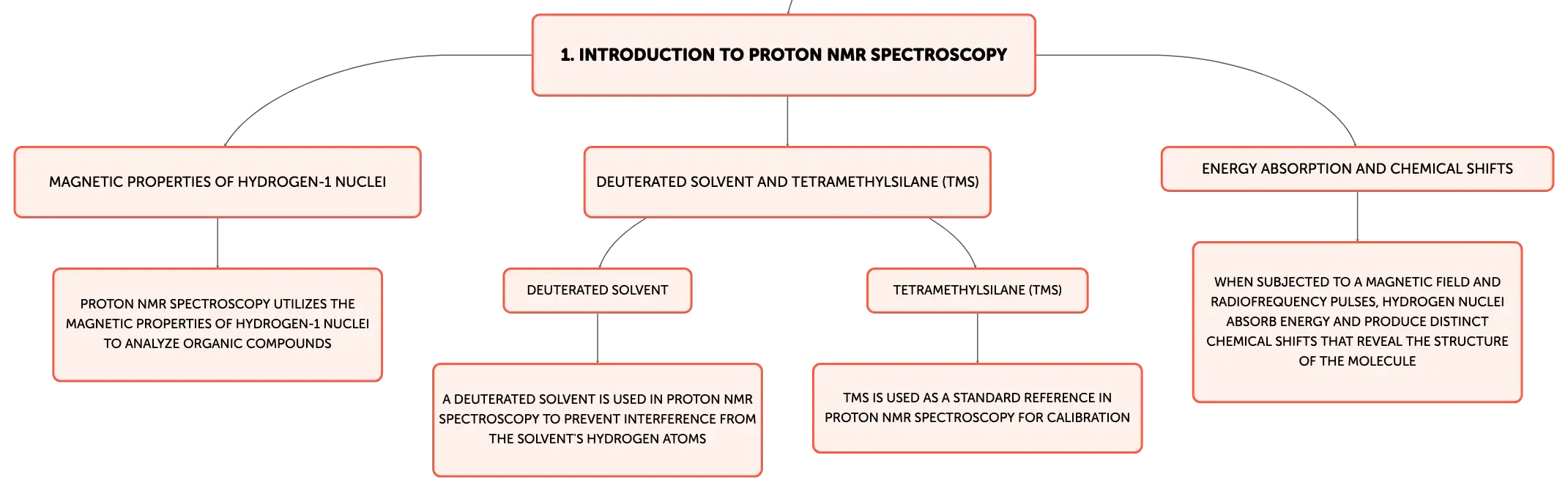

Introduction to Proton NMR Spectroscopy

Magnetic Properties of Hydrogen-1 Nuclei

Proton NMR spectroscopy utilizes the magnetic properties of hydrogen-1 nuclei to analyze organic compounds

Deuterated Solvent and Tetramethylsilane (TMS)

Deuterated Solvent

A deuterated solvent is used in proton NMR spectroscopy to prevent interference from the solvent's hydrogen atoms

Tetramethylsilane (TMS)

TMS is used as a standard reference in proton NMR spectroscopy for calibration

Energy Absorption and Chemical Shifts

When subjected to a magnetic field and radiofrequency pulses, hydrogen nuclei absorb energy and produce distinct chemical shifts that reveal the structure of the molecule

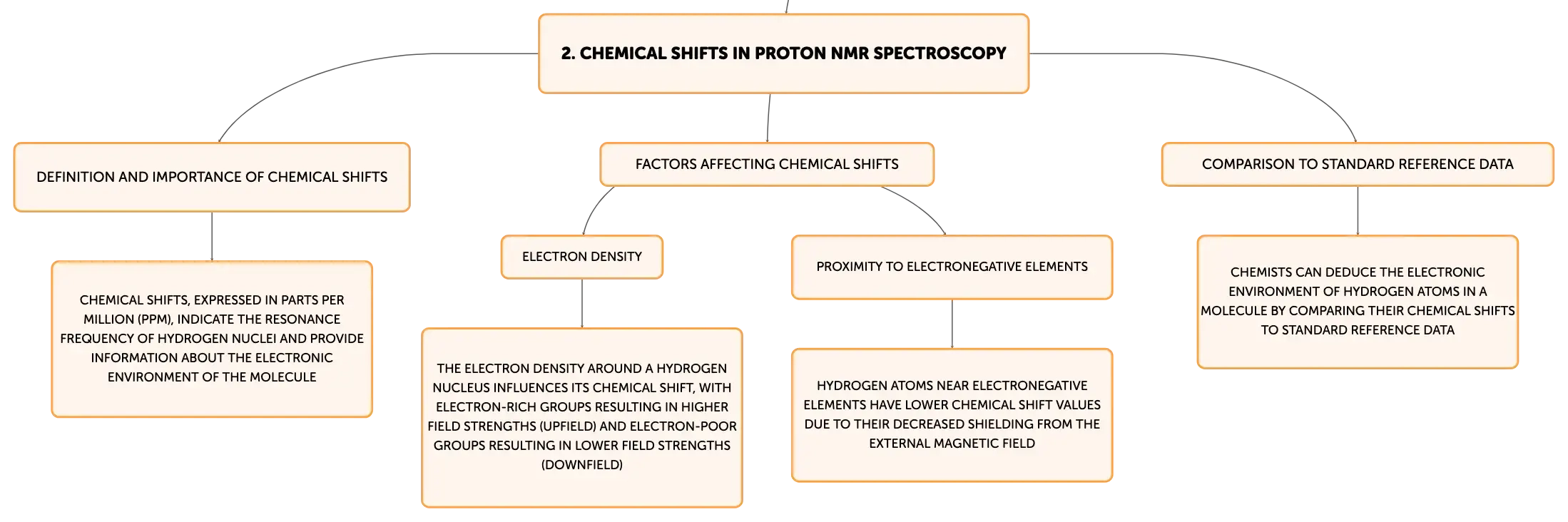

Chemical Shifts in Proton NMR Spectroscopy

Definition and Importance of Chemical Shifts

Chemical shifts, expressed in parts per million (ppm), indicate the resonance frequency of hydrogen nuclei and provide information about the electronic environment of the molecule

Factors Affecting Chemical Shifts

Electron Density

The electron density around a hydrogen nucleus influences its chemical shift, with electron-rich groups resulting in higher field strengths (upfield) and electron-poor groups resulting in lower field strengths (downfield)

Proximity to Electronegative Elements

Hydrogen atoms near electronegative elements have lower chemical shift values due to their decreased shielding from the external magnetic field

Comparison to Standard Reference Data

Chemists can deduce the electronic environment of hydrogen atoms in a molecule by comparing their chemical shifts to standard reference data

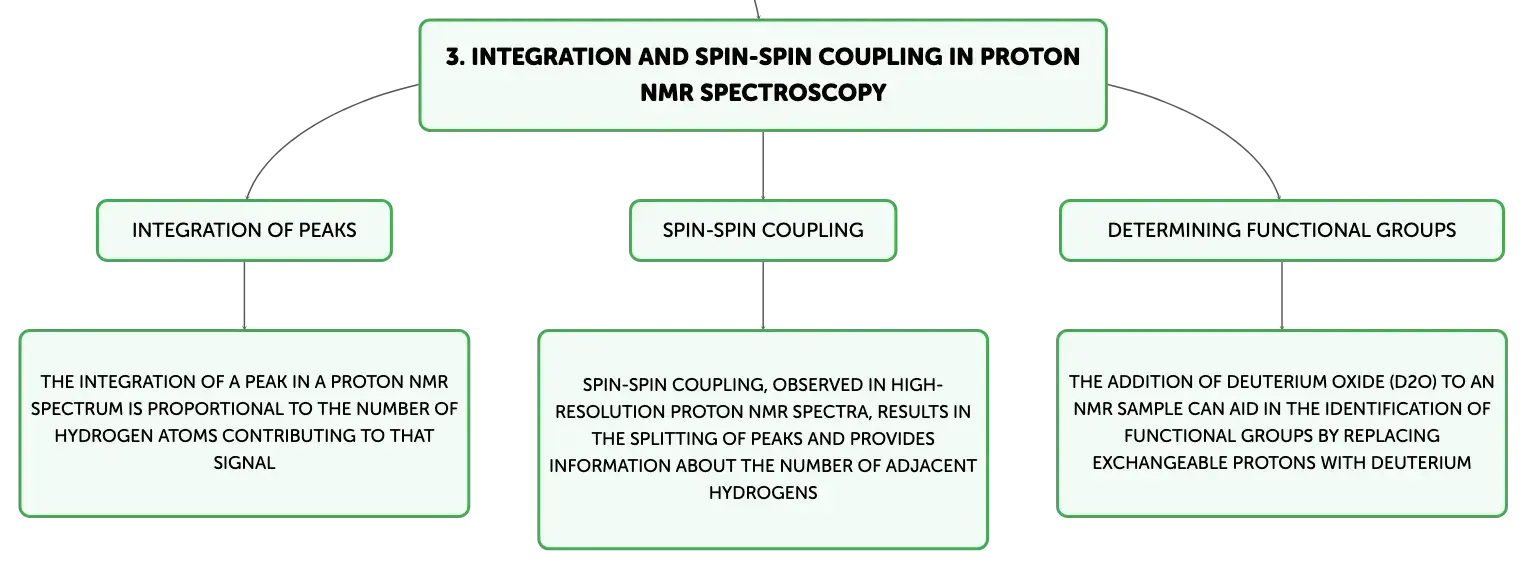

Integration and Spin-Spin Coupling in Proton NMR Spectroscopy

Integration of Peaks

The integration of a peak in a proton NMR spectrum is proportional to the number of hydrogen atoms contributing to that signal

Spin-Spin Coupling

Spin-spin coupling, observed in high-resolution proton NMR spectra, results in the splitting of peaks and provides information about the number of adjacent hydrogens

Determining Functional Groups

The addition of deuterium oxide (D2O) to an NMR sample can aid in the identification of functional groups by replacing exchangeable protons with deuterium

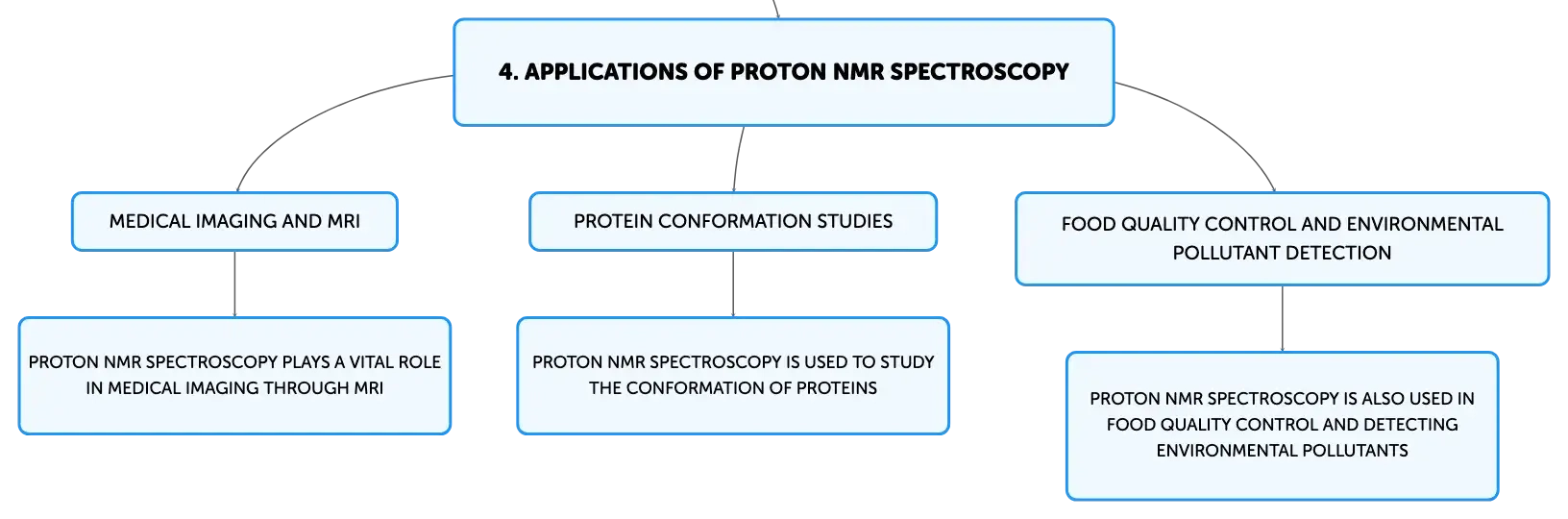

Applications of Proton NMR Spectroscopy

Medical Imaging and MRI

Proton NMR spectroscopy plays a vital role in medical imaging through MRI

Protein Conformation Studies

Proton NMR spectroscopy is used to study the conformation of proteins

Food Quality Control and Environmental Pollutant Detection

Proton NMR spectroscopy is also used in food quality control and detecting environmental pollutants

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

______ is a crucial method in organic chemistry for determining the structure of molecules.

Proton nuclear magnetic resonance (NMR) spectroscopy

In NMR spectroscopy, ______ is utilized as a calibration standard.

tetramethylsilane (TMS)

The ______ of hydrogen nuclei in NMR is affected by their surrounding electronic environment.

resonance frequency

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Glass bottle with green liquid on laboratory bench, colored test tubes in rack, lit Bunsen burner and tweezers next to an empty petri dish.

Heteroatoms in Organic Chemistry

Glass flask on wooden laboratory bench with slightly yellow liquid and bubbles, stirring rod on the left, bottles in the background.

Enolate Ions: Key Intermediates in Organic Chemistry

Laboratory with round bottom flask connected to condenser, heated plate on, beaker with colorless liquid and mortar with white powder.

Organic Chemistry and Its Applications

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Introduction to Proton NMR Spectroscopy

Proton nuclear magnetic resonance (NMR) spectroscopy is an indispensable technique in organic chemistry for elucidating molecular structures. It exploits the magnetic properties of hydrogen-1 nuclei, which are abundant and possess a spin of 1/2, making them responsive to NMR analysis. In this method, the organic compound is dissolved in a deuterated solvent to prevent interference from the solvent's hydrogen atoms, and tetramethylsilane (TMS) is used as a standard reference for calibration. When subjected to a magnetic field and radiofrequency pulses, the hydrogen nuclei absorb energy and transition to a higher energy state. The frequency at which each nucleus resonates is influenced by its electronic environment, providing a spectrum with distinct chemical shifts that can be interpreted to reveal the structure of the molecule.

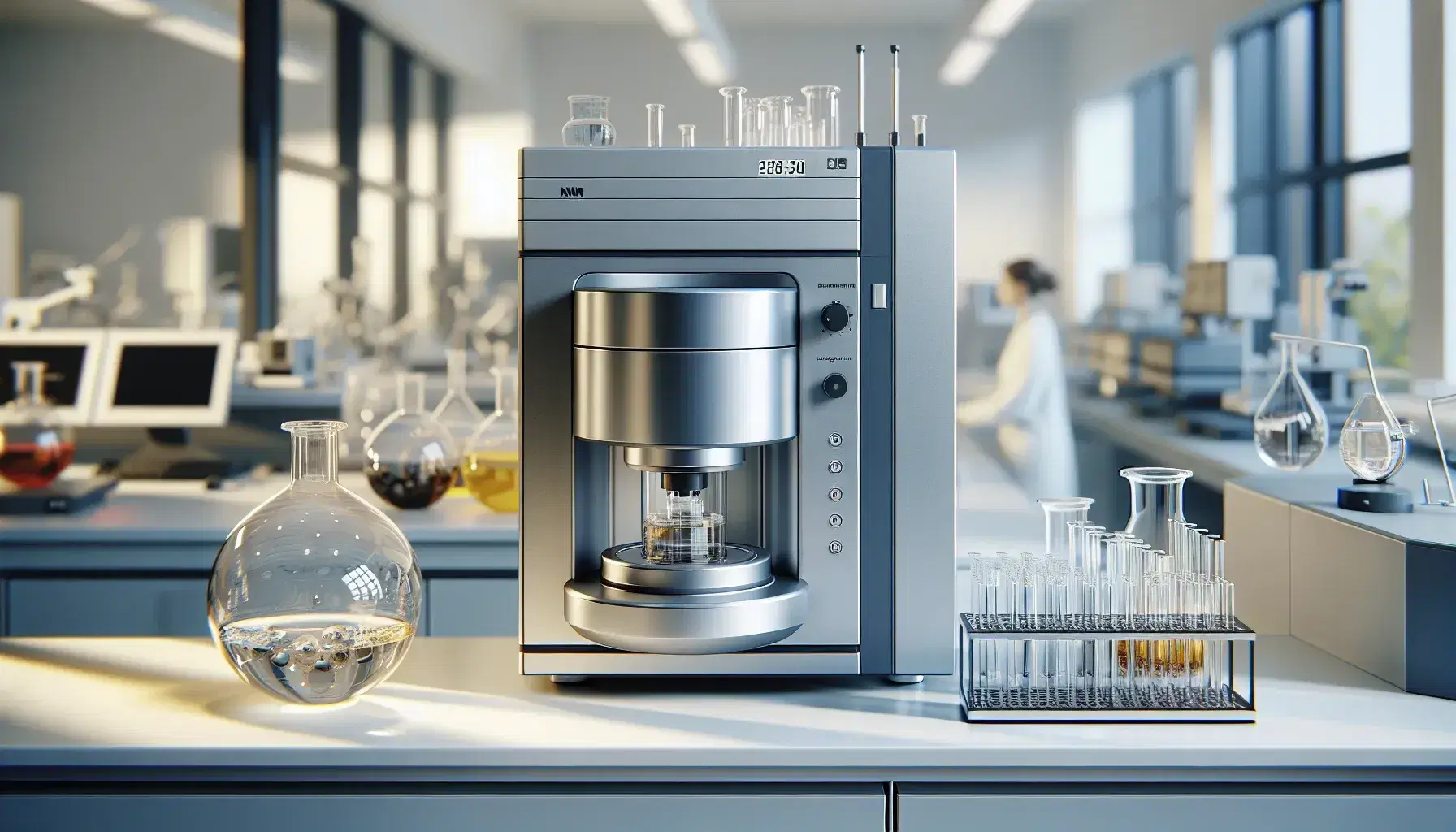

Modern laboratory with benchtop NMR spectrometer and glass tube with colorless liquid, flasks with various liquids and blurry computer technician.

Chemical Shifts and Electron Shielding

Chemical shifts are pivotal in NMR spectroscopy, as they indicate the resonance frequency of hydrogen nuclei relative to the reference compound, TMS. Expressed in parts per million (ppm), these shifts are influenced by the electron density around the nucleus. Hydrogen atoms attached to electron-rich groups are more shielded from the external magnetic field and resonate at higher field strengths (upfield), resulting in lower chemical shift values. Conversely, hydrogen atoms near electronegative elements are less shielded (downfield) and resonate at lower field strengths, yielding higher chemical shift values. By comparing the chemical shifts to standard reference data, chemists can deduce the electronic environment of the hydrogen atoms in the molecule.

Peak Integration and Hydrogen Count

Proton NMR spectra not only provide information about the chemical environment of hydrogen atoms but also about their relative numbers. The integration of a peak, represented by the area under the peak, is proportional to the number of hydrogen atoms contributing to that signal. This quantitative aspect is visualized as an integration trace, which steps up incrementally with each peak, corresponding to the number of hydrogens. Modern NMR spectrometers often automatically provide integration values, aiding in the determination of the ratio of hydrogen atoms in different environments and thus contributing to the structural analysis of the molecule.

Spin-Spin Coupling and Multiplicity

Spin-spin coupling is a phenomenon observed in high-resolution proton NMR spectra where hydrogen nuclei influence each other's resonance frequencies, leading to the splitting of peaks. The multiplicity of a peak, determined by the n+1 rule, reveals the number of hydrogen atoms on adjacent carbon atoms. If a hydrogen atom has 'n' neighboring hydrogens, its peak will split into 'n+1' sub-peaks. For example, a peak that appears as a triplet indicates the presence of two adjacent hydrogens, while a quartet suggests three. This splitting pattern is crucial for deducing the connectivity and arrangement of hydrogen atoms within the molecule.

Distinguishing Hydroxyl and Amine Groups

Identifying functional groups such as hydroxyl (-OH) and amine (-NH) in a molecule can be challenging due to their exchangeable protons and variable chemical shifts. To address this, chemists can add deuterium oxide (D2O) to the NMR sample, which causes the exchangeable protons to be replaced with deuterium, a nucleus that is not detected in proton NMR. The disappearance of the -OH or -NH signal upon D2O addition confirms the presence of these groups. This method is a definitive test for the presence of exchangeable protons and aids in the identification of specific functional groups.

Molecular Structure Elucidation

Determining the structure of a molecule using proton NMR involves a systematic analysis of the spectrum. Chemists compile the chemical shifts, integration values, and multiplicity of each signal into a table. This data provides insights into the hydrogen environments, the number of hydrogens in each environment, and the number of adjacent hydrogens. By piecing together these clues, the molecular structure can be inferred. For example, the identification of a triplet corresponding to a methyl group and a quartet for a methylene group near a carbonyl function suggests the structure of propanoic acid. This methodical approach underscores the power of proton NMR in structural determination in organic chemistry.

Broader Applications of Proton NMR

Proton NMR spectroscopy extends beyond the realm of molecular structure determination. It plays a vital role in medical imaging through MRI, protein conformation studies, food quality control by metabolite profiling, and detecting environmental pollutants. Its non-destructive nature preserves the integrity of the sample, making it a versatile tool in both academic research and industrial applications. Proton NMR provides comprehensive insights into the number and types of hydrogen environments within a molecule, facilitating a deeper understanding of complex molecular structures.
