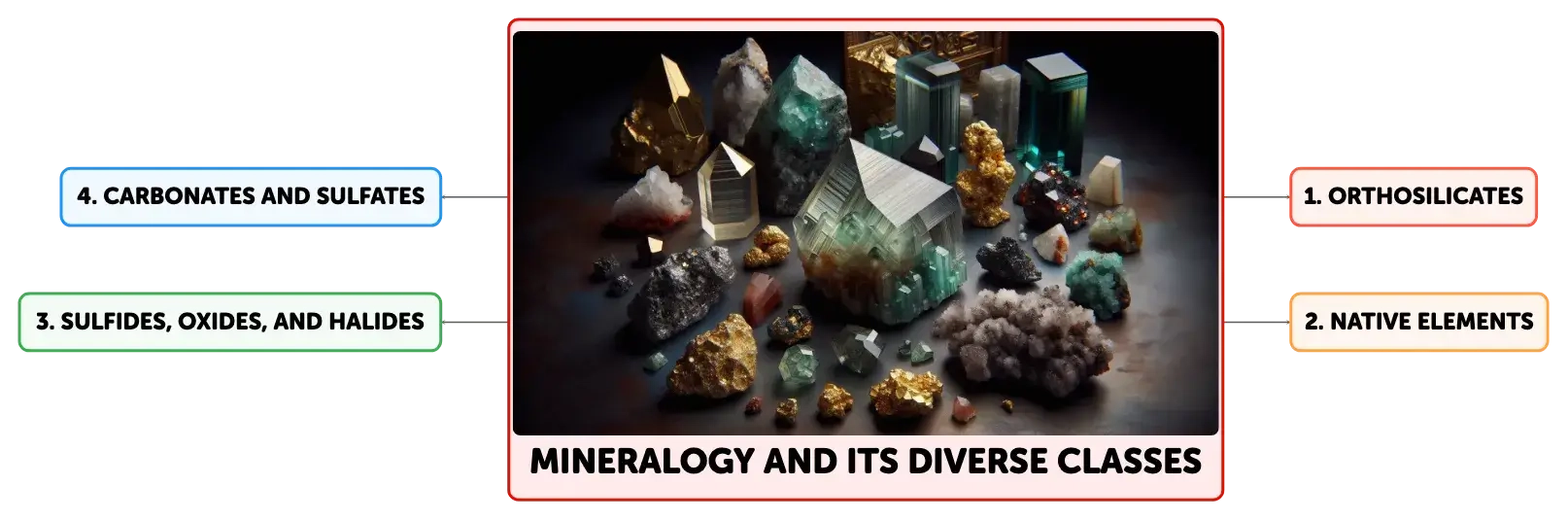

Mineralogy and Its Diverse Classes
Concept Map
Exploring the diverse world of mineralogy, this overview delves into orthosilicates and their role in igneous and metamorphic rocks, native elements like gold and diamond, and the varied properties of sulfides, oxides, and halides. It also covers carbonates and sulfates found in sedimentary rocks, as well as phosphates and organic minerals essential for life.
Summary
Outline
Orthosilicates: Fundamental Building Blocks in Mineralogy
Orthosilicates, or nesosilicates, form a fundamental group of silicate minerals where each silicon atom is surrounded by four oxygen atoms, creating an isolated tetrahedron with a stoichiometry of SiO₄. These tetrahedra do not share oxygen atoms with each other, distinguishing orthosilicates from other silicate structures. Commonly found in igneous and metamorphic rocks, orthosilicates include diverse minerals such as the olivine and garnet groups. Olivine minerals, ranging from forsterite (Mg₂SiO₄) to fayalite (Fe₂SiO₄), are essential in mafic and ultramafic rocks. Garnets, with a general formula of X₃Y₂(SiO₄)₃, where X and Y can be various metal cations, are important in both metamorphic processes and as gemstones. Aluminosilicates, such as kyanite, andalusite, and sillimanite (Al₂SiO₅), are polymorphs that differ in their crystal structures and are used as indicators of the pressure and temperature conditions during rock formation.The Rich Variety of Orthosilicate Minerals
The orthosilicate subclass encompasses a wide array of minerals with significant geological and economic importance. Zircon (ZrSiO₄), for instance, is invaluable in dating geological events due to its uranium content and robustness against metamictization. Staurolite, a metamorphic mineral, is known for its characteristic cross-shaped twinning. Topaz (Al₂SiO₄(F, OH)₂), often found in pegmatites, is prized as a gemstone. Other orthosilicates, such as tephroite (Mn₂SiO₄), contribute to the diversity of this mineral class. Each orthosilicate mineral has unique physical properties, crystal structures, and chemical compositions, which make them useful for various applications, including gemology, industrial uses, and as indicators of geological environments.Native Elements: Metals, Semi-metals, and Non-metals in Pure Form
Native elements are minerals composed of a single chemical element or type of atom. This group includes metals like gold, silver, and copper, which exhibit a metallic luster and are malleable and ductile due to the presence of metallic bonds. Semi-metals and non-metals, such as sulfur and carbon, also occur in native form. Native elements are classified based on their physical and chemical properties into several groups, including the gold group, the platinum group metals, and the iron-nickel group, which are often found in meteorites. Native carbon is represented by two allotropes: graphite, which is soft and used as a lubricant, and diamond, the hardest known natural material, formed under high-pressure conditions in the Earth's mantle.Sulfides, Oxides, and Halides: Diverse Mineral Classes with Varied Properties
Sulfide minerals, composed of sulfur combined with metals or semi-metals, are typically dense, metallic-looking, and are important sources of metals such as lead, zinc, and copper. Oxide minerals are classified based on their metal to oxygen ratios and include simple oxides like hematite (Fe₂O₃), hydroxides such as goethite (FeO(OH)), and complex oxides like the spinel group. Halide minerals, formed from halogen elements with metals, are often found in evaporite deposits and include halite (NaCl) and fluorite (CaF₂). These minerals are characterized by their solubility in water, relatively low hardness, and their formation through precipitation from evaporating brines.Carbonates and Sulfates: Minerals with Characteristic Anionic Groups
Carbonate minerals are characterized by the carbonate ion (CO₃²⁻) and are common in sedimentary rocks, forming through biological and inorganic processes. Calcite (CaCO₃) and aragonite, its polymorph, are widespread carbonates that react with acids to produce carbon dioxide, a reaction that plays a significant role in shaping karst landscapes. Dolomite (CaMg(CO₃)₂) is another important carbonate mineral. Sulfate minerals, containing the sulfate ion (SO₄²⁻), are typically found in evaporite deposits and include gypsum (CaSO₄·2H₂O), barite (BaSO₄), and anhydrite (CaSO₄). These minerals are often transparent to translucent and can form large, well-shaped crystals.Phosphates and Organic Minerals: Components of Life and Advances in Mineralogy
Phosphate minerals, which include the apatite group, are defined by the presence of the phosphate ion (PO₄³⁻) and are crucial for biological systems, forming the basis of teeth and bones in vertebrates. Organic minerals, such as whewellite (CaC₂O₄·H₂O), are composed of organic compounds and are recognized by the International Mineralogical Association (IMA) as a distinct class of minerals. The IMA's classification system is continually updated to reflect new mineral discoveries and research, ensuring that minerals are categorized based on their chemical composition, crystal structure, and the environment in which they are formed.
Show More

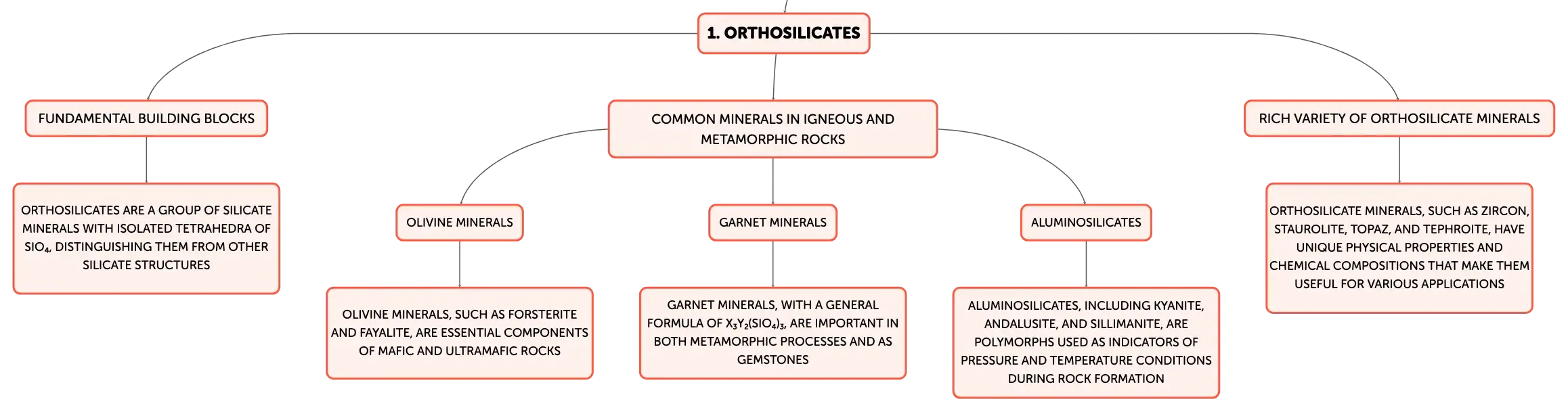

Orthosilicates
Fundamental Building Blocks
Orthosilicates are a group of silicate minerals with isolated tetrahedra of SiO₄, distinguishing them from other silicate structures
Common Minerals in Igneous and Metamorphic Rocks
Olivine Minerals
Olivine minerals, such as forsterite and fayalite, are essential components of mafic and ultramafic rocks
Garnet Minerals
Garnet minerals, with a general formula of X₃Y₂(SiO₄)₃, are important in both metamorphic processes and as gemstones
Aluminosilicates
Aluminosilicates, including kyanite, andalusite, and sillimanite, are polymorphs used as indicators of pressure and temperature conditions during rock formation
Rich Variety of Orthosilicate Minerals
Orthosilicate minerals, such as zircon, staurolite, topaz, and tephroite, have unique physical properties and chemical compositions that make them useful for various applications

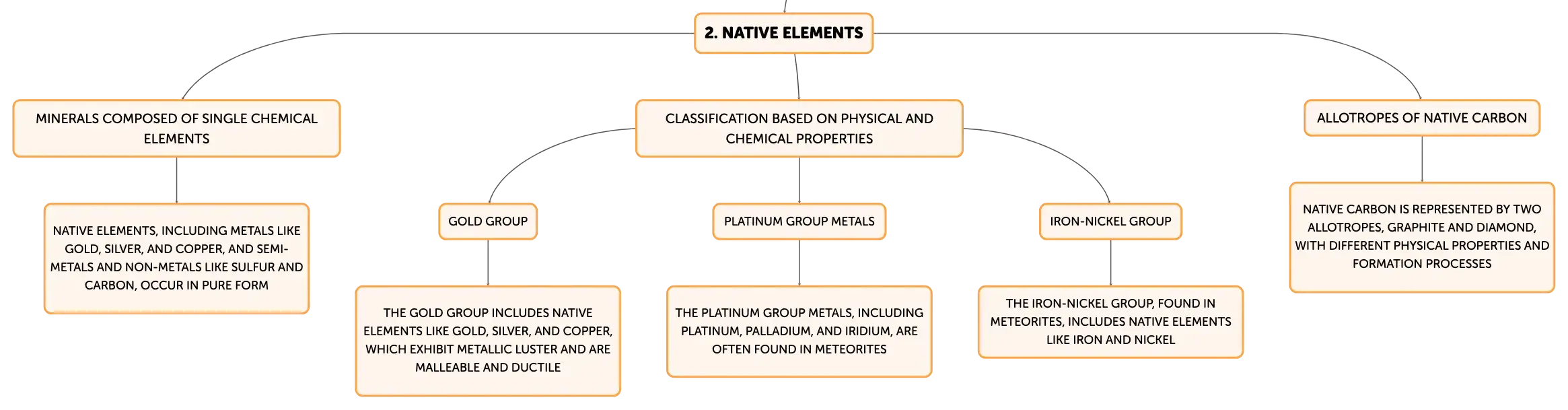

Native Elements
Minerals Composed of Single Chemical Elements
Native elements, including metals like gold, silver, and copper, and semi-metals and non-metals like sulfur and carbon, occur in pure form
Classification Based on Physical and Chemical Properties
Gold Group
The gold group includes native elements like gold, silver, and copper, which exhibit metallic luster and are malleable and ductile
Platinum Group Metals
The platinum group metals, including platinum, palladium, and iridium, are often found in meteorites
Iron-Nickel Group
The iron-nickel group, found in meteorites, includes native elements like iron and nickel
Allotropes of Native Carbon
Native carbon is represented by two allotropes, graphite and diamond, with different physical properties and formation processes

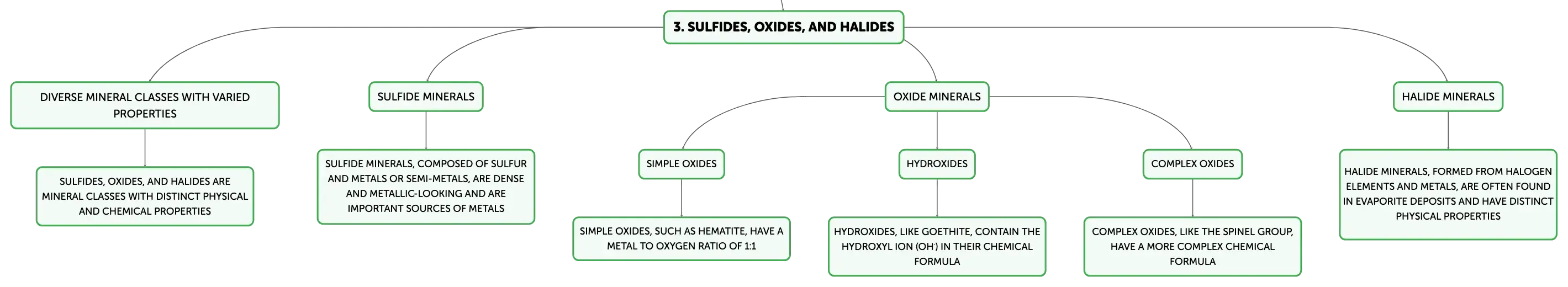

Sulfides, Oxides, and Halides
Diverse Mineral Classes with Varied Properties
Sulfides, oxides, and halides are mineral classes with distinct physical and chemical properties
Sulfide Minerals
Sulfide minerals, composed of sulfur and metals or semi-metals, are dense and metallic-looking and are important sources of metals
Oxide Minerals
Simple Oxides
Simple oxides, such as hematite, have a metal to oxygen ratio of 1:1
Hydroxides
Hydroxides, like goethite, contain the hydroxyl ion (OH⁻) in their chemical formula
Complex Oxides
Complex oxides, like the spinel group, have a more complex chemical formula
Halide Minerals
Halide minerals, formed from halogen elements and metals, are often found in evaporite deposits and have distinct physical properties

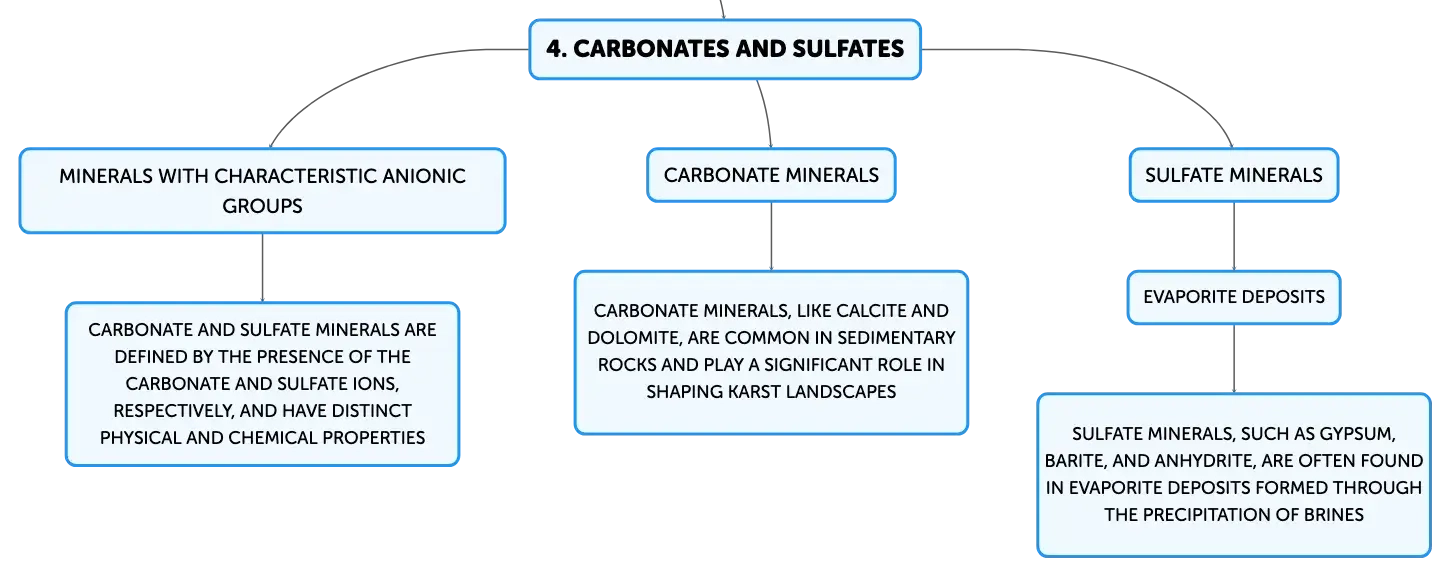

Carbonates and Sulfates
Minerals with Characteristic Anionic Groups
Carbonate and sulfate minerals are defined by the presence of the carbonate and sulfate ions, respectively, and have distinct physical and chemical properties
Carbonate Minerals
Carbonate minerals, like calcite and dolomite, are common in sedimentary rocks and play a significant role in shaping karst landscapes
Sulfate Minerals
Evaporite Deposits
Sulfate minerals, such as gypsum, barite, and anhydrite, are often found in evaporite deposits formed through the precipitation of brines
Mineralogy and Its Diverse Classes
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Orthosilicates stoichiometry
SiO₄ tetrahedron, each Si atom with 4 O atoms, isolated structure.
01
Olivine group composition range
From forsterite (Mg₂SiO₄) to fayalite (Fe₂SiO₄), found in mafic and ultramafic rocks.
02
Garnet general formula and variability
X₃Y₂(SiO₄)₃, where X and Y are metal cations, indicating diverse mineral composition.
