Exploring the concepts of momentum and impulse in physics, this overview discusses their definitions, the impulse-momentum theorem, and practical applications. Momentum, a measure of an object's motion, is the product of mass and velocity. Impulse, the effect of a force over time, changes momentum. Understanding these concepts is crucial for solving mechanics problems and analyzing forces in dynamic events.

Summary

Outline

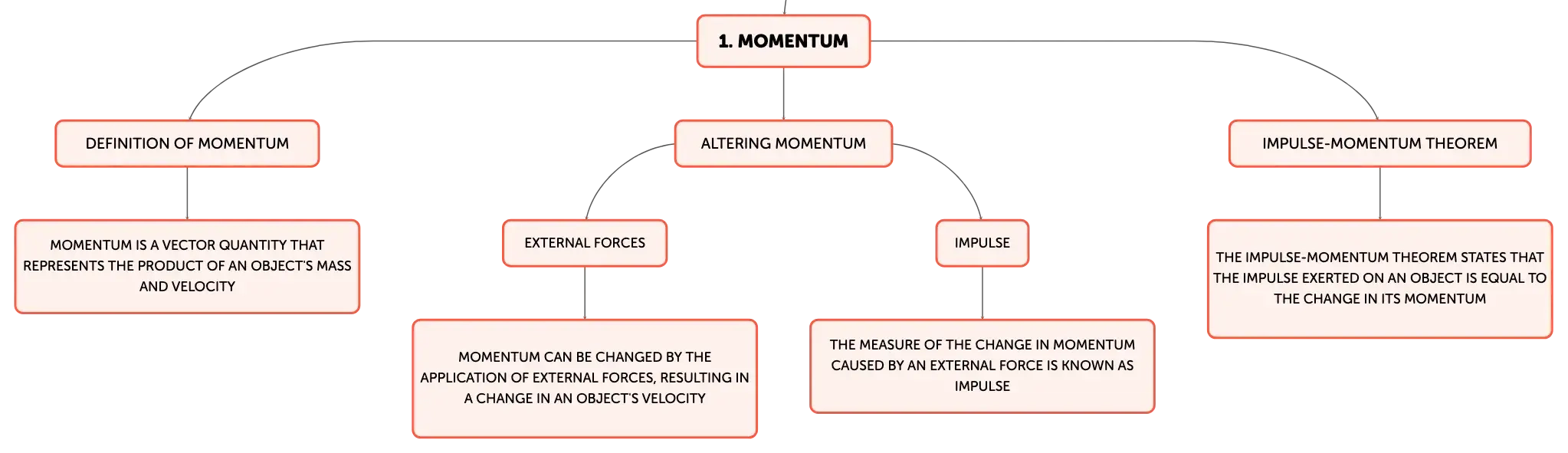

Exploring the Concepts of Momentum and Impulse

Momentum, symbolized as \( \vec{p} \), is a key concept in physics that quantifies the motion of an object. It is a vector quantity, possessing both magnitude and direction, and is defined as the product of an object's mass (m) and its velocity (\( \vec{v} \)). Momentum can be altered by the application of an external force, leading to a change in the object's velocity. The measure of this change is known as impulse, denoted by \( \vec{J} \). Impulse is the product of the force applied to an object and the time duration over which the force is applied, and like momentum, it is a vector quantity.

High-speed photograph capturing the precise moment a white cue ball strikes a red ball on a green pool table, illustrating momentum transfer.

The Impulse-Momentum Theorem: A Fundamental Principle

The impulse-momentum theorem is a fundamental principle in classical mechanics that establishes the relationship between impulse and momentum. It states that the impulse exerted on an object is equal to the change in its momentum, expressed mathematically as \( \vec{J} = \Delta \vec{p} \), where \( \Delta \vec{p} \) represents the change in momentum. This theorem is instrumental in analyzing scenarios where forces are exerted over specific time intervals, such as in collisions. It is derived from Newton's Second Law of Motion, which in its momentum form states that the net force acting on an object is equal to the rate of change of its momentum, or \( \vec{F}_{\text{net}} = \frac{\Delta \vec{p}}{\Delta t} \).

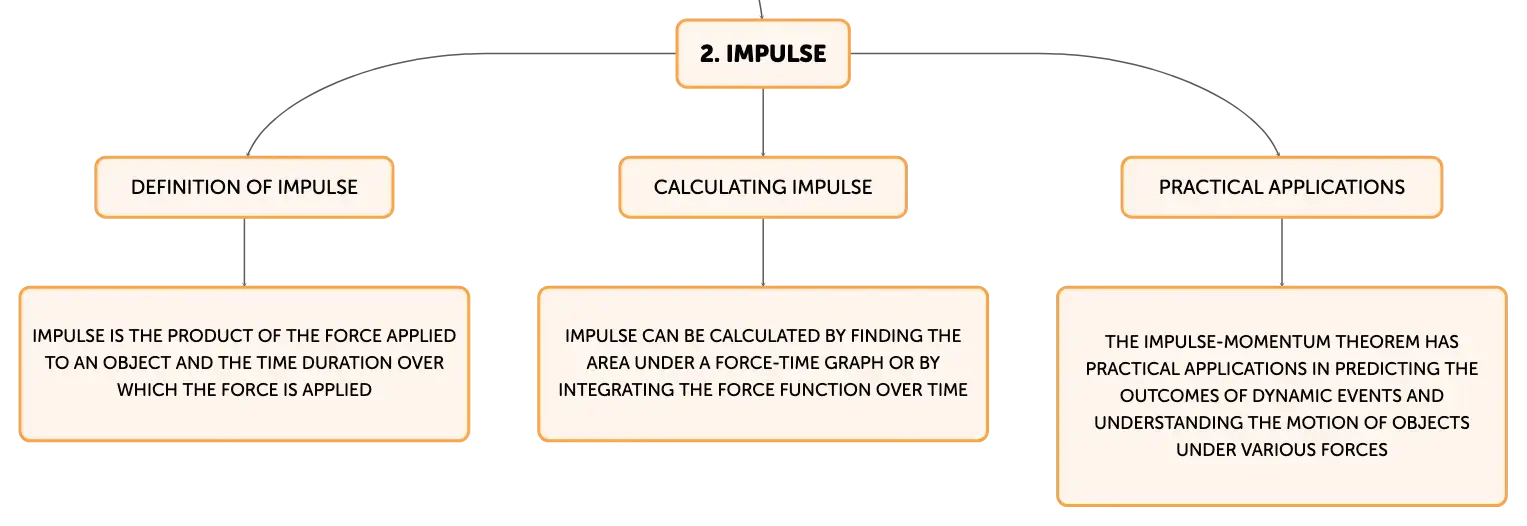

Calculating Impulse and Its Correlation with Force

To calculate impulse, one can use the equation \( \vec{J} = \int_{t_0}^{t} \vec{F}(t) \, \mathrm{d}t \), where \( \vec{F}(t) \) represents the time-dependent force and the integral is taken over the time interval from \( t_0 \) to \( t \). This integral form emphasizes that impulse is the integral of force with respect to time, or graphically, the area under the force-time curve. This relationship allows for the visualization and computation of the total impulse as the area under the force versus time graph. The standard unit of impulse in the International System of Units (SI) is the Newton-second (\( \mathrm{N \cdot s} \)), which is dimensionally equivalent to the unit of momentum.

Analyzing Motion with Force-Time and Momentum-Time Graphs

Force-time and momentum-time graphs are essential analytical tools for understanding the dynamics of objects subjected to forces. A force-time graph depicts the force acting on an object over time, with the area under the curve representing the impulse, which corresponds to the change in the object's momentum. Positive impulse is indicated by the area above the time axis, while negative impulse is below. Conversely, a momentum-time graph shows the momentum of an object as it varies over time, with the slope of the graph indicating the net force. A steeper slope reflects a larger force, facilitating the comparison of different forces acting on objects.

Distinguishing Between Momentum and Impulse

Momentum and impulse, while related, are distinct physical quantities. Momentum is a measure of the motion of an object, dependent on its mass and velocity. Impulse, on the other hand, measures the effect of an external force acting over a time interval, resulting in a change in momentum. It is crucial to differentiate between the two: momentum pertains to the state of motion at a particular instant, whereas impulse pertains to the influence of a force over the time it acts. This distinction is vital for accurately solving mechanics problems, particularly those involving collisions and time-dependent forces.

Practical Applications of the Impulse-Momentum Theorem

The impulse-momentum theorem has significant practical applications in real-world physics problems. For example, when examining the force-time graph for an object on a frictionless surface, the impulse can be determined by calculating the total area under the graph. This calculation reveals whether momentum is conserved or if it has changed. Additionally, by integrating the force function over time, one can ascertain the momentum of an object at a specific time, given its initial momentum. These applications underscore the theorem's value in predicting the outcomes of dynamic events and in comprehending the motion of objects under various forces.
