Optical Aberrations

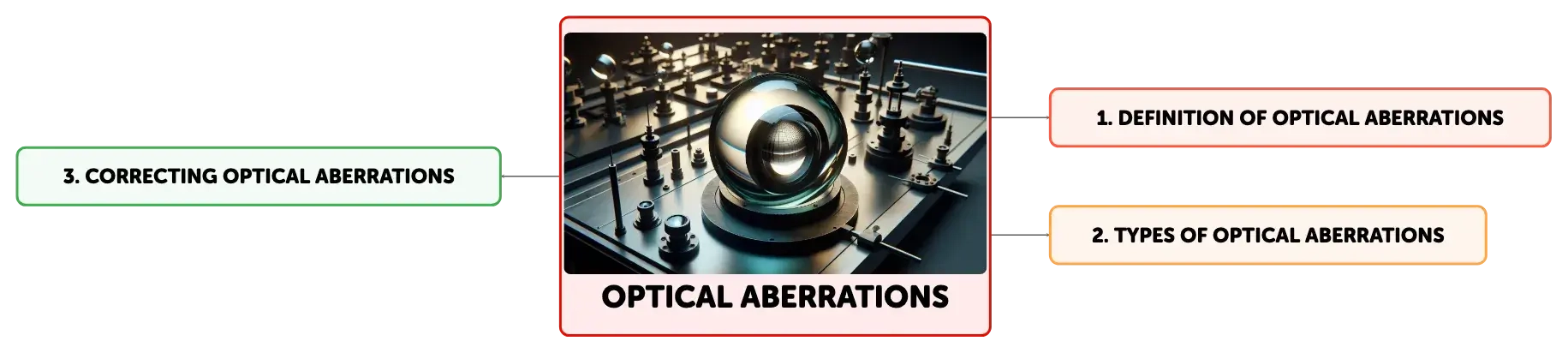

Concept Map
Optical aberrations are flaws in image formation due to light's interaction with lenses and mirrors, leading to chromatic and monochromatic distortions. These imperfections, such as blurring, color fringing, and misshapen images, affect everyday visuals and precision instruments. Corrective techniques like aspheric lenses and adaptive optics are employed to enhance image clarity in fields ranging from photography to astronomy.
Summary
Outline
Exploring the Nature of Optical Aberrations
Optical aberrations are departures from the ideal projection or focus of light that occur when light passes through lenses or reflects off mirrors. These imperfections in image formation can be classified as either chromatic or monochromatic. Chromatic aberrations are a result of dispersion, where light of different wavelengths refracts at different angles, leading to a separation of colors that manifests as a blurred image with color fringes. Monochromatic aberrations, which are color-independent, stem from the physical design and imperfections in the optical elements, causing various distortions such as blurring, stretching, or misshapen images.Observing Aberrations in Everyday Life
Optical aberrations are not confined to laboratories; they are part of our daily visual experiences. For example, the distorted appearance of objects submerged in water is due to the refractive properties of water, an example of aberration. Desert mirages, caused by light bending due to temperature gradients in the air, are natural instances of refractive aberrations. In man-made devices like eyeglasses, cameras, and telescopes, aberrations can lead to issues such as chromatic fringing and image distortion, affecting the clarity and fidelity of the visual output.Classifying Different Aberrations and Their Impact
Optical aberrations are diverse, each affecting image quality in specific ways. Chromatic aberration, caused by dispersion, leads to color fringing around image edges. Spherical aberration occurs when rays passing through a lens or mirror do not converge at a common focal point, resulting in a blurred image. Coma aberration distorts off-axis points into comet-like shapes, while astigmatism, due to an uneven lens surface, causes images to blur in certain directions. Field curvature bends the plane of best focus, and distortion alters the geometric shape of images. These aberrations can limit the effectiveness of optical instruments by reducing image sharpness and accuracy.Theoretical Foundations of Optical Aberrations
The Seidel aberration theory provides a systematic approach to understanding and quantifying optical aberrations. It describes five primary aberrations—spherical aberration, coma, astigmatism, field curvature, and distortion—using a series of polynomial equations. This theoretical framework is essential for designing and analyzing optical systems. Wave optics, which accounts for the wave nature of light, further enriches our understanding of optical phenomena, including diffraction and interference, which are crucial for explaining the formation of rainbows, holograms, and other complex light patterns.Origins and Solutions for Optical Aberrations
Aberrations can arise from various sources, including manufacturing imperfections, misalignment of optical elements, and the intrinsic properties of light. To correct these aberrations, optical engineers employ several techniques. Aspheric lenses are designed to minimize spherical aberration, while achromatic doublets are used to reduce chromatic aberration. Adaptive optics technology adjusts the optical system in real-time to compensate for wavefront distortions, significantly improving the performance of precision instruments like telescopes and microscopes.Addressing Aberrations in Applied Sciences
In applied sciences, aberrations can greatly affect the quality of visual information. Microscopes may incorporate apochromatic lenses to correct chromatic aberration, ensuring that different wavelengths of light are focused more precisely. Astronomical telescopes often use field flatteners to address field curvature. Photographers rely on sophisticated lens designs and digital post-processing to mitigate aberrations and produce high-quality images. Correcting aberrations is also critical in the design of corrective eyewear and in ophthalmology, where understanding the eye's unique aberrations is essential for improving vision.Reducing Aberrations in Experimental Physics
In experimental physics, controlling aberrations is crucial for obtaining accurate data. The use of specialized corrective lenses, such as aspheric elements for spherical aberration and achromatic lenses for chromatic aberration, is common. Telescopes may be equipped with correctional eyepieces to counteract field curvature, and adaptive optics systems can provide real-time corrections in advanced experimental setups. A comprehensive grasp of the causes and characteristics of aberrations is vital for selecting the appropriate corrective measures to ensure the reliability of experimental outcomes.Concluding Insights on Optical Aberrations
Optical aberrations are intrinsic to the process of image formation in optical systems and can significantly degrade the quality of images. They are categorized based on their relation to light's wavelength (chromatic) or their origin in the optical system's design (monochromatic). The Seidel aberration theory offers a mathematical representation of these imperfections, and both mechanical and optical factors can contribute to their presence. Implementing corrective strategies is essential for minimizing the impact of aberrations and is a fundamental aspect of the design and application of optical systems in various scientific and technological fields.
Show More

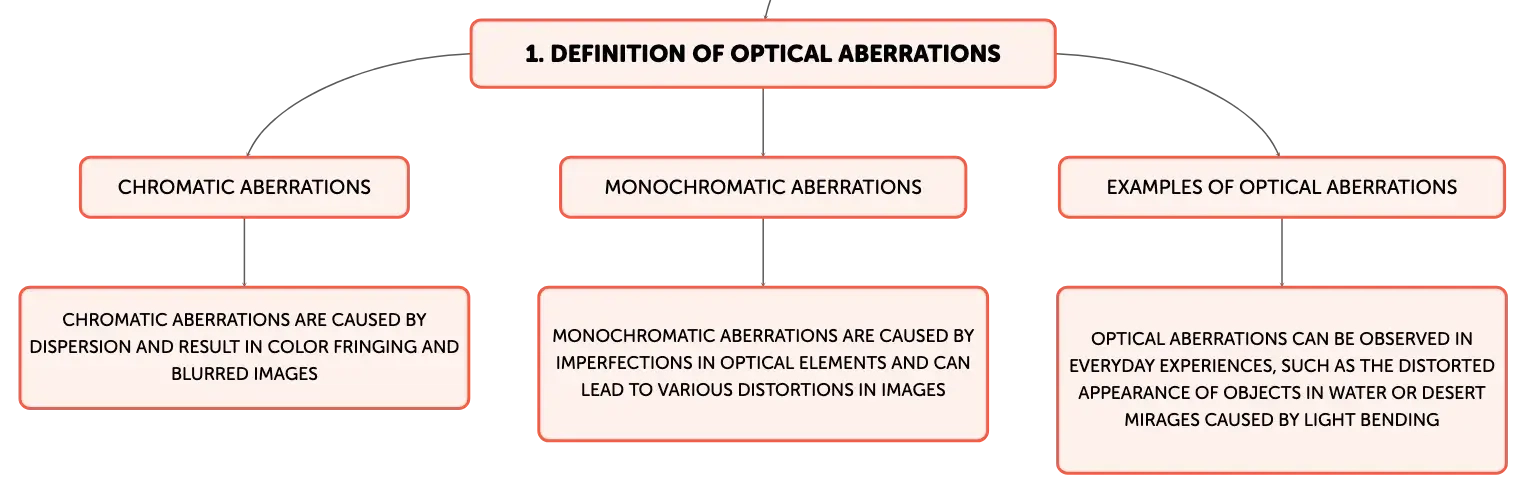

Definition of Optical Aberrations
Chromatic Aberrations
Chromatic aberrations are caused by dispersion and result in color fringing and blurred images
Monochromatic Aberrations
Monochromatic aberrations are caused by imperfections in optical elements and can lead to various distortions in images
Examples of Optical Aberrations
Optical aberrations can be observed in everyday experiences, such as the distorted appearance of objects in water or desert mirages caused by light bending

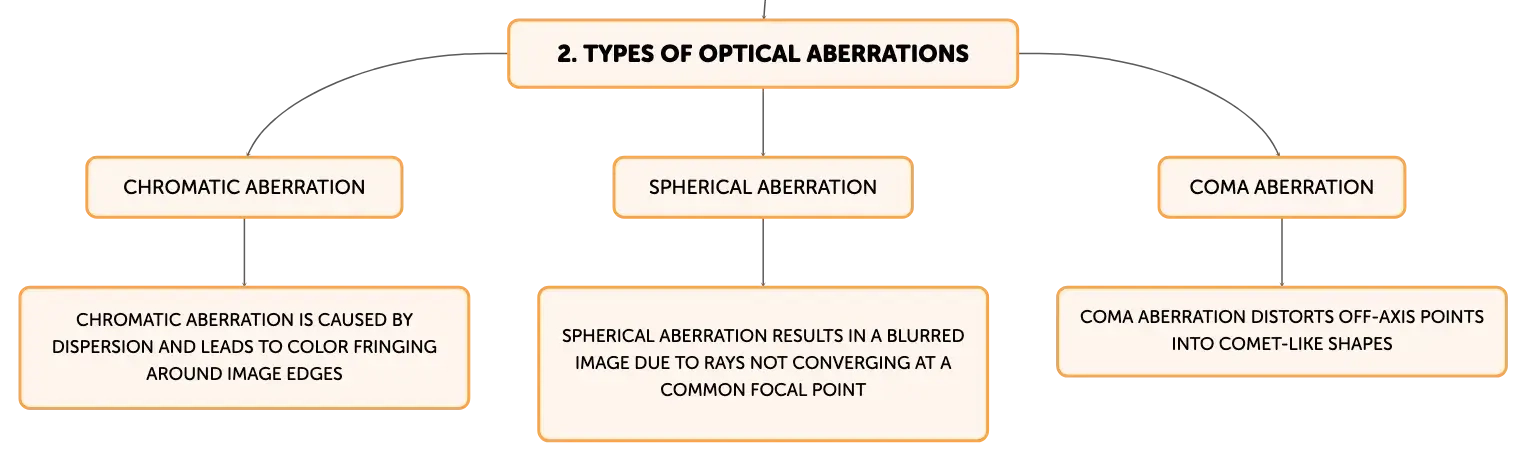

Types of Optical Aberrations
Chromatic Aberration
Chromatic aberration is caused by dispersion and leads to color fringing around image edges
Spherical Aberration
Spherical aberration results in a blurred image due to rays not converging at a common focal point
Coma Aberration
Coma aberration distorts off-axis points into comet-like shapes

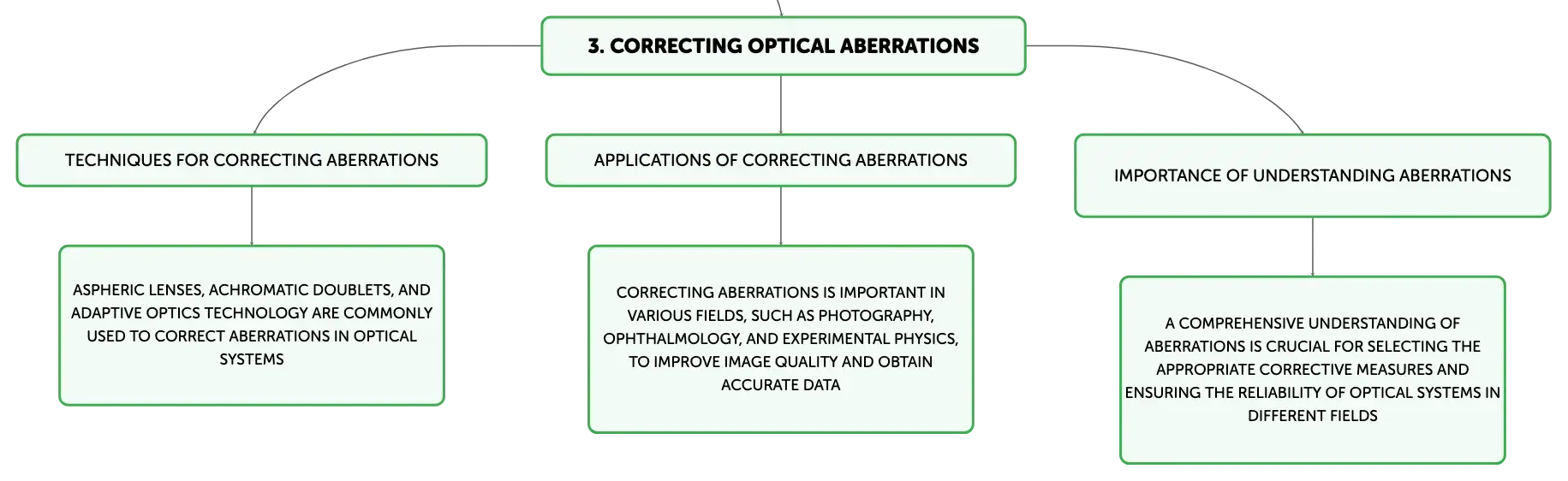

Correcting Optical Aberrations
Techniques for Correcting Aberrations
Aspheric lenses, achromatic doublets, and adaptive optics technology are commonly used to correct aberrations in optical systems
Applications of Correcting Aberrations
Correcting aberrations is important in various fields, such as photography, ophthalmology, and experimental physics, to improve image quality and obtain accurate data
Importance of Understanding Aberrations
A comprehensive understanding of aberrations is crucial for selecting the appropriate corrective measures and ensuring the reliability of optical systems in different fields
Optical Aberrations
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
______ aberrations occur due to dispersion, causing colors to separate and leading to a blurred image with ______ fringes.
Chromatic
color
01
Cause of distorted underwater object appearance?
Refractive properties of water causing aberration.
02
What causes desert mirages?
Light bending due to air temperature gradients.
