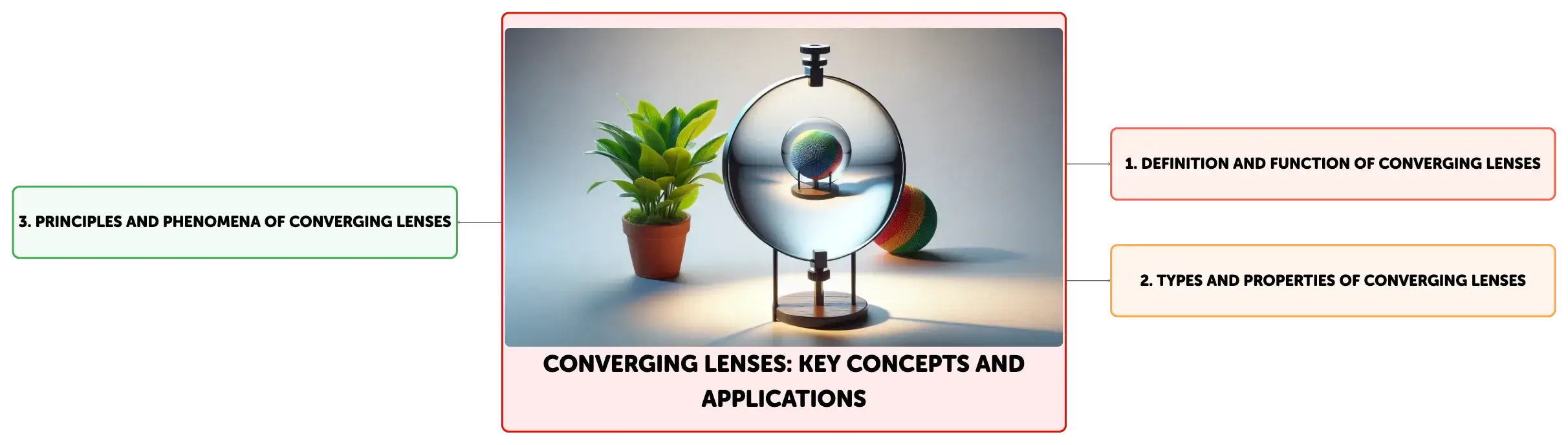

Concept Map

Algorino

Edit available

Converging lenses, or convex lenses, are essential in optics for focusing light to a point, known as the focal point. Their focal length determines how light is refracted and images are formed. These lenses are used in various optical instruments, including eyeglasses and cameras, to correct vision and magnify distant objects. Understanding their behavior involves the Lens Equation and the Lensmaker's Equation, which account for object distance, image distance, and lens curvature.

Summary

Outline

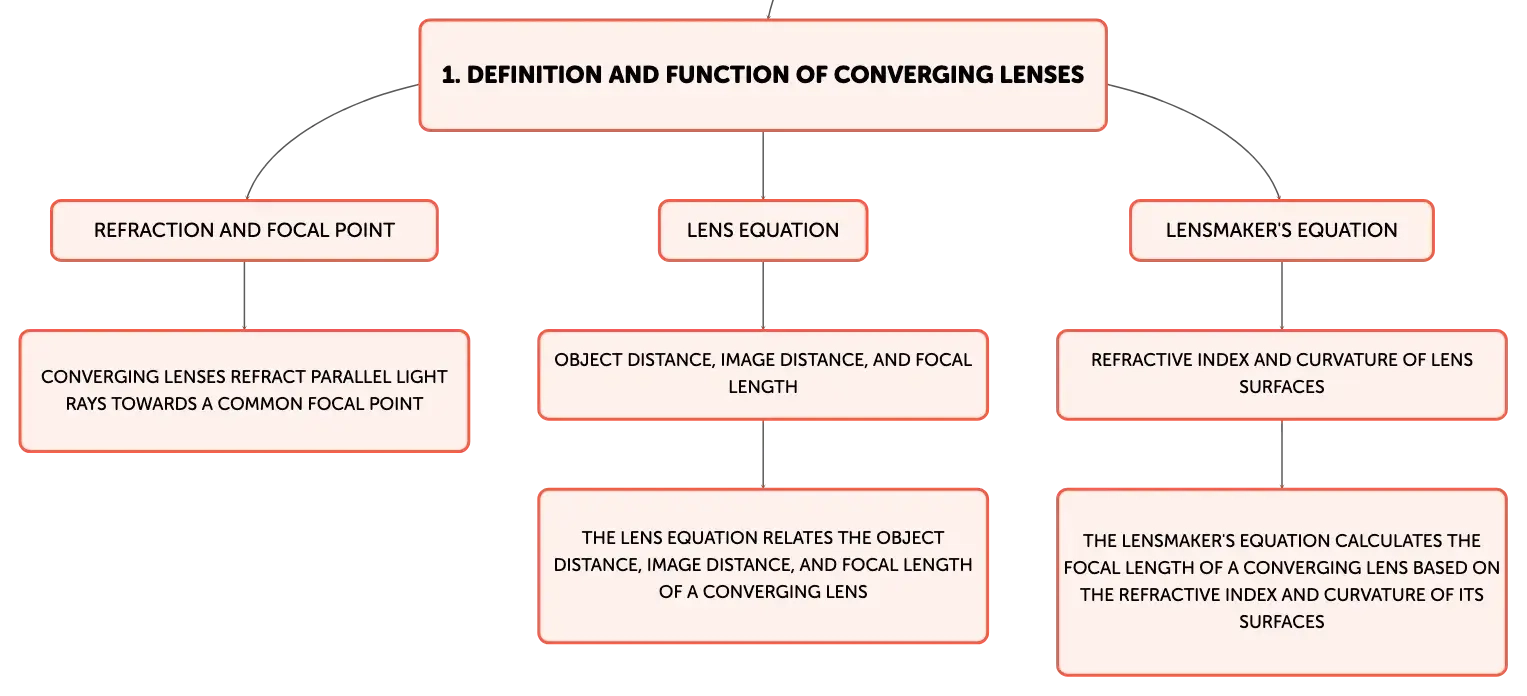

Exploring the Function of Converging Lenses

Converging lenses, also known as convex lenses, are pivotal in the field of optics due to their ability to refract parallel light rays towards a common point, termed the focal point. The lens's focal length, the distance from its center to the focal point, is a key factor in determining how light is refracted and images are formed. These lenses are thicker at the center than at the edges and are utilized in various optical instruments such as eyeglasses, cameras, and telescopes to correct vision or to magnify and focus images of distant objects.

$Clear glass biconvex lens on stand with inverted image of potted plant and colorful ball behind it, illustrating light refraction on a white background.$

Optical Behavior and Lens Equation

The behavior of converging lenses in refracting light is described by the Lens Equation, which establishes a relationship between the object distance ($u$), the image distance ($v$), and the focal length ($f$): $\frac{1}{f} = \frac{1}{u} + \frac{1}{v}$. This equation is essential for predicting the position and size of the image formed by the lens. It demonstrates that as the object distance varies, the image distance also changes, allowing the lens to focus light and form images with varying characteristics.

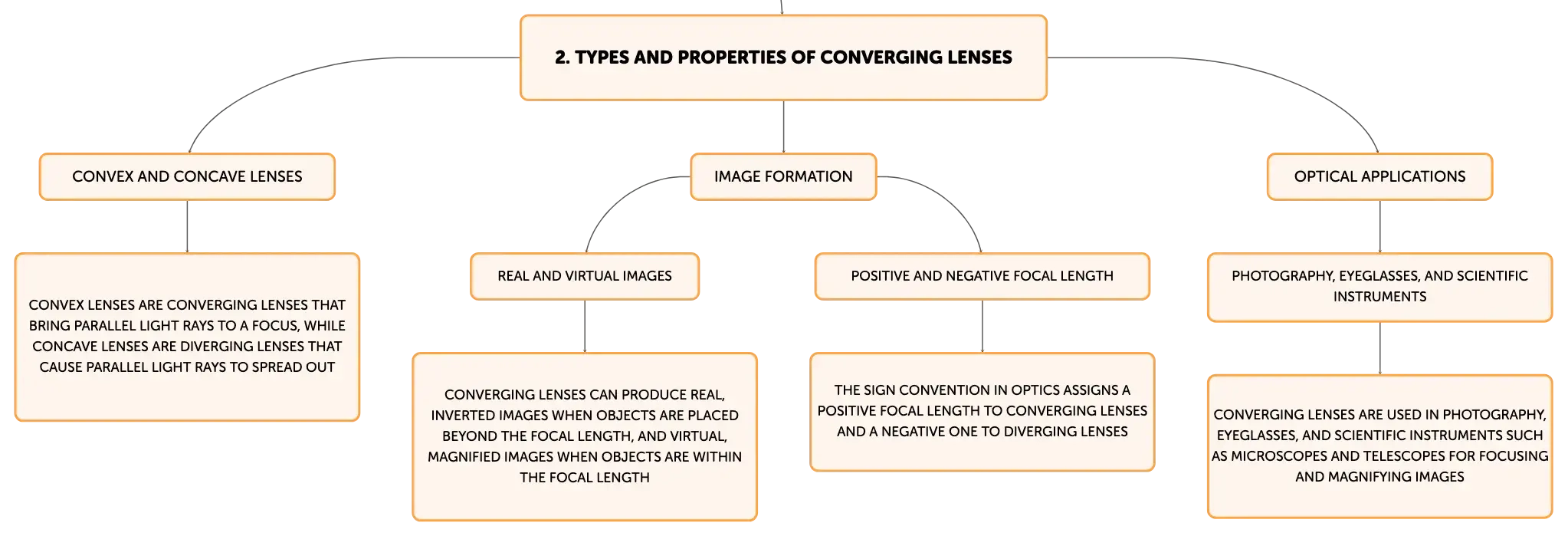

Convex Versus Concave Lenses

It is important to distinguish between convex and concave lenses based on their shape and refractive properties. Convex lenses, which bulge outward, are converging lenses as they bring parallel light rays to a focus. In contrast, concave lenses are thinner in the middle and thicker at the edges, causing parallel light rays to spread out or diverge, and are thus known as diverging lenses. The curvature of a lens affects the path of light through it, which in turn influences how images are formed.

Determining Focal Length with the Lensmaker's Equation

The focal length of a converging lens can be calculated using the Lensmaker's Equation, which takes into account the curvature of the lens surfaces and the refractive index of the material: $\frac{1}{f} = (n-1) \left( \frac{1}{R_1} - \frac{1}{R_2} \right)$, where $n$ is the refractive index of the lens material, and $R_1$ and $R_2$ are the radii of curvature of the two lens surfaces. This equation is vital for designing lenses with specific optical properties required for various applications.

Contrast Between Converging and Diverging Lenses

Converging and diverging lenses have distinct image formation properties. Converging lenses can produce real, inverted images when objects are placed beyond the focal length, and virtual, magnified images when objects are within the focal length. Diverging lenses, on the other hand, always create virtual, upright, and reduced images. The sign convention in optics assigns a positive focal length to converging lenses and a negative one to diverging lenses, reflecting their different behaviors in the Lensmaker's Equation.

The Versatile Role of Converging Lenses

Converging lenses are integral to a multitude of optical devices that impact our daily lives. In photography, they focus light onto the sensor or film, capturing sharp images. For individuals with hyperopia, or farsightedness, converging lenses in eyeglasses help focus light correctly onto the retina. Scientific instruments like microscopes and telescopes employ converging lenses in conjunction with diverging lenses to magnify and clarify the view of tiny or distant objects, showcasing their broad utility.

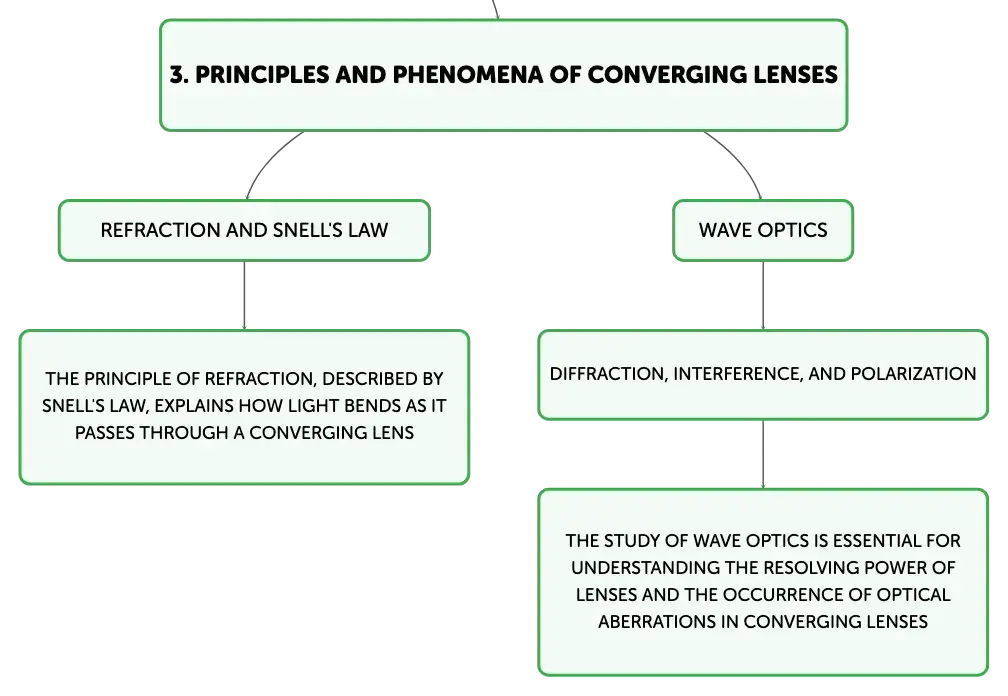

Refraction Principles in Converging Lenses

The functionality of converging lenses is based on the principle of refraction, which is the change in direction of light as it passes from one medium to another with a different refractive index. According to Snell's Law, light refracts at the interface between air and the lens material, bending towards the normal line when entering and away when exiting. This bending action directs the light rays to converge at the focal point, enabling the lens to focus light and form images.

Wave Optics Considerations for Converging Lenses

The study of converging lenses extends into wave optics, which considers the wave-like behavior of light. Principles such as diffraction, interference, and polarization are essential for understanding the resolving power of lenses and the occurrence of optical aberrations like chromatic aberration. These wave optics phenomena must be considered when designing and using converging lenses in various optical instruments, as they affect the quality and detail of the observed images.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Definition of focal point in optics

Point where parallel light rays converge after passing through a convex lens.

Role of focal length in image formation

Determines the degree of light refraction and size of the image formed by a lens.

Applications of converging lenses

Used in eyeglasses, cameras, telescopes for vision correction, image magnification and focusing.
