The Hazards of Volcanic Ash to Aviation

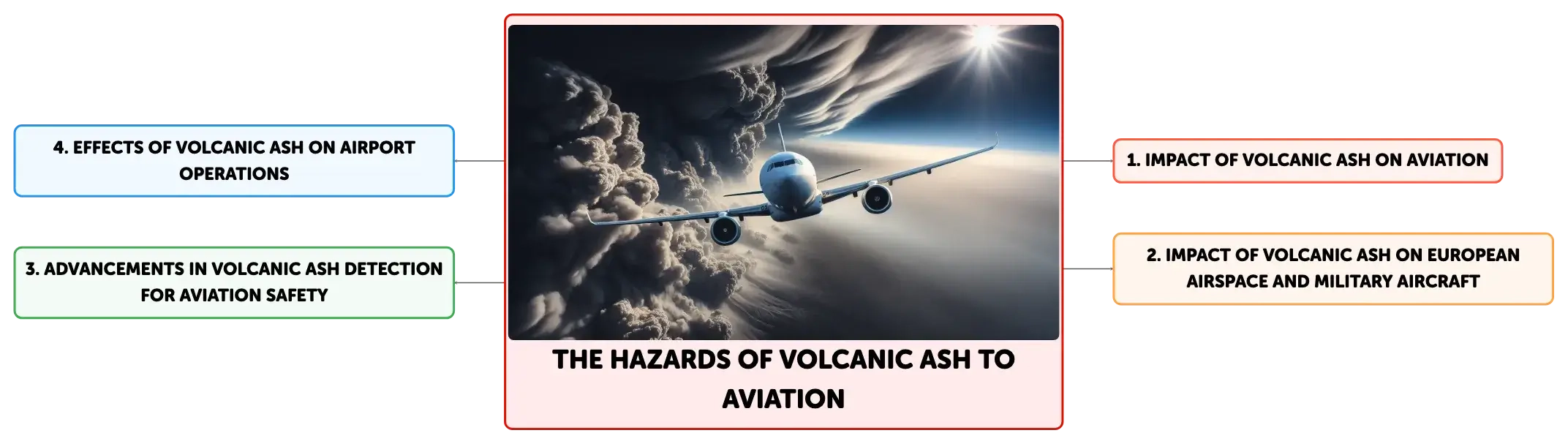

Concept Map
Volcanic ash poses significant hazards to aviation, causing engine failures and costly damages, as seen in incidents like British Airways Flight 9. It also disrupts airport operations, land and marine transport, and communication networks. Detection systems like AVOID help navigate ash clouds, while preparedness and management strategies mitigate ashfall's impact on society and the environment. Interestingly, volcanic ash can enrich soil, demonstrating its dual role as both a disruptor and a benefactor.
Summary
Outline
The Hazards of Volcanic Ash to Aviation
Volcanic ash is a formidable hazard to aviation, with numerous recorded incidents of aircraft encountering ash clouds, leading to engine failure and other critical damages. A notable example is British Airways Flight 9 on June 24, 1982, which encountered an ash cloud from Mount Galunggung in Indonesia, resulting in the failure of all four engines. The aircraft descended from 37,000 feet to 13,000 feet before the crew successfully restarted the engines and landed safely. Similarly, KLM Flight 867 on December 15, 1989, experienced complete engine shutdown after flying into an ash cloud from Mount Redoubt in Alaska, descending 14,700 feet before the engines were restarted. The repair costs for the KLM aircraft were substantial, amounting to US$80 million, and the aircraft was out of service for an extended period. The 1991 eruption of Mount Pinatubo in the Philippines caused significant damage to aircraft, estimated at US$100 million, affecting both airborne and grounded planes.Impact of Volcanic Ash on European Airspace and Military Aircraft
The 2010 eruption of the Icelandic volcano Eyjafjallajökull had a profound impact on European airspace, leading to widespread flight cancellations and unprecedented airspace closures due to the presence of volcanic ash in the upper atmosphere. The Finnish Air Force encountered operational issues when volcanic ash ingestion led to engine damage in one of its F-18 Hornet fighters, prompting the suspension of training flights. The eruption of the Puyehue-Cordón Caulle volcanic complex in Chile in June 2011 similarly disrupted airspace, affecting not only Chile but also Argentina, Brazil, Australia, and New Zealand, demonstrating the far-reaching effects of volcanic ash on aviation.Advancements in Volcanic Ash Detection for Aviation Safety
The detection of volcanic ash clouds presents a significant challenge, as they are often invisible to traditional cockpit instruments. The development of the Airborne Volcanic Object Infrared Detector (AVOID) system, pioneered by Dr. Fred Prata and teams from CSIRO Australia and the Norwegian Institute for Air Research, has enhanced aviation safety. AVOID utilizes infrared technology to detect ash plumes up to 100 kilometers ahead, enabling pilots to navigate around them. The system can identify ash concentrations ranging from less than 1 mg/m³ to over 50 mg/m³ and provides a warning time of approximately 7-10 minutes. Complementary detection methods include ground-based and satellite imagery, radar, and lidar, with data disseminated through Volcanic Ash Advisory Centers (VAACs) to inform aviation decision-making.The Effect of Volcanic Ash on Airport Operations
Volcanic ash can severely disrupt airport operations, affecting visibility, contaminating runways, and damaging infrastructure. Even minimal ash accumulation can necessitate the suspension of flights, as ash can infiltrate sensitive communication systems, damage buildings, and necessitate extensive clean-up efforts. The removal and disposal of ash are critical to prevent its remobilization, which can be caused by wind or aircraft movements, posing further risks to airport operations.Volcanic Ash Disruption to Land and Marine Transport
Volcanic ash disrupts not only aviation but also land and marine transport systems. On roads, ash reduces visibility and can damage vehicles by entering engines and abrading surfaces. Rail transport may experience fewer mechanical issues but still suffers from visibility problems. Marine transport faces risks such as blocked filters, engine abrasion, and navigation difficulties due to reduced visibility and the presence of floating pumice rafts, which can obstruct water intakes.Challenges to Communication Networks from Volcanic Ash
Volcanic ash can affect telecommunication and broadcast networks, potentially causing signal attenuation and damage to equipment. Although signal loss due to ash is not extensively documented, disruptions have been observed following significant eruptions. Modern communication equipment, especially air conditioning units that cool essential components, is susceptible to ash clogging. Additionally, network overloads can occur during eruptions due to increased user demand, leading to service disruptions.Impact of Volcanic Ash on Computers and Buildings
Computers and other electronic devices are vulnerable to volcanic ash, which can cause mechanical components such as cooling fans and optical drives to malfunction. Cleaning can often restore these devices to working order. Buildings and structures face various risks from ashfall, including the potential for roof collapse under the weight of heavy ash deposits. The weight of ash can be exacerbated by moisture, such as rain, causing significant structural stress, especially on flat roofs.Environmental and Agricultural Consequences of Volcanic Ash
The environmental impact of volcanic ash is diverse, affecting water quality by increasing turbidity and acidification, which can harm aquatic ecosystems. Ashfall can also be detrimental to agriculture, with light layers potentially inhibiting photosynthesis and heavier deposits capable of burying and killing crops. Forests, particularly young trees, are susceptible to destruction from substantial ash accumulation. However, with appropriate management, affected lands can be rehabilitated and restored to productivity.Interdependencies and Societal Impacts of Volcanic Ashfall
The widespread effects of volcanic ashfall underscore the interdependence of critical infrastructure and societal functions. The 2010 Eyjafjallajökull eruption exemplified this, causing significant economic losses within the airline industry and affecting sectors such as agriculture, tourism, and general transportation. This event highlighted the necessity for a comprehensive understanding of infrastructure interconnectedness and the broad implications of volcanic activity on society.Preparedness, Mitigation, and Management Strategies for Volcanic Ash
Preparedness for volcanic ashfall involves proactive measures such as sealing buildings, protecting critical infrastructure, and maintaining emergency supplies. Personal protective equipment, like dust masks and goggles, can mitigate health risks associated with ash inhalation. Effective communication plans and contingency strategies are crucial for minimizing service disruptions. Management practices include prioritizing the clean-up of essential facilities and preventing ash from contaminating water supplies and waste systems. In areas expecting significant ashfall, the evacuation of livestock may be necessary to prevent harm.Utilization of Volcanic Ash in Soil Enrichment
Beyond its disruptive effects, volcanic ash can be beneficial, particularly as a soil enricher. When mixed with soil, volcanic ash can form andisol, a nutrient-rich layer that promotes the growth of lush vegetation. Additionally, volcanic ash can replace sand in various construction and industrial applications, demonstrating its utility in a range of contexts.
Show More
Impact of Volcanic Ash on Aviation
Recorded Incidents of Aircraft Encountering Ash Clouds
Numerous incidents have been recorded of aircraft encountering ash clouds, leading to engine failure and other critical damages
Notable Examples of Aircraft Encountering Ash Clouds
British Airways Flight 9
British Airways Flight 9 encountered an ash cloud from Mount Galunggung in Indonesia, resulting in the failure of all four engines
KLM Flight 867
KLM Flight 867 experienced complete engine shutdown after flying into an ash cloud from Mount Redoubt in Alaska
Repair Costs and Effects of Ash on Aircraft
The repair costs for affected aircraft can be substantial, and volcanic ash can cause damage to both airborne and grounded planes

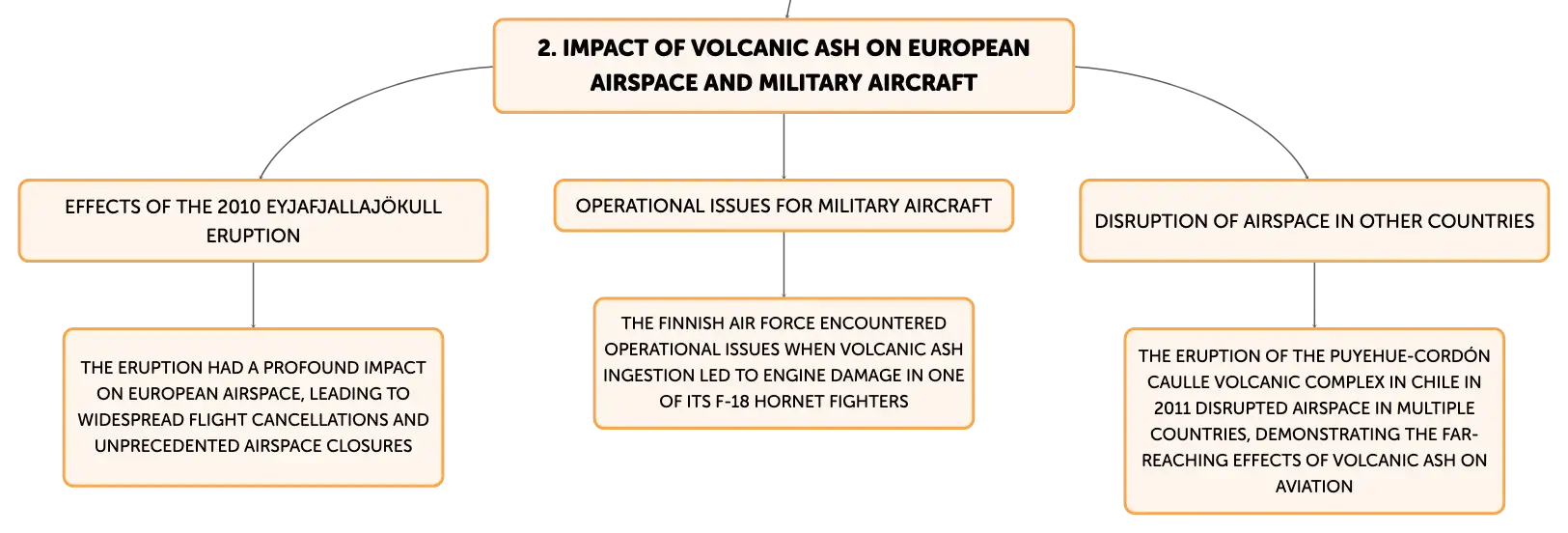

Impact of Volcanic Ash on European Airspace and Military Aircraft
Effects of the 2010 Eyjafjallajökull Eruption
The eruption had a profound impact on European airspace, leading to widespread flight cancellations and unprecedented airspace closures
Operational Issues for Military Aircraft
The Finnish Air Force encountered operational issues when volcanic ash ingestion led to engine damage in one of its F-18 Hornet fighters
Disruption of Airspace in Other Countries
The eruption of the Puyehue-Cordón Caulle volcanic complex in Chile in 2011 disrupted airspace in multiple countries, demonstrating the far-reaching effects of volcanic ash on aviation
Advancements in Volcanic Ash Detection for Aviation Safety
Challenges in Detecting Volcanic Ash Clouds
The detection of volcanic ash clouds presents a significant challenge, as they are often invisible to traditional cockpit instruments
The AVOID System
The Airborne Volcanic Object Infrared Detector (AVOID) system utilizes infrared technology to detect ash plumes and provide warnings to pilots
Complementary Detection Methods
Other methods such as ground-based and satellite imagery, radar, and lidar are also used to detect volcanic ash and inform aviation decision-making

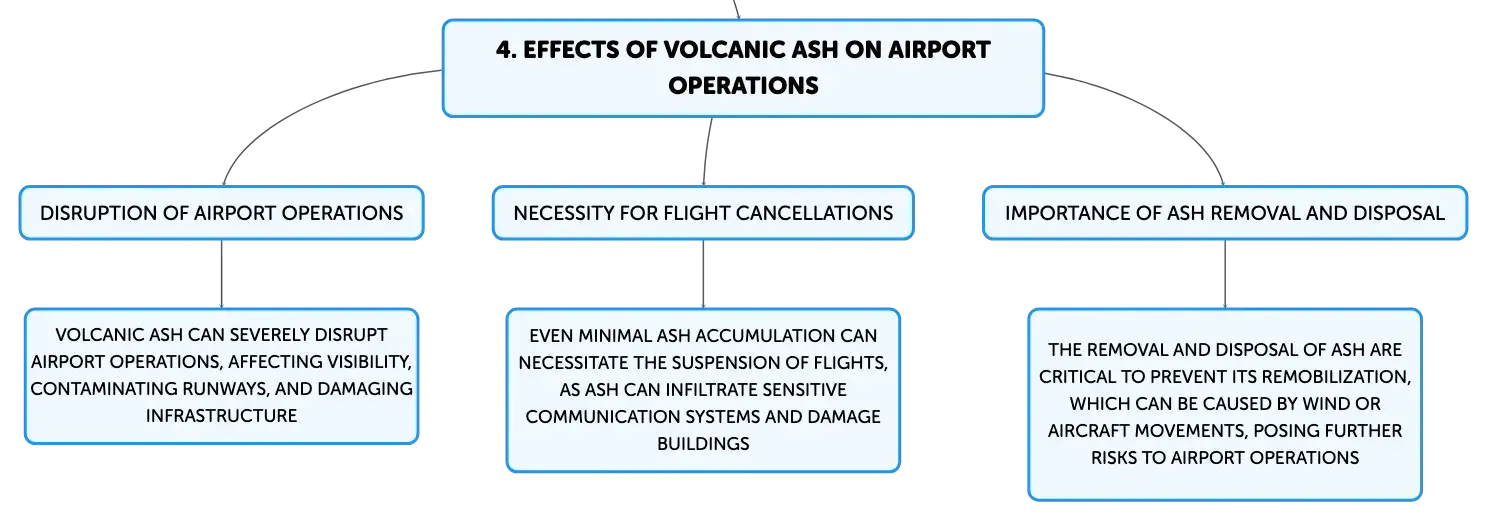

Effects of Volcanic Ash on Airport Operations
Disruption of Airport Operations
Volcanic ash can severely disrupt airport operations, affecting visibility, contaminating runways, and damaging infrastructure
Necessity for Flight Cancellations
Even minimal ash accumulation can necessitate the suspension of flights, as ash can infiltrate sensitive communication systems and damage buildings
Importance of Ash Removal and Disposal
The removal and disposal of ash are critical to prevent its remobilization, which can be caused by wind or aircraft movements, posing further risks to airport operations
The Hazards of Volcanic Ash to Aviation
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
BA Flight 9 Engine Failure Cause
Encountered Mount Galunggung ash cloud, all four engines failed.
01
KLM Flight 867 Incident Details
Flew into Mount Redoubt ash, all engines shut down, descended 14,700 feet, engines restarted.
02
Mount Pinatubo Eruption Aircraft Costs
1991 eruption caused approx. US$100 million in damages to aircraft, both airborne and grounded.
