Volcanic Ash and Aviation Safety

Volcanic ash poses a significant threat to aviation, causing damage to aircraft engines and airframes. The text discusses the role of Volcanic Ash Advisory Centers (VAACs) in monitoring ash clouds and advising on safe airspace navigation. It also covers the establishment of safe ash concentration levels for flights, the implementation of Time Limited Zones (TLZs), and the impact of sulfur dioxide on aviation. Case studies of past aircraft encounters with volcanic ash highlight the importance of safety protocols.

see more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ ash poses a major threat to ______ safety, particularly when flying at ______.

Click to check the answer

Volcanic aviation nighttime

2

The ash, made up of tiny ______ and ______ particles, can erode ______ surfaces like ______ and the front parts of ______.

Click to check the answer

rock glass external windshields wings

3

Fine particles from the ash can accumulate in and wear away ______ parts such as ______ ______.

Click to check the answer

internal turbine blades

4

Ash contamination can lead to additional ______ difficulties by affecting ______ ______.

Click to check the answer

operational aircraft systems

5

Establishment year of VAACs

Click to check the answer

VAACs were established in 1991 to monitor and warn about volcanic ash.

6

Collaborators with VAACs

Click to check the answer

VAACs collaborate with meteorologists, volcanologists, and aviation authorities.

7

2010 Eyjafjallajökull eruption impact

Click to check the answer

The eruption tested the VAAC system, leading to extensive airspace closures and a push for ash concentration guidelines.

8

The ______ collaborated with engine producers and global associates to set an initial safe flight ash limit of ______ mg/m³.

Click to check the answer

UK Civil Aviation Authority 2

9

The safe engine operation threshold for ash was later increased to ______ mg per cubic meter.

Click to check the answer

4

10

The revised ash concentration threshold allowed for more ______ airspace management during volcanic disturbances.

Click to check the answer

flexible and informed

11

Ash concentration thresholds in aviation

Click to check the answer

Safety limits for ash levels in airspace to prevent flight hazards.

12

Flight operations in TLZs

Click to check the answer

Flights may operate in TLZs with safety measures and compliance proof.

13

Prohibited airspace during volcanic events

Click to check the answer

Areas with ash levels above safety thresholds where flights are banned.

14

Volcanic ash clouds are made up of fine particles of ______, ______, and ______ fragments.

Click to check the answer

volcanic glass minerals rock

15

These clouds can drift ______ of kilometers away from their origin and ascend to altitudes frequented by ______ aircraft.

Click to check the answer

thousands commercial

16

In the ______, volcanic ash clouds might be mistaken for normal clouds, which heightens the danger of ______ encounters.

Click to check the answer

daylight accidental

17

Engine shutdown cause by volcanic ash

Click to check the answer

Melting and solidification of ash particles can lead to engine shutdown.

18

Volcanic ash impact on engine and airframe

Click to check the answer

Ash's abrasive nature causes rapid wear on engine components and airframes.

19

Volcanic ash and aircraft electronic systems

Click to check the answer

Ash's electrostatic properties can interfere with electronic systems, affecting instrumentation and communication.

20

Due to ______, sulfur dioxide may drift away from ______, making it an unreliable indicator of the latter's presence.

Click to check the answer

atmospheric conditions ash clouds

21

For pilots, relying only on the detection of ______ to avoid volcanic ash can be ______.

Click to check the answer

SO2 misleading

22

Identifying and steering clear of both ash and ______ hazards requires ______ monitoring and reporting systems.

Click to check the answer

SO2 comprehensive

23

Impact of volcanic ash on aviation

Click to check the answer

Volcanic ash can cause engine failures, abrasive damage to aircraft surfaces, and loss of visibility.

24

Flight crew response to ash cloud engine failure

Click to check the answer

Crews may need to restart engines mid-flight; successful restarts crucial for safe landings.

25

Aviation industry lessons from ash incidents

Click to check the answer

Incidents highlight importance of safety protocols, volcanic monitoring to mitigate risks.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Earth Sciences

Composition and Formation of Volcanic Ash

View document

Earth Sciences

Volcanic Ash Fallout: Processes and Consequences

View document

Earth Sciences

The Hazards of Volcanic Ash to Aviation

View document

Earth Sciences

The Nature and Origin of Tuff

View document

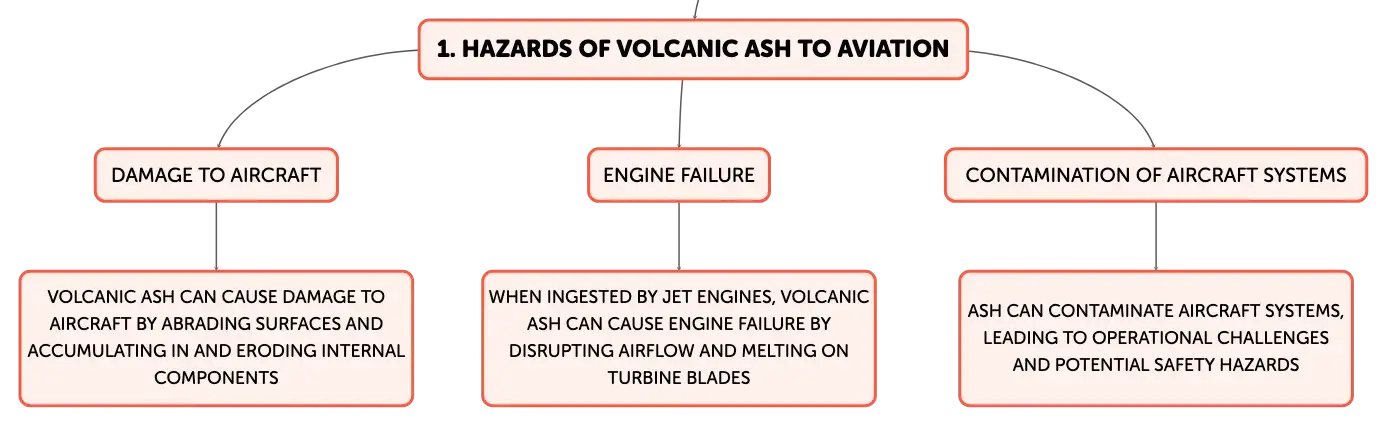

Volcanic Ash and Aviation Safety

Volcanic ash is a serious hazard to aviation safety, especially for flights during nighttime. This ash, composed of fine particles of rock and glass, can cause significant damage to aircraft by abrading exposed surfaces such as windshields and leading edges of wings, and by accumulating in and eroding internal components like turbine blades. When ingested by jet engines, the ash's glassy particles can melt and resolidify on turbine blades, disrupting airflow and causing engine failure. Ash can also contaminate aircraft systems, leading to further operational challenges.
Airliner in flight with clear sky fading from light to dark blue, above an erupting volcano with a dense cloud of gray ash.

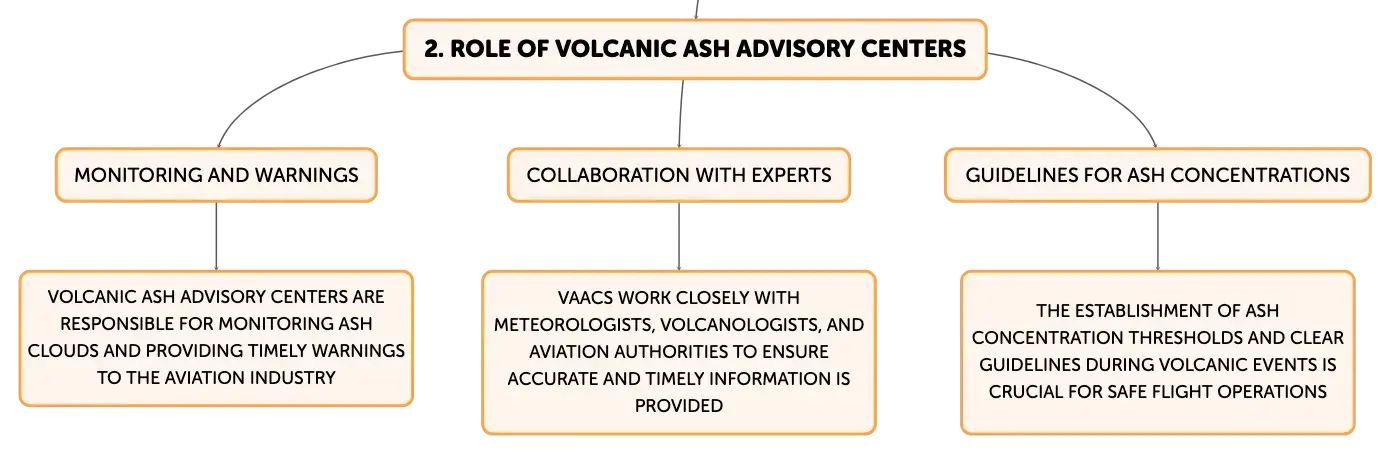

Role of Volcanic Ash Advisory Centers

To address the threat of volcanic ash to aviation, the international community established Volcanic Ash Advisory Centers (VAACs) in 1991. These centers are responsible for monitoring volcanic ash clouds, providing timely warnings, and advising on the safe navigation of airspace. The VAACs work in close collaboration with meteorologists, volcanologists, and aviation authorities to ensure that the aviation industry is informed of ash cloud locations and movements. This system was put to the test during the 2010 Eyjafjallajökull eruption, which led to widespread airspace closures and highlighted the need for clear guidelines on ash concentrations.

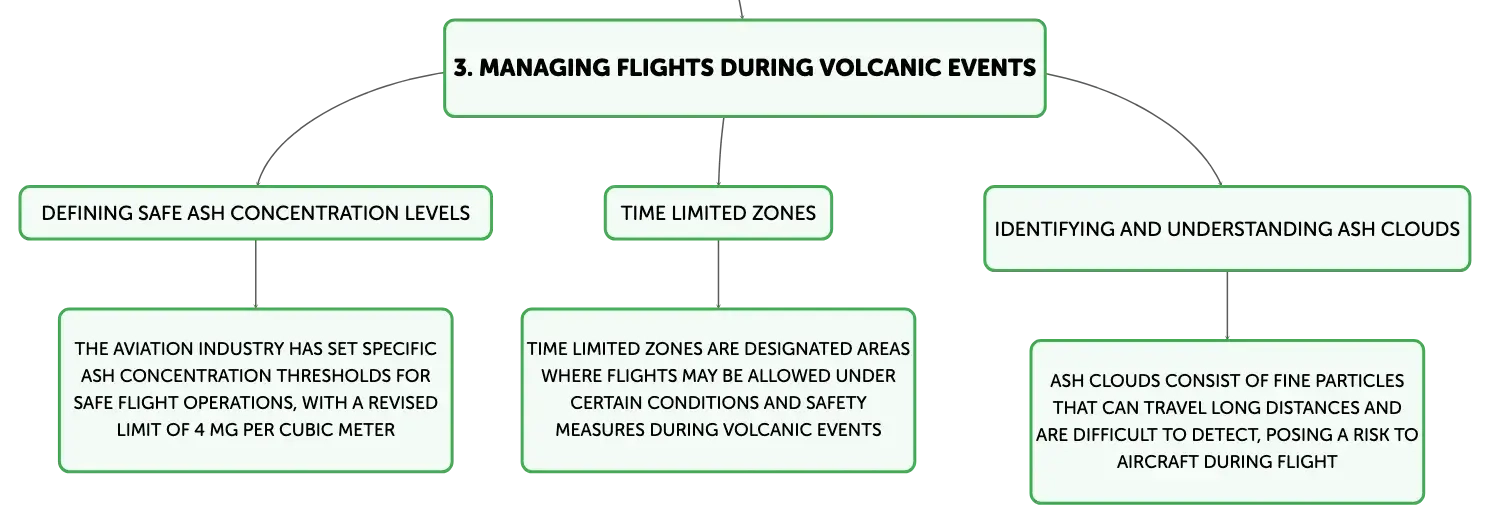

Defining Safe Ash Concentration Levels for Flight

The disruption caused by the 2010 Eyjafjallajökull volcanic eruption led to the establishment of specific ash concentration thresholds for safe flight operations. The UK Civil Aviation Authority, working with engine manufacturers and international partners, initially set a concentration limit of 2 mg of ash per cubic meter of air as the threshold for safe engine operation. This threshold was later revised to 4 mg per cubic meter, allowing for a more flexible and informed approach to airspace management during volcanic events, while still prioritizing safety.

Implementing Time Limited Zones for Airspace Management

In addition to setting ash concentration thresholds, the aviation industry introduced Time Limited Zones (TLZs) to manage flights during volcanic events. TLZs are areas of airspace where a temporary restriction is imposed due to elevated ash levels, but flights may be allowed under certain conditions and with appropriate safety measures in place. Aircraft operators must demonstrate compliance with safety protocols before entering a TLZ. Airspace with ash concentrations above the established safety threshold is designated as prohibited.

Identifying and Understanding Volcanic Ash Clouds

Volcanic ash clouds consist of fine particles of volcanic glass, minerals, and rock fragments. These clouds can travel thousands of kilometers from their source and reach cruising altitudes of commercial aircraft. Pilots may struggle to detect ash clouds visually, especially at night, and standard weather radar systems are often ineffective against the fine particles of ash. During daylight, ash clouds can be easily confused with ordinary clouds, increasing the risk of accidental encounters.

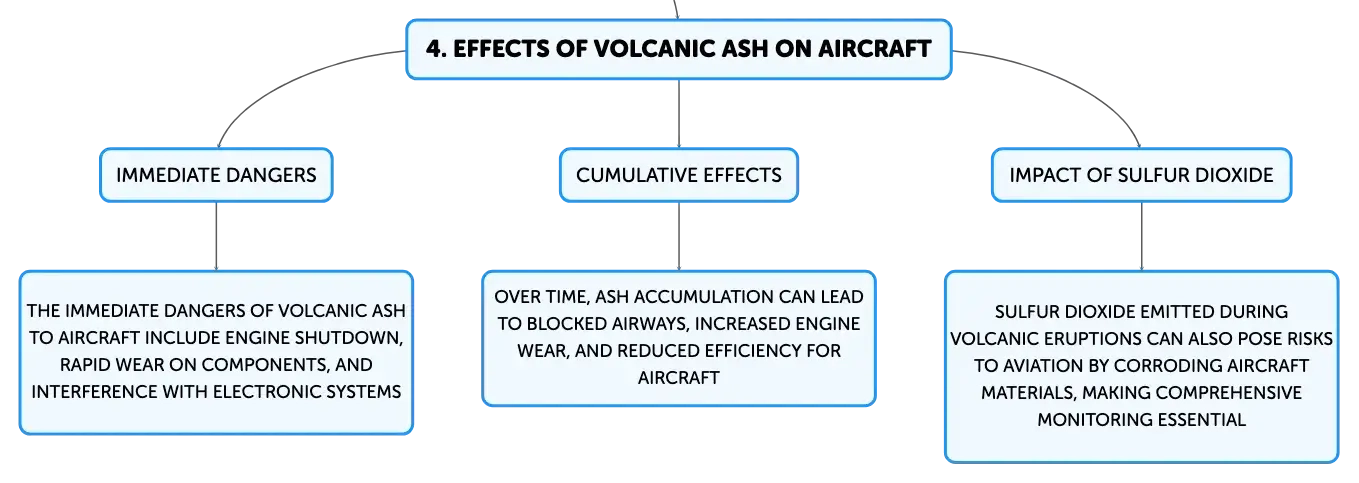

Immediate and Cumulative Effects of Volcanic Ash on Aircraft

The immediate dangers of volcanic ash to aircraft include the potential for engine shutdown due to the melting and solidification of ash particles within the engine. Additionally, the abrasive nature of ash can cause rapid wear on engine components and airframes. Over time, the accumulation of ash can lead to blocked airways and cooling systems, increased engine wear, and reduced efficiency. The electrostatic properties of ash can also interfere with electronic systems, posing a risk to aircraft instrumentation and communication.

The Impact of Sulfur Dioxide on Aviation

Volcanic eruptions emit sulfur dioxide (SO2), a gas that can also pose risks to aviation by corroding aircraft materials. While SO2 often travels with ash clouds, it can become separated due to atmospheric conditions such as windshear. Since SO2 is not a reliable indicator of ash presence, relying solely on SO2 detection can be misleading for pilots trying to avoid volcanic ash. Therefore, comprehensive monitoring and reporting systems are essential for identifying and avoiding both ash and SO2 hazards.

Case Studies of Aircraft Encounters with Volcanic Ash

Historical incidents underscore the dangers of volcanic ash to aviation. For example, British Airways Flight 9 in 1982 and KLM Flight 867 in 1989 both suffered engine failures after flying into volcanic ash clouds. The flight crews successfully restarted the engines and landed the aircraft without loss of life. These events serve as critical case studies for the aviation industry, emphasizing the need for rigorous safety protocols and continuous monitoring of volcanic activity to prevent similar occurrences.
