Springs: Elastic Objects for Energy Storage and Retrieval

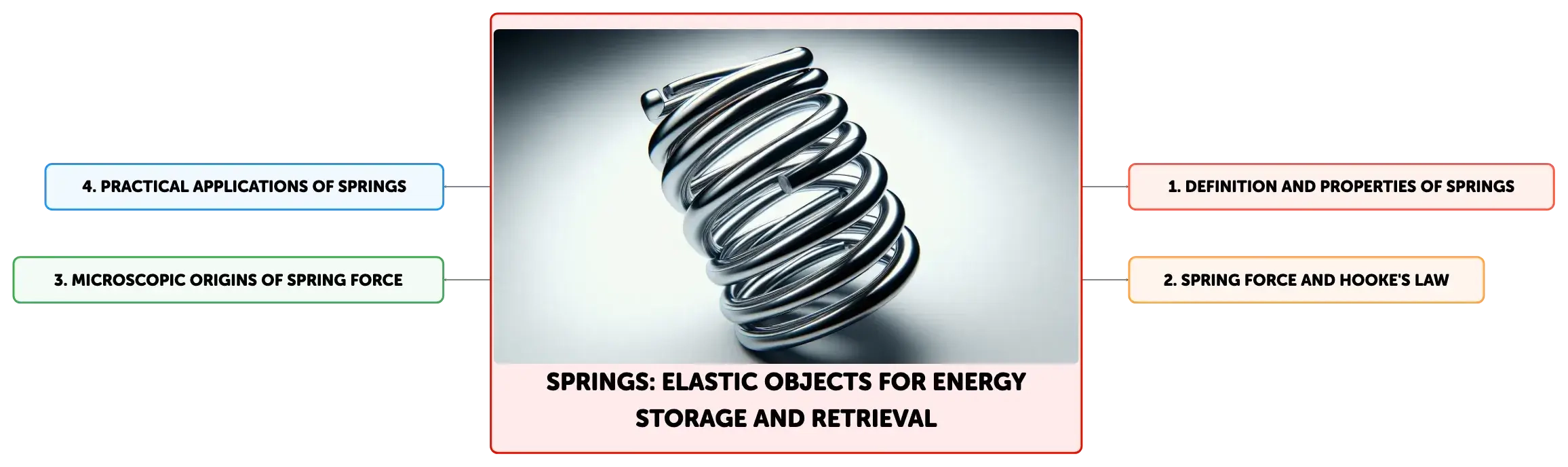

Concept Map
Exploring the mechanics of springs, this overview discusses their key properties such as elasticity, potential energy storage, and restoring force. It delves into the variety of springs like coil, compression, and torsion springs, and their specific uses in everyday applications. The dynamics of spring force, Hooke's Law, and the atomic foundations of these forces are also examined, highlighting their importance in practical engineering scenarios.
Summary
Outline
Exploring the Mechanics of Springs: Definitions and Key Properties
Springs are mechanical devices that can be found in a multitude of everyday applications, from toys to sophisticated machinery. A spring is an elastic object that absorbs and stores energy when it is deformed by an external force, either by compression, extension, or twisting. The key properties of springs include their ability to exert a restoring force that opposes deformation, their capacity to store potential energy, and the direct proportionality between the force exerted and the degree of deformation. These properties are governed by the principles of elasticity and are fundamental to the operation of springs in various devices.The Variety of Springs and Their Specific Uses
The world of springs is diverse, with each type designed for particular functions. The classic helical coil spring is a common example, often seen in retractable pens and vehicle suspension systems. Beyond this familiar form, any material that can return to its original shape after being deformed can act as a spring, such as a flexible ruler used as a makeshift spring. Coil springs are classified into compression springs, which are designed to operate under compressive loads, and extension springs, which are intended for tensile loads. Torsion springs, which function under twisting forces, are commonly found in items like clothespins and garage door mechanisms. Despite their differences, all springs operate on the same basic principles and exert forces that are predictable and quantifiable.The Dynamics of Spring Force and Its Direction
The force generated by a spring, known as the spring force, is a responsive force that acts to counteract the deformation caused by an external load. This force is always directed in such a way as to restore the spring to its equilibrium state. When a spring is compressed, the spring force acts to expand it; conversely, when a spring is extended, the force works to contract it. This restoring force is essential for the spring's ability to store energy and is a critical concept in the design and analysis of spring-loaded mechanisms.Hooke's Law and Spring Force Calculation
Hooke's Law provides a simple yet powerful model for understanding the behavior of springs under load. The law states that the force exerted by a spring is proportional to its displacement from the equilibrium position, mathematically expressed as \( F_\mathrm{s}=-kx \), where \( F_\mathrm{s} \) is the spring force, \( k \) is the spring constant, and \( x \) is the displacement. The spring constant is a measure of the stiffness of the spring and varies with the material and design of the spring. The negative sign in Hooke's Law indicates that the spring force is in the opposite direction of the displacement. This linear relationship holds true as long as the spring is not deformed beyond its elastic limit, which is the point beyond which permanent deformation occurs.The Atomic Foundations of Spring Forces
The forces exerted by springs have their origins at the atomic level, where electric forces between atoms and molecules come into play. These microscopic forces are responsible for maintaining the integrity of the material's structure. When a spring is deformed, the distances between atoms are altered, and the interatomic forces work to return the material to its original configuration. This behavior is the result of the inherent properties of the atomic bonds within the material, making the spring force a manifestation of the electromagnetic forces at the microscopic scale.Real-World Applications of Spring Forces
The principles of spring force are readily observed in practical scenarios. For example, when a mass is suspended from a vertical spring, the spring stretches until it reaches a new equilibrium position where the spring force balances the gravitational force on the mass. This system can be analyzed using Hooke's Law to determine the spring constant by measuring the displacement caused by the mass. In another scenario, a horizontal spring attached to a mass on a frictionless surface can be used to study oscillatory motion. These examples not only demonstrate the linear relationship between force and displacement in springs but also showcase the versatility of springs in engineering applications, from force measurement to energy storage and retrieval systems.
Show More

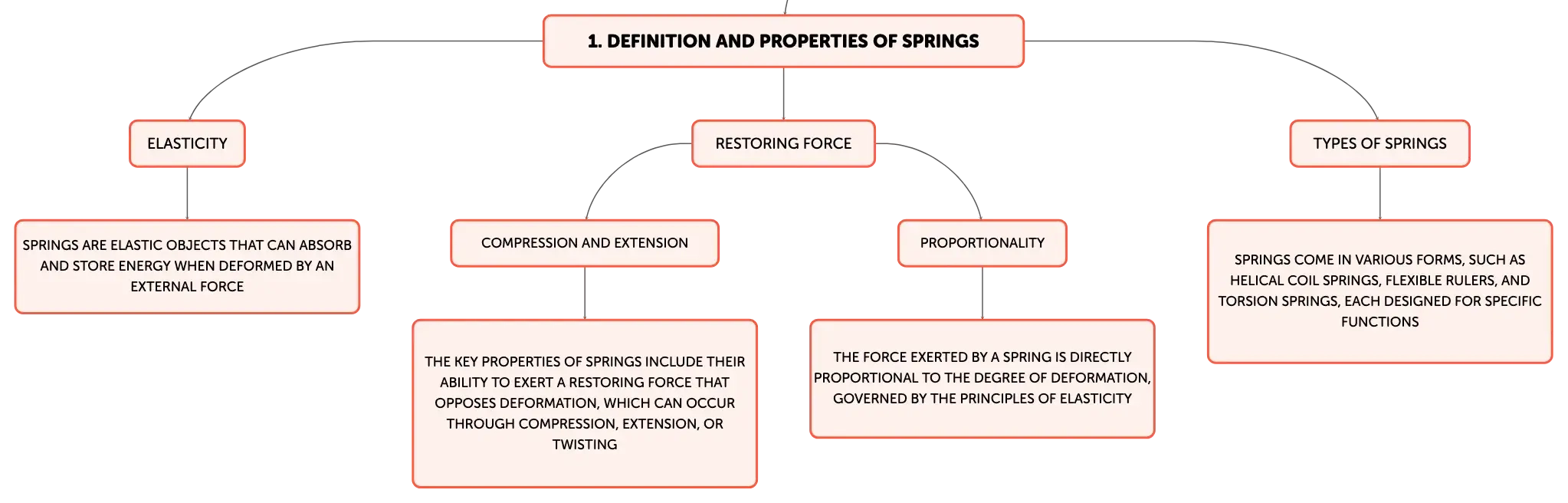

Definition and Properties of Springs
Elasticity
Springs are elastic objects that can absorb and store energy when deformed by an external force
Restoring Force
Compression and Extension
The key properties of springs include their ability to exert a restoring force that opposes deformation, which can occur through compression, extension, or twisting
Proportionality
The force exerted by a spring is directly proportional to the degree of deformation, governed by the principles of elasticity
Types of Springs
Springs come in various forms, such as helical coil springs, flexible rulers, and torsion springs, each designed for specific functions

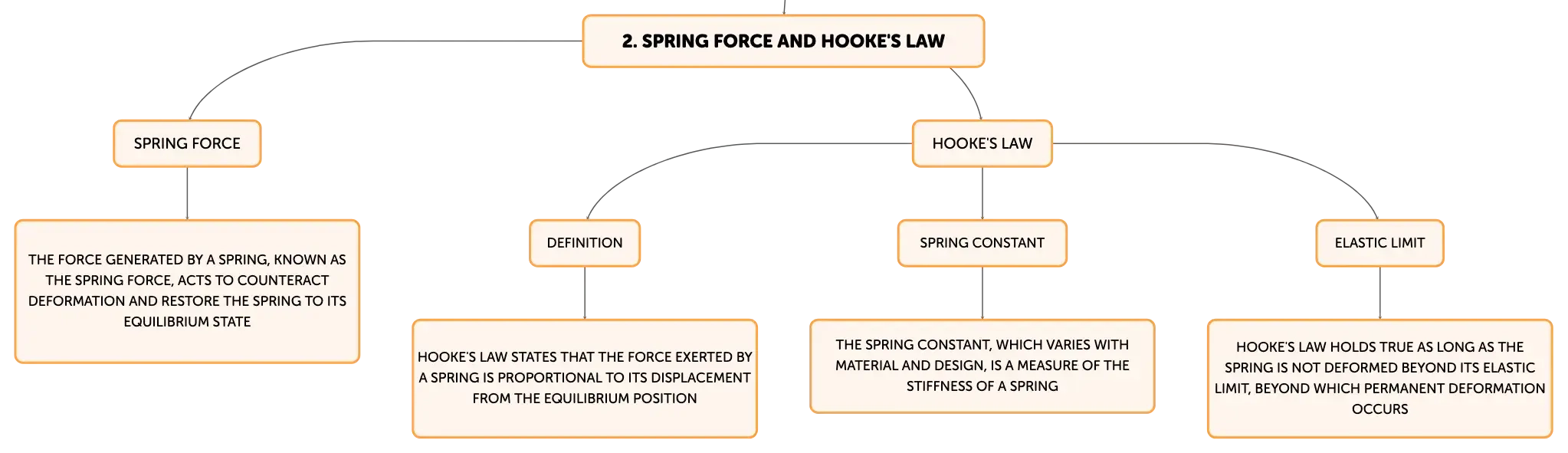

Spring Force and Hooke's Law
Spring Force
The force generated by a spring, known as the spring force, acts to counteract deformation and restore the spring to its equilibrium state
Hooke's Law
Definition
Hooke's Law states that the force exerted by a spring is proportional to its displacement from the equilibrium position
Spring Constant
The spring constant, which varies with material and design, is a measure of the stiffness of a spring
Elastic Limit
Hooke's Law holds true as long as the spring is not deformed beyond its elastic limit, beyond which permanent deformation occurs

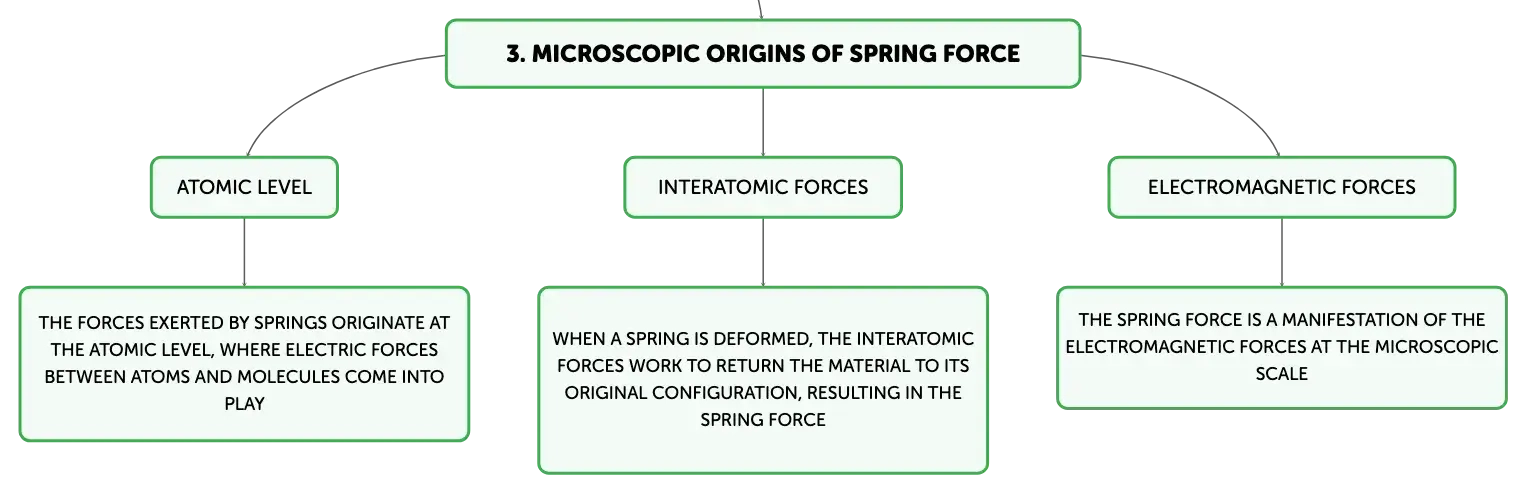

Microscopic Origins of Spring Force
Atomic Level
The forces exerted by springs originate at the atomic level, where electric forces between atoms and molecules come into play
Interatomic Forces
When a spring is deformed, the interatomic forces work to return the material to its original configuration, resulting in the spring force
Electromagnetic Forces
The spring force is a manifestation of the electromagnetic forces at the microscopic scale

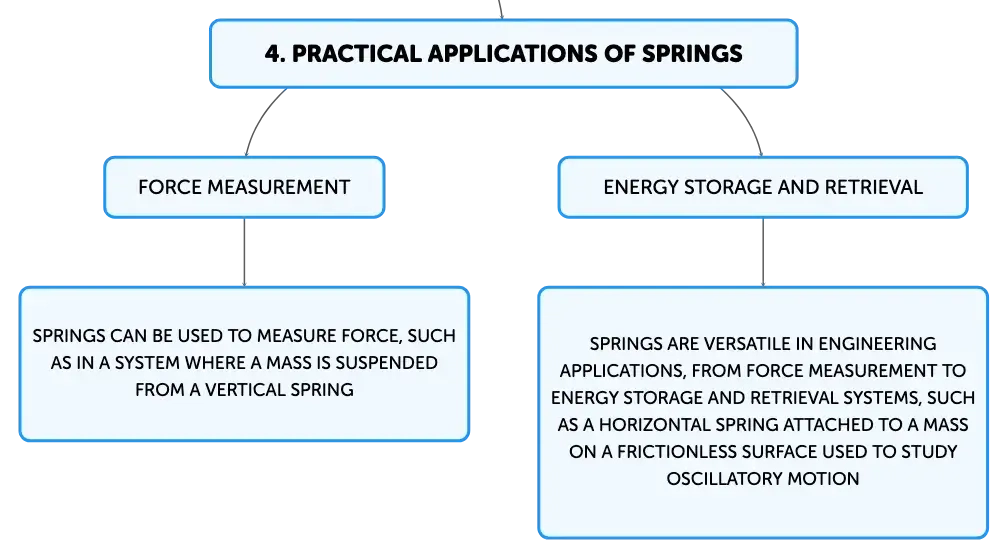

Practical Applications of Springs
Force Measurement
Springs can be used to measure force, such as in a system where a mass is suspended from a vertical spring
Energy Storage and Retrieval
Springs are versatile in engineering applications, from force measurement to energy storage and retrieval systems, such as a horizontal spring attached to a mass on a frictionless surface used to study oscillatory motion
Springs: Elastic Objects for Energy Storage and Retrieval
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
A ______ is a device that can store energy when it's deformed by forces such as ______, ______, or ______.
spring
compression
extension
twisting
01
Helical Coil Spring Function
Used in retractable pens, vehicle suspensions; stores energy, absorbs shock.
02
Spring Material Property
Must return to original shape post-deformation; e.g., flexible rulers.
