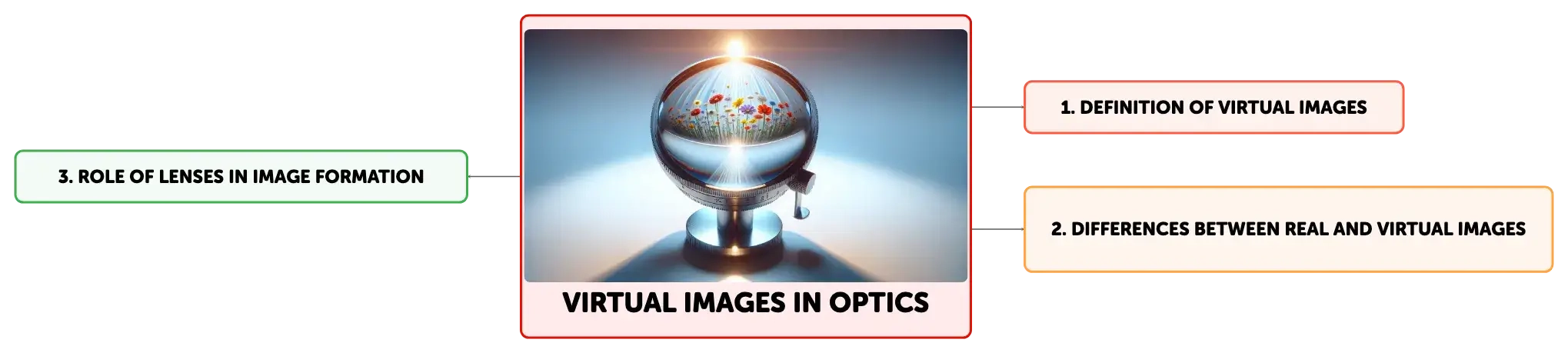

Virtual Images in Optics

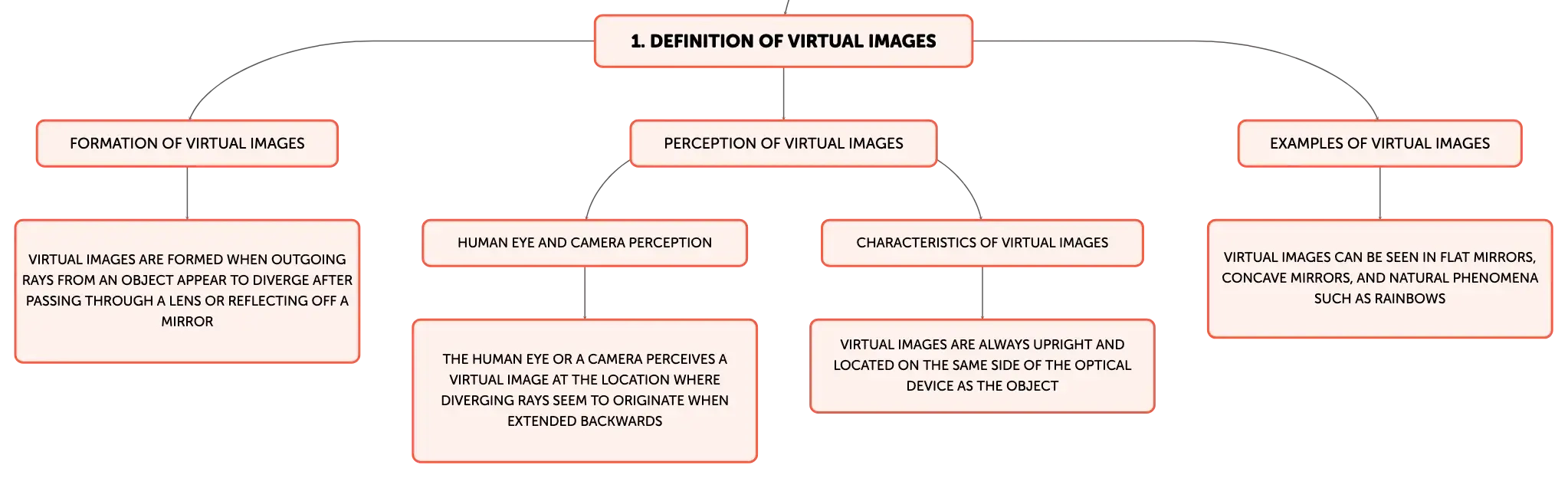

Understanding the Concept of a Virtual Image in Optics

In optics, a virtual image is formed when the outgoing rays from a point on an object appear to diverge after passing through a lens or reflecting off a mirror. The human eye or a camera perceives the image at the location where these diverging rays seem to originate when extended backwards. Unlike a real image, which is produced by converging light rays and can be displayed on a screen, a virtual image is not physically present at the location where it appears and cannot be captured on a screen. Virtual images are typically produced by diverging lenses or concave mirrors, and they are always upright and located on the same side of the optical device as the object.

Examples of Virtual Images in Daily Life

Virtual images are encountered frequently in everyday experiences. A common example is the image seen in a flat mirror, which appears to be located behind the mirror at the same distance as the actual object is in front. Concave mirrors, such as those used in shaving or makeup mirrors, can also create virtual images that appear larger than the object. Rainbows are another natural example of virtual images, formed by the dispersion of sunlight in water droplets, resulting in a spectrum of colors that appear to be projected against the sky. In all these cases, the virtual image is a result of the optical properties of reflection and refraction, with our brain interpreting the light paths to perceive the image.

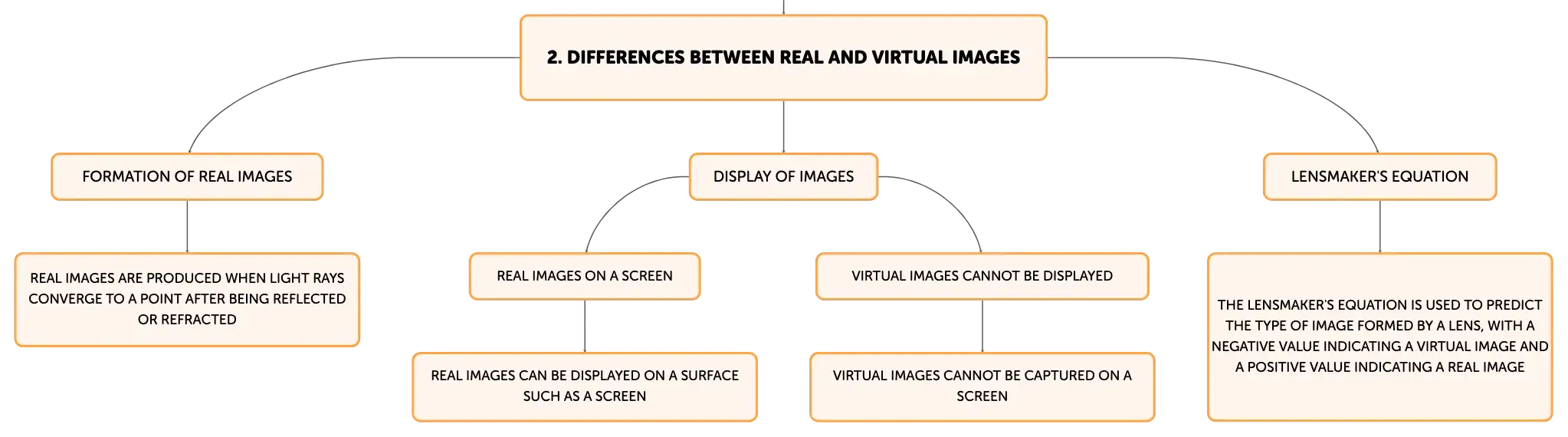

Distinguishing Between Real and Virtual Images

Differentiating real and virtual images is a fundamental concept in optics. Real images are produced when light rays converge to a point after being reflected or refracted, and they can be displayed on a surface such as a screen. Virtual images, however, are formed by diverging light rays that do not actually meet but appear to do so when extended backwards. The Lensmaker's Equation, which relates the focal length (f), the image distance (v), and the object distance (u), is used to predict the type of image formed by a lens. A virtual image is indicated by a negative value for the image distance (v), while a positive value indicates a real image. Virtual images are always upright and found on the same side as the object relative to the lens or mirror.

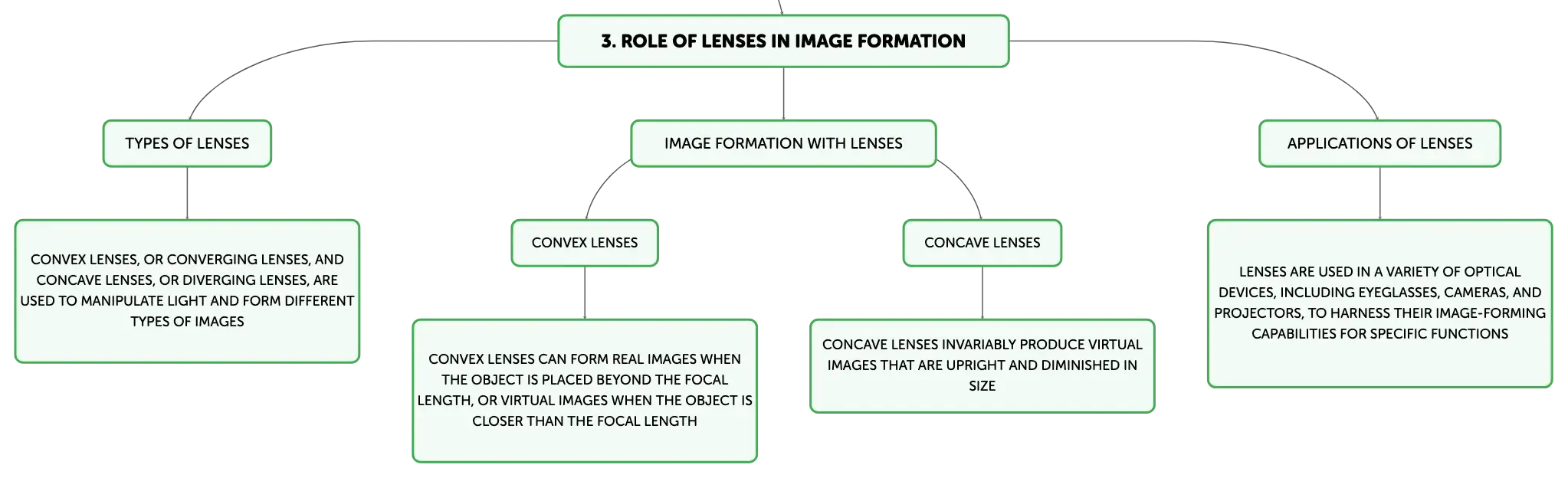

The Role of Lenses in Image Formation

Lenses are crucial elements in the formation of images, manipulating light through refraction to produce different types of images. Convex lenses, or converging lenses, can form real images if the object is placed beyond the focal length, or virtual images when the object is closer than the focal length, resulting in an upright and magnified appearance. In contrast, concave lenses, or diverging lenses, invariably produce virtual images that are upright and diminished in size. These lenses are integral to a variety of optical devices, including eyeglasses, cameras, and projectors, each harnessing the specific image-forming capabilities of lenses for their function.

Practical Implications of Real and Virtual Images

The distinction between real and virtual images has significant practical implications in technology and everyday life. Virtual images are what we see in plane mirrors and through magnifying lenses, where the image appears to be on the same side as the observer and cannot be projected onto a screen. Real images, conversely, are essential to the functioning of devices such as cameras and projectors, where the image is captured and displayed on a medium separate from the object. An understanding of these differences is crucial for the design and use of optical instruments and contributes to our grasp of the principles of optics in both scientific research and daily applications.
