Manifolds: Mathematical Spaces for Modeling Physical Systems

Manifolds in mathematics are essential constructs that locally resemble Euclidean spaces, enabling the modeling of complex spaces. They are pivotal in representing physical systems, from Earth's terrain to the universe's space-time. Topological manifolds focus on properties preserved under continuous deformations, while geometric manifolds involve metrics for measuring distance and curvature. In theoretical physics, manifolds underpin general relativity's space-time continuum, and in engineering and computer science, they aid in fluid dynamics and data analysis.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Manifolds are used to represent various physical systems, from Earth's terrain to the universe's ______.

Click to check the answer

space-time continuum

2

Definition of a manifold

Click to check the answer

A space approximated by Euclidean space near any point.

3

Function of a chart in manifolds

Click to check the answer

A homeomorphism mapping an open manifold subset to Euclidean space.

4

Role of an atlas in manifold structure

Click to check the answer

A collection of charts that together cover the entire manifold.

5

______ manifolds are locally similar to Euclidean space and are analyzed without considering distance or angle.

Click to check the answer

Topological

6

Topology focuses on attributes that remain unchanged during ______ deformations, exemplified by a doughnut's similarity to a coffee cup.

Click to check the answer

continuous

7

Definition of a metric in geometric manifolds

Click to check the answer

A metric is a function defining precise calculations of distance, angle, and curvature on manifolds.

8

Role of geometric manifolds in understanding space

Click to check the answer

Geometric manifolds provide tools to quantify and compare manifold structures, crucial for grasping space shape.

9

Example of geometric manifold application

Click to check the answer

Earth's curvature analysis via geometric manifold concepts reveals shape details imperceptible by topology alone.

10

______ relies on a four-dimensional space-time ______ that combines space and time, essential for Einstein's field equations.

Click to check the answer

General relativity manifold

11

Manifold application in CFD

Click to check the answer

Used to model fluid flow surfaces, enabling simulation and analysis of fluid dynamics.

12

t-SNE in machine learning

Click to check the answer

A manifold learning algorithm for dimensionality reduction, improving data visualization and pattern identification.

13

Importance of dimensionality reduction

Click to check the answer

Facilitates data visualization and elucidates complex dataset patterns, essential in machine learning.

14

The Earth is akin to a ______-dimensional manifold, while celestial paths exist in ______-dimensional space-time manifolds.

Click to check the answer

two four

15

Definition of manifold

Click to check the answer

A manifold is a topological space that locally resembles Euclidean space, allowing calculus to be applied.

16

Role of differential manifolds

Click to check the answer

Differential manifolds extend calculus to curved spaces, essential for advanced physics and geometry.

17

Manifolds in general relativity

Click to check the answer

Manifolds underpin general relativity by modeling the fabric of spacetime as a curved geometric structure.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Linear Systems: Modeling and Solving Complex Relationships

View document

Mathematics

Understanding the Vertex in Quadratic Functions

View document

Mathematics

The Importance of Equations in Mathematics and Beyond

View document

Mathematics

Parametric Equations and Integration

View document

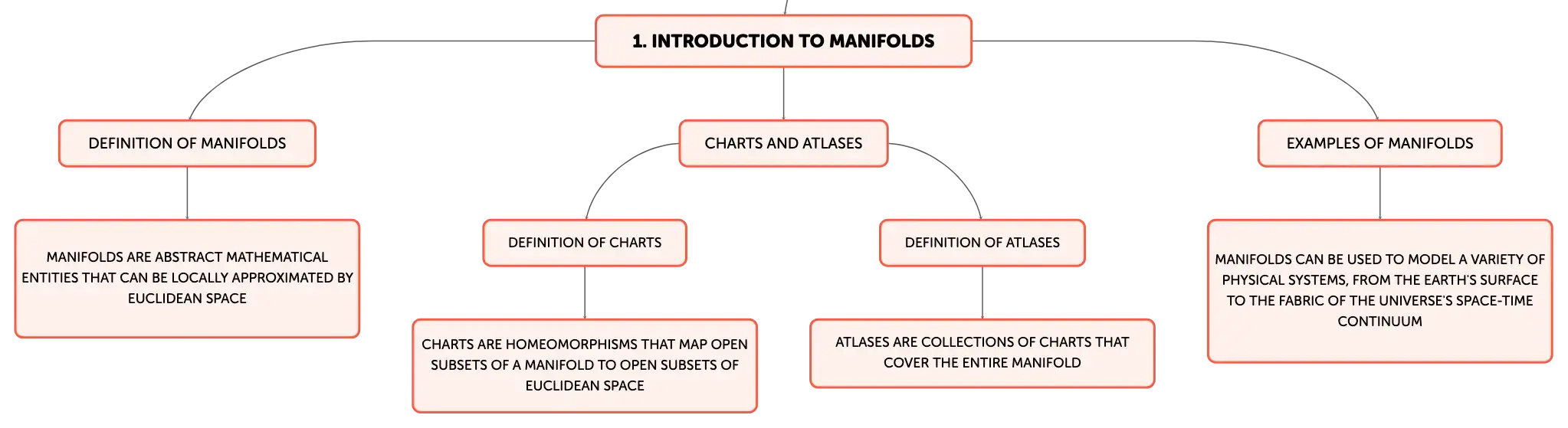

Exploring the Concept of Manifolds in Mathematics

In the realms of mathematics and physics, manifolds serve as fundamental constructs for modeling spaces that, on a small scale, resemble the familiar Euclidean spaces of everyday geometry. These abstract mathematical entities are characterized by their ability to appear locally flat at any point, despite potentially having a complex global structure. This local Euclidean property is what makes manifolds so powerful in representing a multitude of physical systems, from the seemingly flat terrain of our planet to the intricate fabric of the universe's space-time continuum.
3D wireframe torus model with silver lines forming a hollow donut shape, set against a gradient blue background with a subtle shadow on a white surface.

Defining Manifolds in Mathematical Terms

A manifold is a mathematical space that, in the vicinity of any given point, can be approximated by Euclidean space. This approximation is made precise through the concept of a chart, which is a homeomorphism from an open subset of the manifold to an open subset of Euclidean space. The collection of these charts, called an atlas, covers the entire manifold. The Earth's surface, for example, can be charted by various map projections that locally flatten its spherical shape, illustrating the manifold concept by showing how a complex global shape can be understood through simpler local approximations.

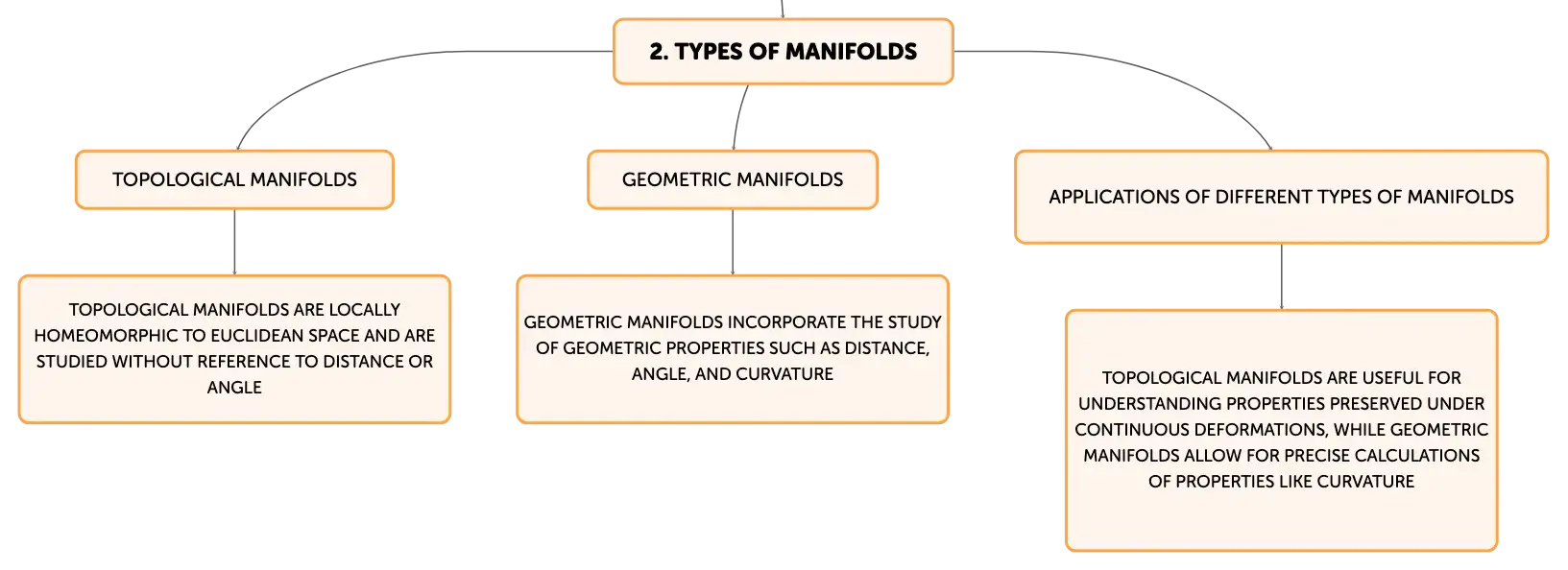

The Study of Topological Manifolds

Topological manifolds are a special class of manifolds that are locally homeomorphic to Euclidean space and are studied without reference to any concept of distance or angle. They are the subject of topology, which is concerned with properties that are preserved under continuous deformations. A key feature of topological manifolds is their invariance under homeomorphisms, which are continuous, bijective, and have continuous inverses. The classic analogy of a doughnut being topologically equivalent to a coffee cup illustrates how vastly different shapes can share the same topological properties.

Geometric Manifolds and Their Intrinsic Measurements

Geometric manifolds extend the concept of topological manifolds by incorporating the study of geometric properties such as distance, angle, and curvature. These manifolds are equipped with a metric, which allows for the precise calculation of these properties. The study of geometric manifolds is crucial for understanding the shape and structure of spaces, as it provides tools for quantifying and comparing different manifolds. For example, the curvature of the Earth's surface can be studied using geometric manifold concepts, providing insights into its shape that are not discernible from topology alone.

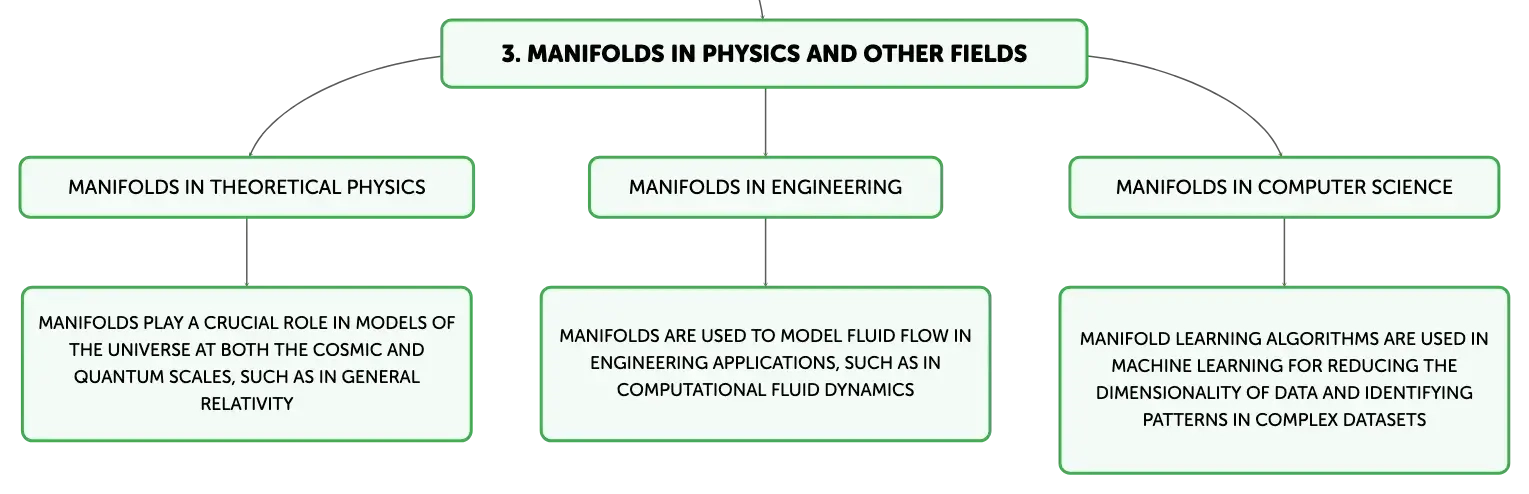

The Role of Manifolds in Theoretical Physics

Manifolds are indispensable in the field of theoretical physics, where they form the backbone of models that describe the universe at both the cosmic and quantum scales. General relativity, one of the pillars of modern physics, posits a four-dimensional space-time manifold that weaves together the three dimensions of space with the dimension of time. This manifold is the stage upon which Einstein's field equations play out, depicting the dynamic relationship between the curvature of space-time and the distribution of matter and energy within it.

Applications of Manifolds in Engineering and Computer Science

The utility of manifolds extends into the realms of engineering and computer science. In engineering, manifolds are used to model the surfaces over which fluids flow, such as in computational fluid dynamics (CFD), facilitating the simulation and analysis of fluid behavior. In computer science, manifold learning algorithms like t-distributed Stochastic Neighbor Embedding (t-SNE) are pivotal in machine learning for reducing the dimensionality of data, which aids in visualization and the identification of patterns within complex datasets.

Visualizing Manifolds in Everyday Contexts

Manifolds are not merely abstract constructs; they are embedded in our daily experiences and can be visualized through various means. The Earth itself can be considered a two-dimensional manifold, and the paths traced by celestial bodies are conceptualized within four-dimensional space-time manifolds. Visualizing higher-dimensional manifolds often involves projecting them into three dimensions, while tangible models like the Möbius strip offer a glimpse into the properties of one-sided and non-orientable manifolds.

The Mathematical Elegance and Significance of Manifolds

The study of manifolds is a rich and diverse field, encompassing various branches such as topology and differential geometry. Differential manifolds, in particular, allow for the application of calculus on curved spaces. Beyond their mathematical utility, manifolds possess an aesthetic dimension, reflected in the symmetry and elegance of their structures. This beauty is not only visual but also conceptual, as manifolds provide profound insights into the nature of the cosmos, exemplified by their central role in the formulation of general relativity.
