Exploring the Open Shortest Path First Protocol

The Open Shortest Path First (OSPF) protocol is a fundamental component of network infrastructure, facilitating efficient routing of data within an Autonomous System such as a corporate network or educational campus. As a link-state routing protocol, OSPF dynamically calculates the shortest and most efficient path for data packets to travel from their origin to their intended destination. It functions as an Interior Gateway Protocol (IGP), utilizing a comprehensive metric that incorporates factors like link cost, which can be influenced by bandwidth, delay, and other network conditions, to determine the optimal path for data flow.

Network of interconnected metal routers with flashing LED lights and blue and green glowing cables in a decentralized topology on a dark blue background.

The Structure and Mechanics of OSPF Networks

OSPF divides a network into hierarchically arranged areas to enhance routing efficiency and manageability. The backbone area (Area 0) is central, interconnecting various non-backbone areas. Special area types include stub areas, which limit routing information to reduce overhead, and totally stubby areas, which further restrict route propagation. OSPF's operation involves routers forming adjacencies, exchanging link-state advertisements (LSAs) to disseminate network topology information, constructing a Shortest Path First (SPF) tree from these LSAs, and determining routing paths based on the SPF tree using Dijkstra's algorithm.

Fundamental OSPF Concepts and Terminology

In OSPF, key concepts include 'adjacency' and 'Link-State Advertisement (LSA)'. Adjacency refers to the established logical relationship between OSPF routers that enables the exchange of routing information. LSAs are the mechanism through which routers broadcast and receive information about the network's topology. OSPF employs Dijkstra's algorithm to compute the shortest path tree for each router, with the path cost being a cumulative value reflecting the expense of traversing the network links.

Implementing OSPF in Modern Networks

OSPF is invaluable in complex network environments, such as those found in large-scale organizations with numerous interconnected Local Area Networks (LANs). It allows routers to dynamically identify the most efficient and reliable paths for data packet traversal, promoting effective intra-network communication. Within the same OSPF area, data packets are routed directly, whereas inter-area traffic is channeled through the backbone. Each router independently calculates the best path for data packets based on a synchronized link-state database.

The Benefits of OSPF for Network Administration

OSPF provides numerous benefits, including network flexibility, scalability, and rapid convergence, which are essential for managing intricate network topologies. Its hierarchical design simplifies the administration of routing policies and enables networks to quickly adapt to changes in topology. The protocol's link-state approach ensures that routers maintain an up-to-date network map, which is crucial for efficient routing decisions. OSPF also supports Equal-Cost Multi-Path (ECMP) routing, enhancing network throughput and enabling effective load balancing.

The Integral Function of OSPF in IP Network Management

Within IP networks, OSPF is a sophisticated Interior Gateway Protocol that supersedes legacy protocols like Routing Information Protocol (RIP). It offers precise and scalable routing solutions, with the capability to rapidly adjust to network alterations. OSPF's meticulous link-state database and cost-based path selection, grounded in Dijkstra's algorithm, empower it to manage complex IP network architectures effectively. The protocol also incorporates various authentication mechanisms to safeguard the integrity of routing information.

Conclusion: OSPF's Pivotal Role in Network Infrastructure

OSPF's widespread adoption is attributed to its proficiency in managing extensive networks and accommodating a variety of network configurations. Its strategic use of Dijkstra's algorithm for path computation, coupled with a sophisticated cost metric system, ensures data packets are routed efficiently, minimizing disruptions and latency. OSPF's advanced capabilities, including support for ECMP and robust authentication options, render it an indispensable resource for maintaining seamless and high-performing network operations, especially in expansive IP networking environments.

OSPF Protocol

Concept Map

Summary

Outline

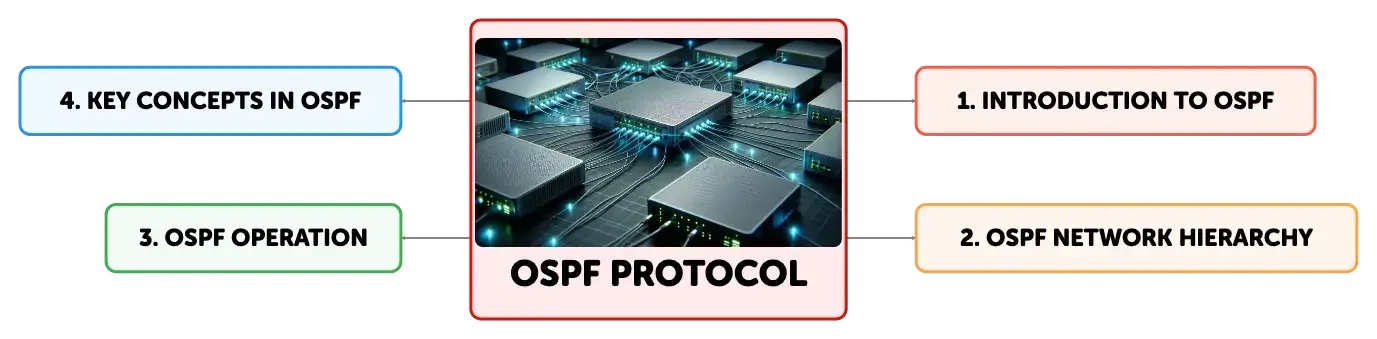

OSPF Protocol

Introduction to OSPF

Definition of OSPF

Function of OSPF

OSPF as an IGP

OSPF Network Hierarchy

Division into Areas

Special Area Types

Backbone Area

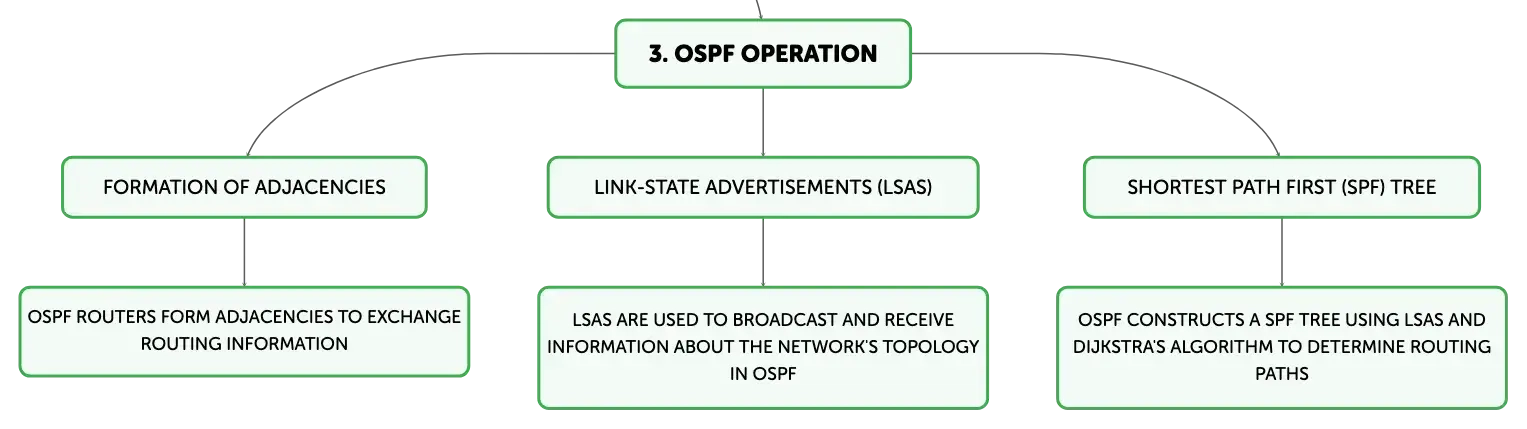

OSPF Operation

Formation of Adjacencies

Link-State Advertisements (LSAs)

Shortest Path First (SPF) Tree

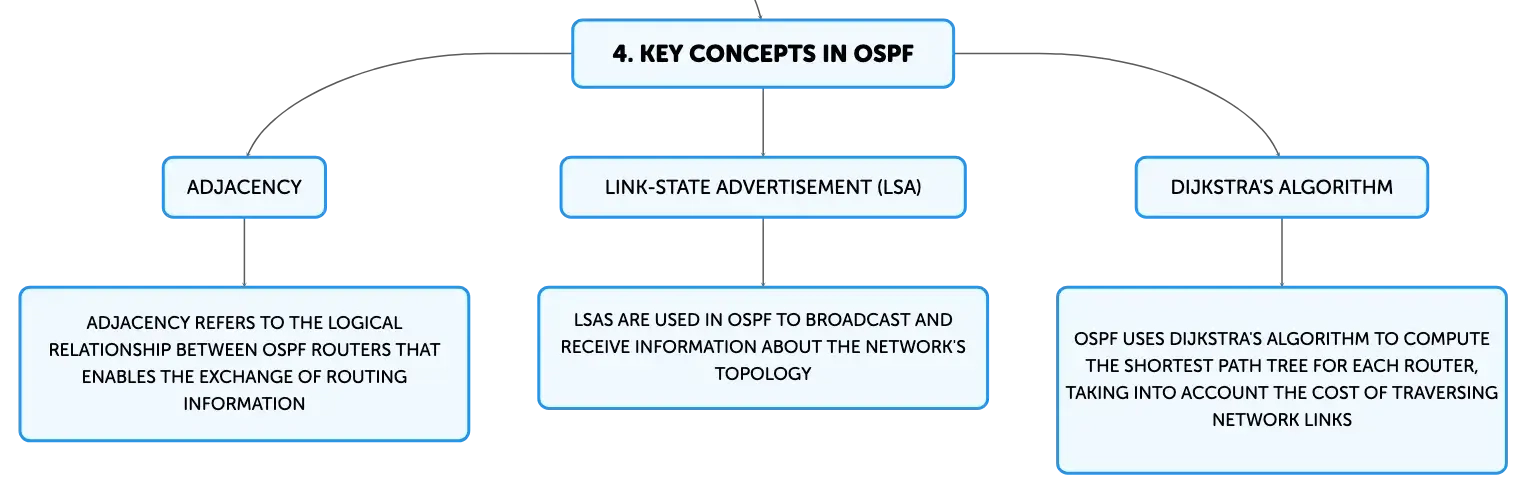

Key Concepts in OSPF
