Coupled First-Order Differential Equations
Concept Map
Coupled first-order differential equations are fundamental in simulating complex systems in science. They involve interdependent variables with rates of change that affect one another. Techniques like matrix methods, diagonalization, and the Laplace transform are used to solve these equations, which are crucial for predicting system behavior in mechanical, biological, and electrical models.
Summary
Outline
Exploring Coupled First-Order Differential Equations
Coupled first-order differential equations are integral to advanced mathematics, providing the framework for simulating intricate systems across various scientific disciplines. These systems comprise multiple interdependent variables, each with a rate of change that is influenced by the other variables in the system. A common example involves two dependent variables, \(x(t)\) and \(y(t)\), with their respective rates of change given by \(\frac{dx}{dt} = f(t, x, y)\) and \(\frac{dy}{dt} = g(t, x, y)\). Solving for \(x(t)\) and \(y(t)\) that satisfy these coupled equations allows us to understand and predict the behavior of the system under study.Fundamental Elements and Solution Techniques
The essential elements of coupled first-order differential equations include the dependent variables, the independent variable (often time), the derivatives of the dependent variables, and the functions defining the interdependencies. To solve these systems, one approach is to decouple the equations into simpler, single-variable differential equations, which may involve linear algebra methods such as matrix inversion or diagonalization. When decoupling is not feasible, numerical methods or other sophisticated approaches may be employed to find approximate solutions.The Role of Linear Algebra in Coupled Differential Equations
Linear algebra is particularly useful for solving linear, homogeneous coupled first-order differential equations. In these cases, the system can be represented in matrix form as \(\frac{d\boldsymbol{x}}{dt} = \boldsymbol{A}\boldsymbol{x}\), where \(\boldsymbol{x}\) is a vector of dependent variables and \(\boldsymbol{A}\) is a matrix representing the coefficients of the system. Solving such systems often involves finding eigenvalues and eigenvectors through eigendecomposition, which can lead to a diagonalized form that simplifies the solution process.Practical Applications of Coupled Differential Equations
Coupled first-order differential equations are pivotal in modeling complex systems in the real world. They are used to describe mechanical systems like coupled oscillators, biological models including predator-prey dynamics, and electrical circuits comprising resistors, inductors, and capacitors. By accurately solving the equations that characterize these systems, we can forecast their behavior over time, which is crucial for the design, optimization, and control of such systems in various engineering and scientific applications.Characteristics and Analysis of Coupled Systems
Coupled first-order differential equations can exhibit characteristics such as homogeneity, reducibility, and stability at equilibrium points. Homogeneous solutions arise in the absence of external forces, leading to equilibrium states that can be analyzed for stability. Certain systems may be reducible to more manageable forms, facilitating their resolution. The study of stability and equilibrium is vital for predicting the long-term behavior of systems, with significant implications in control theory and ecological studies.Advanced Methods for Solving Coupled Differential Equations
A variety of advanced techniques are available for solving coupled first-order differential equations, including matrix methods, diagonalization, and the use of the Laplace transform. Matrix methods recast the system in matrix notation, applying linear algebra to find solutions. Diagonalization transforms the system's coefficient matrix into a diagonal matrix, which simplifies the equations. The Laplace transform is particularly effective for initial value problems, transforming differential equations into algebraic equations in the Laplace domain, which are often easier to solve.Solution Formulations in Coupled Differential Equations
The solutions to coupled first-order differential equations are formulated to reflect the interplay between the variables and their rates of change. The general solution for a linear system with constant coefficients includes a homogeneous part and a particular solution that incorporates any external influences. The particular solution must satisfy the initial or boundary conditions, which are the constraints on the dependent variables at specific values of the independent variable. When applying these solution formulations, it is essential to maintain precision, select appropriate methods for the problem at hand, and verify that the solutions are consistent with the given conditions.
Show More

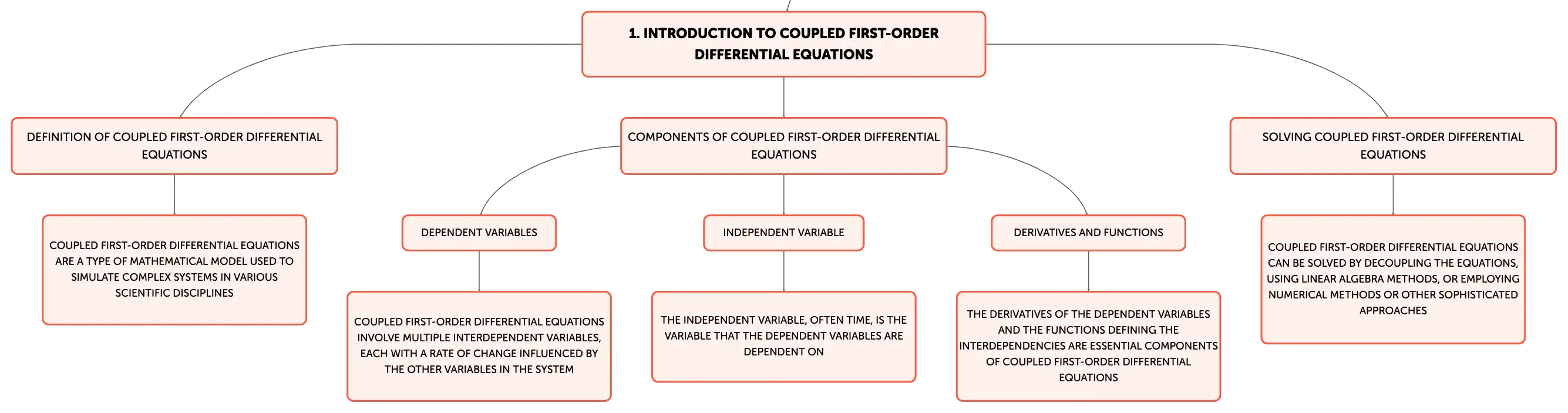

Introduction to Coupled First-Order Differential Equations
Definition of Coupled First-Order Differential Equations
Coupled first-order differential equations are a type of mathematical model used to simulate complex systems in various scientific disciplines
Components of Coupled First-Order Differential Equations
Dependent Variables
Coupled first-order differential equations involve multiple interdependent variables, each with a rate of change influenced by the other variables in the system
Independent Variable
The independent variable, often time, is the variable that the dependent variables are dependent on
Derivatives and Functions
The derivatives of the dependent variables and the functions defining the interdependencies are essential components of coupled first-order differential equations
Solving Coupled First-Order Differential Equations
Coupled first-order differential equations can be solved by decoupling the equations, using linear algebra methods, or employing numerical methods or other sophisticated approaches

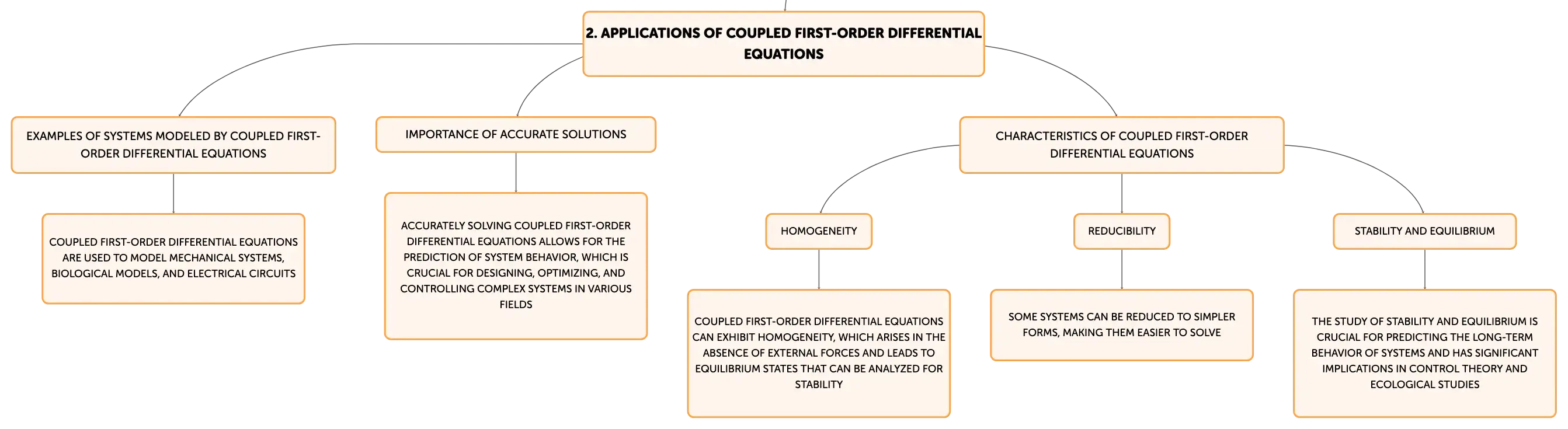

Applications of Coupled First-Order Differential Equations
Examples of Systems Modeled by Coupled First-Order Differential Equations
Coupled first-order differential equations are used to model mechanical systems, biological models, and electrical circuits
Importance of Accurate Solutions
Accurately solving coupled first-order differential equations allows for the prediction of system behavior, which is crucial for designing, optimizing, and controlling complex systems in various fields
Characteristics of Coupled First-Order Differential Equations
Homogeneity
Coupled first-order differential equations can exhibit homogeneity, which arises in the absence of external forces and leads to equilibrium states that can be analyzed for stability
Reducibility
Some systems can be reduced to simpler forms, making them easier to solve
Stability and Equilibrium
The study of stability and equilibrium is crucial for predicting the long-term behavior of systems and has significant implications in control theory and ecological studies

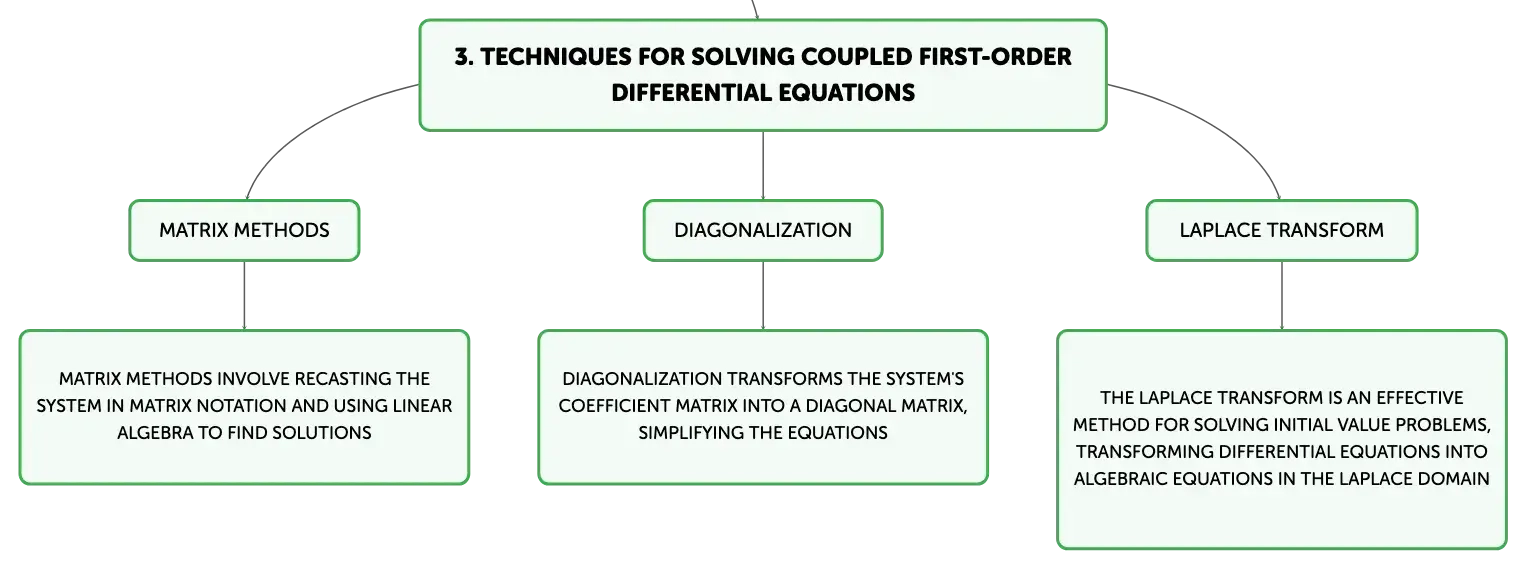

Techniques for Solving Coupled First-Order Differential Equations
Matrix Methods
Matrix methods involve recasting the system in matrix notation and using linear algebra to find solutions
Diagonalization
Diagonalization transforms the system's coefficient matrix into a diagonal matrix, simplifying the equations
Laplace Transform
The Laplace transform is an effective method for solving initial value problems, transforming differential equations into algebraic equations in the Laplace domain

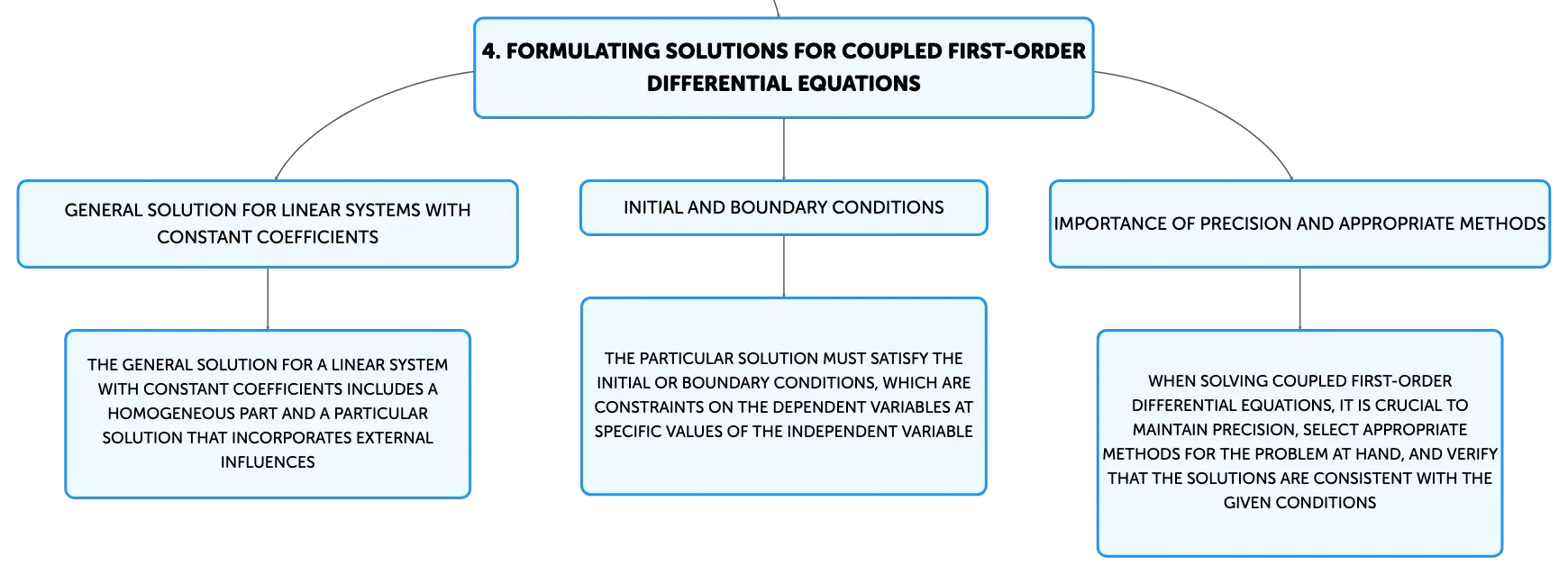

Formulating Solutions for Coupled First-Order Differential Equations
General Solution for Linear Systems with Constant Coefficients
The general solution for a linear system with constant coefficients includes a homogeneous part and a particular solution that incorporates external influences
Initial and Boundary Conditions
The particular solution must satisfy the initial or boundary conditions, which are constraints on the dependent variables at specific values of the independent variable
Importance of Precision and Appropriate Methods
When solving coupled first-order differential equations, it is crucial to maintain precision, select appropriate methods for the problem at hand, and verify that the solutions are consistent with the given conditions
Coupled First-Order Differential Equations
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
To solve complex systems of differential equations, one might use linear algebra techniques like ______ inversion or ______, or resort to numerical methods for approximate solutions.
matrix
diagonalization
01
______ equations are essential for modeling intricate systems in fields like mechanics, biology, and electronics.
Coupled first-order differential
02
Understanding the ______ of systems like coupled oscillators, predator-prey relationships, and electrical circuits is vital for their ______, ______, and ______.
behavior
design
optimization
control
