The RS Flip-Flop: A Fundamental Latch Circuit in Digital Electronics

Exploring the Basics of RS Flip-Flop in Digital Electronics

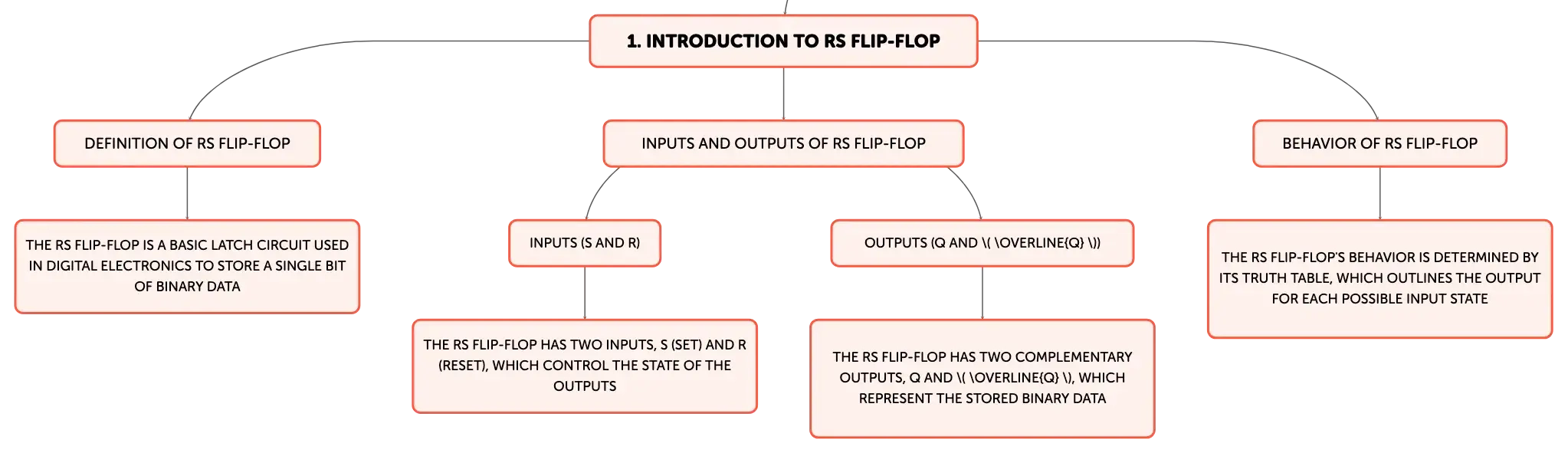

The RS (Reset-Set) Flip-Flop is a fundamental latch circuit in digital electronics that stores a single bit of binary data. It consists of two inputs, labeled S (Set) and R (Reset), and two complementary outputs, Q and \( \overline{Q} \). The RS Flip-Flop is a type of bistable multivibrator, which means it has two stable states and can be used to implement memory elements in sequential logic circuits. Its behavior is governed by input combinations as defined in its truth table, which specifies the output for each possible input state. Understanding the RS Flip-Flop's operation is crucial for grasping the basics of digital storage and logic design.

The Importance of RS Flip-Flop in Computer Memory Systems

The RS Flip-Flop plays a critical role in computer memory systems, where it functions as a basic storage unit for binary data. It is capable of holding a bit in one of two states, representing a binary '0' or '1', until an input signal prompts a change. The truth table for the RS Flip-Flop outlines four input conditions: Set, Reset, No Change, and an undefined condition when both inputs are active. The undefined state is typically avoided in practical designs to ensure predictable circuit behavior. The RS Flip-Flop's ability to maintain a state indefinitely, similar to a toggle switch, makes it an essential concept for students to understand in the context of digital memory and state machines.

Circuit Configuration of RS Flip-Flops

An RS Flip-Flop can be constructed using either NOR or NAND logic gates, with the NOR gate variant being the more traditional approach. The circuit is designed such that the output of each gate feeds back into the input of the other, creating a feedback loop that allows the flip-flop to store a bit of information. The S and R inputs control the state of the outputs Q and \( \overline{Q} \), with the NOR gate configuration ensuring that the flip-flop remains in a stable state until the inputs are altered. Building and analyzing an RS Flip-Flop circuit provides practical experience in digital logic design and highlights the importance of feedback in creating memory elements.

Utilization and Enhancements of RS Flip-Flop Technology

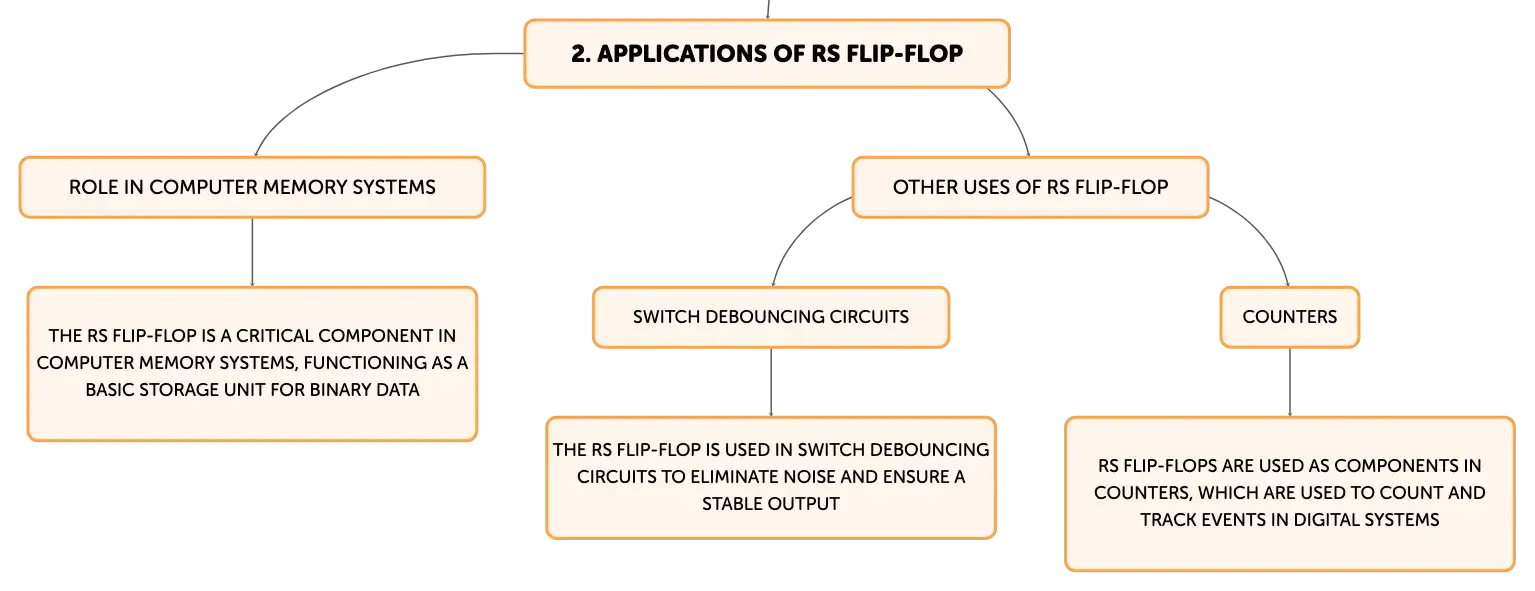

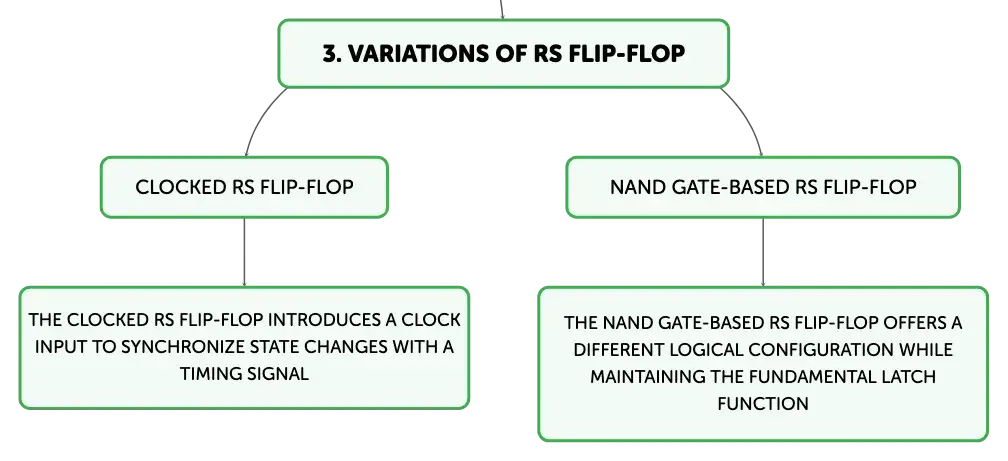

RS Flip-Flops are integral to a wide array of digital systems, including as memory cells in Random Access Memory (RAM), in switch debouncing circuits, and as components in counters. To address specific application needs, several variations of the RS Flip-Flop have been developed, such as the Clocked RS Flip-Flop and the NAND gate-based RS Flip-Flop. The Clocked RS Flip-Flop introduces a clock input that synchronizes changes to the state with a timing signal, enhancing control over the circuit. The NAND gate version offers a different logical configuration while maintaining the fundamental latch function. These adaptations demonstrate the versatility and adaptability of the RS Flip-Flop in modern digital electronics.

Analytical Tools for RS Flip-Flop Evaluation

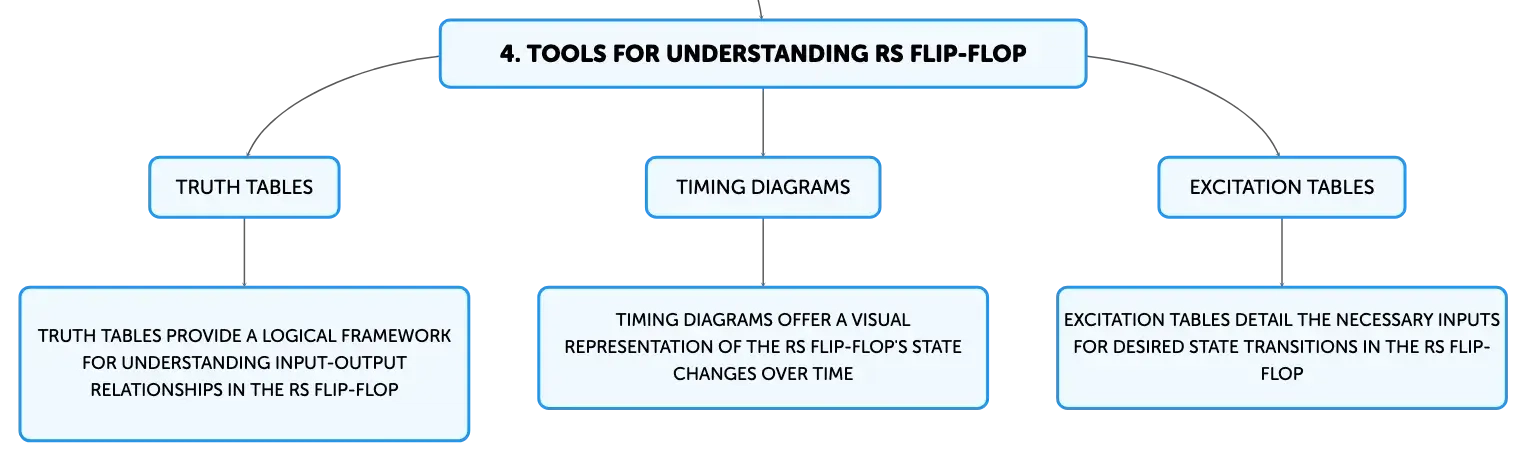

To fully comprehend the RS Flip-Flop's functionality, it is essential to employ analytical tools such as truth tables, timing diagrams, and excitation tables. Truth tables provide a clear logical framework for understanding input-output relationships. Timing diagrams offer a visual representation of the flip-flop's state changes over time, which is particularly useful for observing the effects of input signals. Excitation tables detail the necessary inputs to achieve desired state transitions, facilitating the design and analysis of sequential logic systems. These tools are invaluable for predicting circuit behavior and are fundamental to the study of digital electronics and computer engineering.

The Pivotal Role of RS Flip-Flops in Digital Computing

RS Flip-Flops are a cornerstone of digital computing, providing the basic storage mechanism upon which more complex memory architectures are built. Their simplicity and reliability make them suitable for a variety of digital applications, particularly in high-speed and low-power contexts. The NAND gate version of the RS Flip-Flop is especially noteworthy due to the gate's versatility and prevalence in digital circuit design. Mastery of the RS Flip-Flop is essential for students of computer science and engineering, as it lays the groundwork for understanding advanced memory systems and the principles of computer architecture.
