Exploring the XOR Gate in Digital Circuits

The XOR gate, short for "exclusive OR" gate, is a crucial element in digital circuits and computer science. It is characterized by its unique output behavior: it delivers a true or '1' output only when an odd number of its inputs are true. This is in contrast to the OR gate, which outputs true if at least one input is true, and the AND gate, which requires all inputs to be true to produce a true output. The XOR gate's functionality is pivotal in digital systems for tasks that demand precision, such as error detection in data communication and performing arithmetic operations in computational devices.

Close-up of an XOR integrated circuit on green PCB board with electronic components such as colored resistors and blue and yellow capacitors.

Operational Principles of the XOR Gate

The XOR gate operates as a 'difference detector' by comparing its inputs and outputting a signal based on their exclusivity. In a simple digital circuit scenario, if two switches are connected to a light bulb through an XOR gate, the bulb will light up only if one switch is on, but not if both are. The XOR gate is also instrumental as a parity generator, which is essential for error detection in data transmission. It generates a parity bit that indicates whether the number of '1's in a set of data is odd or even, thus ensuring the integrity of data storage systems like RAID arrays.

XOR Gate Truth Tables and Logic

An XOR gate's behavior is depicted through a truth table, which lists the output for every possible input combination. For a 2-input XOR gate, the truth table shows four combinations: 00, 01, 10, and 11, with the output being '1' only for the combinations with an odd number of '1's. This principle is applicable to XOR gates with more than two inputs, such as a 3-input gate, where the output is true if there is a single '1' or if all three inputs are '1', adhering to the rule that the output is true when the number of true inputs is odd.

XOR Gates in Computing and Digital Design

XOR gates play a vital role in computer science, especially in the design of arithmetic logic units (ALUs) and in cryptographic algorithms. In ALUs, XOR gates are part of Full Adder circuits that perform binary addition, determining the sum and carry outputs. In the realm of cryptography, XOR operations are used in stream ciphers for encrypting and decrypting data by combining it with a pseudorandom key stream. XOR gates are also fundamental for implementing parity checks in data communication, which helps maintain data integrity and reliability.

Real-World Applications of XOR Gates

XOR gates are employed in a variety of digital systems for practical purposes. For example, they can be used in a lighting system with two switches at different entrances, allowing the light to be toggled on by either switch without being affected by the other's position. In the realm of computing, XOR gates are integral to the 4-bit binary adder, a component essential for digital computations, where they help calculate the sum of input bits and the carry from less significant bits. These instances underscore the XOR gate's versatility and significance in digital electronics and computational tasks.

Differentiating XOR Gates from Other Logic Gates

XOR gates are distinct from other logic gates such as AND, OR, NOT, NAND, and NOR, each based on different logical operations. The XOR gate is unique in that it outputs '1' only when the inputs are exclusively '1', not when all are '1' as with an AND gate, or when any are '1' as with an OR gate. In contrast to NAND and NOR gates, which are the negated versions of AND and OR gates respectively, XOR gates produce a '1' output when the number of '1' inputs is odd. NOT gates, with a single input and an inverted output, are fundamentally different from XOR gates, which require multiple inputs. Recognizing these distinctions is essential for the effective use of XOR gates in digital circuit design and logical operations.

Algorino

Edit available

The XOR Gate: A Crucial Element in Digital Circuits and Computer Science

Concept Map

Summary

Outline

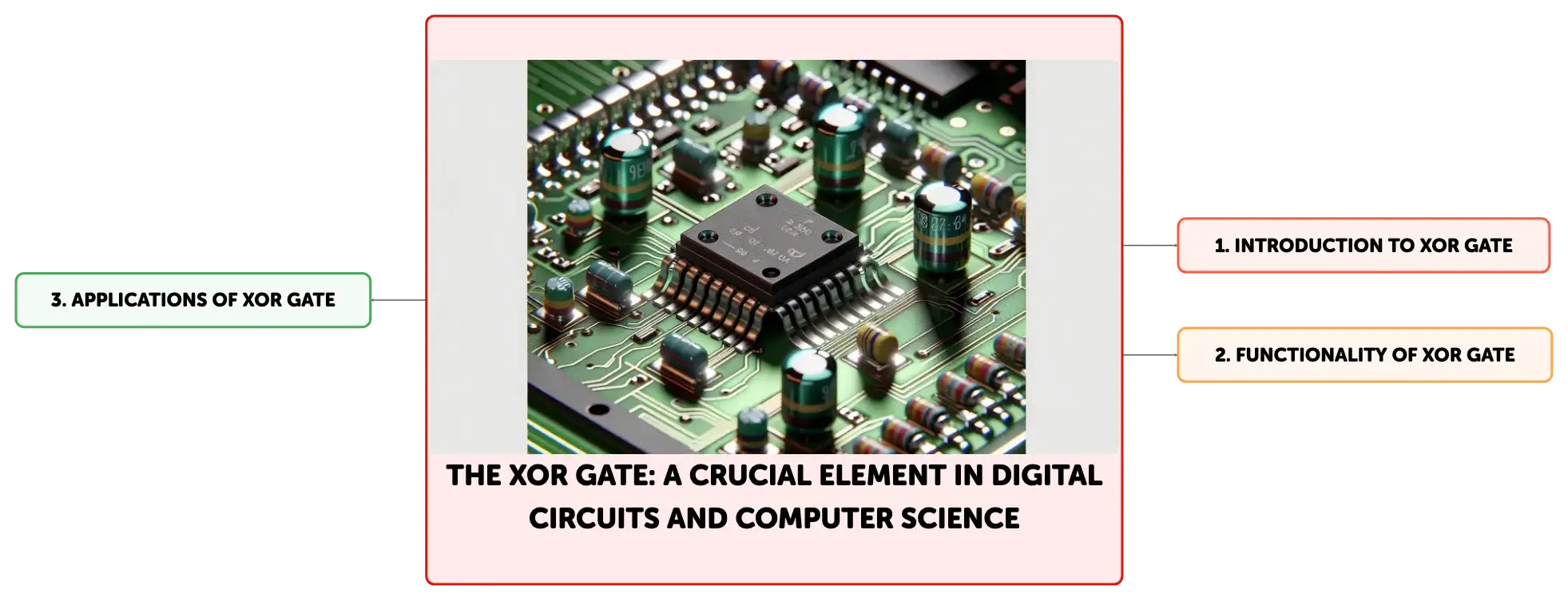

The XOR Gate: A Crucial Element in Digital Circuits and Computer Science

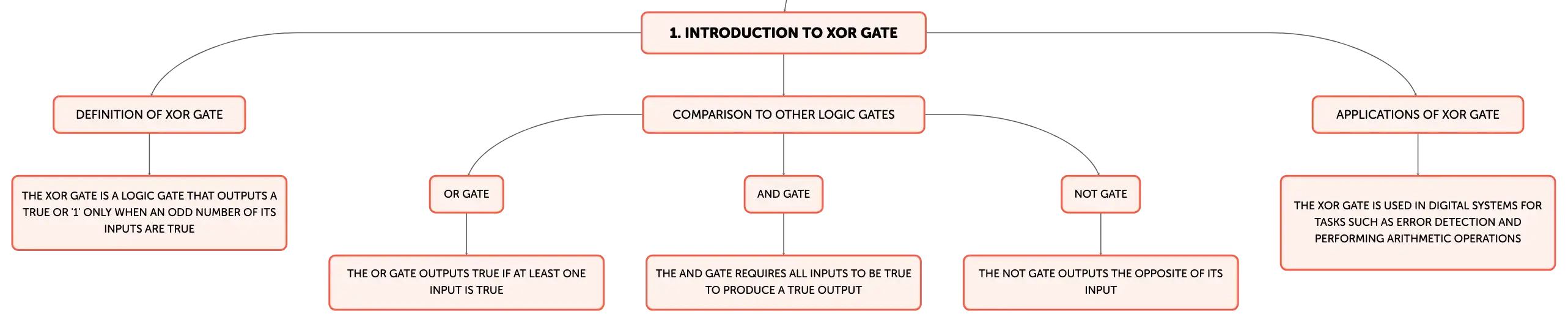

Introduction to XOR Gate

Definition of XOR Gate

Comparison to Other Logic Gates

Applications of XOR Gate

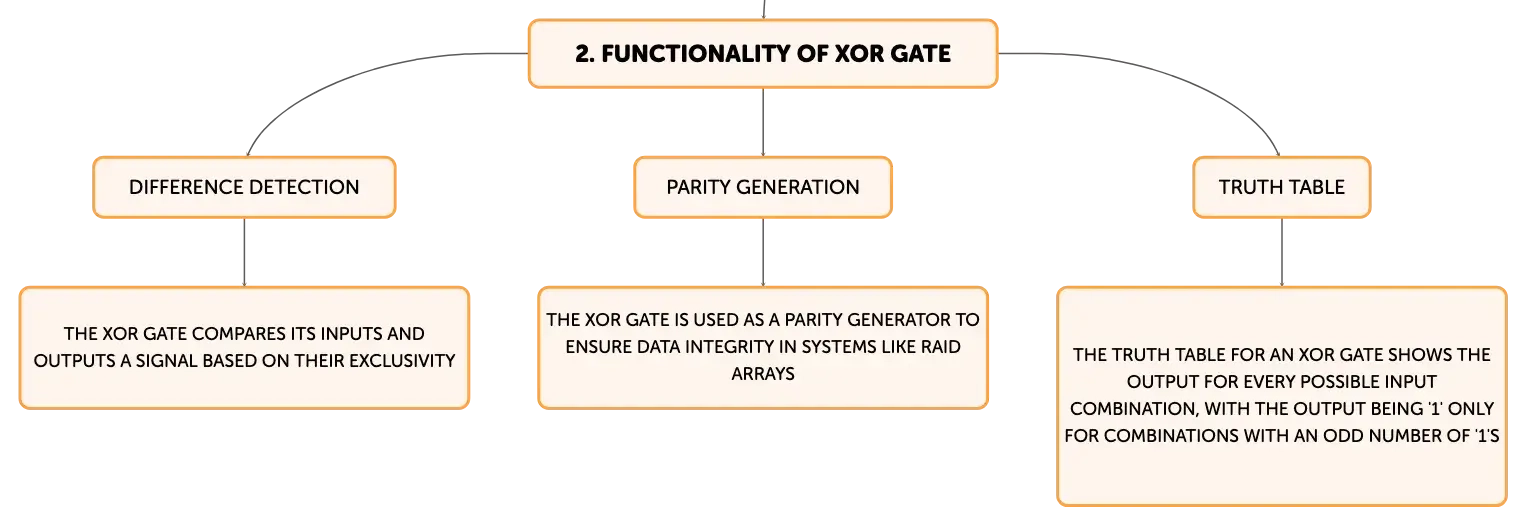

Functionality of XOR Gate

Difference Detection

Parity Generation

Truth Table

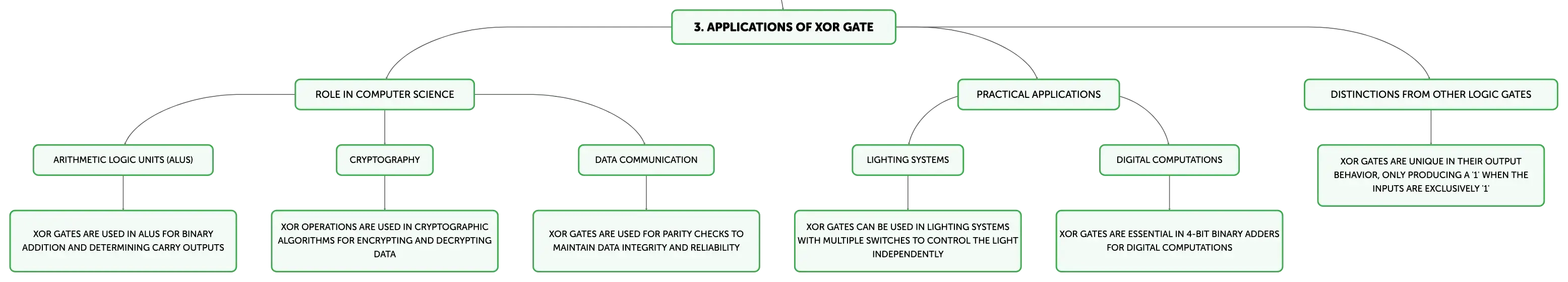

Applications of XOR Gate
