B Trees: Essential Data Structures in Computer Science

Exploring B Trees: Essential Data Structures for Efficient Storage

B Trees are pivotal data structures in computer science, essential for the efficient management of databases and file systems. These self-balancing search trees are adept at handling large data sets, providing optimized performance for insertions, deletions, and searches. A B Tree is composed of a root, internal nodes, and leaves, with a unique property of being 'balanced,' meaning that the path from the root to any leaf is the same length. The branching factor, which is the number of children a node can have, significantly influences the tree's height and the efficiency of data operations.

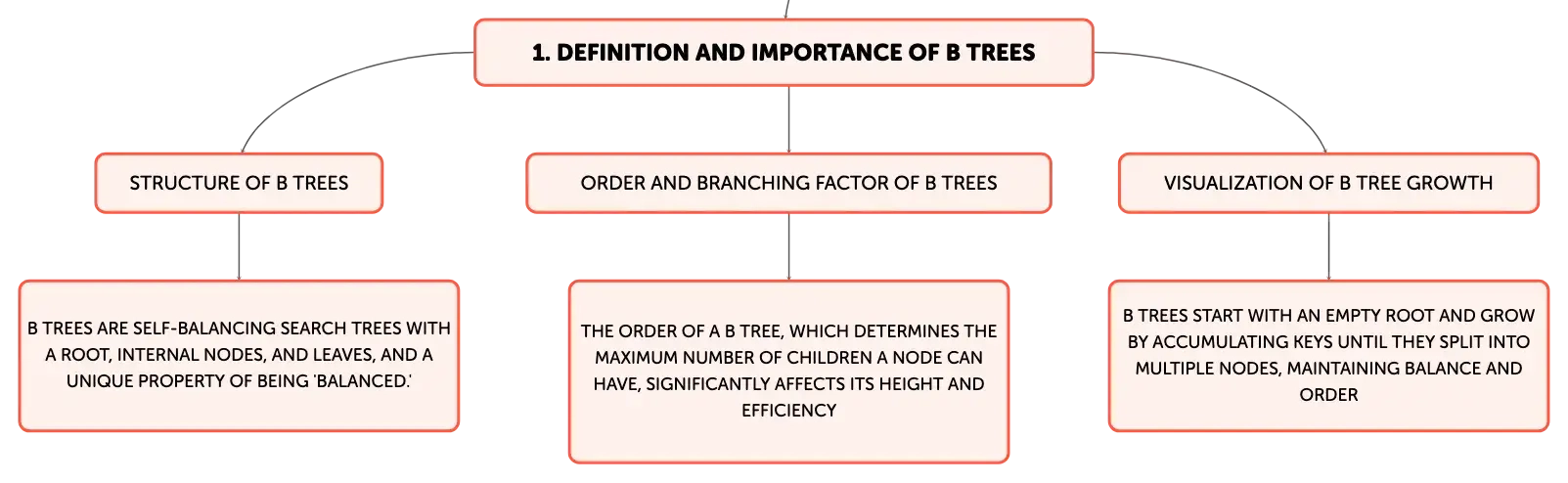

The Anatomy and Functionality of B Trees

A B Tree's structure is intricate, with nodes that hold keys and pointers. The 'order' or 'degree' of the tree defines the maximum number of children a node can have. Each node can contain a maximum of \(m-1\) keys, where \(m\) is the order of the tree. The root node is an exception, as it can have fewer children, but it must have at least two if it is not a leaf. Internal nodes must have at least \(\left \lceil{m/2}\right \rceil \) children. The keys within a node are sorted and act as separation values to guide the search process, ensuring that the tree remains balanced with all paths from root to leaf nodes being equal in length.

Understanding B Tree Growth and Structural Variations

To comprehend B Trees, visualizing their growth is key. Initially, a B Tree starts with an empty root that accumulates keys until it overflows, prompting a split into multiple nodes. This self-regulating process preserves the tree's balance and order. The order of a B Tree affects its shape and efficiency; higher-order trees have a greater capacity for keys and a reduced height, facilitating faster data retrieval. Visual comparisons of B Trees with different orders illustrate how a higher order results in a broader, flatter structure, which is advantageous for large-scale data management.

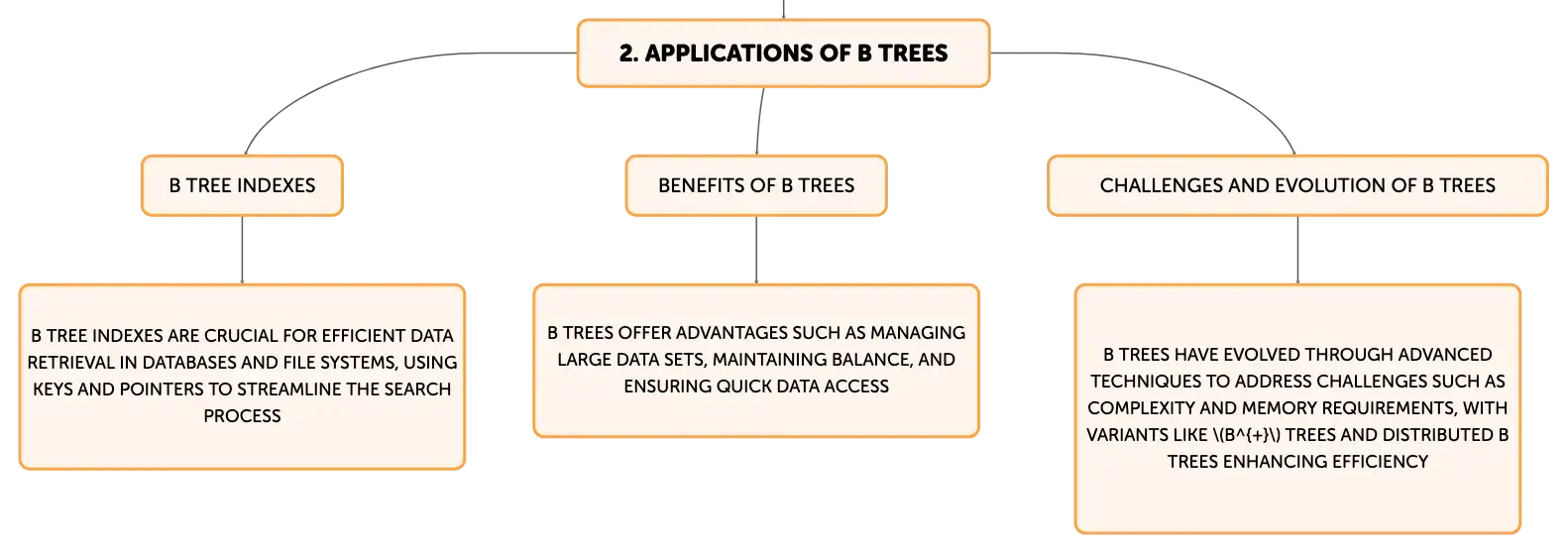

B Tree Indexes: Enhancing Data Retrieval in Databases and File Systems

B Tree indexes are vital for the rapid retrieval of data in databases and file systems. This index structure includes a root, internal nodes, and leaves, with keys and pointers that streamline the search process. By optimizing the number of disk reads and maximizing node storage, B Tree indexes enable efficient sequential and random searches. They are instrumental in database management systems (DBMS), where they improve the speed and efficiency of query processing, and in file systems, where they assist in the quick location and retrieval of files.

Evaluating the Benefits and Challenges of B Trees

B Trees offer numerous benefits, including the ability to manage vast amounts of data, maintain a balanced structure, and ensure quick data access. Their wide, shallow structure allows for many keys per node, which minimizes the height of the tree and the time needed to traverse it. Nonetheless, B Trees present challenges such as their inherent complexity and the substantial memory required to store pointers in each node. These challenges can complicate the implementation and maintenance of B Trees, particularly when dealing with extensive and complex data sets.

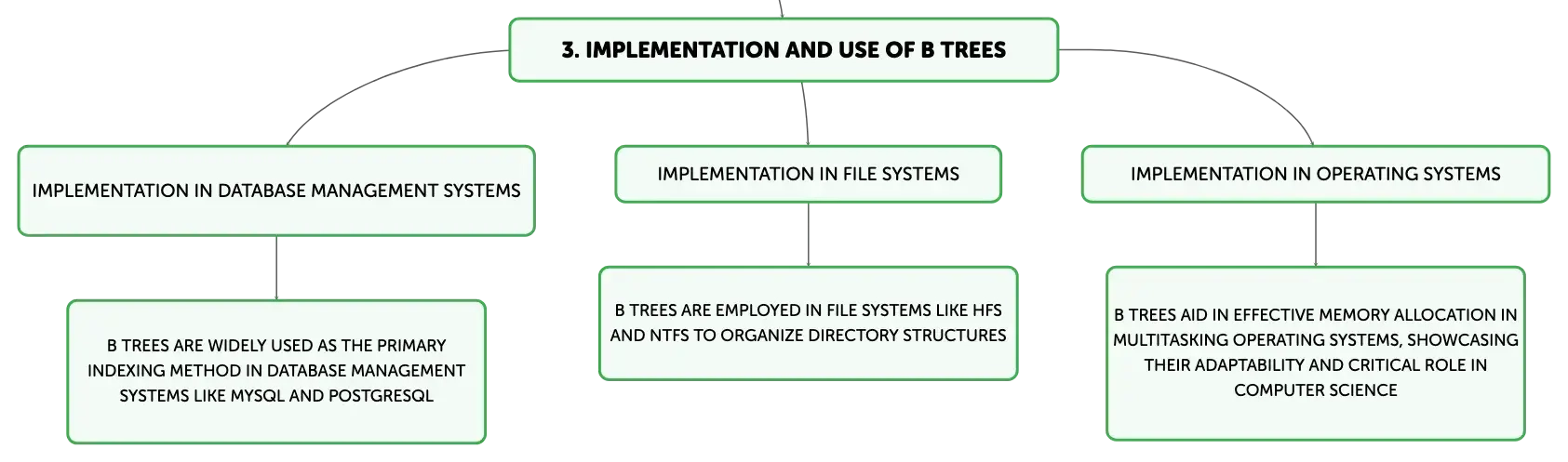

Advancements and Real-World Uses of B Trees

B Trees have evolved through advanced techniques to address the growing demands of data management and retrieval. Variants like \(B^{+}\) Trees, which confine data to leaf nodes, and Distributed B Trees, which distribute nodes across multiple systems, have enhanced the efficiency of data operations. B Trees are widely applied in database management systems, such as MySQL and PostgreSQL, where they serve as the primary indexing method. They are also employed in file systems like HFS and NTFS to organize directory structures. In multitasking operating systems, B Trees aid in effective memory allocation, demonstrating their critical role and adaptability in the field of computer science.
