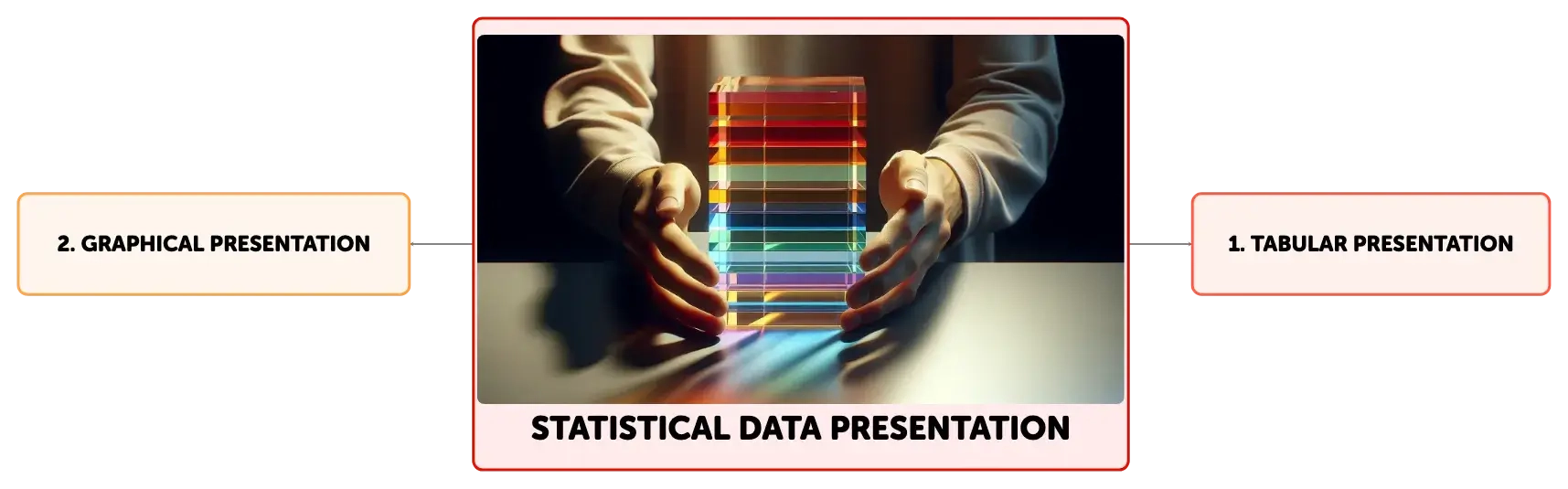

Statistical Data Presentation

Understanding statistical data presentation is crucial for research analysis. This involves using tables for detailed comparisons, pie charts for categorical data, box plots for data distribution, bar graphs and histograms for comparative analysis, scatter plots for relationships, and line graphs for temporal trends. Each method offers unique advantages for data interpretation and is chosen based on the research goals and data characteristics.

see more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In research, ______ data presentation is crucial for organizing and summarizing data to enhance understanding and analysis.

Click to check the answer

Statistical

2

Tables: Organizational Structure

Click to check the answer

Rows and columns organize data for comparison across categories/variables.

3

Tables: Data Presentation

Click to check the answer

Ideal for large datasets, providing a structured format for detailed information.

4

Graphical Presentations: Purpose

Click to check the answer

Used to visually simplify data, revealing trends not immediately clear in tables.

5

Pie charts are commonly used to show the ______ proportions of a few categories within a whole.

Click to check the answer

relative

6

Box and whisker plot components

Click to check the answer

Includes minimum, first quartile, median, third quartile, maximum.

7

Interquartile range in box plots

Click to check the answer

Central box represents interquartile range, distance between first and third quartiles.

8

Whiskers and outliers in box plots

Click to check the answer

Whiskers extend to data within 1.5 IQR from box; points beyond are outliers.

9

______ are suited for displaying the frequency distribution of ______ data.

Click to check the answer

Histograms continuous

10

In ______, the height or length of the bars signifies the value of each ______.

Click to check the answer

bar graphs category

11

Scatter plot data representation

Click to check the answer

Plots two quantitative variables on Cartesian coordinates to visualize data points.

12

Interpreting scatter plot trends

Click to check the answer

Upward trend indicates positive correlation; downward trend indicates negative correlation.

13

Role of line of best fit in scatter plots

Click to check the answer

Helps determine strength and direction of the relationship between variables.

14

In a line graph, the horizontal axis usually signifies ______, while the vertical axis indicates the ______.

Click to check the answer

time variable of interest

15

Factors influencing data display choice

Click to check the answer

Consider data nature, analysis goals, key points, audience needs.

16

Objective of data presentation

Click to check the answer

Communicate information clearly, facilitate insightful interpretation.

17

Data display methods alignment

Click to check the answer

Match presentation style with research objectives, educational enhancement.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Statistical Testing in Empirical Research

View document

Mathematics

Correlation and Its Importance in Research

View document

Mathematics

Dispersion in Statistics

View document

Mathematics

Standard Normal Distribution

View document

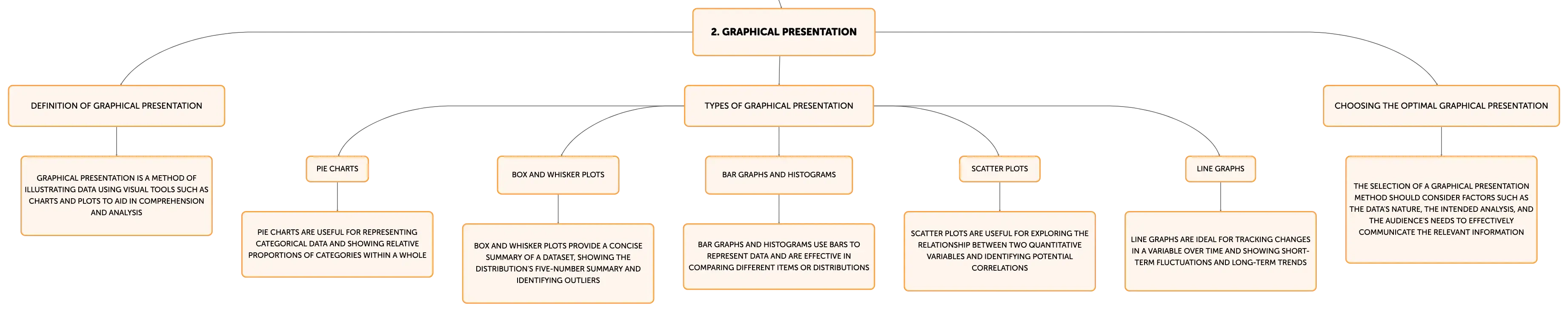

Principles of Statistical Data Presentation

Statistical data presentation is an essential aspect of research that involves the organization and summarization of data to aid comprehension and analysis. It encompasses two primary methods: tabular and graphical. Tabular presentation uses tables to arrange data in an orderly fashion, facilitating detailed comparisons across different variables. Graphical presentation, alternatively, employs visual tools such as charts and plots to illustrate data, making it easier to discern trends and patterns. The choice between tabular and graphical methods depends on the data's characteristics and the research's specific goals, with each method offering distinct advantages for data interpretation.
Hands holding colored transparent acrylic bars in descending order on reflective surface, from red to purple.

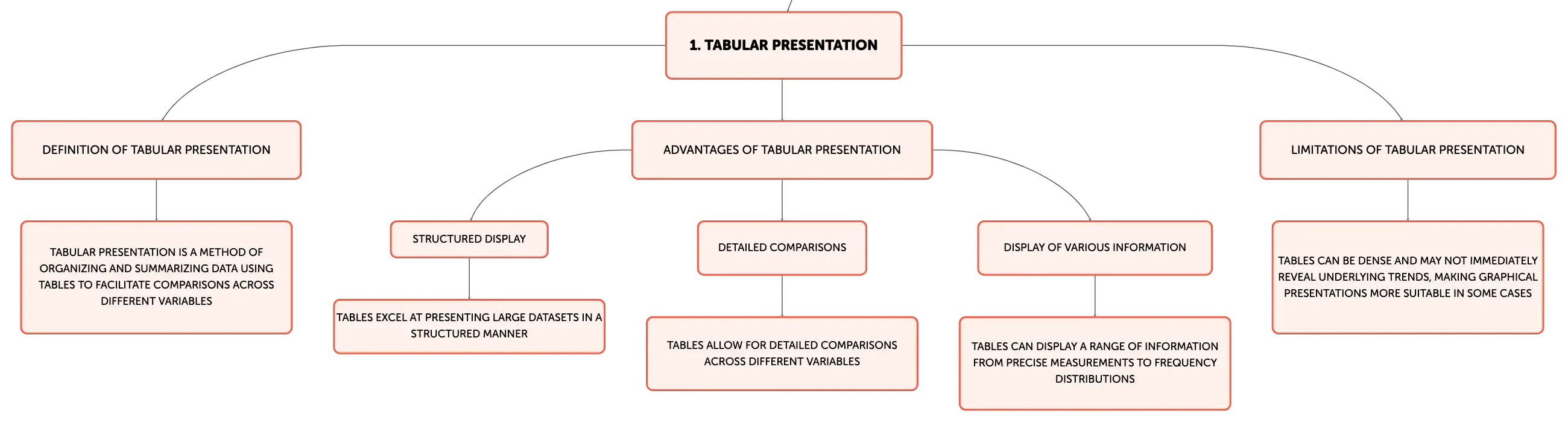

Utilizing Tables for Detailed Data Comparison

Tables serve as a fundamental and effective means of presenting numerical data, especially when it comes to comparing values across various categories or variables. They are organized into rows and columns, which can display a range of information from precise measurements to frequency distributions. While tables excel at presenting large datasets in a structured manner, they can sometimes be dense and may not immediately reveal underlying trends, which is why graphical presentations are often employed to provide clearer visual insights.

Pie Charts: Visual Appeal and Limitations

Pie charts are a popular graphical tool for representing categorical data in a format that is easy to interpret at a glance. They are most useful for illustrating the relative proportions of a few categories within a whole. However, pie charts are limited in their ability to convey detailed data points, outliers, or statistical summaries such as means and medians. These limitations can hinder their use in more complex analyses, where other graphical methods may be more appropriate.

Summarizing Data with Box and Whisker Plots

Box and whisker plots offer a concise graphical summary of a dataset, providing a visual representation of the distribution's five-number summary: minimum, first quartile, median, third quartile, and maximum. The central box shows the interquartile range, while the whiskers extend to the most extreme data points within 1.5 times the interquartile range from the box, and outliers are plotted individually. This plot is particularly useful for comparing distributions across groups, identifying outliers, and observing data variability.

Bar Graphs and Histograms for Comparative Analysis

Bar graphs and histograms are graphical tools that use bars to represent data, aiding in the comparison of different items or distributions. Bar graphs are ideal for comparing discrete, categorical data, with the height or length of the bars representing the value of each category. Histograms, characterized by their contiguous bars, depict the frequency distribution of continuous data, providing insight into the shape and spread of the data. Both tools are instrumental in highlighting patterns and trends that may not be immediately evident from tables or other chart forms.

Investigating Relationships with Scatter Plots

Scatter plots are a powerful graphical method for exploring the relationship between two quantitative variables. Data points are plotted on a Cartesian coordinate system, revealing potential correlations. An upward trend in the data points suggests a positive correlation, while a downward trend indicates a negative correlation. Scatter plots may also include a line of best fit to further elucidate the relationship's strength and direction. However, it is crucial to understand that correlation does not equate to causation.

Line Graphs: Visualizing Temporal Trends

Line graphs are the visualization tool of choice for tracking changes in a variable over time. They connect data points with lines, clearly depicting trends such as increases or decreases over specified time periods. The horizontal axis typically represents time, and the vertical axis denotes the variable of interest. Line graphs are particularly effective for smaller datasets and can vividly demonstrate both short-term fluctuations and long-term trends.

Choosing the Appropriate Method for Data Display

The selection of an optimal data display method requires careful consideration of factors such as the data's nature, the intended analysis, the key points to be emphasized, and the audience's needs. The objective is to choose a presentation style that clearly and effectively communicates the relevant information, facilitating insightful interpretation and analysis. Whether employing tables, pie charts, box plots, bar graphs, histograms, scatter plots, or line graphs, the chosen method should align with the research objectives and enhance the data's educational value.
