The standard normal distribution is a statistical concept with a mean of 0 and a standard deviation of 1. It's used for probability calculations and data analysis, allowing for the comparison of different data sets through z-scores. This distribution is crucial for benchmarking performance and determining unknown parameters in normal distributions. Understanding and utilizing standard normal distribution tables is key for statistical analysis.

Summary

Outline

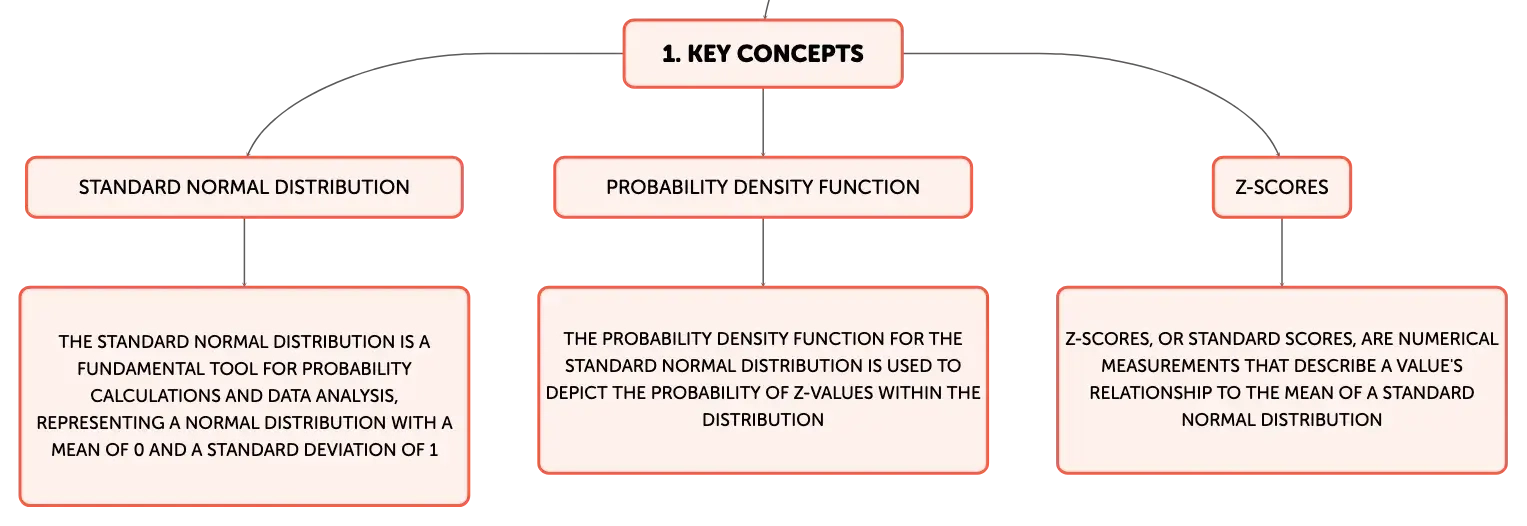

Exploring the Standard Normal Distribution

The standard normal distribution is a key concept in statistics, representing a normal distribution with a mean (μ) of 0 and a standard deviation (σ) of 1, expressed as \( Z\sim N(0,1) \). It is a fundamental tool for probability calculations and data analysis, providing a universal reference for comparing different data sets. The probability density function (pdf) for the standard normal distribution is \( \phi(z) = \frac{1}{\sqrt{2\pi}} e^{-\frac{z^2}{2}} \), which depicts the probability of z-values within the distribution. The area under the curve of \( \phi(z) \) sums to 1, representing the total probability space.

Glass flask in the shape of a Gauss curve with blue gradient liquid on wooden surface, illuminated on the left, with blurred glassware in the gray background.

The Significance of Z-Scores in Standard Normal Distribution

Z-scores, or standard scores, are numerical measurements that describe a value's relationship to the mean of a standard normal distribution. They are calculated using the formula \( Z = \frac{X - \mu}{\sigma} \), where X is the value being standardized. A z-score above zero indicates a value greater than the mean, while a negative z-score indicates a value less than the mean. Z-scores are crucial for normalizing data from different distributions, enabling comparisons across various metrics and units.

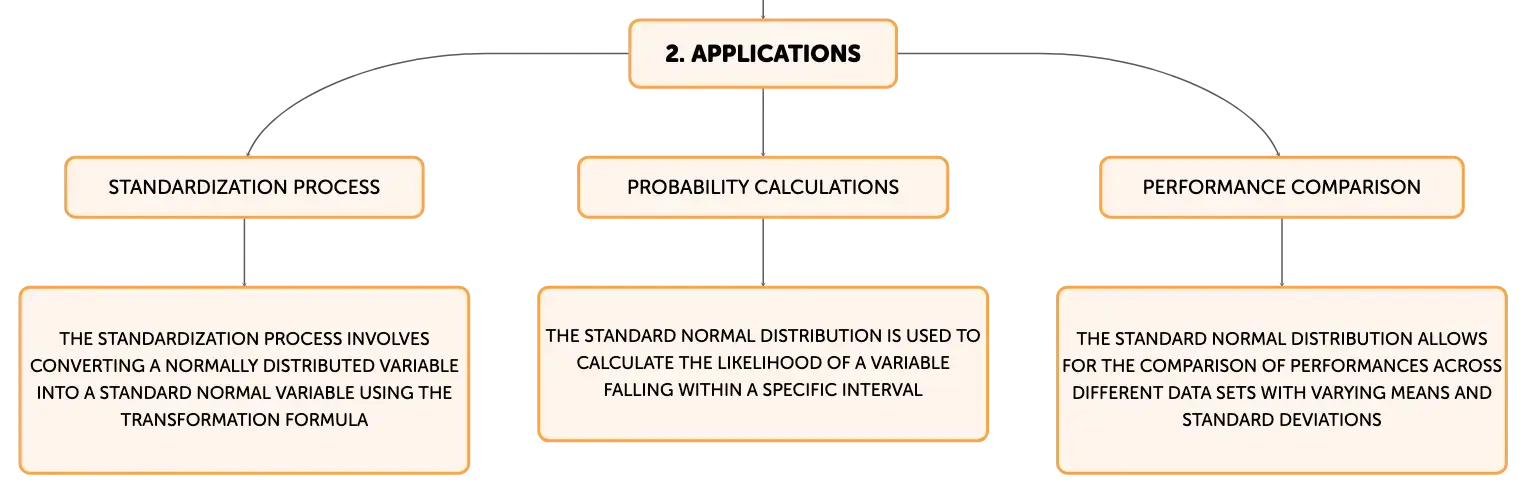

Transforming Variables into Standard Normal Form

To apply the standard normal distribution to a normally distributed variable X with its own mean and standard deviation, \( X \sim N(\mu, \sigma^2) \), we convert X into a standard normal variable Z using the transformation \( Z = \frac{X - \mu}{\sigma} \). This standardization process is vital for analyzing probabilities and leveraging the standard normal distribution's properties, such as the use of z-tables or computational tools designed for the standard normal distribution.

Probability Calculations with the Standard Normal Distribution

The standard normal distribution is invaluable for determining the likelihood of a variable falling within a specific interval. For instance, to calculate the probability that a normally distributed variable X with a mean of 50 and a standard deviation of 4 is at least 55, we convert to the standard normal distribution, yielding \( P(X \geq 55) = 1 - \Phi(1.25) \). To find the probability that X is between 2 and 9 for a distribution with a mean of 5 and a standard deviation of 1, we convert to z-scores and compute the cumulative probability, resulting in \( P(2 \leq X < 9) = \Phi(4) - \Phi(-3) \).

Benchmarking Performance Using Standard Normal Distribution

The standard normal distribution facilitates the comparison of performances across different data sets with varying means and standard deviations. For example, to assess a student's relative performance in various subjects, we can convert their scores to z-scores. This allows us to compare how many standard deviations above or below the mean the student's performance lies, providing a standardized measure of achievement.

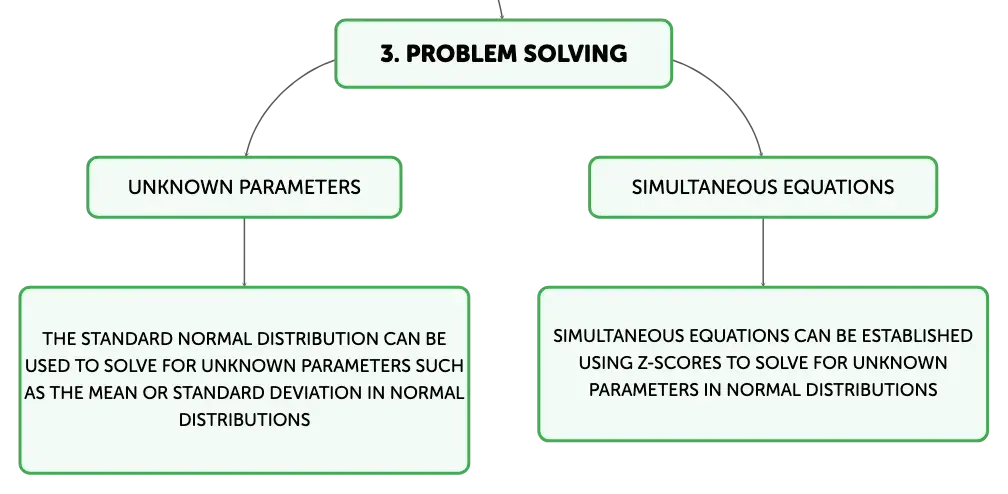

Determining Unknown Parameters in Normal Distributions

The standard normal distribution aids in solving for unknown parameters such as the mean or standard deviation in normal distributions. By converting given values to z-scores, we can simplify the problem since the mean of the standard normal distribution is always zero. For instance, if 15% of necklaces in a store weigh less than 58.2g and the standard deviation is 5.9g, we can find the mean weight using the standard normal distribution. If two probabilities are known for a normal distribution with an unknown mean and standard deviation, we can establish simultaneous equations with the corresponding z-scores to solve for these parameters.

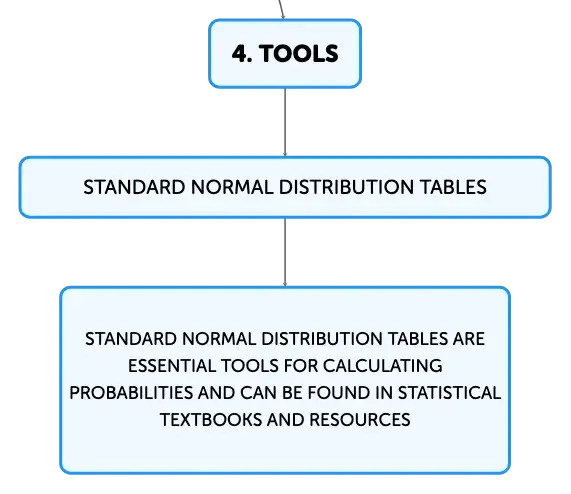

Utilizing Standard Normal Distribution Tables

Standard normal distribution tables are indispensable tools for calculating probabilities. These tables list the cumulative probability \( \Phi(z) \) for a given z-score, which is the probability that a standard normal variable is less than or equal to z, denoted as \( P(Z \leq z) \). To find probabilities for negative z-values, we use the symmetry of the distribution and subtract from one. These tables, found in statistical textbooks and resources, are crucial for students and professionals in statistical analysis.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

00

Mean and standard deviation of standard normal distribution

Mean (μ) is 0, standard deviation (σ) is 1.

01

Symbol representing standard normal distribution

Expressed as Z∼N(0,1).

02

Total area under standard normal distribution curve

Area sums to 1, representing total probability space.
