Nuclear Magnetic Resonance (NMR)

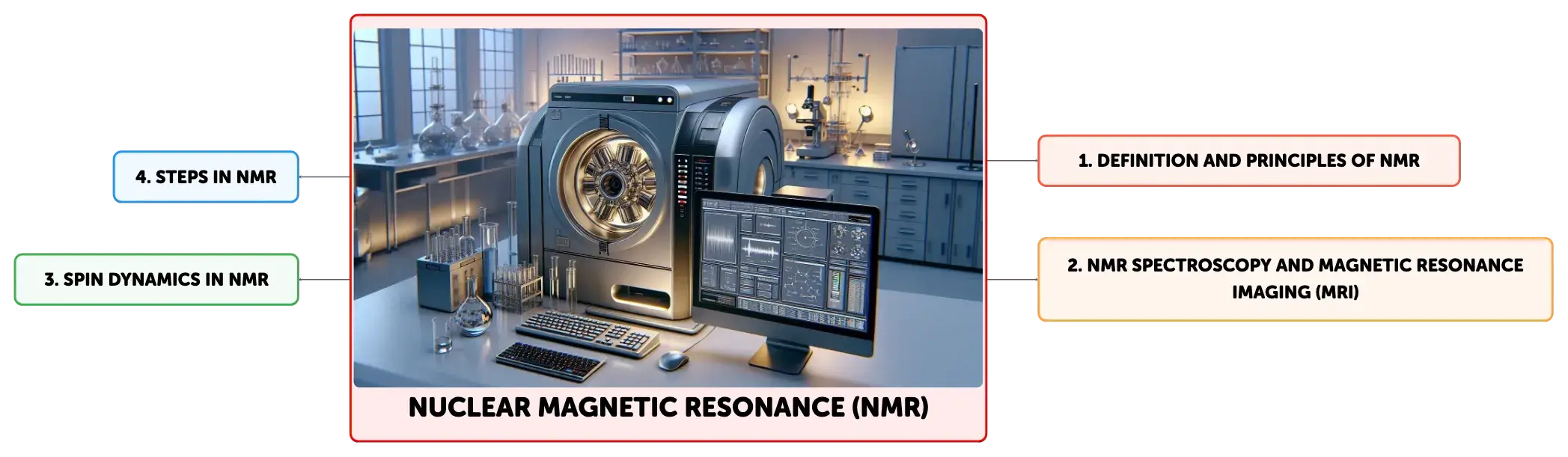

Concept Map
Nuclear Magnetic Resonance (NMR) is a technique that explores the magnetic properties of atomic nuclei to analyze molecular structures and internal body structures through MRI. It relies on the quantum mechanical property of spin and the unique resonance frequencies of different nuclei. NMR spectroscopy aids in understanding molecular dynamics and chemical environments, while MRI provides detailed images for medical diagnosis, leveraging the relaxation times of hydrogen nuclei.
Summary
Outline
Fundamentals of Nuclear Magnetic Resonance
Nuclear Magnetic Resonance (NMR) is a physical phenomenon in which nuclei in a magnetic field absorb and re-emit electromagnetic radiation. This response is due to the magnetic properties of certain atomic nuclei, which arise from their spin, a quantum mechanical property. The spin quantum number (I) determines the number of possible spin orientations in a magnetic field, given by 2I + 1. For instance, the common isotope of hydrogen, \(^{1}\)H, has a spin quantum number of 1/2, leading to two spin states. NMR is widely used to determine the purity of a sample, its molecular structure, and its dynamic processes.Nuclear Magnetic Resonance in Spectroscopy and Imaging
NMR spectroscopy and Magnetic Resonance Imaging (MRI) are two prominent applications of Nuclear Magnetic Resonance. NMR spectroscopy provides detailed information about the structure, dynamics, reaction state, and chemical environment of molecules. It is based on the principle that different atomic nuclei resonate at different frequencies in a magnetic field. MRI, on the other hand, is a non-invasive medical imaging technique that uses NMR principles to visualize detailed internal structures of the body. It exploits the magnetic properties of hydrogen nuclei in water and fat to produce images, with the relaxation times (T1 and T2) of these nuclei providing the necessary contrast to distinguish between different types of tissues.Spin Dynamics and Magnetic Properties of Nuclei
Spin dynamics involve the behavior of nuclear spins when subjected to a magnetic field. In an external magnetic field, nuclear spins align either parallel or anti-parallel to the field, corresponding to lower and higher energy states, respectively. The Larmor precession is a key concept describing the motion of nuclear spins around the magnetic field direction at a specific frequency, the Larmor frequency. This frequency is dependent on the type of nucleus and the strength of the magnetic field and is determined by the gyromagnetic ratio, which is unique to each nuclear species.Techniques and Applications of Nuclear Magnetic Resonance
Nuclear Magnetic Resonance involves several steps: polarization of nuclear spins, excitation by a radio-frequency pulse, and detection of the resulting signal during relaxation. The initial strong magnetic field polarizes the nuclear spins. A subsequent radio-frequency pulse then excites these spins to a higher energy state. When the pulse is turned off, the nuclei relax back to their original state, emitting a signal that can be detected and analyzed. NMR is invaluable for identifying substances, elucidating molecular structures, and diagnosing medical conditions. For example, \(^{13}\)C NMR spectroscopy is instrumental in studying organic compounds, while MRI is used to create detailed images of the human body.Scientific Implications of Nuclear Magnetic Resonance
Nuclear Magnetic Resonance has profound implications in various scientific disciplines. The phenomenon is predicated on the nuclear spin of atoms, the application of an external magnetic field, and the introduction of a radio-frequency pulse. NMR enables the detailed characterization of molecular structures and the analysis of material properties. The resonance frequencies emitted by nuclei serve as unique identifiers, facilitating the identification of substances. In medical imaging, the behavior of nuclear spins in a magnetic field is essential for producing high-resolution MRI images, which are critical for diagnosing a wide range of health conditions.Key Takeaways in Nuclear Magnetic Resonance
Nuclear Magnetic Resonance is a fundamental technique in the fields of chemistry, biology, physics, and medicine. It provides a non-invasive method to study the magnetic properties of atomic nuclei and the structure of molecules. Understanding the principles of NMR, including spin dynamics and relaxation processes, is essential for interpreting spectroscopic data and generating MRI images. The applications of NMR are diverse, ranging from molecular characterization to advanced diagnostic imaging, making it an indispensable tool in scientific research and medical practice.
Show More

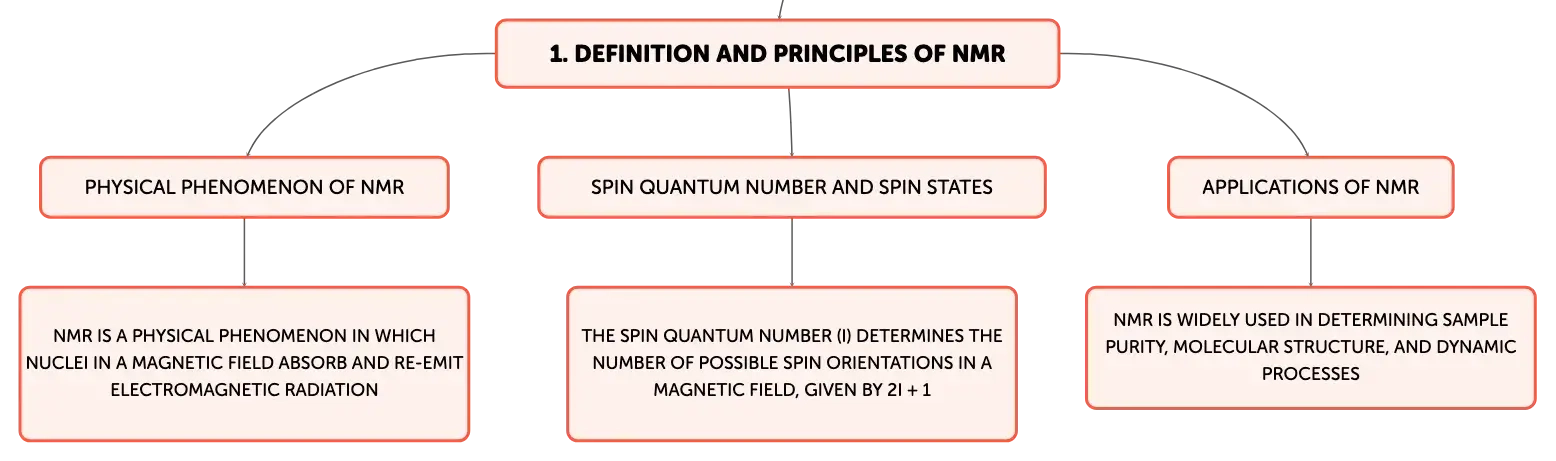

Definition and Principles of NMR
Physical phenomenon of NMR
NMR is a physical phenomenon in which nuclei in a magnetic field absorb and re-emit electromagnetic radiation
Spin quantum number and spin states
The spin quantum number (I) determines the number of possible spin orientations in a magnetic field, given by 2I + 1
Applications of NMR
NMR is widely used in determining sample purity, molecular structure, and dynamic processes

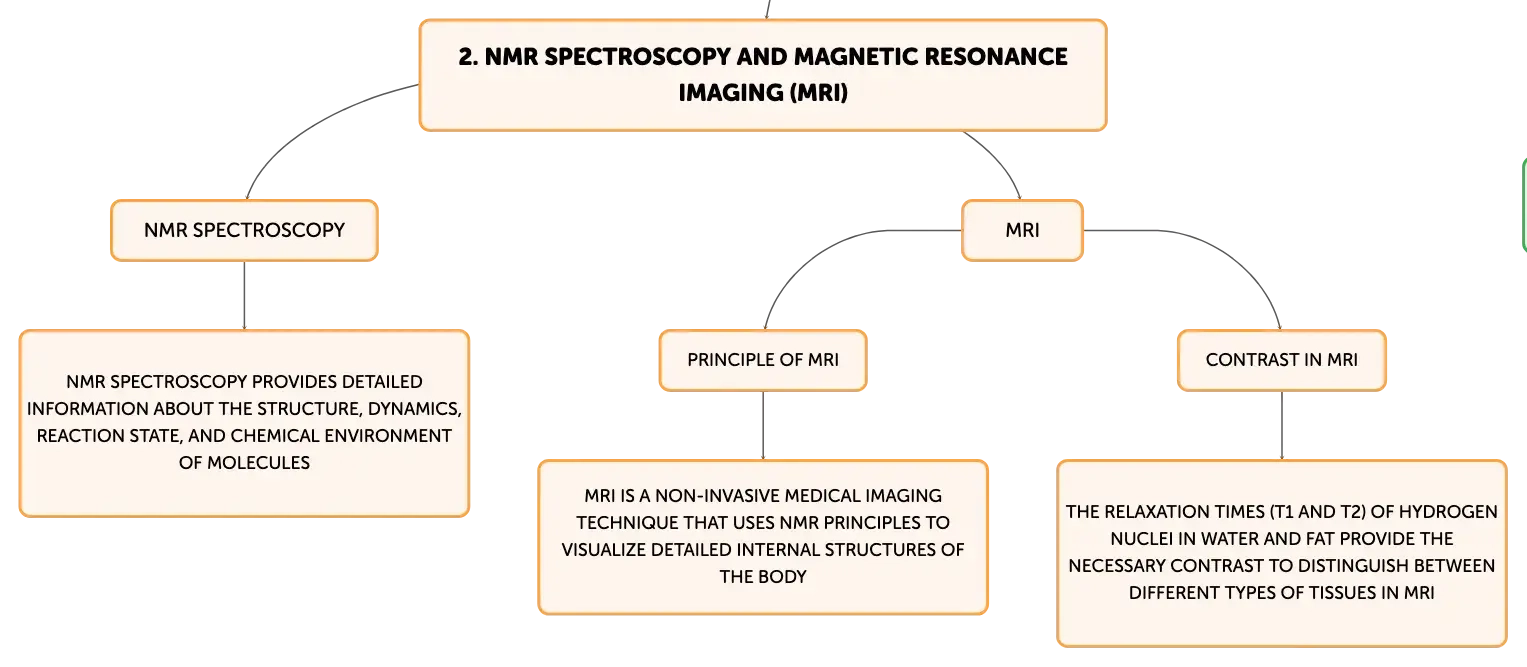

NMR Spectroscopy and Magnetic Resonance Imaging (MRI)
NMR spectroscopy
NMR spectroscopy provides detailed information about the structure, dynamics, reaction state, and chemical environment of molecules
MRI
Principle of MRI
MRI is a non-invasive medical imaging technique that uses NMR principles to visualize detailed internal structures of the body
Contrast in MRI
The relaxation times (T1 and T2) of hydrogen nuclei in water and fat provide the necessary contrast to distinguish between different types of tissues in MRI

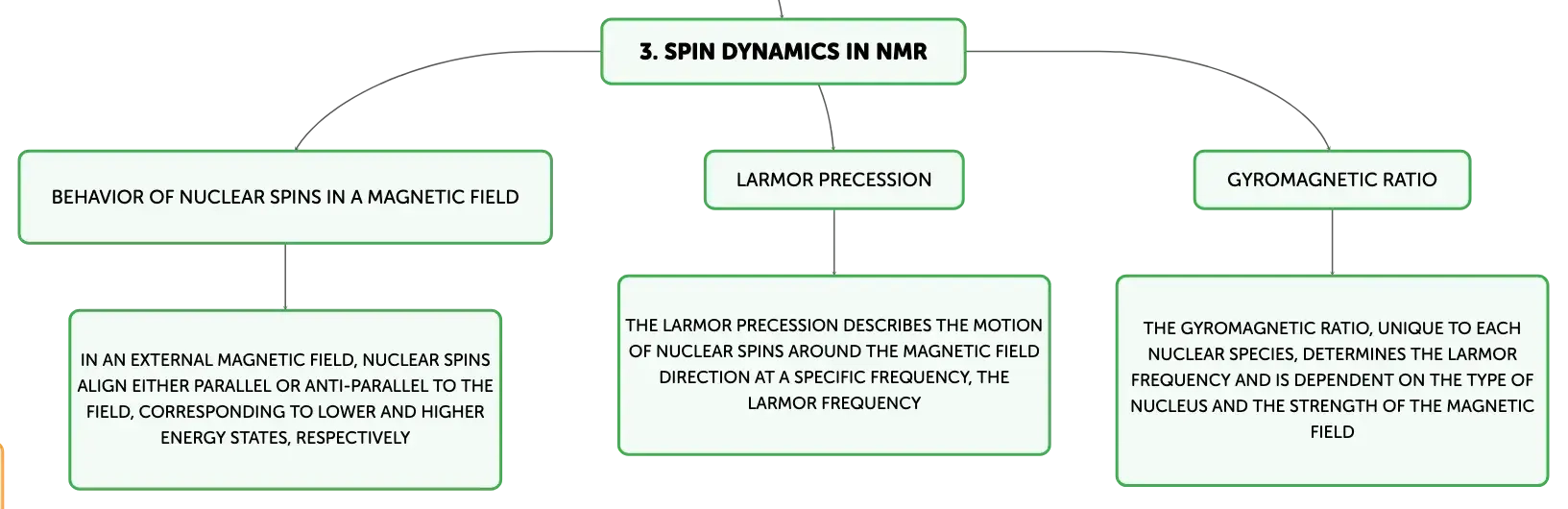

Spin Dynamics in NMR
Behavior of nuclear spins in a magnetic field
In an external magnetic field, nuclear spins align either parallel or anti-parallel to the field, corresponding to lower and higher energy states, respectively
Larmor precession
The Larmor precession describes the motion of nuclear spins around the magnetic field direction at a specific frequency, the Larmor frequency
Gyromagnetic ratio
The gyromagnetic ratio, unique to each nuclear species, determines the Larmor frequency and is dependent on the type of nucleus and the strength of the magnetic field

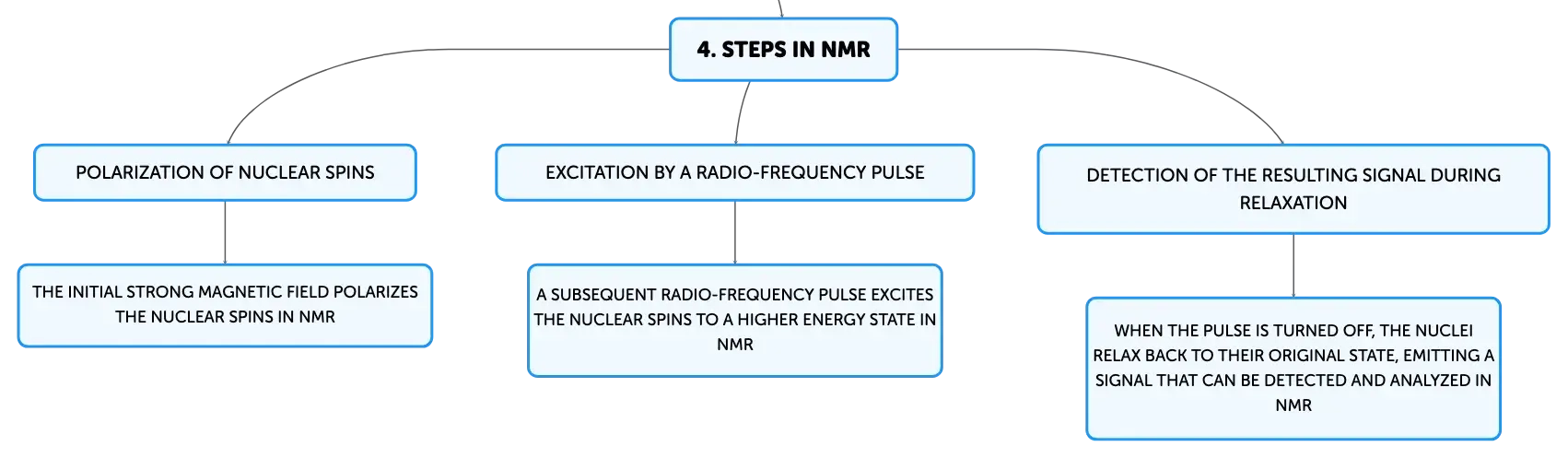

Steps in NMR
Polarization of nuclear spins
The initial strong magnetic field polarizes the nuclear spins in NMR
Excitation by a radio-frequency pulse
A subsequent radio-frequency pulse excites the nuclear spins to a higher energy state in NMR
Detection of the resulting signal during relaxation
When the pulse is turned off, the nuclei relax back to their original state, emitting a signal that can be detected and analyzed in NMR
Nuclear Magnetic Resonance (NMR)
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
______ is a medical imaging technique that employs NMR to generate detailed images of the body's internal structures.
MRI
01
Spin dynamics in magnetic field
Study of nuclear spin behavior under magnetic field influence; spins align parallel or anti-parallel to field.
02
Nuclear spin energy states
Parallel alignment to magnetic field is lower energy; anti-parallel is higher energy.
