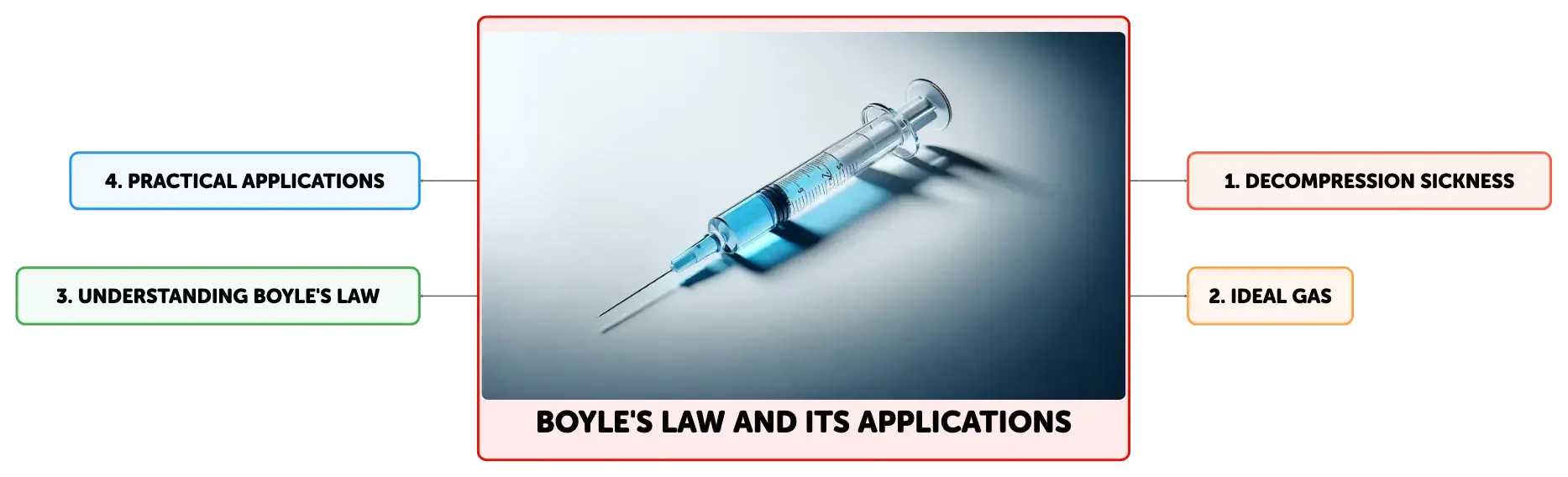

Boyle's Law and Its Applications

Boyle's Law is crucial for understanding decompression sickness in divers, illustrating the inverse relationship between gas pressure and volume. This principle is key in predicting gas behavior in various conditions, such as when divers ascend from deep water and nitrogen bubbles form in the bloodstream due to reduced ambient pressure. Boyle's Law, integral to the Ideal Gas Law, is essential for scientists and professionals working with gases.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ sickness, known as 'the bends,' occurs in divers who surface too rapidly from ______ water.

Click to check the answer

Decompression deep

2

The condition is caused by nitrogen ______ forming in the bloodstream due to a decrease in ______ pressure during ascent.

Click to check the answer

bubbles ambient

3

Define Boyle's Law.

Click to check the answer

Boyle's Law states that pressure of an ideal gas is inversely proportional to its volume at constant temperature.

4

What is an ideal gas?

Click to check the answer

An ideal gas is a theoretical gas composed of many randomly moving point particles that do not interact except when colliding elastically.

5

Why is the concept of an ideal gas important?

Click to check the answer

The concept of an ideal gas allows for simplification in the study of gas behavior and is essential for understanding real gases under various conditions.

6

In Boyle's Law, the volume of gas particles is deemed ______, simplifying the correlation between pressure and volume.

Click to check the answer

negligible

7

Boyle's Law Definition

Click to check the answer

States inverse relationship between pressure and volume of an ideal gas at constant temperature and amount.

8

Boyle's Law Formula

Click to check the answer

P1V1 = P2V2, where P is pressure, V is volume, and 1 and 2 are initial and final states.

9

Boyle's Law Conditions

Click to check the answer

Applies when temperature and amount of gas are constant; not valid if these variables change.

10

Boyle's Law Definition

Click to check the answer

Boyle's Law states that pressure of a gas is inversely proportional to its volume when temperature is constant.

11

Diver's Nitrogen Volume Change

Click to check the answer

At lower pressure, nitrogen volume in diver's blood increases; 86.2 mL at 12.3 atm becomes 129.3 mL at 8.2 atm.

12

Neon Gas Pressure Change

Click to check the answer

Reducing volume of neon gas increases its pressure; 3.2 L at 2.17 atm becomes 1.8 L at 3.86 atm.

13

Boyle's Law Equation

Click to check the answer

P1V1 = P2V2, where P is pressure, V is volume, and 1 and 2 represent initial and final states.

14

Boyle's Law Conditions

Click to check the answer

Constant temperature and fixed amount of gas are required for the law to apply.

15

Boyle's Law Practical Application

Click to check the answer

Used to ensure diver safety by calculating changes in gas volume under pressure.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Accuracy and Precision in Scientific Discourse

View document

Physics

Coulomb's Law and Ionic Bonds

View document

Physics

Spontaneous Nuclear Decay

View document

Physics

Mass-Energy Equivalence and Nuclear Reactions

View document

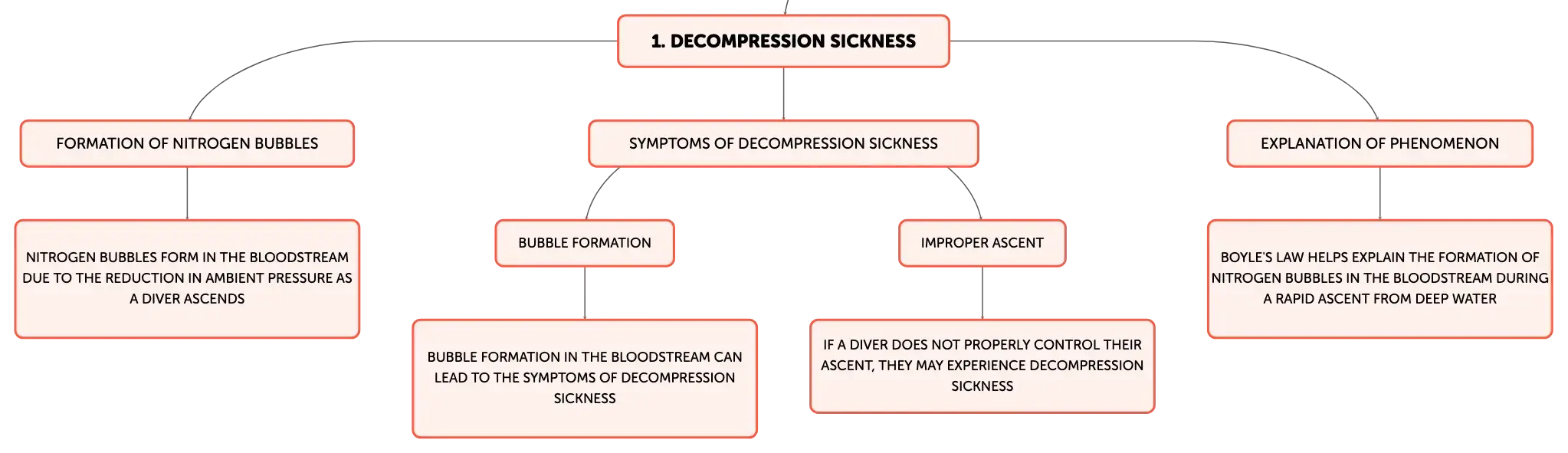

Decompression Sickness and the Role of Boyle's Law

Decompression sickness, also known as "the bends," is a potentially serious condition that can affect divers who ascend too quickly from deep water. This condition arises from the formation of nitrogen bubbles in the bloodstream, which is a result of the reduction in ambient pressure as the diver ascends. Boyle's Law, which states that the pressure of a gas is inversely proportional to its volume when temperature is constant, helps explain this phenomenon. As the diver ascends and the external pressure decreases, the volume of nitrogen gas dissolved in the blood increases, which can lead to bubble formation and the associated symptoms of decompression sickness if the ascent is not properly controlled.
Transparent glass syringe with bright blue liquid, placed horizontally on a white background, with a protective cap and light shadow.

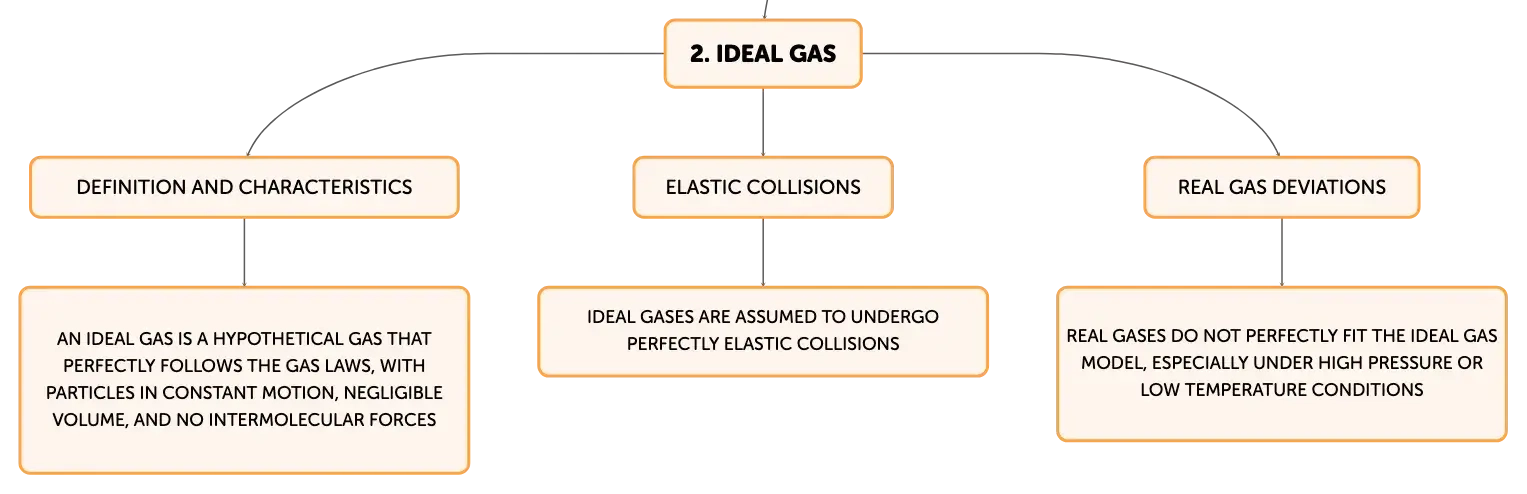

Boyle's Law and the Behavior of Ideal Gases

Boyle's Law is a fundamental principle that describes the behavior of an ideal gas, a hypothetical gas that perfectly follows the gas laws. Ideal gases are assumed to have particles that are in constant, random motion, with negligible volume and no intermolecular forces, and that undergo perfectly elastic collisions. Although no real gas perfectly fits this ideal model, especially under conditions of high pressure or low temperature, the concept of an ideal gas is crucial for understanding how gases behave under various conditions, including the principles that govern decompression sickness.

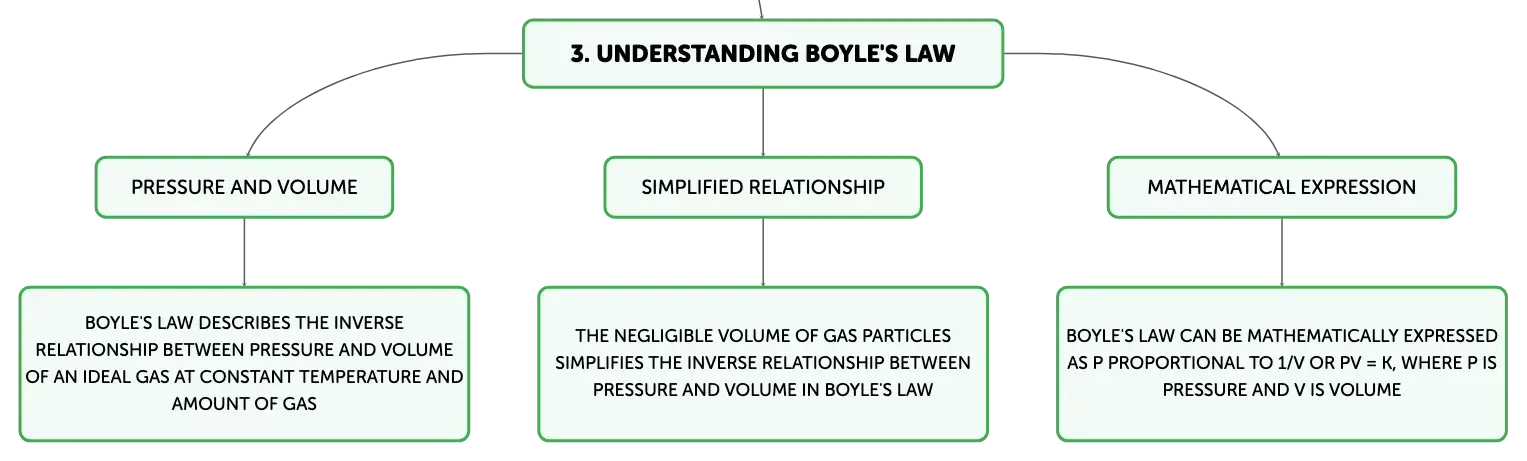

The Concepts of Pressure and Volume in Boyle's Law

Understanding Boyle's Law requires a comprehension of the concepts of pressure and volume. Pressure is defined as the force exerted by gas particles when they collide with the walls of their container, and it is measured per unit area of the wall. Volume refers to the amount of space that a substance occupies. In the context of Boyle's Law, the volume of the gas particles is considered negligible, which simplifies the relationship between pressure and volume, allowing for the observation of the law's inverse relationship without significant interference from the particles' own volume.

The Inverse Relationship Defined by Boyle's Law

Boyle's Law specifically defines the inverse relationship between the pressure and volume of an ideal gas, assuming that the temperature and the amount of gas remain constant. This relationship can be demonstrated through experiments that show how the pressure of a gas changes in response to changes in volume. For example, if a sample of hydrogen gas has a pressure of 1.21 atmospheres in a 5-liter container, compressing the gas into a 3-liter container will increase its pressure to approximately 2.02 atmospheres, provided the temperature remains constant, thus illustrating Boyle's Law in action.

Mathematical Expression of Boyle's Law

Boyle's Law is mathematically expressed as \(P \propto \frac{1}{V}\), where P represents pressure and V represents volume. This proportionality shows that the pressure of a gas is inversely related to its volume. The relationship can also be expressed as \(PV = k\), where k is a constant for a given amount of gas at a constant temperature. This equation allows for the calculation of the new pressure or volume of a gas when the other is altered, provided the temperature and the amount of gas remain unchanged.

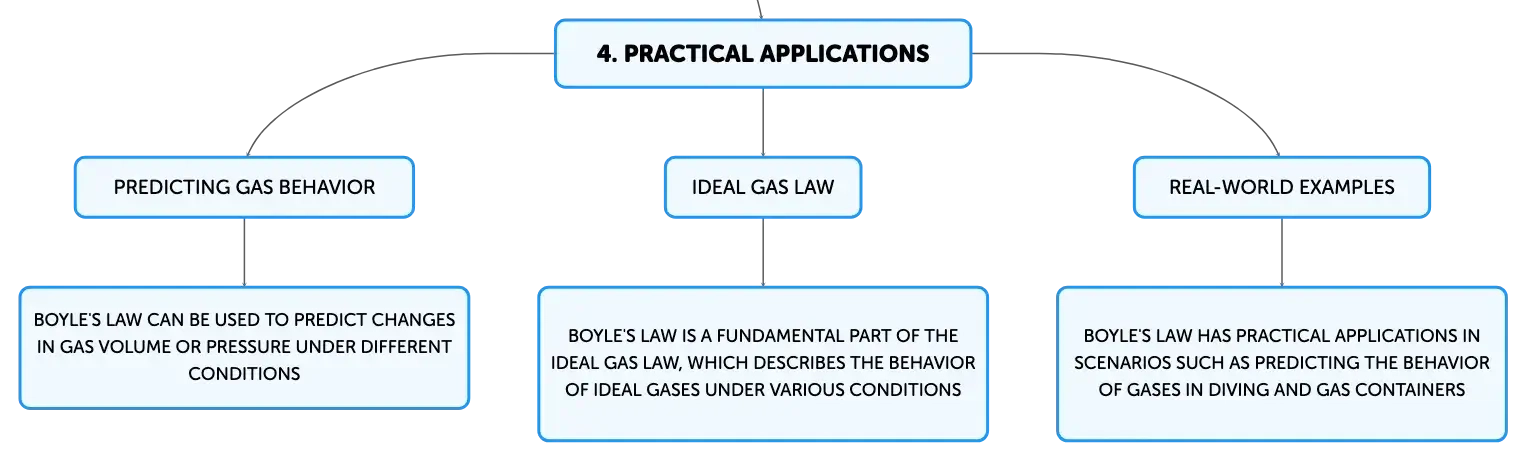

Practical Applications of Boyle's Law

Boyle's Law has practical applications in various real-world scenarios, such as in predicting the behavior of gases under changing pressure conditions. For instance, if a diver's blood contains 86.2 milliliters of nitrogen at a pressure of 12.3 atmospheres, the volume of nitrogen would increase to 129.3 milliliters if the pressure decreases to 8.2 atmospheres. Similarly, a container holding neon gas at a pressure of 2.17 atmospheres and a volume of 3.2 liters will see its pressure rise to 3.86 atmospheres if the volume is reduced to 1.8 liters. These examples demonstrate how Boyle's Law can be used to predict changes in gas volume or pressure.

Boyle's Law within the Ideal Gas Law

Boyle's Law is an integral part of the Ideal Gas Law, which is a more comprehensive equation that describes the behavior of ideal gases. The Ideal Gas Law is represented by the equation \(PV=nRT\), where P is pressure, V is volume, n is the number of moles of gas, R is the universal gas constant, and T is the absolute temperature. This law is useful for making predictions about the behavior of real gases under a variety of conditions, although its accuracy decreases when dealing with high pressures or low temperatures, where real gases deviate from ideal behavior.

Concluding Insights on Boyle's Law

Boyle's Law is a cornerstone of gas theory, articulating the inverse relationship between the pressure and volume of an ideal gas at constant temperature and amount of gas. It provides a clear mathematical framework for understanding and predicting the behavior of gases, which is essential in numerous practical applications, including ensuring the safety of divers. Despite its simplicity, Boyle's Law is a powerful tool that continues to be fundamental for scientists and professionals who work with gases in various capacities.
