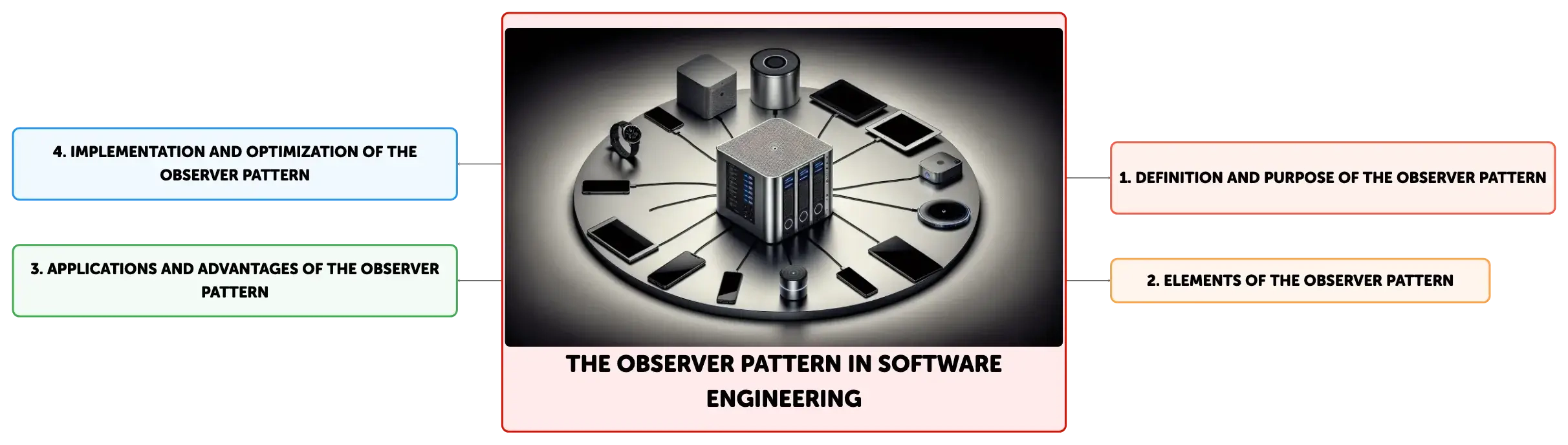

The Observer Pattern in Software Engineering

The Observer Pattern is a fundamental design pattern in software engineering that enables a subject to notify multiple observers about state changes, promoting loose coupling and increased modularity. It is essential in systems where data consistency and synchronization are crucial, such as weather monitoring and financial tracking. The pattern's implementation varies across programming languages, and it plays a pivotal role in event-driven programming and the MVC framework.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In the ______ Pattern, a one-to-many relationship allows a subject to inform all ______ about changes, promoting ______ coupling.

Click to check the answer

Observer observers loose

2

Observer Pattern: Role of 'Subject'

Click to check the answer

Maintains observer list, adds/removes observers, notifies them of state changes.

3

Observer Pattern: Role of 'Observers'

Click to check the answer

Objects that implement update mechanism to stay in sync with Subject upon notifications.

4

Observer Pattern: 'Concrete' Classes

Click to check the answer

Concrete Subject sends notifications; Concrete Observers register with Subject to receive updates.

5

In ______, the Observer Pattern is often realized through interfaces, which establish a contract between the Subject and its Observers.

Click to check the answer

Java

6

______, a dynamically-typed language, typically uses a Subject class that holds a list of observers to inform them of state changes.

Click to check the answer

Python

7

Observer Pattern role in data consistency

Click to check the answer

Ensures data remains consistent across components by notifying observers of state changes.

8

Observer Pattern in MVC framework

Click to check the answer

Allows Model to notify View of changes, enabling automatic UI updates.

9

Observer Pattern in event-driven programming

Click to check the answer

Facilitates response to events by having objects 'listen' and 'react' to specific triggers.

10

The ______ Pattern can decrease coupling between system components and allow dynamic relationships.

Click to check the answer

Observer

11

Using the ______ Pattern may lead to issues like unexpected updates and potential memory leaks.

Click to check the answer

Observer

12

Safe Observer Iteration

Click to check the answer

Ensure safe traversal of observer list during notifications to prevent errors from modifications.

13

Observer Memory Management

Click to check the answer

Detach observers when not needed to prevent memory leaks and manage resources efficiently.

14

Observer Pattern Thread Safety

Click to check the answer

Ensure thread safety in multi-threaded environments to avoid concurrent modification issues.

15

The ______ in the Observer Pattern are designed to be notified by the Subject through an ______ method when changes occur.

Click to check the answer

Observers update

16

Observer Pattern: Key Benefit

Click to check the answer

Enables updates distribution to multiple entities, ensuring data consistency.

17

Observer Pattern: Architectural Impact

Click to check the answer

Supports decoupled architecture, enhancing system adaptability and maintainability.

18

Observer Pattern: Modern Applications

Click to check the answer

Applicable in inter-process communication, streaming services, and blockchain technology.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Computer Memory

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

Exploring the Observer Pattern in Software Engineering

The Observer Pattern is a widely recognized design pattern in software engineering, categorized as a behavioral pattern due to its emphasis on the communication and duties of objects during execution. It establishes a one-to-many relationship between a single subject and multiple observers, enabling the subject to notify all observers simultaneously of any state changes. This pattern fosters loose coupling, meaning the subject and observers are minimally dependent on one another, which increases the modularity and reusability of the software components.
Modern computerized central hub surrounded by connected electronic devices such as digital watch, smartphone, laptop, tablet, smart speaker and TV.

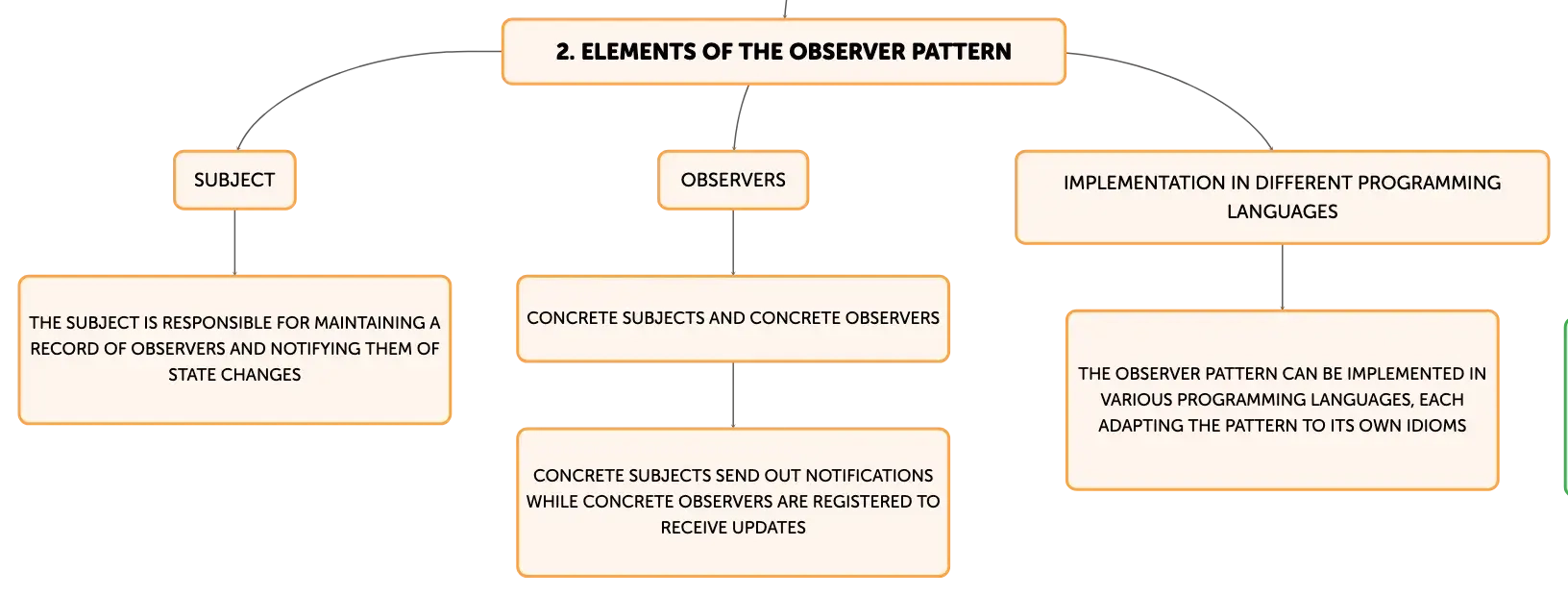

Key Elements and Concepts of the Observer Pattern

The Observer Pattern consists of two primary elements: the 'Subject' and the 'Observers'. The Subject is responsible for maintaining a record of its observers and for the mechanisms to add, remove, and alert them about state alterations. Observers are objects that need to be kept informed about these changes and are required to implement an update mechanism to stay synchronized with the Subject. Instances of these roles are known as Concrete Subjects and Concrete Observers, where the former sends out notifications and the latter are registered with the Subject to receive updates. This mechanism is similar to a publisher-subscriber model, where the publisher (Subject) disseminates information to its subscribers (Observers).

Implementing the Observer Pattern in Various Programming Languages

The Observer Pattern can be implemented in multiple programming languages, each adapting the pattern to its own idioms while preserving the core concept. In Java, the pattern is typically implemented using interfaces to define the contract between the Subject and its Observers, with concrete classes realizing these interfaces to handle state and notification logic. C# uses interfaces in conjunction with delegates and events to achieve a similar outcome. JavaScript, with its dynamic typing, often relies on arrays to track observers and callback functions for notification purposes. Python, another dynamically-typed language, uses a Subject class that maintains a list of observer references to notify them upon state changes.

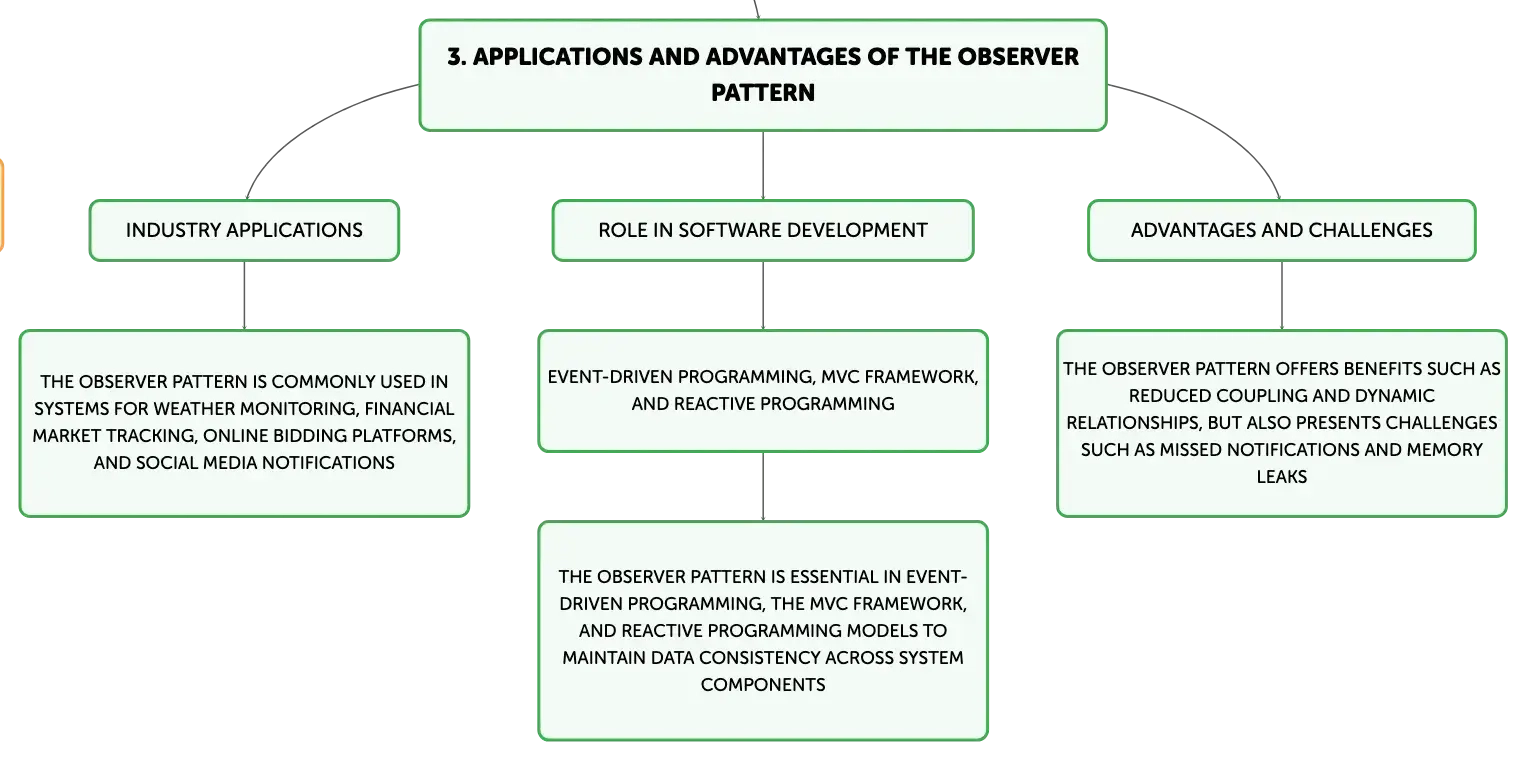

Applications and Examples of the Observer Pattern in Industry

The Observer Pattern is instrumental in various industry applications where maintaining data consistency and state synchronization is essential, yet a loosely coupled system is beneficial. It is commonly found in systems for weather monitoring, financial market tracking, online bidding platforms, and social media notifications. In the realm of software development, it underpins event-driven programming, the Model-View-Controller (MVC) framework, and reactive programming models, all of which depend on the Observer Pattern to keep data consistent across different system components.

Benefits and Potential Pitfalls of the Observer Pattern

Employing the Observer Pattern offers numerous advantages, such as reduced coupling between system components, the ability to establish dynamic relationships, and the facility to disseminate updates to an arbitrary number of observers. Nonetheless, it also introduces challenges, including the risk of unexpected updates, missed notifications if an observer fails or is delayed, and the possibility of memory leaks if observers do not properly unsubscribe. Developers must be aware of these strengths and weaknesses to effectively apply the Observer Pattern to their projects and optimize their software architecture.

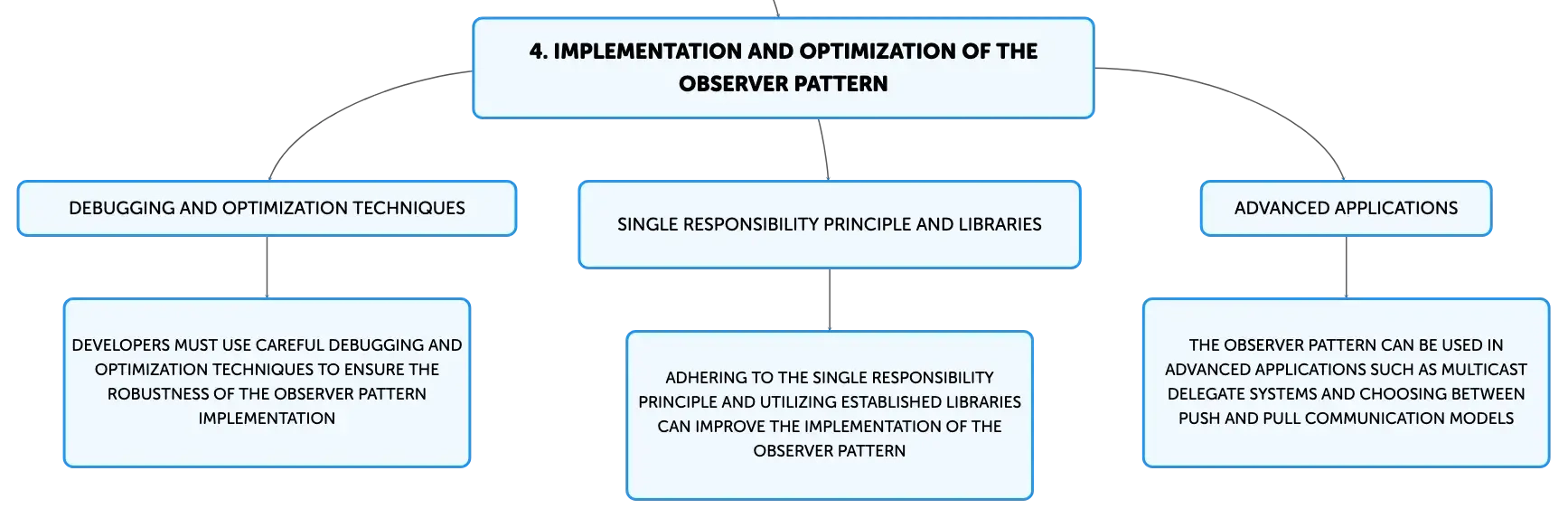

Strategies for Debugging and Refining the Observer Pattern

To successfully implement the Observer Pattern, developers must employ meticulous debugging and optimization techniques. These include ensuring safe iteration over the list of observers during notifications, preventing memory leaks by detaching observers when they are no longer needed, guaranteeing thread safety in multi-threaded environments, and avoiding state changes within update calls. Adherence to the Single Responsibility Principle and the utilization of established libraries can further improve the robustness of the pattern's implementation. The Observer Pattern's versatility is also evident in advanced applications, such as multicast delegate systems and the choice between push and pull communication models.

The Observer Pattern's Structural and Interactive Dynamics

The Observer Pattern's architecture is defined by the interactions between the Subject and its Observers. The Subject includes methods for attaching and detaching observers, as well as for notifying them about state changes. Observers implement an update method that is invoked when the Subject undergoes a state transition. This design aims for minimal coupling to allow for a system that is both scalable and adaptable. The dynamic nature of the pattern permits observers to be added or removed as needed, enabling a system that can respond to changes in a flexible manner.

Advancing Software Architecture with the Observer Pattern

The Observer Pattern is an invaluable asset for software architects aiming to construct systems that are adaptable and maintainable. By enabling the distribution of updates to multiple interested entities, it ensures data consistency and supports a decoupled architecture. As technological landscapes evolve, the Observer Pattern continues to be applicable in new contexts, such as inter-process communication, streaming services, and distributed ledger technologies like blockchain. Its enduring relevance across various sectors highlights its significance as a strategic design pattern in contemporary software engineering.
