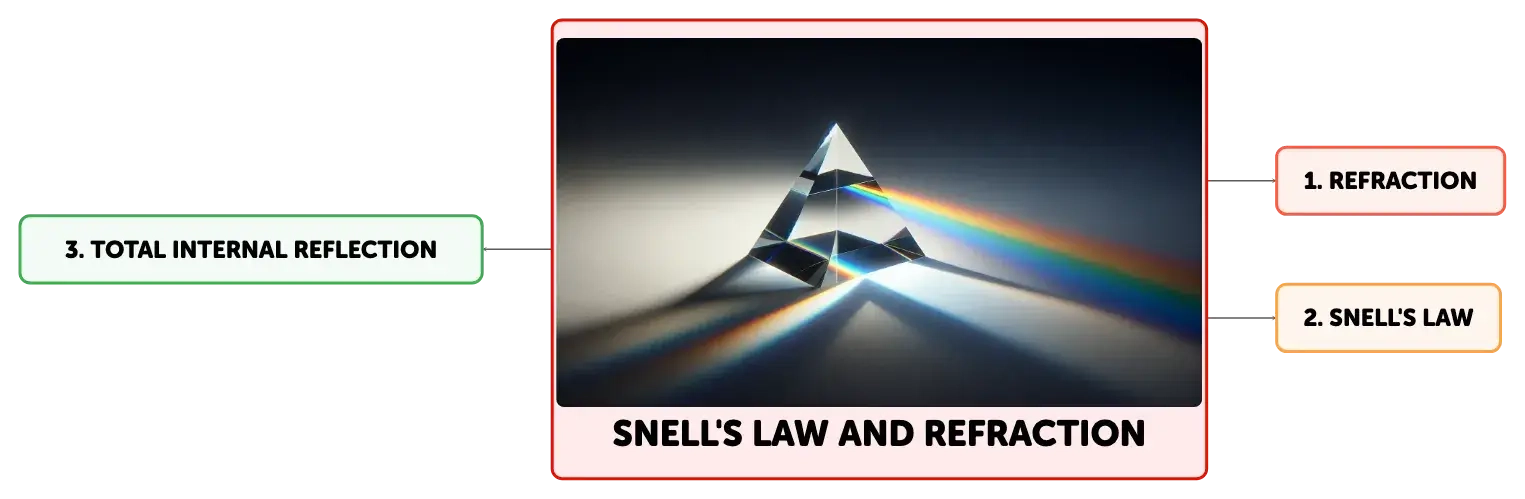

Snell's Law and Refraction
Snell's Law explains the bending of light, or refraction, as it passes between different media. This law is crucial for designing optical instruments like lenses and fiber optics. It relates the angles of incidence and refraction to the media's refractive indices. The text also explores practical applications, including total internal reflection, which is fundamental in optical communication.
See moreThe Principles of Light Refraction and Snell's Law

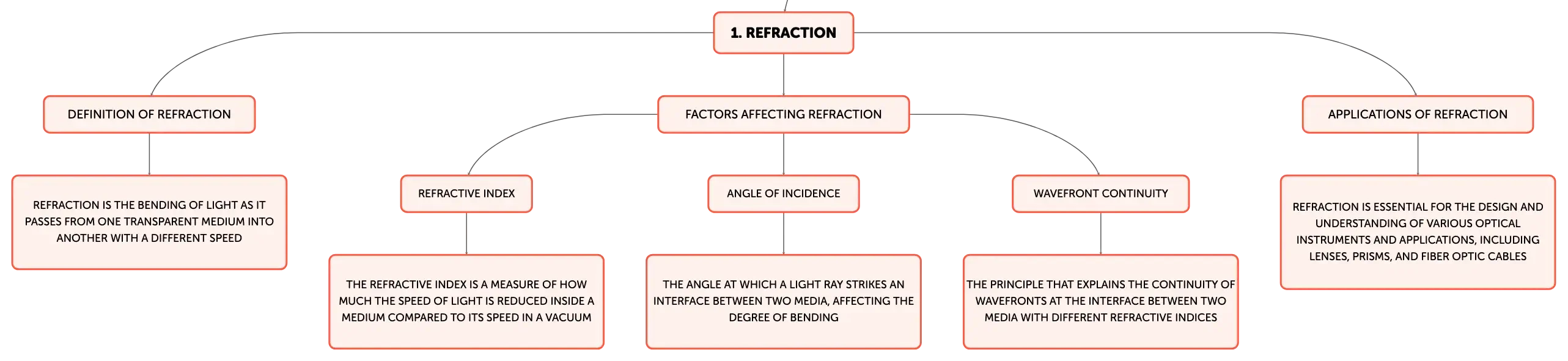

Refraction is the bending of light as it passes from one transparent medium into another in which its speed is different. This optical phenomenon is quantitatively described by Snell's Law, named after the Dutch mathematician Willebrord Snellius who discovered the law in 1621. Snell's Law is essential for the design and understanding of various optical instruments and applications, including lenses, prisms, and fiber optic cables. The degree of bending depends on the refractive index of the media, which is a measure of how much the speed of light is reduced inside the medium compared to its speed in a vacuum. A higher refractive index indicates that light travels more slowly through the medium, resulting in a greater bending of the light ray.Derivation of Snell's Law from Wavefront Analysis

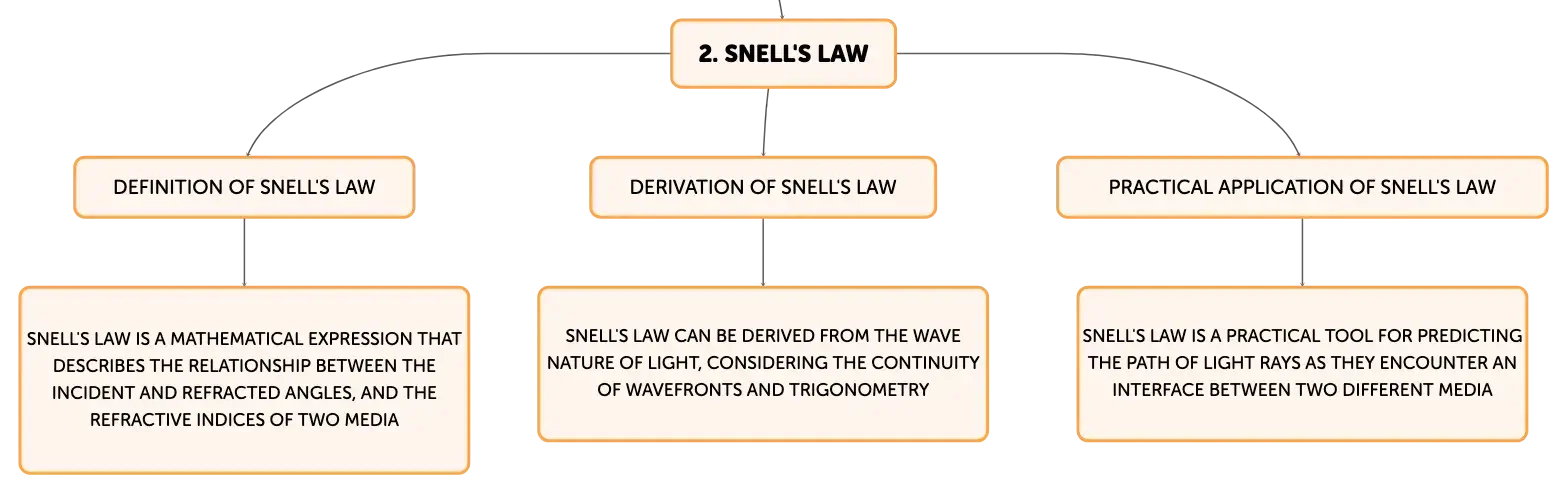

Snell's Law can be derived from the wave nature of light, considering the continuity of the wavefronts at the interface between two media with different refractive indices. As light passes from one medium to another, its frequency remains unchanged, but its speed and wavelength are altered due to the change in medium. The alteration in speed causes the light wave to change direction, either towards or away from the normal line, which is perpendicular to the interface. By employing principles of wavefront continuity and trigonometry, one can establish the relationship between the incident and refracted angles, and the refractive indices of the two media. Snell's Law mathematically expresses this relationship, stating that the sine of the angle of incidence (θ₁) multiplied by the refractive index of the first medium (n₁) is equal to the sine of the angle of refraction (θ₂) multiplied by the refractive index of the second medium (n₂), or n₁sinθ₁ = n₂sinθ₂.Practical Applications of Snell's Law
Snell's Law is a practical tool for predicting the path of light rays as they encounter an interface between two different media. To apply Snell's Law, one must know the refractive indices of the media and the angle at which the light ray strikes the interface, known as the angle of incidence. The law allows for the calculation of the angle of refraction, which can be graphically represented using a ray diagram. This diagram illustrates the incident ray, the refracted ray, the normal line, and the corresponding angles. Understanding the relationship between these angles and the refractive indices enables the prediction of the trajectory of light through various substances, such as air, water, or glass, which is crucial for the design of optical systems and devices.Total Internal Reflection and Snell's Law
Total internal reflection is a phenomenon that occurs when a light ray encounters an interface from a medium with a higher refractive index to one with a lower refractive index and strikes the interface at an angle greater than the critical angle. At this angle, the light is not refracted into the second medium but is entirely reflected back into the first medium. The critical angle is the angle of incidence that results in a refracted angle of 90 degrees, causing the refracted ray to skim along the interface. This principle is utilized in the technology of optical fibers, which rely on total internal reflection to transmit light signals over long distances with minimal loss, enabling high-speed data communication.Concluding Insights on Snell's Law
Snell's Law is a fundamental concept in the field of optics, offering a predictive framework for the behavior of light as it transitions between different media. It elucidates the reasons behind the bending of light at material interfaces and provides the means to calculate the angles of refraction. Additionally, Snell's Law delineates the conditions for total internal reflection, an effect with significant applications in fields such as telecommunications and endoscopy. A thorough understanding of Snell's Law is vital for students and professionals who seek to harness the properties of light in scientific research, optical engineering, and technological innovation.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Definition of Refraction
Click to check the answer
2
Refractive Index Importance
Click to check the answer
3
Applications of Refraction
Click to check the answer
4
When light transitions between media, its ______ stays the same, but its speed and ______ change, causing a shift in direction.
Click to check the answer
5
Snell's Law states that the product of the ______ index of the first medium and the sine of the incident angle equals the product of the ______ index of the second medium and the sine of the refracted angle.
Click to check the answer
6
Define Snell's Law.
Click to check the answer
7
Components of a ray diagram.
Click to check the answer
8
Refractive index significance.
Click to check the answer
9
Optical fibers use the principle of ______ ______ ______ to carry light signals over vast distances, allowing for rapid ______ ______ with minimal signal loss.
Click to check the answer
10
Define Snell's Law.
Click to check the answer
11
Explain light bending at interfaces.
Click to check the answer
12
Describe conditions for total internal reflection.
Click to check the answer
