The Conservation of Electric Charge

Benjamin Franklin's kite experiment was a pivotal moment in understanding electricity, demonstrating the electrical nature of lightning and hinting at the conservation of electric charge. Electric charge, a fundamental property of particles, is conserved, quantized, and additive. This text explores how charge conservation is integral to phenomena such as static electricity, nuclear reactions, and circuit theory, highlighting its universal application in physics.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Benjamin Franklin's experiment setup

Click to check the answer

Kite flown in storm with metal key on hemp string to detect electric charge.

2

Franklin's observation during the experiment

Click to check the answer

Spark from key to knuckle showed electric charge in lightning.

3

Impact on understanding of electric charge

Click to check the answer

Experiment hinted at charge transfer and conservation, preceding formal charge conservation law.

4

Charge transfer vs. creation/destruction

Click to check the answer

Charge can be transferred between objects but cannot be created or destroyed.

5

Conservation of charge in everyday phenomena

Click to check the answer

Rubbing a balloon against hair transfers electrons, causing electrostatic attraction without changing total system charge.

6

Role of charge conservation in physics

Click to check the answer

Charge conservation ensures the consistency of physical laws across all processes.

7

When a ______ rod is rubbed against silk, electrons move, resulting in the rod being ______ charged and the silk ______.

Click to check the answer

glass positively negatively

8

In ______, a charged item can cause a charge separation in a neutral object, leading to a redistribution of charge without affecting the overall ______.

Click to check the answer

induction charge of the system

9

Law of Conservation of Electric Charge

Click to check the answer

Charge is neither created nor destroyed; total charge remains constant in isolated systems.

10

Nuclear Fission Charge Conservation

Click to check the answer

In fission, Uranium-235 splits into smaller nuclei; sum of product charges equals original nucleus charge.

11

Nuclear Fusion Charge Conservation

Click to check the answer

In fusion, light nuclei combine to form heavier nucleus; total charge conserved during transformation.

12

In a ______ circuit, the identical charge flows through every component one after the other.

Click to check the answer

series

13

______'s current law states that at any junction, the total of incoming charges equals the total of outgoing charges.

Click to check the answer

Kirchhoff

14

Definition of Charge Conservation

Click to check the answer

Charge conservation states that total charge in an isolated system is constant, unaffected by internal processes.

15

Applications of Charge Conservation

Click to check the answer

Used to predict outcomes in static electricity, nuclear reactions, and circuit behavior.

16

Charge Conservation's Role in Electromagnetic Theory

Click to check the answer

Fundamental for electromagnetic theory, ensuring physical laws are consistent universally.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

The Thick Lens Formula: A Cornerstone of Optical Science

View document

Physics

Optical Aberrations

View document

Physics

Properties and Applications of Light Waves

View document

Physics

Parallel Beams in Physics

View document

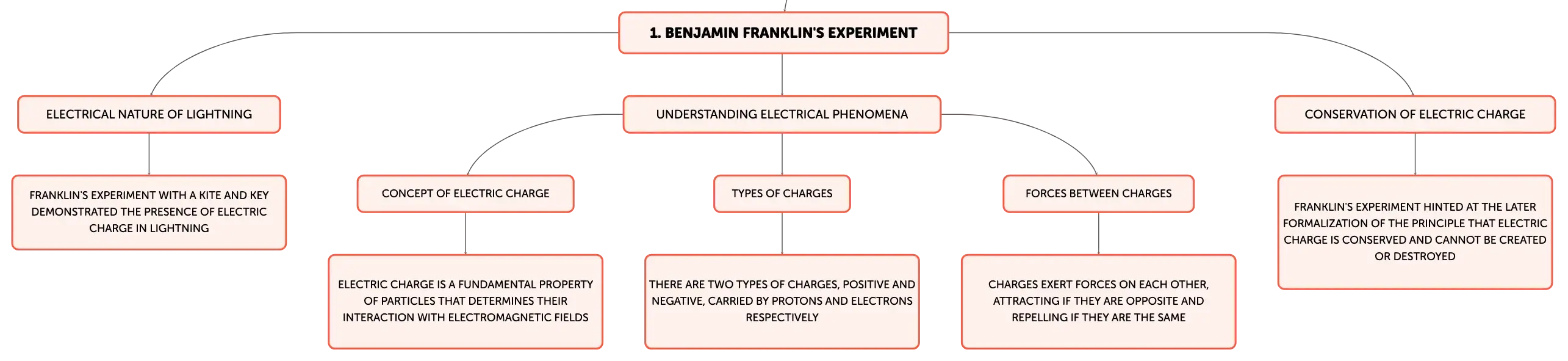

Benjamin Franklin's Kite Experiment and the Discovery of Electrical Charge

In a groundbreaking experiment, Benjamin Franklin, with the help of his son, demonstrated the electrical nature of lightning. By flying a kite during a storm, with a metal key attached to the hemp string, Franklin observed a spark when his knuckle approached the key, indicating the presence of electric charge. This experiment did not directly prove the conservation of electric charge, but it was a significant step towards understanding electrical phenomena. Franklin's work laid the groundwork for the concept that electric charge can be transferred between objects, but is neither created nor destroyed, hinting at the later formalization of the conservation of charge.
Classic scientific experiment setup with a Leyden jar, inert Van de Graaff generator, and two metal spheres on insulated stands on a wooden table.

The Nature of Electric Charge

Electric charge is a fundamental property of particles that determines how they interact with electromagnetic fields. There are two types of charges: positive and negative. Positive charges are carried by protons, while electrons carry negative charges. These charges exert forces on each other, attracting if they are of opposite types and repelling if they are the same. The smallest unit of charge is the elementary charge, carried by a single proton or electron, with a magnitude of approximately \(1.6\times10^{-19}\) coulombs. Charge is conserved, quantized, and additive, meaning that the total charge in an isolated system is a whole-number multiple of the elementary charge and remains constant.

Conservation of Electric Charge

The conservation of electric charge is a fundamental principle in physics, stating that the total charge in an isolated system remains constant over time. Charge can be transferred between objects, but it cannot be created or destroyed. This principle is observable in everyday phenomena, such as when a balloon is rubbed against hair, transferring electrons and creating an electrostatic attraction, while the total charge of the system remains unchanged. The conservation of charge is essential for the laws of physics to remain consistent across all processes.

Charge Conservation in Everyday Phenomena

The principle of charge conservation is evident in various charging methods, including friction, induction, and conduction. When a glass rod is rubbed with silk, electrons are transferred from the rod to the silk, leaving the rod with a positive charge and the silk with a negative charge, but the total system charge remains neutral. In induction, a charged object can induce a separation of charges within a neutral object, causing a redistribution without changing the total charge. Conduction allows charges to move between objects until they reach equilibrium, without altering the net charge of the system.

Charge Conservation in Nuclear Processes

The law of conservation of electric charge applies to nuclear reactions, such as fission and fusion. In fission, a heavy nucleus like Uranium-235 splits into smaller nuclei and other particles, with the sum of the charges of the products equaling the charge of the original nucleus. In fusion, light nuclei merge to form a heavier nucleus, and the total charge is conserved in the process. These nuclear transformations underscore the universality of charge conservation across all scales of physical phenomena.

Electric Charge Conservation in Circuit Theory

Electric circuits, whether in series or parallel configurations, demonstrate the conservation of electric charge. In a series circuit, the same amount of charge passes through each component sequentially. In a parallel circuit, the total current is the sum of the currents in each branch, and at any junction point, the sum of incoming charges is equal to the sum of outgoing charges. This principle, known as Kirchhoff's current law, is a manifestation of charge conservation and is fundamental to circuit analysis.

Conclusion on the Conservation of Electric Charge

The conservation of electric charge is a pivotal concept in physics, governing a wide range of phenomena from static electricity to nuclear reactions and the behavior of circuits. It asserts that the total charge in an isolated system remains unchanged, despite any internal interactions or transformations. This invariance is a key aspect of electromagnetic theory and is essential for the consistency of physical laws across the universe. Understanding this principle is crucial for students studying physics, as it forms the basis for analyzing and predicting the behavior of charged particles and systems.
