Understanding Enhanced Geothermal Systems (EGS) and Seismicity Risks

Enhanced Geothermal Systems (EGS) offer a method to extract geothermal energy by increasing rock permeability deep within the Earth. This innovative approach involves fluid injection to create fractures, enabling water flow for electricity generation. While EGS projects like those in the US, Europe, and Australia show promise, they also pose seismicity risks, which require careful management and advanced technologies to mitigate.

see more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of Enhanced Geothermal Systems (EGS)

Click to check the answer

EGS artificially increases permeability in hot rock formations to harness geothermal energy.

2

EGS fluid injection purpose

Click to check the answer

Fluids are injected in EGS to create fractures, enabling water flow for heat extraction.

3

Global regions implementing EGS projects

Click to check the answer

EGS initiatives are found in the USA, Europe, and Australia.

4

EGS technologies have progressed, using techniques like ______ stimulation to fracture geothermal reservoirs.

Click to check the answer

hydraulic

5

The ______ field in Mexico and the ______ field in Nevada have both utilized water injection to create fractures in geothermal projects.

Click to check the answer

Los Azufres Desert Peak

6

In Italy's ______ field, minerals are dissolved to increase permeability using ______ stimulation.

Click to check the answer

Larderello chemical

7

Idaho's ______ River project has implemented a combination of ______ and ______ stimulation.

Click to check the answer

Raft hydraulic thermal

8

The choice of stimulation technique for EGS is influenced by the ______ conditions and the project's ______.

Click to check the answer

geological specific goals

9

Pioneering EGS project in the USA

Click to check the answer

Hot Dry Rock project at Fenton Hill, initiated EGS research, DOE supported.

10

DOE's role in EGS advancement

Click to check the answer

Provided funding, promoted EGS via Funding Opportunity Announcements, American Recovery and Reinvestment Act.

11

Australia's focus on EGS research

Click to check the answer

Government-backed Hot Dry Rock projects in Hunter Valley and Cooper Basin.

12

For the safe advancement of ______, managing tremors caused by fluid injections is vital.

Click to check the answer

EGS

13

Tremors have been triggered at ______ and other locations where geothermal reservoirs are stimulated.

Click to check the answer

The Geysers in California

14

The halt of the ______ highlighted the need for careful seismic risk management.

Click to check the answer

Basel project

15

The ______ acknowledges that the seismic risks from hydrofracturing are typically low.

Click to check the answer

Australian government

16

EGS potential according to 2006 MIT report

Click to check the answer

MIT report suggests EGS could significantly contribute to future energy demands with proper development.

17

DOE's 'Enhanced Geothermal Shot' initiative goal

Click to check the answer

Aim to reduce EGS costs by 90% by 2035, making it a competitive energy source.

18

Legislation supporting EGS advancement

Click to check the answer

Infrastructure Investment and Jobs Act and Inflation Reduction Act provide federal support for EGS through projects and tax incentives.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Earth Sciences

Harnessing Geothermal Energy in Iceland

View document

Earth Sciences

Basics of Geothermal Energy

View document

Earth Sciences

The Development and Sustainability of Geothermal Energy Projects

View document

Earth Sciences

Principles of Enhanced Geothermal Systems (EGS)

View document

Understanding Enhanced Geothermal Systems (EGS) and Seismicity Risks

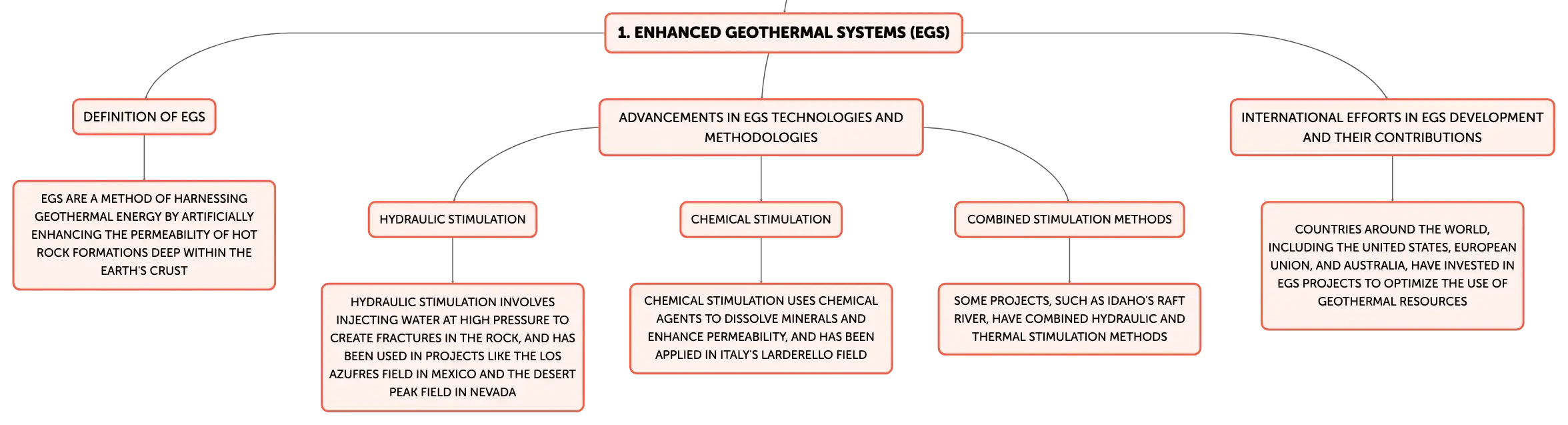

Enhanced Geothermal Systems (EGS) are an innovative approach to harnessing geothermal energy by artificially enhancing the permeability of hot rock formations deep within the Earth's crust. This is achieved by injecting fluids to create fractures in the rock, which facilitates the flow of water that can be heated and used to generate electricity. EGS projects have been initiated in various regions, including the United States, Europe, and Australia. However, one of the primary concerns with EGS is the potential for induced seismicity—earthquakes triggered by human activities such as fluid injection. Instances of induced seismicity have led to the suspension or termination of EGS projects, notably in Basel, Switzerland, due to safety and environmental concerns.
Geothermal power plant in rugged landscape with metal pipes, building with cooling tower and workers in safety equipment.

Advancements in EGS Technologies and Methodologies

Over time, EGS technologies have advanced, incorporating a range of techniques to improve the efficiency of geothermal reservoirs. These include hydraulic stimulation, which involves injecting water at high pressure to create fractures, and has been employed in projects like the Los Azufres field in Mexico and the Desert Peak field in Nevada. Chemical stimulation, which uses chemical agents to dissolve minerals and enhance permeability, has been applied in Italy's Larderello field. Other projects, such as Idaho's Raft River, have combined hydraulic and thermal stimulation. The selection of a stimulation method is guided by the geological conditions of the site and the specific goals of the project.

International Efforts in EGS Development and Their Contributions

EGS initiatives around the world aim to optimize the use of geothermal resources. In the United States, the pioneering Hot Dry Rock project at Fenton Hill set the stage for subsequent EGS research, with the Department of Energy (DOE) playing a pivotal role in funding and promoting EGS through initiatives like Funding Opportunity Announcements and the American Recovery and Reinvestment Act. The European Union has also invested in EGS, with projects such as Soultz-sous-Forêts in France, which successfully connected a 1.5 MW EGS plant to the electrical grid. Australia's government has supported Hot Dry Rock research with projects in regions like the Hunter Valley and Cooper Basin. These efforts underscore the global commitment to EGS as a sustainable and reliable energy source.

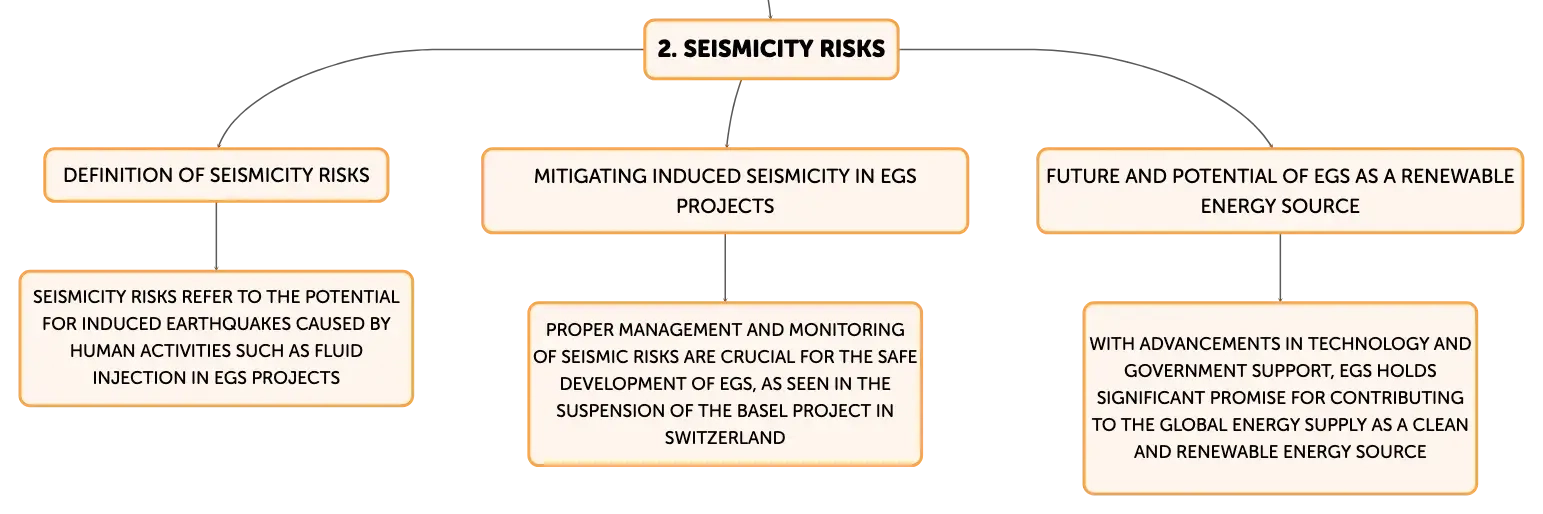

Mitigating Induced Seismicity in EGS Projects

Addressing induced seismicity is crucial for the safe development of EGS. The injection of fluids under high pressure to stimulate geothermal reservoirs can induce tremors, as observed at The Geysers in California and other EGS sites. The Basel project's suspension underscored the importance of managing and monitoring seismic risks. The Australian government has noted that the seismicity risks associated with hydrofracturing are generally low and can be managed with appropriate regulatory frameworks. Nevertheless, comprehensive site evaluations and risk mitigation strategies are essential to ensure the safe implementation of EGS fluid injection practices.

The Future and Potential of EGS as a Renewable Energy Source

EGS holds significant promise for contributing to the global energy supply. A 2006 MIT report, sponsored by the U.S. DOE, provided an in-depth assessment of EGS potential, suggesting that with proper development, EGS could meet a substantial portion of future energy demands. The outlook for EGS is optimistic, with research focused on reducing costs and enhancing technology. The DOE's "Enhanced Geothermal Shot" initiative aims to cut EGS costs by 90% by 2035, positioning it as a competitive energy option. Federal support through legislation such as the Infrastructure Investment and Jobs Act and the Inflation Reduction Act is poised to accelerate EGS progress with demonstration projects and tax incentives, promoting this clean and renewable energy technology.
