Exploring the Basics of Graphs in Algebra

In algebra, graphs are essential for illustrating the relationships between variables. They are plotted on a coordinate system, which is composed of a horizontal axis (x-axis) and a vertical axis (y-axis), intersecting at the origin with coordinates (0, 0). This system divides the plane into four quadrants, labeled counterclockwise with Roman numerals I through IV. Each point on the graph corresponds to an ordered pair (x, y), where 'x' is the value on the horizontal axis and 'y' is the value on the vertical axis. Graphs are crucial for visualizing patterns, analyzing trends, and interpreting mathematical relationships.

Hand in purple glove holding a beaker with blue liquid and a submerged metal ball bearing creating ripples, against a white background.

Techniques for Creating Graphs

There are two main techniques for creating graphs: plotting and sketching. Plotting is a methodical approach that involves marking points on graph paper based on a set of x and y coordinates that come from an algebraic equation, such as y = 2x + 3. This technique requires a table of values and yields a precise graph of the equation. Sketching, in contrast, is a more conceptual approach that focuses on the general shape and behavior of the graph. It involves drawing the axes and then sketching the curve, paying attention to key features such as intercepts and slope. For linear equations, identifying two points, often including the y-intercept, is sufficient to draw the line.

Characteristics of Linear Graphs

Linear graphs depict functions with a constant rate of change and are represented by a straight line. The slope of a linear graph, indicating the steepness, is determined by the ratio m = (y2 - y1) / (x2 - x1), where (x1, y1) and (x2, y2) are any two distinct points on the line. The general form of a linear equation is y = mx + b, where 'm' is the slope and 'b' represents the y-intercept, the point at which the line crosses the y-axis. Understanding these elements is vital for graphing linear equations and interpreting their meaning in a real-world context.

Graphing Quadratic Equations

Quadratic equations form parabolas on a graph and are expressed as f(x) = ax^2 + bx + c. The coefficient 'a' determines the parabola's direction: a positive 'a' opens upward, while a negative 'a' opens downward. To graph a quadratic equation, one should calculate the y-intercept by setting x to zero, find the x-intercepts (if they exist) by solving the equation f(x) = 0, and determine the vertex, which is the highest or lowest point on the parabola. The vertex can be found by completing the square or using the vertex formula, which is derived from the coefficients of the equation.

Understanding Cubic and Quartic Functions

Cubic functions, with the general form f(x) = ax^3 + bx^2 + cx + d, and quartic functions, described by f(x) = ax^4 + bx^3 + cx^2 + dx + e, exhibit more complex curves than quadratic functions. Cubic graphs typically have an S-shaped curve, with the direction influenced by the sign of the leading coefficient 'a'. Quartic functions may display up to four x-intercepts and can have various configurations, such as one or two peaks or valleys. Identifying the function's roots and turning points is crucial for accurately sketching these higher-degree polynomial graphs.

Graphs of Modulus and Reciprocal Functions

The modulus function, also known as the absolute value function, is denoted by |x| and produces a V-shaped graph. This shape occurs because the function reflects all negative input values to positive output values. To graph y = |ax + b|, one should plot the linear function y = ax + b and then reflect the portion of the graph that lies below the x-axis to above it. Reciprocal functions, such as y = a/x or y = a/x^2, create hyperbolas with asymptotes—lines that the graph approaches but never intersects. When graphing reciprocal functions, it is important to identify and consider these asymptotes.

The Geometry of Circle Graphs

Circle graphs represent all points that are equidistant from a fixed central point. The standard equation for a circle centered at the origin is x^2 + y^2 = r^2, where 'r' is the radius. If the center is at a different point (h, k), the equation is adjusted to (x - h)^2 + (y - k)^2 = r^2. To graph a circle, one must plot the center at (h, k) and draw a curve that maintains a constant distance 'r' from this center, ensuring that all points on the graph are equidistant from the center.

Mastering Graphing in Algebra

Graphs are an integral part of algebra, providing a visual representation of equations and the relationships between variables. Accurate graphing requires an understanding of the function's characteristics, such as slope, intercepts, and asymptotes. Linear graphs are straightforward with their constant rate of change, while quadratic, cubic, and quartic graphs involve more complex features like vertices and turning points. Modulus functions are distinguished by their V-shape, and reciprocal functions by their hyperbolic curves and asymptotes. Circle graphs highlight the concept of equidistance from a central point. Proficiency in these graphing techniques is essential for analyzing and interpreting algebraic functions.

Graphing in Algebra

Concept Map

Summary

Outline

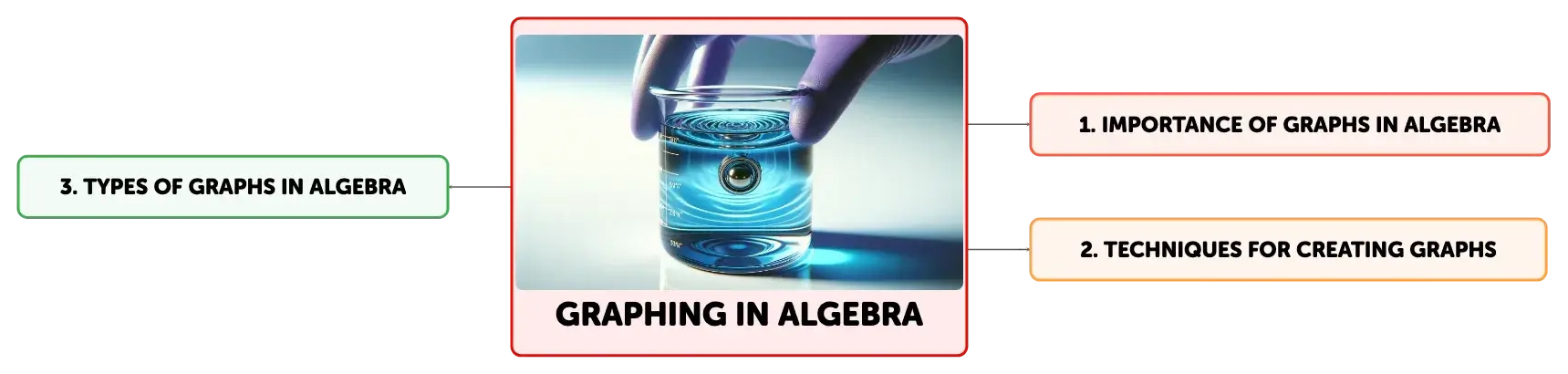

Graphing in Algebra

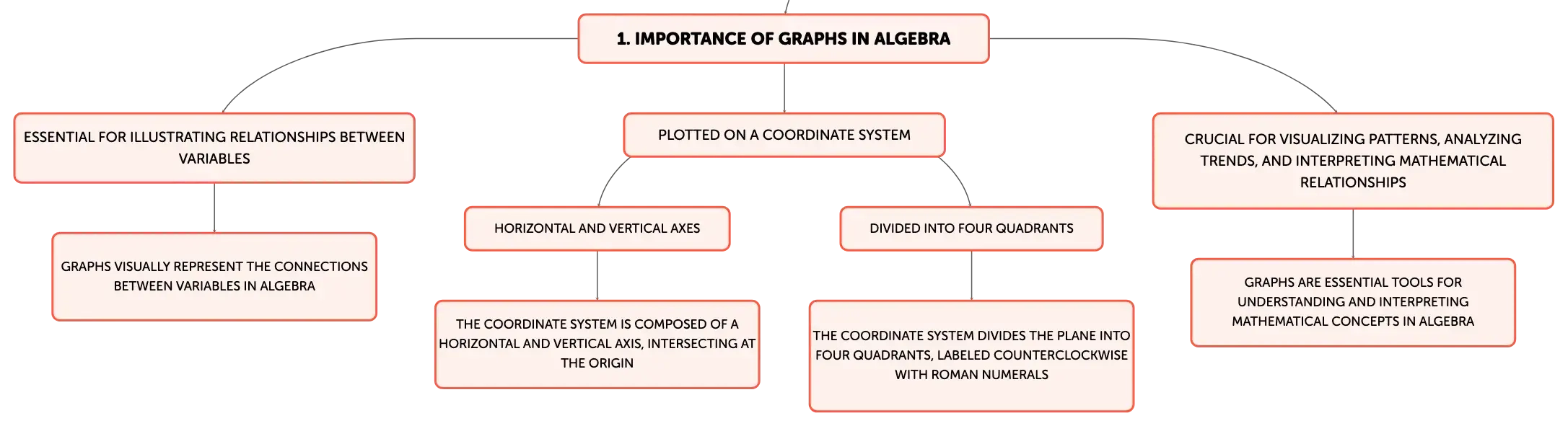

Importance of Graphs in Algebra

Essential for illustrating relationships between variables

Plotted on a coordinate system

Crucial for visualizing patterns, analyzing trends, and interpreting mathematical relationships

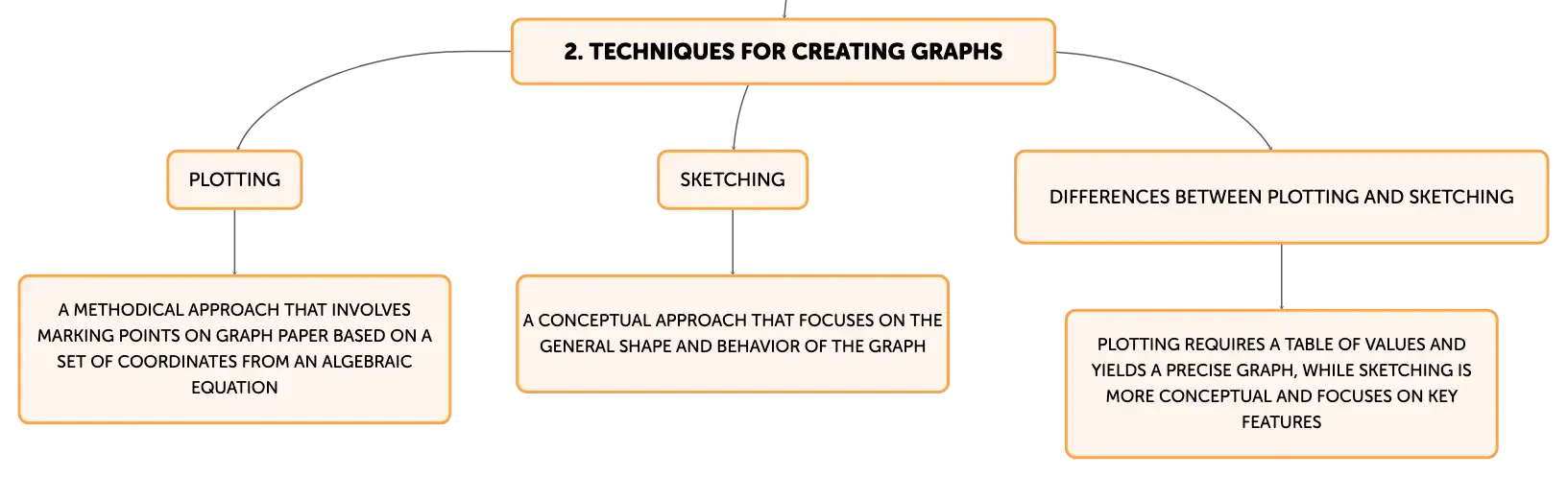

Techniques for Creating Graphs

Plotting

Sketching

Differences between plotting and sketching

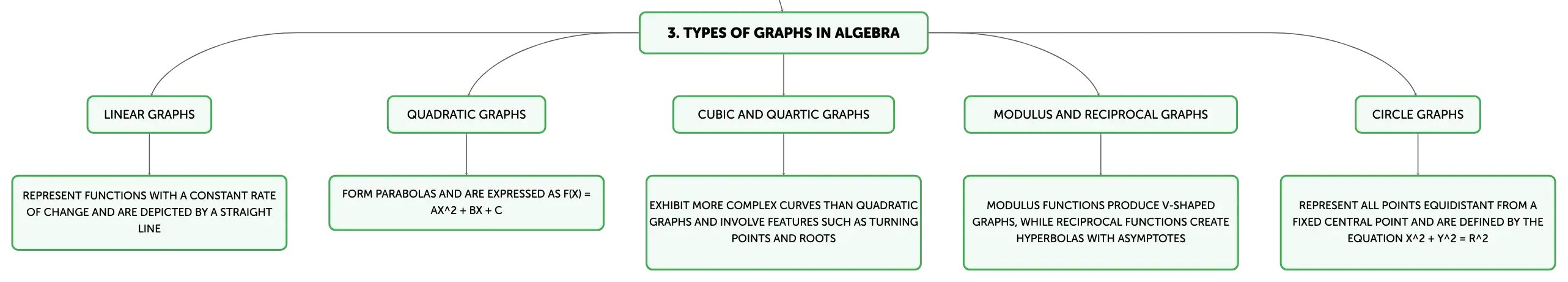

Types of Graphs in Algebra
