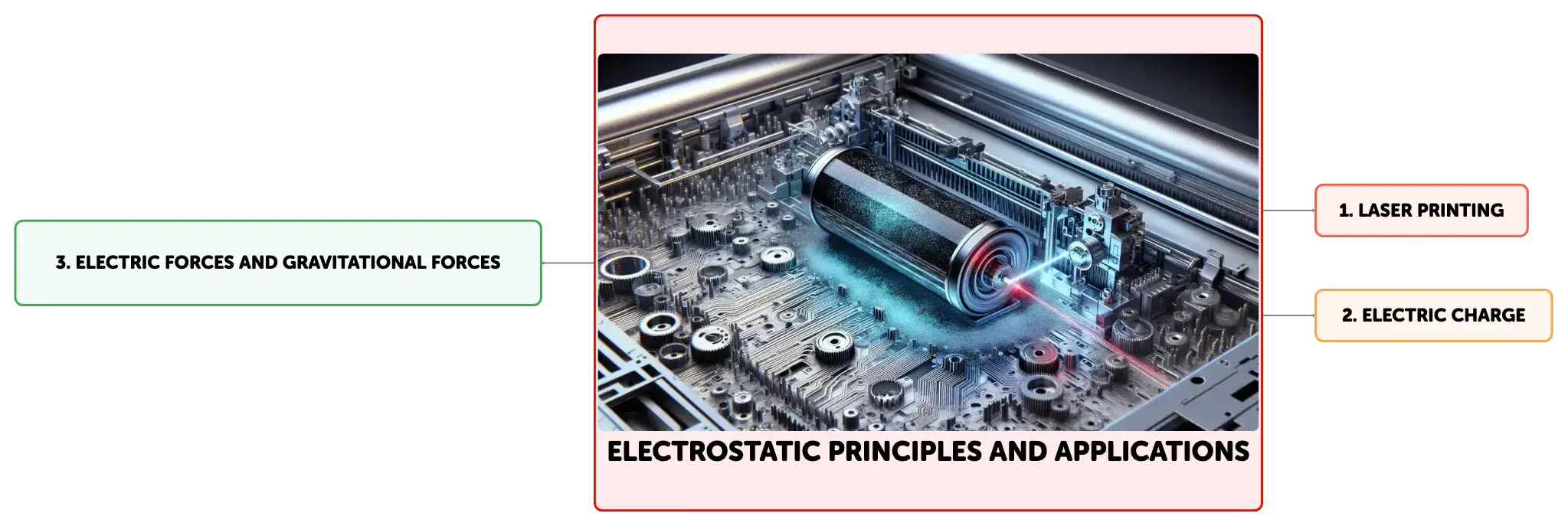

Concept Map

Algorino

Edit available

Electrostatics plays a crucial role in laser printing, where it helps create high-quality prints using a photosensitive drum and toner particles. This text delves into the fundamentals of electric charge and force, Coulomb's Law, electric fields, and contrasts electric and gravitational forces. It also highlights the vast applications of electrostatic principles in various technologies and scientific fields, emphasizing their importance in modern life.

Summary

Outline

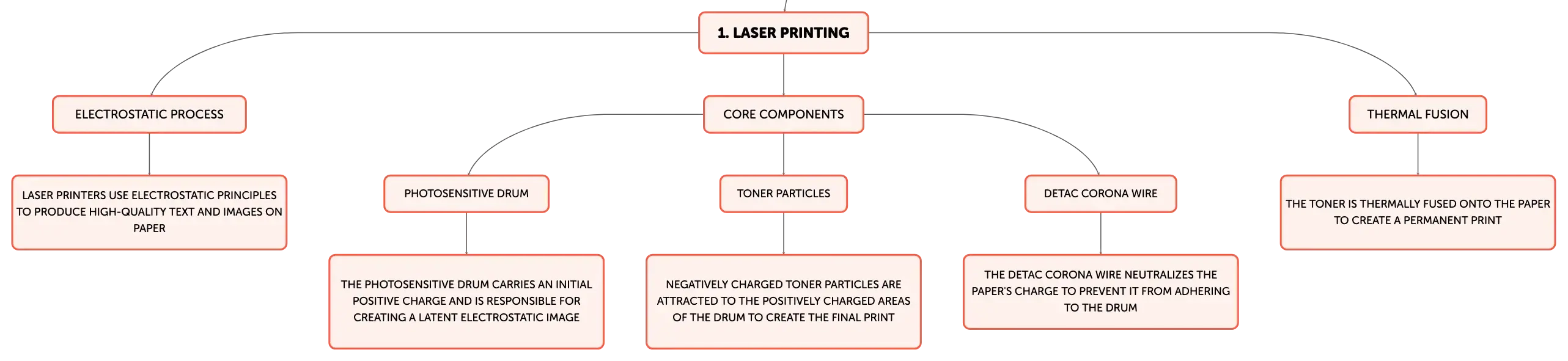

The Role of Electrostatics in Laser Printing

Laser printers are sophisticated devices that employ electrostatic principles to produce high-quality text and images on paper. The core of the process is a photosensitive drum that carries an initial positive charge. A laser selectively neutralizes this charge to create a latent electrostatic image that mirrors the content to be printed. Toner particles, which are negatively charged, are then attracted to the positively charged areas of the drum that the laser has not exposed. Subsequently, the paper, which is given a positive charge, attracts the negatively charged toner from the drum. A detac corona wire then neutralizes the paper's charge to prevent it from adhering to the drum. Finally, the toner is thermally fused onto the paper, producing a permanent print.

Close-up of laser printer internals with a reflective drum, red laser beam, black toner, and intricate metallic gears and circuits.

Fundamentals of Electric Charge and Force

Electric charge is a property of matter that causes it to experience a force when placed in an electromagnetic field. There are two types of electric charges: positive, carried by protons, and negative, carried by electrons. Neutrons have no charge. When an object gains or loses electrons, it becomes charged: negatively if it gains electrons, and positively if it loses them. The electric force is a vector quantity that can be attractive or repulsive, depending on the nature of the charges involved. This force is responsible for phenomena such as static cling, where objects with different charges attract, and the repulsion between objects with the same charge.

Coulomb's Law and Electric Force Calculation

Coulomb's Law provides a quantitative description of the electric force between two point charges. It states that the magnitude of the force is directly proportional to the product of the magnitudes of the charges and inversely proportional to the square of the distance between them. The law is mathematically expressed as \(|\vec{F}_e|=\frac{1}{4\pi\epsilon_0}\frac{|q_1q_2|}{r^2}\), where \(\epsilon_0\) is the permittivity of free space, \(q_1\) and \(q_2\) are the magnitudes of the charges, and \(r\) is the distance between the charges. The direction of the force is along the line joining the charges, repulsive if the charges are like, and attractive if they are unlike. For systems with multiple charges, the net force on any charge is the vector sum of the forces due to all other charges.

Understanding Electric Fields

An electric field is a vector field that surrounds electric charges and represents the force per unit charge that would be exerted on a positive test charge placed in the field. The strength of the field due to a point charge is given by \(|\vec{E}|=\frac{1}{4\pi\epsilon_0}\frac{|q|}{r^2}\), where \(q\) is the charge and \(r\) is the radial distance from the charge. The direction of the field is radially outward from positive charges and radially inward toward negative charges. The force experienced by a charge in an electric field is the product of the charge and the electric field vector, with the force acting in the direction of the field for positive charges and opposite the field for negative charges.

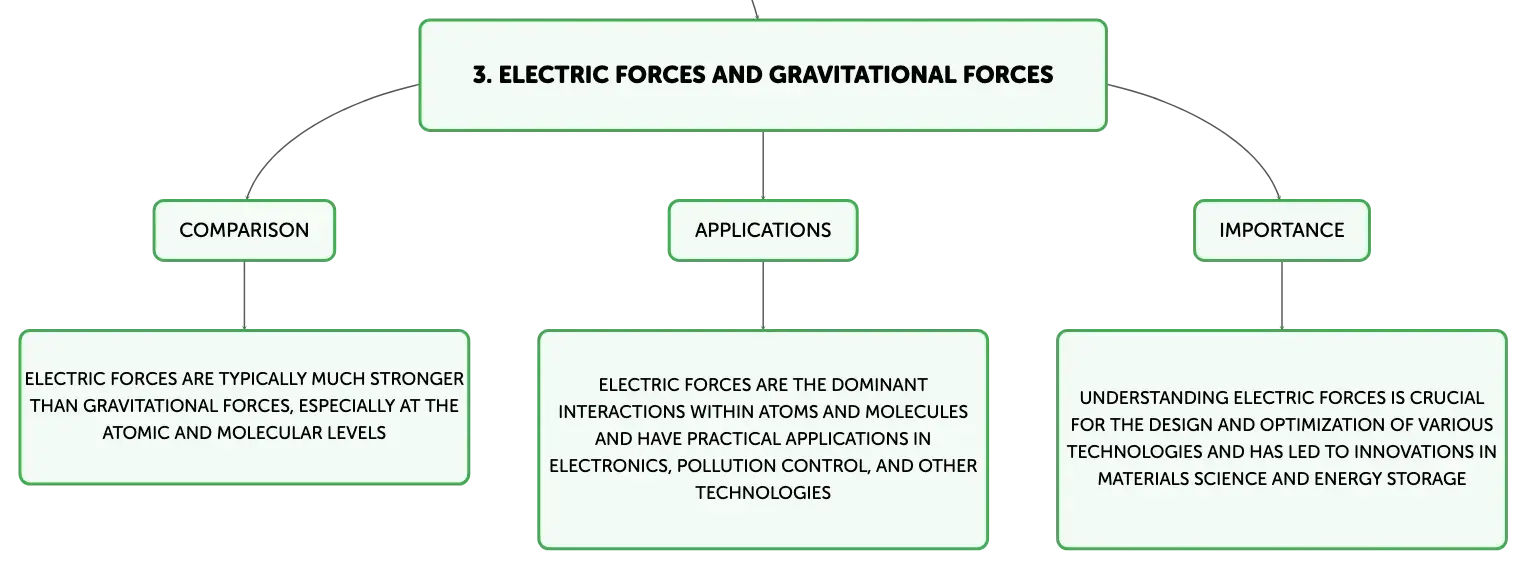

Electric vs. Gravitational Forces

Electric forces and gravitational forces are both central forces that diminish with the square of the distance between two objects. However, electric forces are typically much stronger than gravitational forces, especially at the atomic and molecular levels. For instance, the electric force between a proton and an electron in a hydrogen atom vastly exceeds the gravitational force between them. This difference in magnitude is why electric forces are the dominant interactions within atoms and molecules, and why they are more significant in determining the structural and chemical properties of matter.

Practical Applications of Electrostatics

Electrostatic principles have a wide range of practical applications beyond laser printing. In electronics, the control and manipulation of electric charges are essential for the operation of circuits and components. Electrostatic forces are also harnessed in electrostatic precipitators for pollution control, in photocopiers, and in paint sprayers that ensure even coating. The study of electrostatics is fundamental to various scientific and engineering disciplines, leading to innovations in materials science, energy storage, and beyond. Understanding these forces enables the design and optimization of numerous technologies that are integral to modern life.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

In laser printers, a ______ drum with a positive charge interacts with a laser to form an electrostatic image.

photosensitive

01

Types of electric charges

Positive carried by protons, negative by electrons, neutrons no charge.

02

Effect of electric charge in electromagnetic field

Charged objects experience force, can be attractive or repulsive.
