Trigonometric Function Transformations

Trigonometric function transformations are crucial for understanding the oscillatory behavior of these functions. This guide delves into horizontal and vertical shifts, amplitude, and period changes, providing a systematic approach to translating trigonometric functions. Practical examples illustrate how to apply these concepts for accurate graph representation, highlighting their importance in various mathematical contexts.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Define phase shift in trigonometric functions.

Click to check the answer

Phase shift refers to the horizontal translation of a trigonometric graph, determined by 'h' in y = a sin(b(θ - h)) + k.

2

Explain the role of 'a' in translated trigonometric functions.

Click to check the answer

'a' affects the amplitude of the function, scaling the graph vertically.

3

Describe how 'b' influences a trigonometric function's graph.

Click to check the answer

'b' alters the period of the function, affecting how quickly it completes one cycle.

4

A graph of y = sin(θ - ______) is shifted ______ units to the right, transforming the sine graph into a cosine graph.

Click to check the answer

π/2 π/2

5

Effect of positive 'k' in y = a sin(b(θ - h)) + k

Click to check the answer

Raises graph vertically, sets midline at y = k.

6

Effect of negative 'k' in y = a sin(b(θ - h)) + k

Click to check the answer

Lowers graph vertically, sets midline at y = k.

7

Purpose of vertical shift in trigonometric graphs

Click to check the answer

Adjusts central axis, changes baseline of function.

8

In trigonometric functions, the ______ represents the maximum vertical distance from the center line.

Click to check the answer

amplitude

9

Identifying Vertical Shift in Trig Functions

Click to check the answer

Locate new midline at y = k, where k represents vertical shift from the original position.

10

Determining Amplitude Changes

Click to check the answer

Measure distance from midline to peak/trough, indicating the strength of the function's oscillation.

11

Adjusting for Horizontal Shifts

Click to check the answer

Shift graph left/right based on phase displacement; reposition critical points accordingly.

12

For y = -3 sin(θ/2) + 4, the graph is reflected over the horizontal axis and has a midline at y = ______, with an amplitude of ______.

Click to check the answer

4 3

13

Horizontal Shifts in Trig Functions

Click to check the answer

Move graph left/right by adding/subtracting from variable inside function.

14

Vertical Shifts in Trig Functions

Click to check the answer

Adjust graph up/down by adding/subtracting outside function.

15

Amplitude and Period in Trig Functions

Click to check the answer

Amplitude affects height; period affects width of trig function graphs.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Renewal Theory

View document

Mathematics

Charts and Diagrams in Statistical Analysis

View document

Mathematics

Quartiles and Their Importance in Statistical Analysis

View document

Mathematics

The Kolmogorov-Smirnov Test: A Nonparametric Method for Comparing Distributions

View document

Exploring Trigonometric Function Transformations

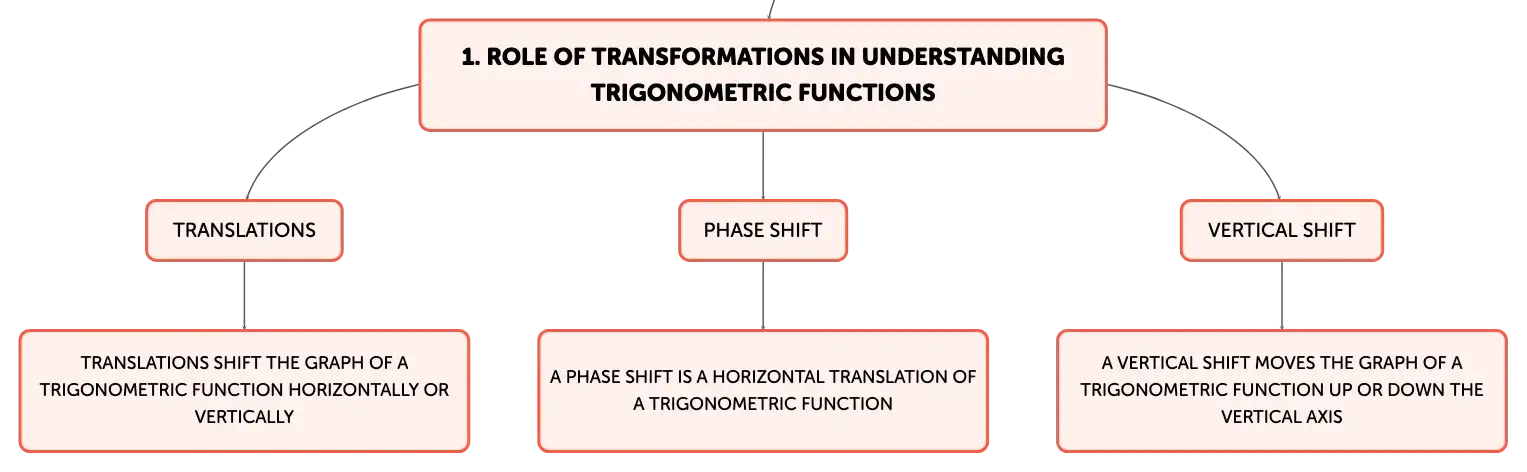

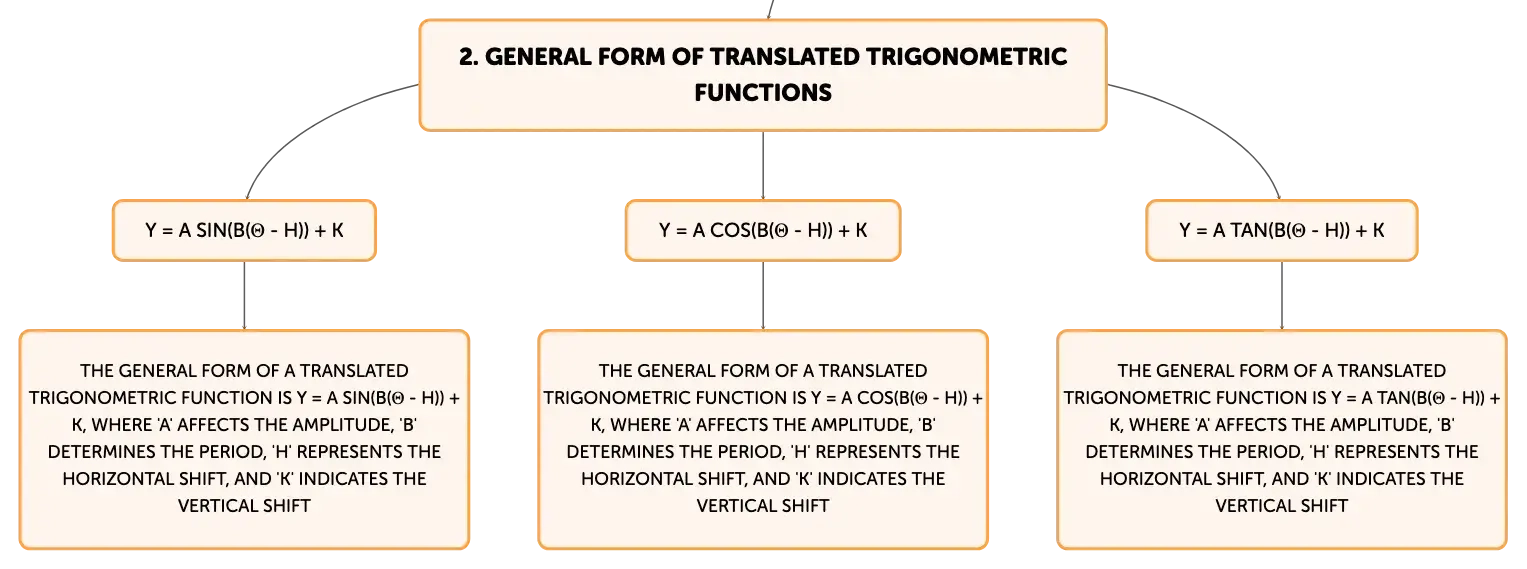

Trigonometric function transformations, including translations, play a pivotal role in understanding the behavior of these functions in mathematical and real-world contexts. A translation is a specific type of transformation that shifts the graph of a trigonometric function horizontally, known as a phase shift, or vertically. The general form of a translated trigonometric function is y = a sin(b(θ - h)) + k, y = a cos(b(θ - h)) + k, or y = a tan(b(θ - h)) + k, where 'a' affects the amplitude, 'b' determines the period, 'h' represents the horizontal shift, and 'k' indicates the vertical shift.

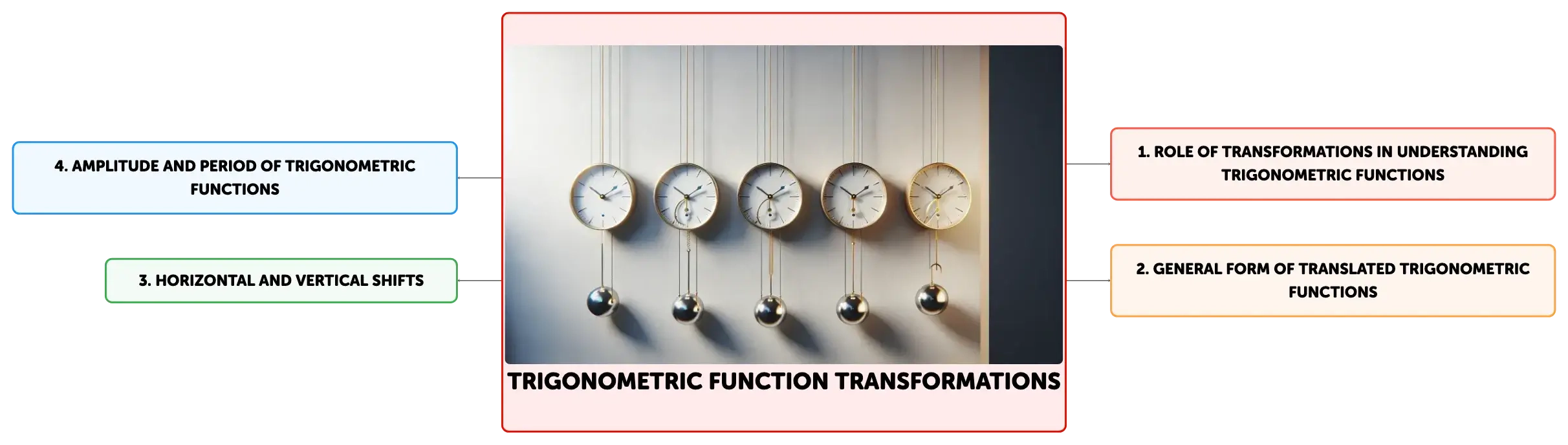

Four identical pendulum clocks on a wall showing a phase shift, with pendulums captured at various points in their swing against a neutral background.

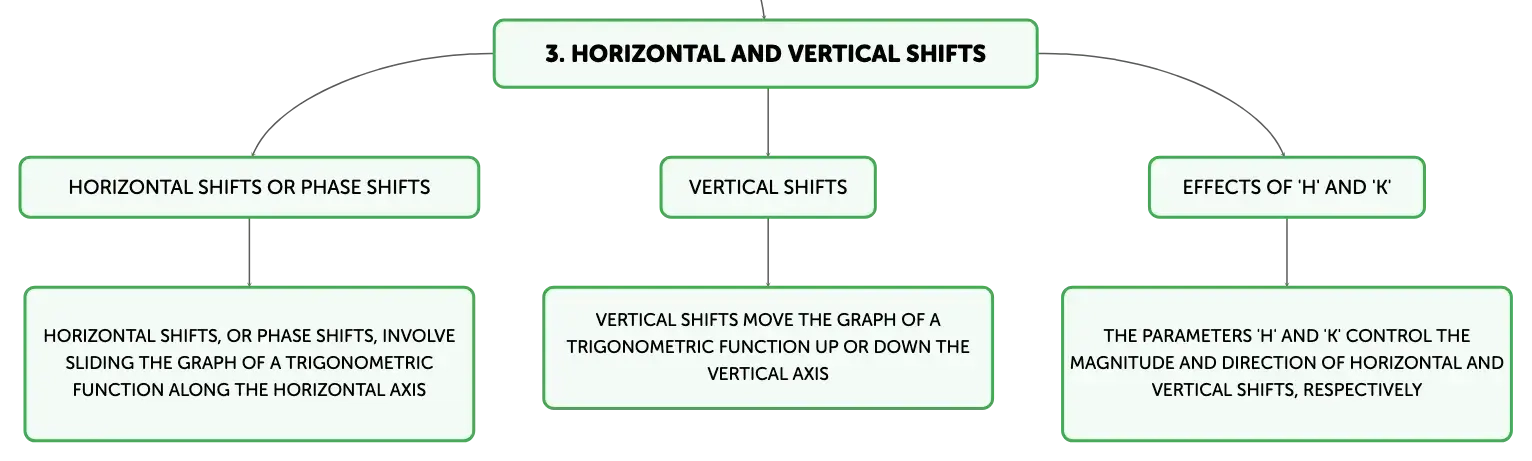

Horizontal Shifts in Trigonometric Functions

Horizontal shifts, or phase shifts, involve sliding the graph of a trigonometric function along the horizontal axis. In the expressions y = a sin(b(θ - h)) or y = a cos(b(θ - h)), the parameter 'h' controls the magnitude and direction of the shift. A positive 'h' results in a rightward shift, while a negative 'h' leads to a leftward shift. For instance, y = sin(θ - π/2) translates the sine graph right by π/2 units, effectively converting it to a cosine graph. This principle is consistent across sine, cosine, and tangent functions, as well as their reciprocals.

Vertical Shifts in Trigonometric Functions

Vertical shifts move the graph of a trigonometric function up or down the vertical axis. This shift is represented by adding or subtracting a constant 'k' in the equation y = a sin(b(θ - h)) + k. The constant 'k' establishes a new baseline, or midline, for the function at y = k. A positive 'k' elevates the graph, while a negative 'k' lowers it. For example, y = sin(θ) + 3 raises the sine graph by 3 units, setting the midline at y = 3. This concept is crucial for adjusting the central axis of trigonometric graphs.

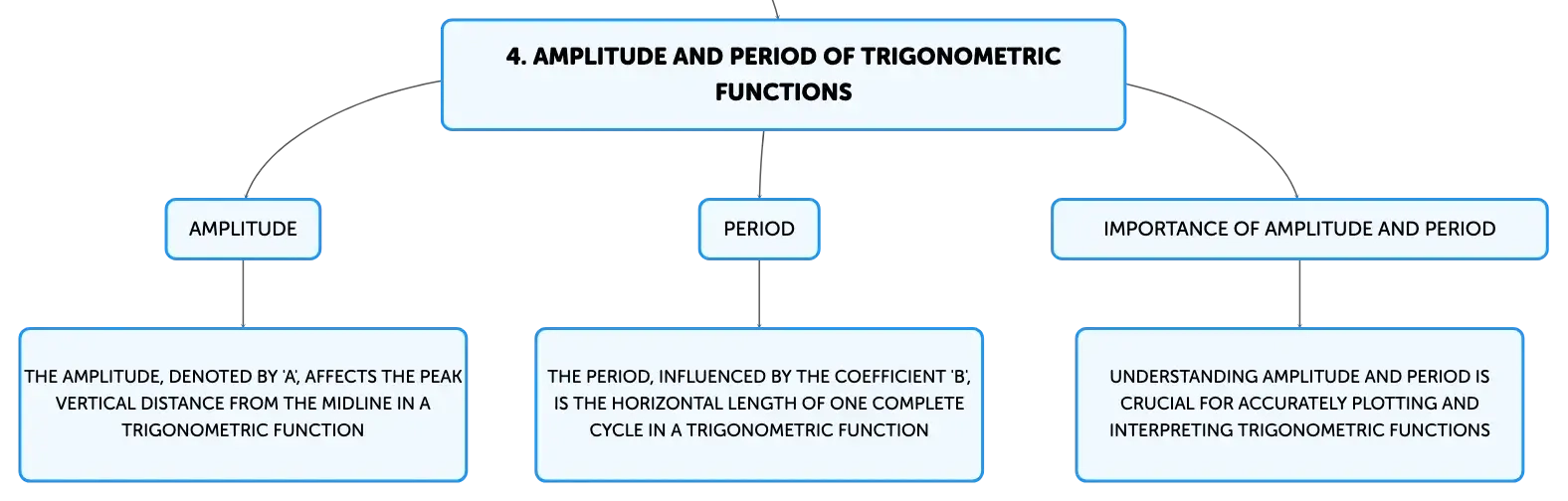

Determining Amplitude and Period in Transformed Functions

Amplitude and period are key attributes of trigonometric functions that are affected by transformations. The amplitude, denoted by 'a' in y = a sin(b(θ - h)) + k or y = a cos(b(θ - h)) + k, signifies the peak vertical distance from the midline. The period, influenced by the coefficient 'b', is the horizontal length of one complete cycle. For sine and cosine, the period is 2π/b, and for tangent, it is π/b. Comprehending these elements is essential for accurately plotting trigonometric functions and interpreting their oscillatory motion.

Guidelines for Translating Trigonometric Functions

To effectively translate trigonometric functions, adhere to a systematic approach. Begin by identifying any vertical shift and sketch the new midline at y = k. Determine the amplitude and mark the peak and trough with dashed lines. Calculate the period and plot critical points based on the function's characteristics. Connect these points with a smooth, continuous curve. Assess any horizontal shift and adjust the graph as needed. If 'a' is negative, the graph will reflect across the horizontal axis, a vital factor for precise graph depiction.

Practical Applications of Trigonometric Function Translations

Consider the function y = 2 cos(2θ - π/4) - 1 to demonstrate translation application. The vertical shift is 1 unit downward, placing the midline at y = -1. The amplitude is 2, and the period is π, given that 'b' equals 2. The horizontal shift is π/4 to the right. Another example is y = -3 sin(θ/2) + 4, where the graph is vertically shifted up 4 units with a midline at y = 4, and the amplitude is 3. The period is 4π, and the graph reflects over the horizontal axis due to the negative amplitude. These examples show how to apply translation rules to accurately graph trigonometric functions.

Essential Insights into Trigonometric Function Translations

In conclusion, understanding translations of trigonometric functions is fundamental for analyzing their behavior on a coordinate plane. Horizontal shifts move the graph left or right, while vertical shifts adjust it up or down. These transformations apply to all trigonometric functions, including their reciprocals. Recognizing the impact of amplitude and period, as well as the effect of a negative 'a' value, is crucial for graphing these functions correctly. Mastery of these concepts enables students to adeptly analyze and represent trigonometric functions in diverse mathematical scenarios.
