Network flow theory is a key aspect of operations research, focusing on optimal resource distribution through networks. It involves nodes, edges, and algorithms like Ford-Fulkerson for maximizing flow. This theory is applied in transportation, water management, and digital traffic, highlighting its versatility in solving logistical challenges.
Summary
Outline
Exploring the Basics of Network Flow Theory
Network flow theory is an essential branch of operations research and combinatorial optimization that deals with the regulation of flow through a network to achieve optimal resource distribution. At the heart of this theory are several key components: nodes (or vertices), which represent junction points; edges (or arcs), which connect nodes and have associated capacities; a source node, from which the flow originates; and a sink node, where the flow is destined. The flow in the network must satisfy two critical constraints: the flow on an edge cannot exceed its capacity, and the flow conservation law must be maintained, meaning the amount of flow entering a node must equal the amount leaving it, except for the source and sink nodes. Residual networks play a crucial role in solving network flow problems by allowing the visualization of remaining capacities, thus facilitating the identification of paths that can enhance the total flow.Classifications of Network Flow Problems
Network flow problems are diverse and can be categorized based on the specific objectives they aim to fulfill. The Maximum Flow Problem focuses on maximizing the flow from the source to the sink within the constraints of the network. The Minimum Cost Flow Problem, on the other hand, is concerned with minimizing the cost of transporting a given amount of flow from the source to the sink. The Shortest Path Problem, although not a flow problem per se, is related and seeks the least costly path for a single unit of flow. The Multi-Commodity Flow Problem extends the complexity by optimizing flows for multiple commodities, each with its own source and sink, within a shared network. These classifications are instrumental in tailoring optimization techniques to a variety of applications, from transportation logistics to telecommunications.The Significance of Network Flow Algorithms
Network flow algorithms are the computational tools that solve flow problems by determining the most efficient way to route resources through a network. The Ford-Fulkerson algorithm is a foundational method that iteratively searches for augmenting paths—routes with available capacity for additional flow—and increases the flow until no further augmenting paths can be found. This algorithm, and others like it, utilize residual networks to track and manage the capacity for additional flow. Other algorithms, such as the Edmonds-Karp and Dinic's Algorithm, provide alternative approaches to identifying augmenting paths, with their performance varying based on the network's topology and size. These algorithms are central to the field of network flow theory and are applied to optimize systems in numerous industries.Real-World Applications of Network Flow Analysis
The principles of network flow analysis are applied in a multitude of real-world contexts, bridging the gap between abstract mathematical theories and tangible problem-solving. In the realm of transportation, network flow models optimize traffic patterns and logistics, ensuring efficient movement of goods and services. Water distribution networks also benefit from flow analysis to manage supply and demand effectively. In the digital domain, network flow models are indispensable for data traffic management, optimizing server load balancing, and enhancing the performance of content delivery networks (CDNs). These applications demonstrate the versatility and practicality of network flow theory in addressing complex logistical and operational challenges.Methodical Approaches to Network Flow Problem Solving
Addressing network flow problems involves a methodical approach that begins with a comprehensive understanding of the network's structure and the specific problem to be solved. The Ford-Fulkerson algorithm serves as a prime example of a technique used to maximize flow within a network. It entails the iterative process of identifying and utilizing augmenting paths to increase flow until no further paths are available. A deep understanding of residual networks is crucial, as they provide a dynamic representation of the network's available capacities. When solving network flow problems, it is important to compare various algorithms, such as the Edmonds-Karp and Dinic's Algorithm, to choose the most efficient solution for the given network. Effective problem-solving also involves the use of computational tools for algorithm implementation and network visualization to identify potential bottlenecks and augmentation opportunities.
Show More

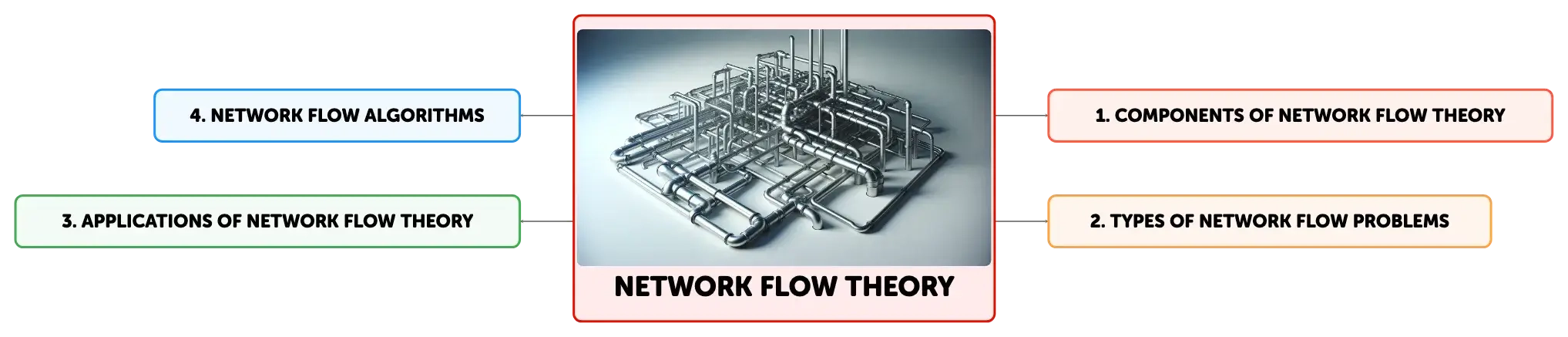

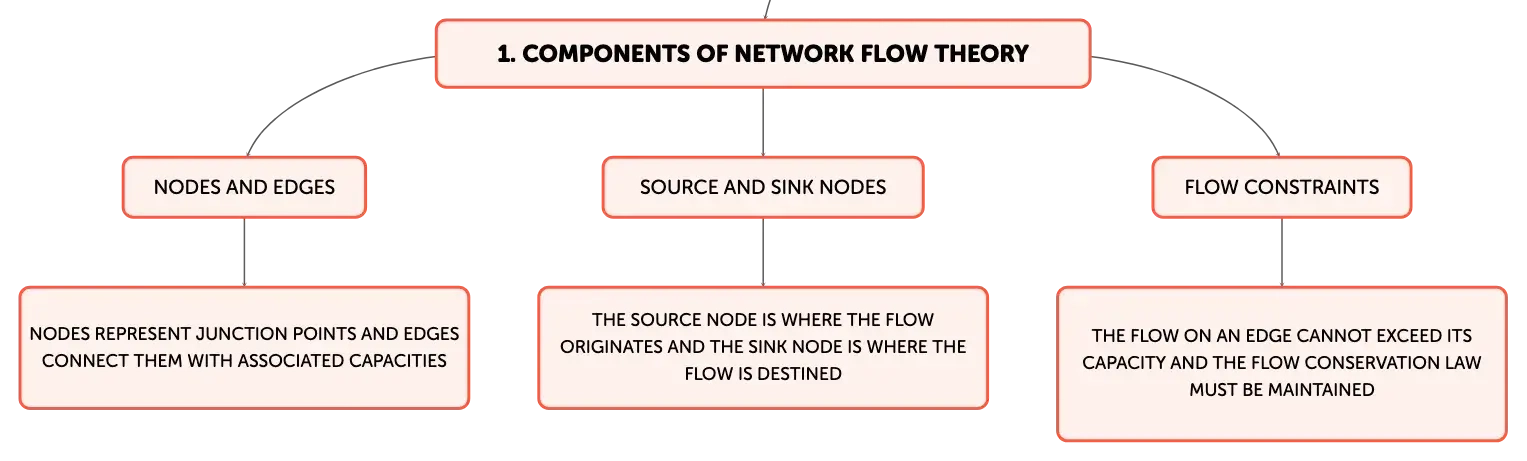

Components of Network Flow Theory
Nodes and Edges
Nodes represent junction points and edges connect them with associated capacities
Source and Sink Nodes
The source node is where the flow originates and the sink node is where the flow is destined
Flow Constraints
The flow on an edge cannot exceed its capacity and the flow conservation law must be maintained

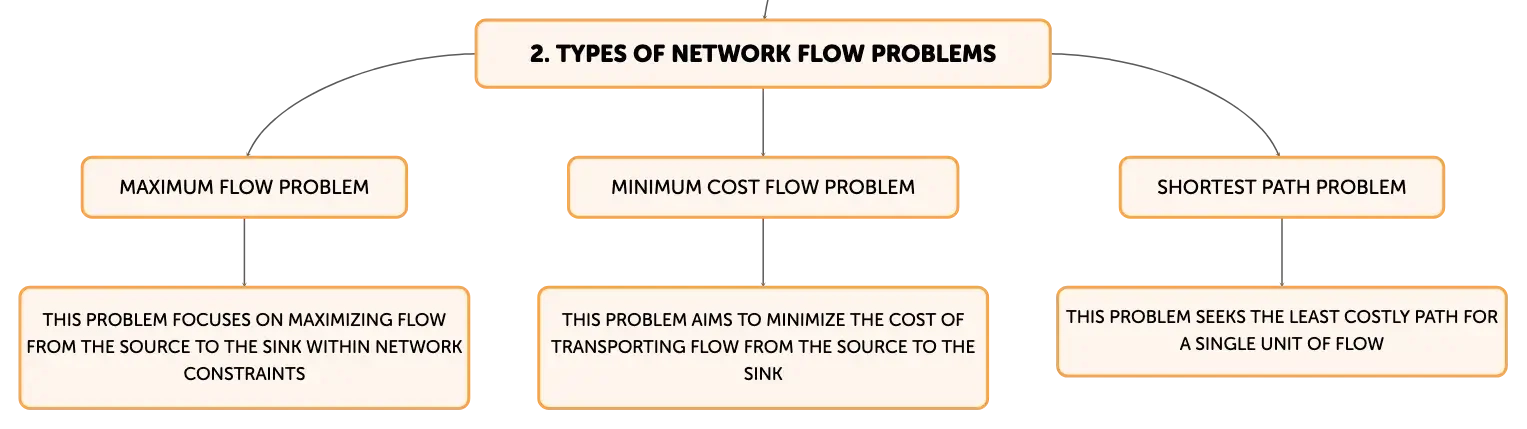

Types of Network Flow Problems
Maximum Flow Problem
This problem focuses on maximizing flow from the source to the sink within network constraints
Minimum Cost Flow Problem
This problem aims to minimize the cost of transporting flow from the source to the sink
Shortest Path Problem
This problem seeks the least costly path for a single unit of flow

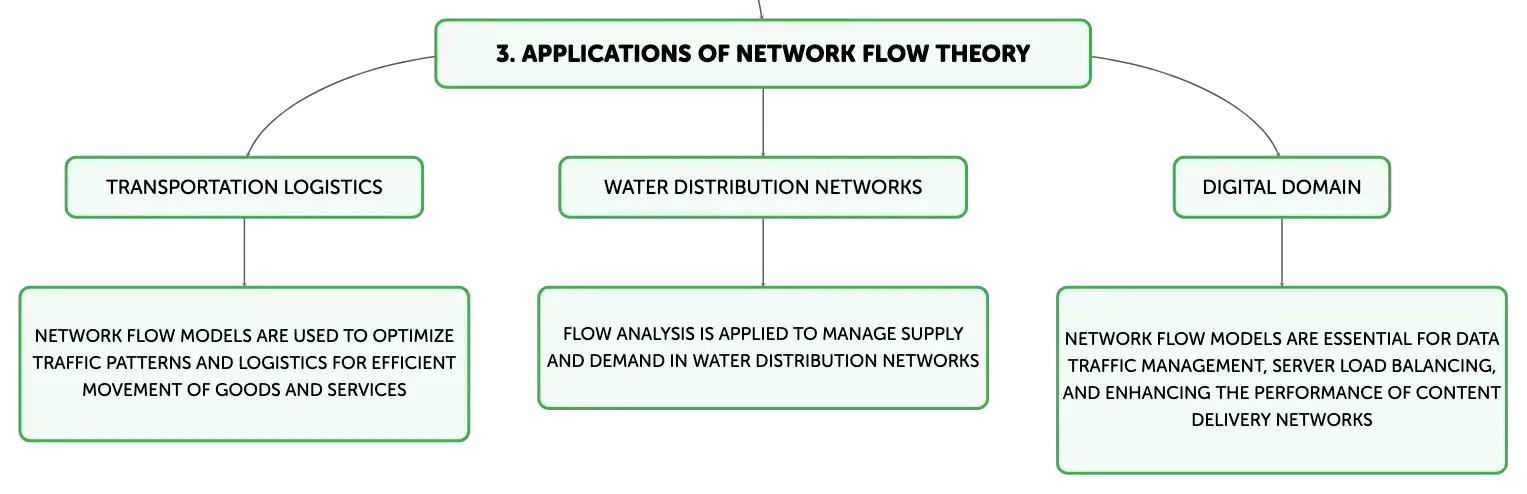

Applications of Network Flow Theory
Transportation Logistics
Network flow models are used to optimize traffic patterns and logistics for efficient movement of goods and services
Water Distribution Networks
Flow analysis is applied to manage supply and demand in water distribution networks
Digital Domain
Network flow models are essential for data traffic management, server load balancing, and enhancing the performance of content delivery networks

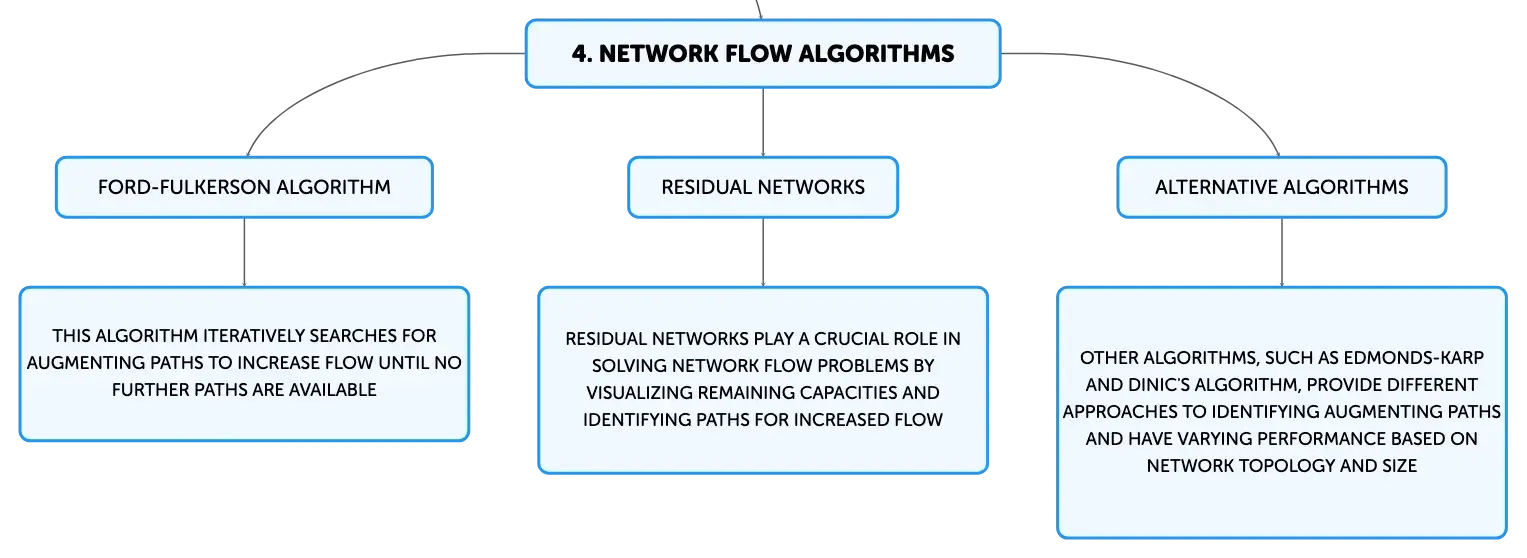

Network Flow Algorithms
Ford-Fulkerson Algorithm
This algorithm iteratively searches for augmenting paths to increase flow until no further paths are available
Residual Networks
Residual networks play a crucial role in solving network flow problems by visualizing remaining capacities and identifying paths for increased flow
Alternative Algorithms
Other algorithms, such as Edmonds-Karp and Dinic's Algorithm, provide different approaches to identifying augmenting paths and have varying performance based on network topology and size
