Graph Isomorphism: A Fundamental Concept in Graph Theory

Graph isomorphism is a key concept in graph theory, defining the structural equivalence of graphs through vertex correspondence and edge connectivity. It has profound implications in computer science for algorithm analysis, in chemistry for comparing molecular structures, and in network theory for understanding complex systems. The computational complexity of determining graph isomorphism, a problem not classified as P or NP-complete, makes it a fascinating subject for ongoing research and algorithm development.

see more

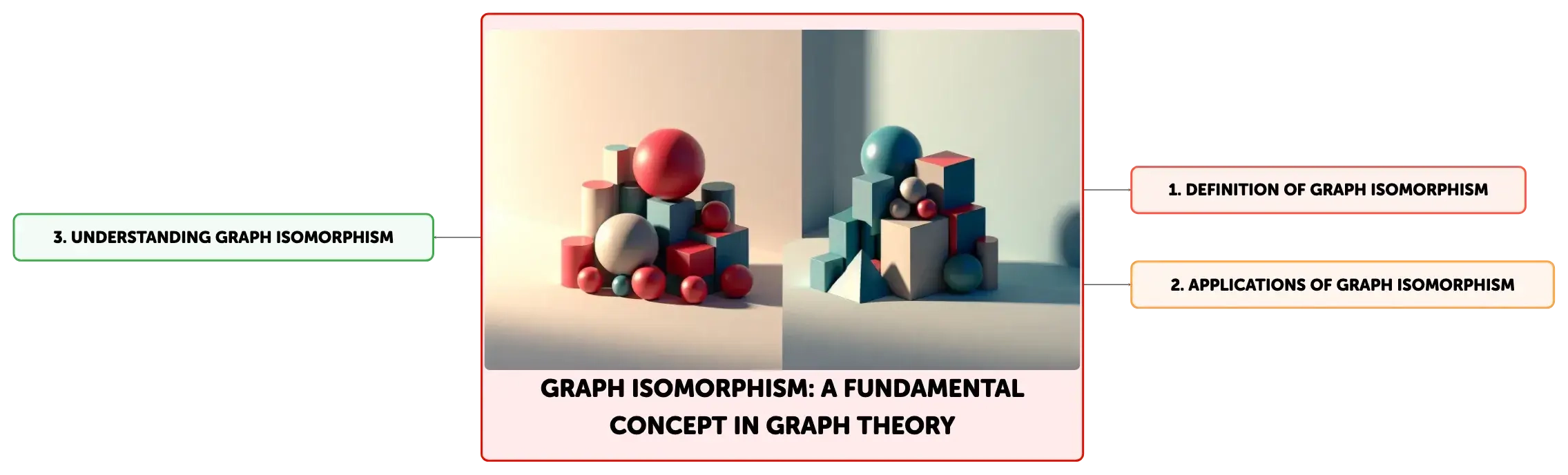

Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Graph Isomorphism - Importance

Click to check the answer

Fundamental concept for understanding structural equivalence of graphs regardless of visual/layout differences.

2

Graph Isomorphism - Edge Preservation

Click to check the answer

Isomorphic graphs require edges to be preserved between corresponding vertices in both graphs.

3

Graph Isomorphism - Vertex Correspondence

Click to check the answer

Requires one-to-one mapping between vertices of two graphs maintaining adjacency relationships.

4

Graph isomorphism aids chemists in comparing ______ structures, with vertices symbolizing ______ and edges symbolizing chemical bonds.

Click to check the answer

molecular atoms

5

Definition of graph isomorphism

Click to check the answer

Graph isomorphism determines if two graphs are structurally identical, mapping vertices of one graph to another with preserved edge connectivity.

6

Complexity growth factor in graph isomorphism

Click to check the answer

Complexity increases exponentially with graph size due to the surge in potential vertex mappings.

7

NP-intermediate classification

Click to check the answer

Graph isomorphism is in NP-intermediate class, not confirmed to be in P or NP-complete, indicating an unresolved status in complexity theory.

8

Graphs G and H are considered ______ because their vertices can be matched in a way that maintains ______ ______.

Click to check the answer

isomorphic edge connectivity

9

Graph I, shaped like a ______, and Graph J, a triangle with an extra ______ vertex, cannot be considered ______ due to their different edge configurations.

Click to check the answer

square central isomorphic

10

Graph isomorphism definition

Click to check the answer

Determines if two graphs are isomorphic, meaning there's a bijection between vertex sets preserving edge connectivity.

11

Graph comparison complexity

Click to check the answer

Simple graphs compared visually; complex graphs require sophisticated algorithms due to high computational cost.

12

Recent advancements in isomorphism algorithms

Click to check the answer

Development of quasi-polynomial time algorithms for certain graph classes, indicating significant progress.

13

Graph isomorphism is significant in ______ for designing and analyzing ______, utilizing graph structures to improve data security.

Click to check the answer

theoretical computer science cryptosystems

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Organizing and Analyzing Data

View document

Computer Science

Algorithms and Complexity in Computer Science

View document

Computer Science

Quantum Computing

View document

Computer Science

Network Flow Theory

View document

Understanding Graph Isomorphism in Graph Theory

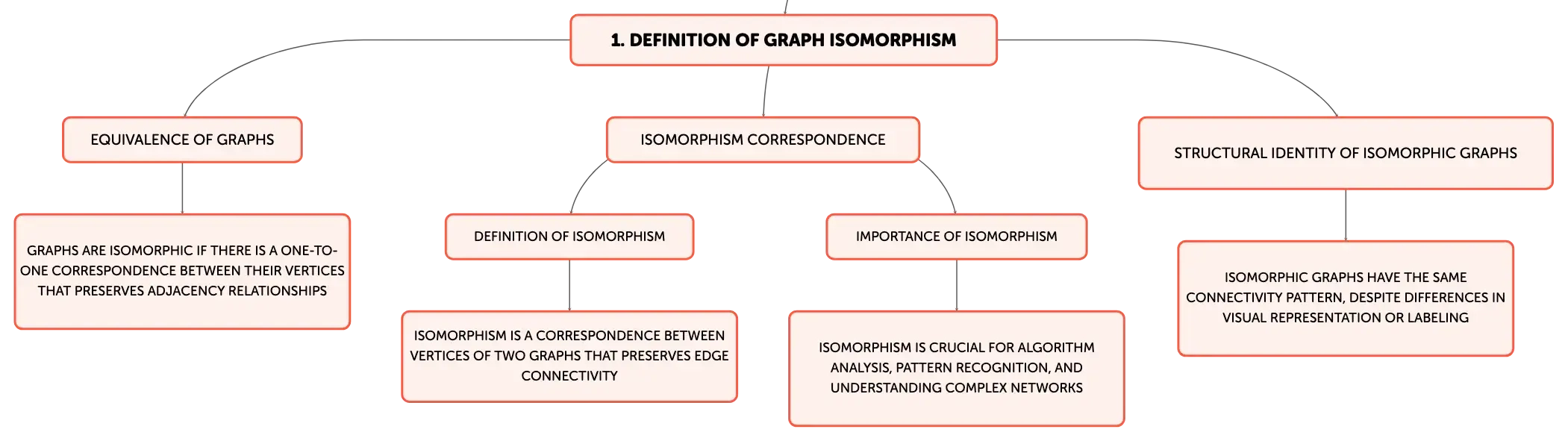

In graph theory, graph isomorphism is a fundamental concept that deals with the equivalence of graphs in terms of their structure. Two graphs are isomorphic if there is a one-to-one correspondence between their vertices that preserves the adjacency relationships, meaning that if two vertices are connected by an edge in one graph, their corresponding vertices must also be connected by an edge in the other graph. This correspondence is known as an isomorphism. Despite possible differences in visual representation or labeling, isomorphic graphs embody the same connectivity pattern and are considered structurally identical.
Two clusters of geometric shapes with a red sphere, blue cube, and green pyramid on a light background, arranged differently but corresponding in color and size.

The Significance of Graph Isomorphism in Various Fields

Graph isomorphism has significant implications across various scientific and technological domains. In computer science, it is crucial for algorithm analysis, particularly in pattern recognition, network analysis, and database indexing. Chemists rely on graph isomorphism to compare molecular structures, where vertices represent atoms and edges represent chemical bonds. In network theory, isomorphism helps in categorizing and understanding the underlying structure of complex networks. Furthermore, the computational challenge of graph isomorphism underpins certain cryptographic systems, contributing to the development of secure communication protocols.

The Graph Isomorphism Problem and Its Computational Complexity

The graph isomorphism problem, which asks whether two graphs are isomorphic, is a well-known computational challenge. The complexity of the problem escalates with the size of the graphs, as the number of potential vertex mappings increases exponentially. This problem is particularly intriguing in the field of computational complexity theory because it is one of the few problems that is neither known to be solvable in polynomial time (P) nor proven to be NP-complete. As such, it resides in a complexity class of its own, often denoted as NP-intermediate, and continues to be an active area of research.

Exploring Examples of Graph Isomorphism

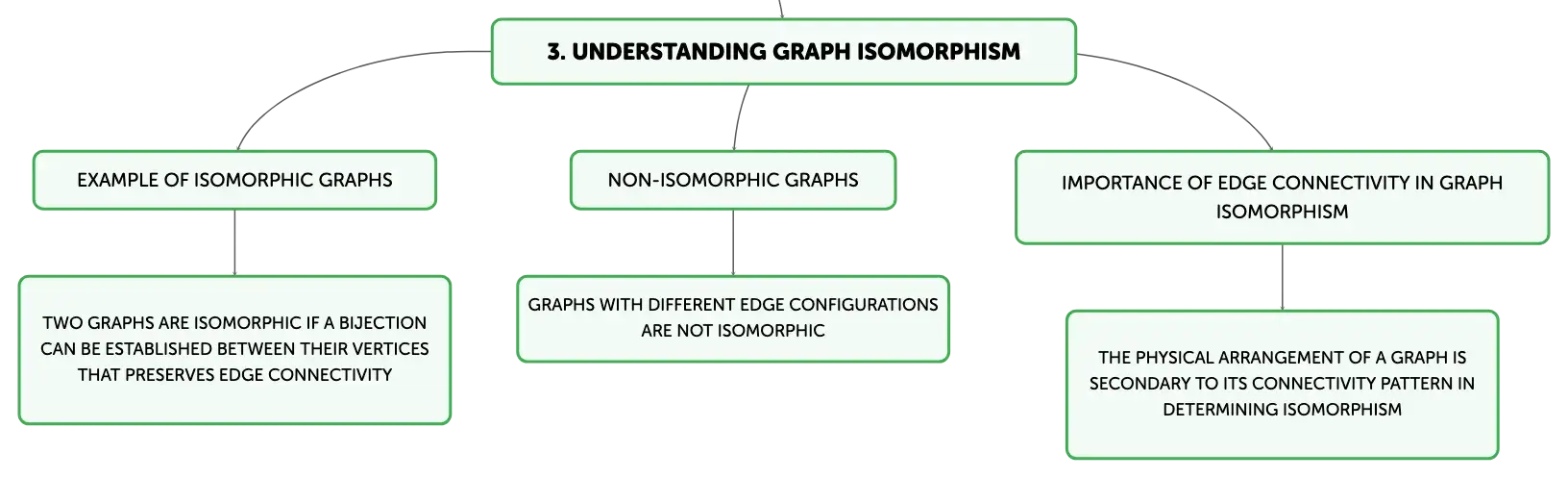

To understand graph isomorphism, consider two graphs: Graph G with vertices A, B, C connected by edges AB, AC, BC, and Graph H with vertices 1, 2, 3 connected by edges 12, 13, 23. These graphs are isomorphic because a bijection can be established between their vertices that preserves the edge connectivity. In contrast, a square graph (Graph I) and a triangular graph with an additional central vertex (Graph J) are not isomorphic, as no bijection exists that can maintain their distinct edge configurations. These examples highlight the centrality of edge connectivity in graph isomorphism and demonstrate that the physical arrangement of a graph is secondary to its connectivity pattern.

Graph Isomorphism Algorithms and Their Role

Algorithms for graph isomorphism are designed to efficiently determine whether two graphs are isomorphic. These algorithms employ various strategies to find a bijection between the vertex sets that preserves edge connectivity. While simple graphs may be compared by visual inspection, complex graphs require more sophisticated algorithms. The development of efficient algorithms is critical, particularly for large graphs where exhaustive search is computationally prohibitive. Recent advancements have led to more efficient algorithms, such as those that operate in quasi-polynomial time for certain graph classes, reflecting progress in the field and the potential for further breakthroughs.

Applying Isomorphic Graph Theory in Mathematics and Beyond

The principles of isomorphic graph theory find applications in numerous mathematical and scientific disciplines. In chemistry, they are used to identify isomeric compounds with similar structures. In network theory, they facilitate the analysis and categorization of complex systems. By recognizing isomorphic structures, mathematicians and scientists can simplify models, reducing complexity in a wide range of problems from physics to biology. In theoretical computer science, graph isomorphism plays a role in cryptosystem design and analysis, exploiting the structural properties of graphs for enhancing data security. The ongoing refinement of graph isomorphism algorithms is a key research area with implications for data analysis, security, and beyond.
