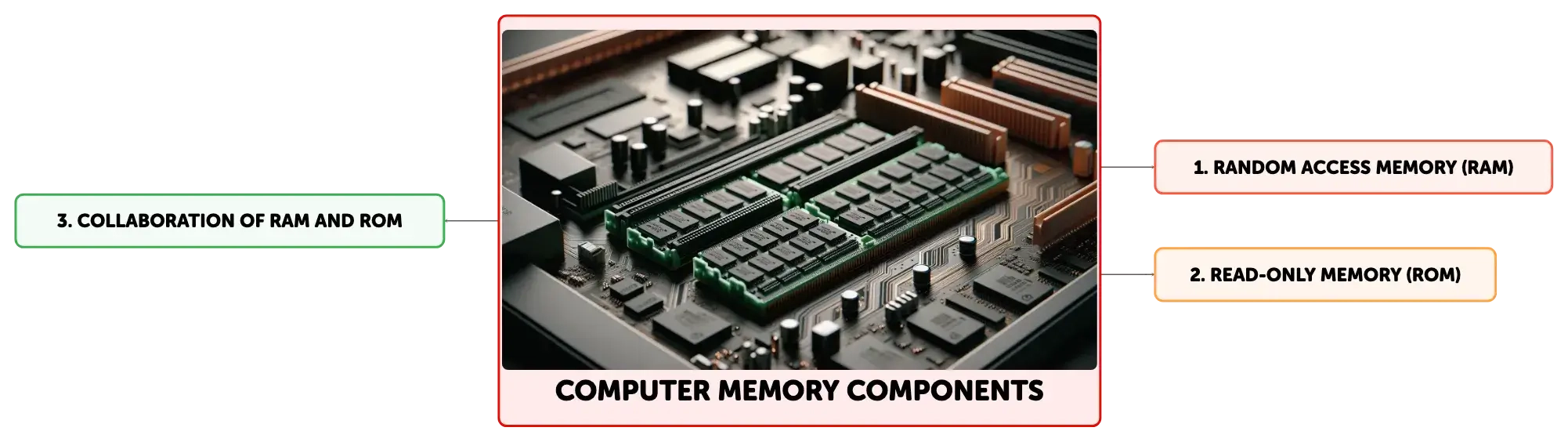

Computer Memory Components
Concept Map
Understanding RAM and ROM is crucial in computing. RAM, or Random Access Memory, is used for temporary data storage and quick access, essential for program execution and system performance. ROM, or Read-Only Memory, stores firmware and system instructions permanently, even without power. Both memory types have unique advantages and limitations, with RAM being volatile and fast, while ROM is non-volatile but slower. Optimizing their use is key to enhancing device functionality.
Summary
Outline
Understanding RAM in Computer Systems
Random Access Memory (RAM) is a critical component in computer systems, serving as the main memory that the processor uses for storing data that is in active use. This allows for rapid access and manipulation of data, which is essential for the execution of programs and the overall performance of the computer. RAM is volatile, which means it loses all stored information when the power is turned off. The two primary types of RAM are Dynamic Random Access Memory (DRAM) and Static Random Access Memory (SRAM). DRAM is more cost-effective and thus more prevalent in personal computers, while SRAM, being faster, is used in cache memory to enhance processing speed.The Role of ROM in Computing Devices
Read-Only Memory (ROM) is a type of non-volatile memory that retains its contents even when the power is switched off. It is used to store firmware, which includes the software that is hard-wired into the computing device to control its basic functions. ROM comes in several forms, including Programmable Read-Only Memory (PROM), which can be programmed once; Erasable Programmable Read-Only Memory (EPROM), which can be erased and reprogrammed using ultraviolet light; and Electrically Erasable Programmable Read-Only Memory (EEPROM), which can be reprogrammed using an electrical charge. The BIOS, or Basic Input/Output System, is an example of a critical program stored in ROM, which initializes hardware and checks for errors during the boot-up process.Comparing RAM and ROM Characteristics
RAM and ROM have distinct characteristics and serve different functions within a computer system. RAM is designed for temporary storage and provides rapid access to data, which is crucial for efficient processing and multitasking capabilities. It typically has a higher storage capacity than ROM but is also more expensive per bit. In contrast, ROM is intended for permanent storage of essential system instructions and firmware, with slower access times and typically lower storage capacity. ROM's non-volatile nature ensures data preservation without power, and it is generally less expensive to produce than RAM.The Interplay of RAM and ROM in Computer Operation
The effective operation of a computer system relies on the collaborative functioning of RAM and ROM. During the boot process, the ROM provides the necessary instructions to initialize the system. Once the system is running, the operating system and applications are loaded into RAM, where they can be accessed quickly by the processor for efficient execution. While RAM is utilized for active tasks and data processing, ROM continues to play a role by providing essential support data to the CPU, ensuring the system operates correctly and reliably.Advantages and Limitations of RAM and ROM
RAM and ROM each have their own set of advantages and limitations. RAM is advantageous for its high-speed data access and the ability to handle multiple tasks simultaneously, which is indispensable for the functionality of modern computers. However, its volatility means that data is not preserved without power, and it is more costly than ROM. On the other hand, ROM is advantageous for its ability to retain data without power and its lower cost of production. It is ideal for storing permanent system instructions and firmware. The limitations of ROM include its slower access speed and the fact that it has a smaller capacity for data storage when compared to RAM.Practical Applications and Optimization of RAM and ROM
RAM is crucial for the execution of programs, enabling multitasking and reducing access times, which contributes to a better user experience. It is also employed in graphics processing units (GPUs) and as cache memory in the form of SRAM to speed up data access. ROM is used to store the BIOS, firmware, and other data that must remain constant and secure. Optimizing the use of RAM and ROM involves balancing RAM capacity with processing speed, managing power consumption efficiently, and ensuring regular system maintenance. Upgrades should be carefully considered to meet performance needs and to extend the lifespan of the device.Key Takeaways on RAM and ROM in Computer Architecture
In conclusion, RAM and ROM are essential components of computer architecture, each fulfilling unique and complementary roles. RAM is crucial for temporary data storage and rapid processing, while ROM securely stores permanent system data and firmware. A thorough understanding of their differences, advantages, and limitations is vital for informed decision-making regarding computer configuration and optimization. Effective management of these memory types can significantly enhance system performance and ensure the reliable operation of computing devices.
Show More

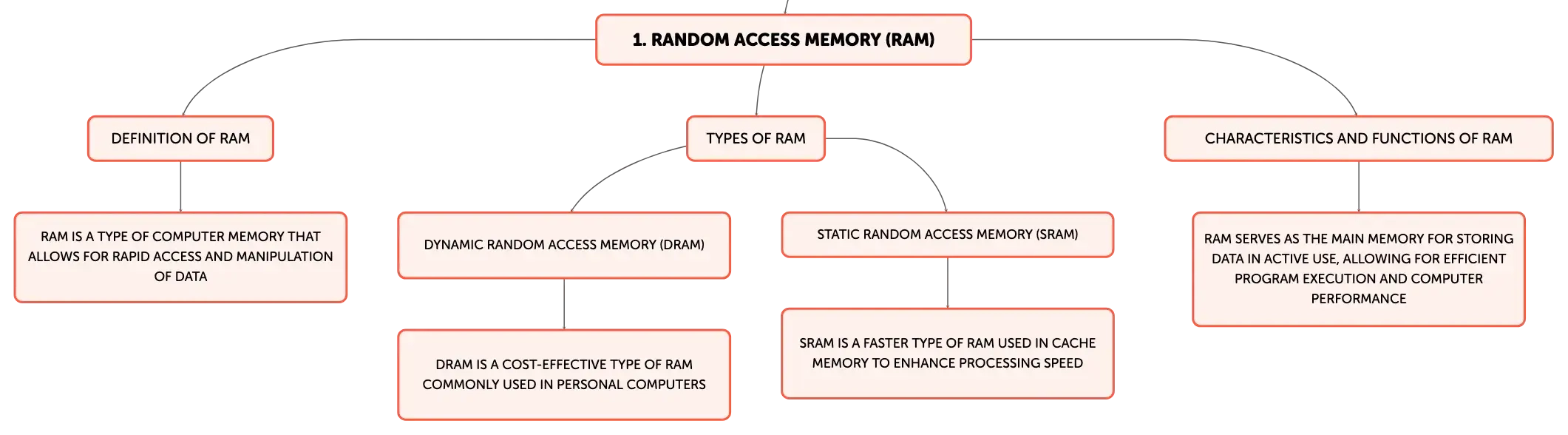

Random Access Memory (RAM)
Definition of RAM
RAM is a type of computer memory that allows for rapid access and manipulation of data
Types of RAM
Dynamic Random Access Memory (DRAM)
DRAM is a cost-effective type of RAM commonly used in personal computers
Static Random Access Memory (SRAM)
SRAM is a faster type of RAM used in cache memory to enhance processing speed
Characteristics and Functions of RAM
RAM serves as the main memory for storing data in active use, allowing for efficient program execution and computer performance

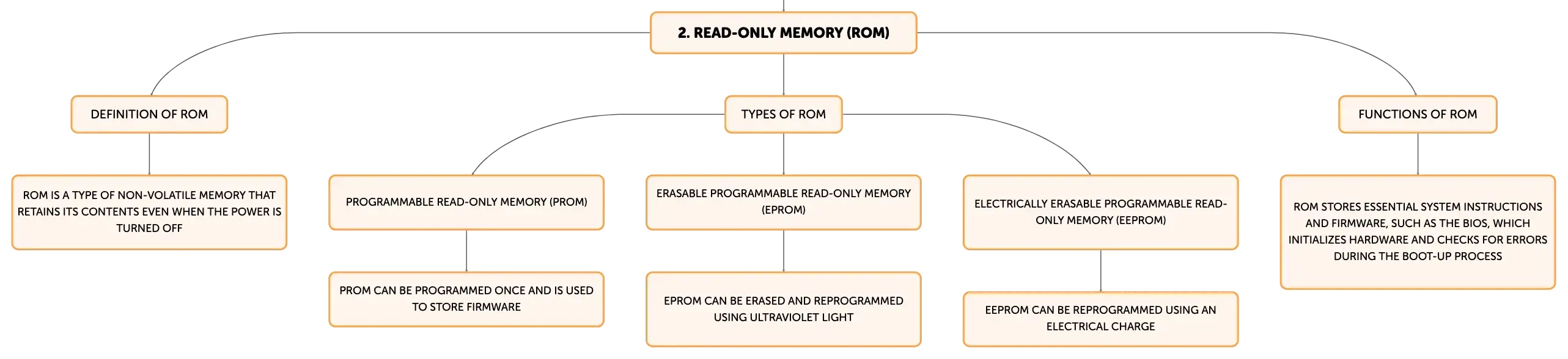

Read-Only Memory (ROM)
Definition of ROM
ROM is a type of non-volatile memory that retains its contents even when the power is turned off
Types of ROM
Programmable Read-Only Memory (PROM)
PROM can be programmed once and is used to store firmware
Erasable Programmable Read-Only Memory (EPROM)
EPROM can be erased and reprogrammed using ultraviolet light
Electrically Erasable Programmable Read-Only Memory (EEPROM)
EEPROM can be reprogrammed using an electrical charge
Functions of ROM
ROM stores essential system instructions and firmware, such as the BIOS, which initializes hardware and checks for errors during the boot-up process

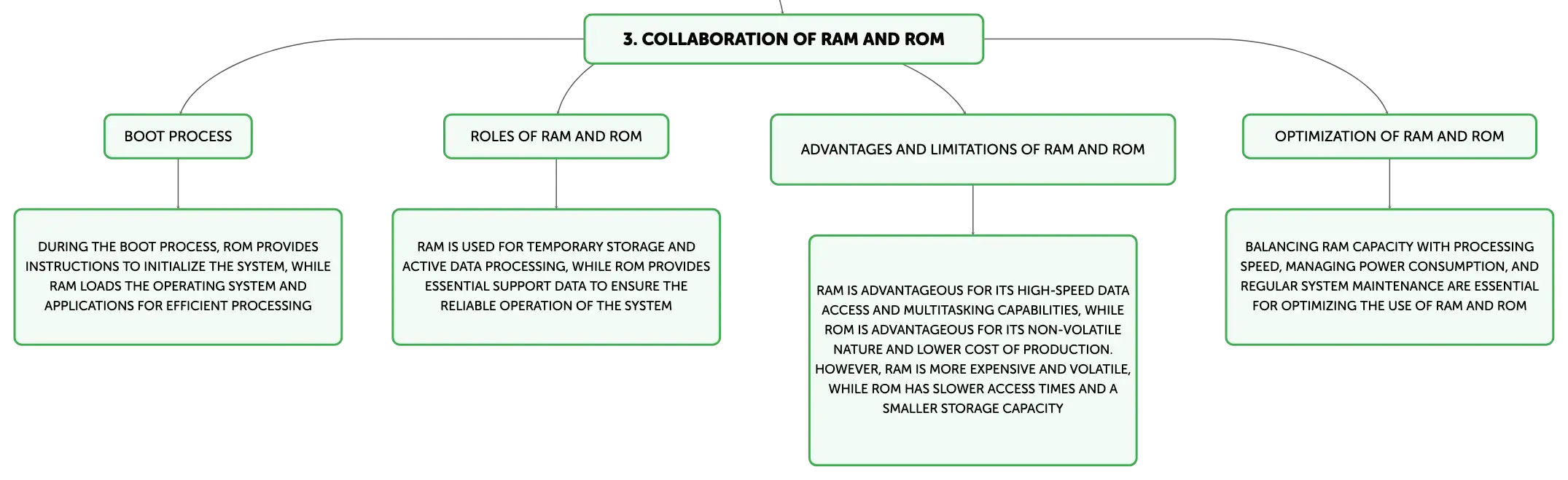

Collaboration of RAM and ROM
Boot Process
During the boot process, ROM provides instructions to initialize the system, while RAM loads the operating system and applications for efficient processing
Roles of RAM and ROM
RAM is used for temporary storage and active data processing, while ROM provides essential support data to ensure the reliable operation of the system
Advantages and Limitations of RAM and ROM
RAM is advantageous for its high-speed data access and multitasking capabilities, while ROM is advantageous for its non-volatile nature and lower cost of production. However, RAM is more expensive and volatile, while ROM has slower access times and a smaller storage capacity
Optimization of RAM and ROM
Balancing RAM capacity with processing speed, managing power consumption, and regular system maintenance are essential for optimizing the use of RAM and ROM
Computer Memory Components
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Types of RAM
Two main types: DRAM (cost-effective, common in PCs) and SRAM (faster, used in cache).
01
Role of SRAM
Used in cache memory to speed up processing by providing faster data access.
02
DRAM vs SRAM in personal computers
DRAM is more prevalent due to lower cost; SRAM is less common but offers quicker access.
