Triple Integrals in Spherical Coordinates

Concept Map

Exploring the use of triple integrals in spherical coordinates, this mathematical approach simplifies volume calculations of spheres and other shapes with spherical symmetry. It involves the radial distance, polar angle, and azimuthal angle, and requires the Jacobian determinant for accurate volume element transformation. These integrals are crucial in fields like quantum mechanics and astrophysics for modeling complex systems.

Summary

Outline

Triple Integrals in Spherical Coordinates

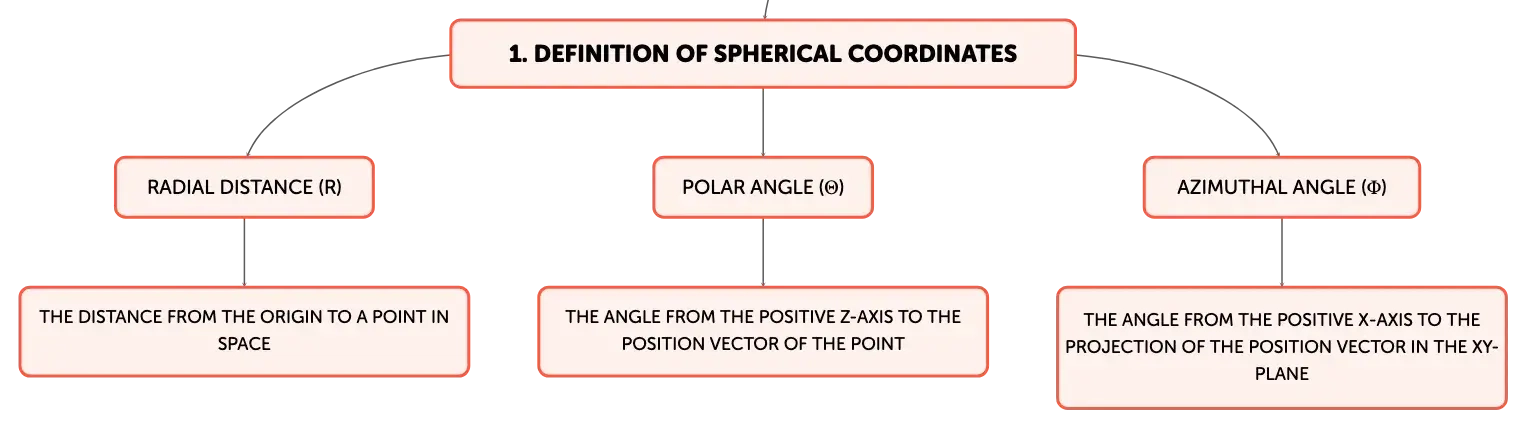

Definition of Spherical Coordinates

Radial Distance (r)

The distance from the origin to a point in space

Polar Angle (θ)

The angle from the positive z-axis to the position vector of the point

Azimuthal Angle (φ)

The angle from the positive x-axis to the projection of the position vector in the xy-plane

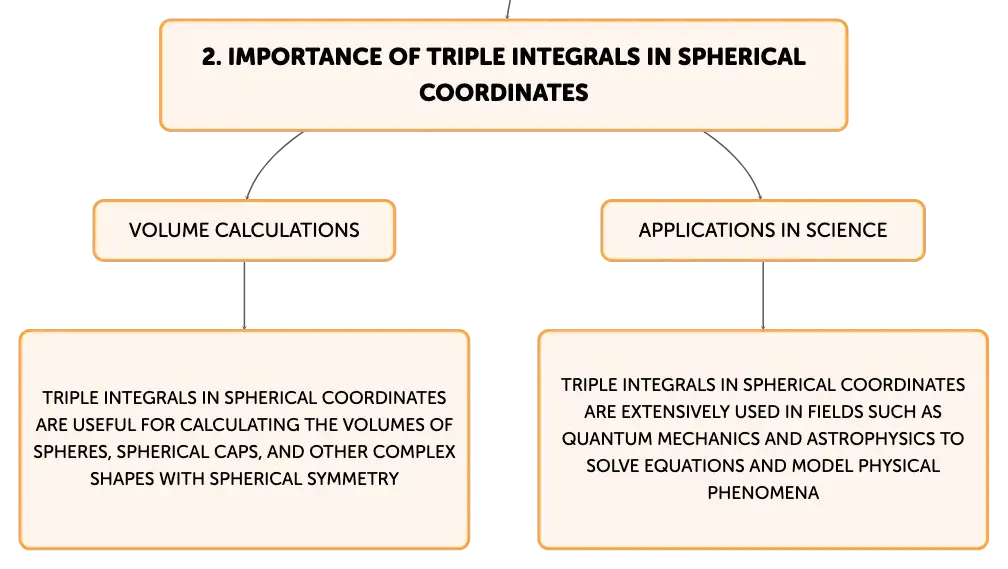

Importance of Triple Integrals in Spherical Coordinates

Volume Calculations

Triple integrals in spherical coordinates are useful for calculating the volumes of spheres, spherical caps, and other complex shapes with spherical symmetry

Applications in Science

Triple integrals in spherical coordinates are extensively used in fields such as quantum mechanics and astrophysics to solve equations and model physical phenomena

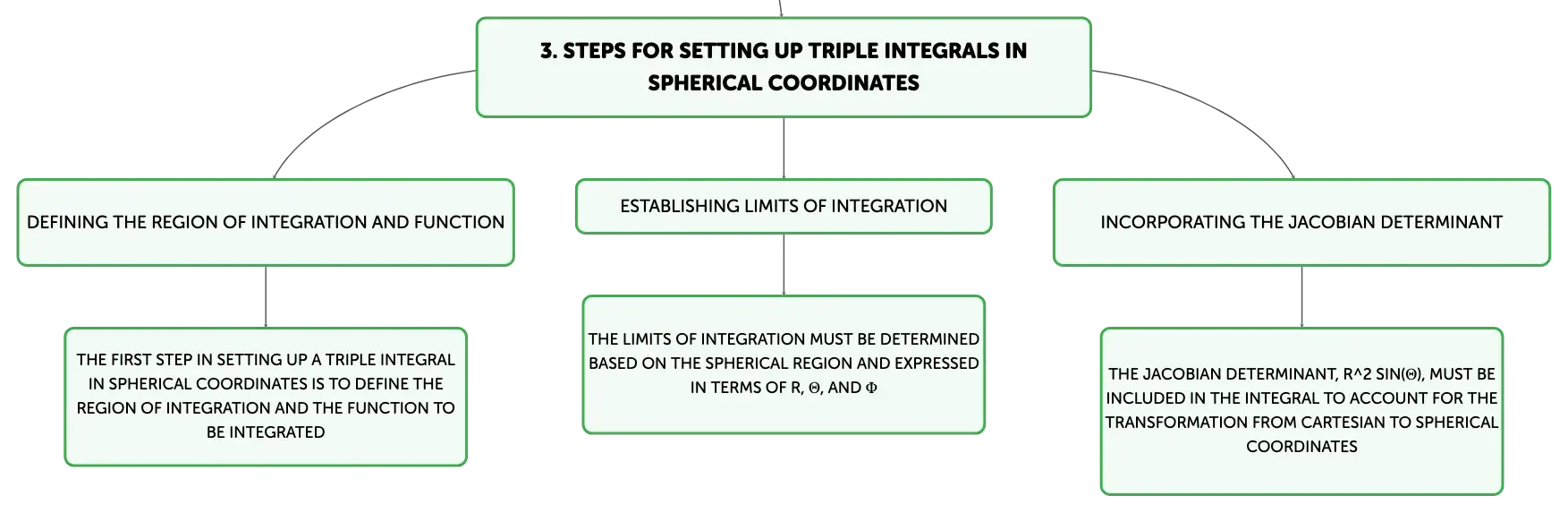

Steps for Setting Up Triple Integrals in Spherical Coordinates

Defining the Region of Integration and Function

The first step in setting up a triple integral in spherical coordinates is to define the region of integration and the function to be integrated

Establishing Limits of Integration

The limits of integration must be determined based on the spherical region and expressed in terms of r, θ, and φ

Incorporating the Jacobian Determinant

The Jacobian determinant, r^2 sin(θ), must be included in the integral to account for the transformation from Cartesian to spherical coordinates

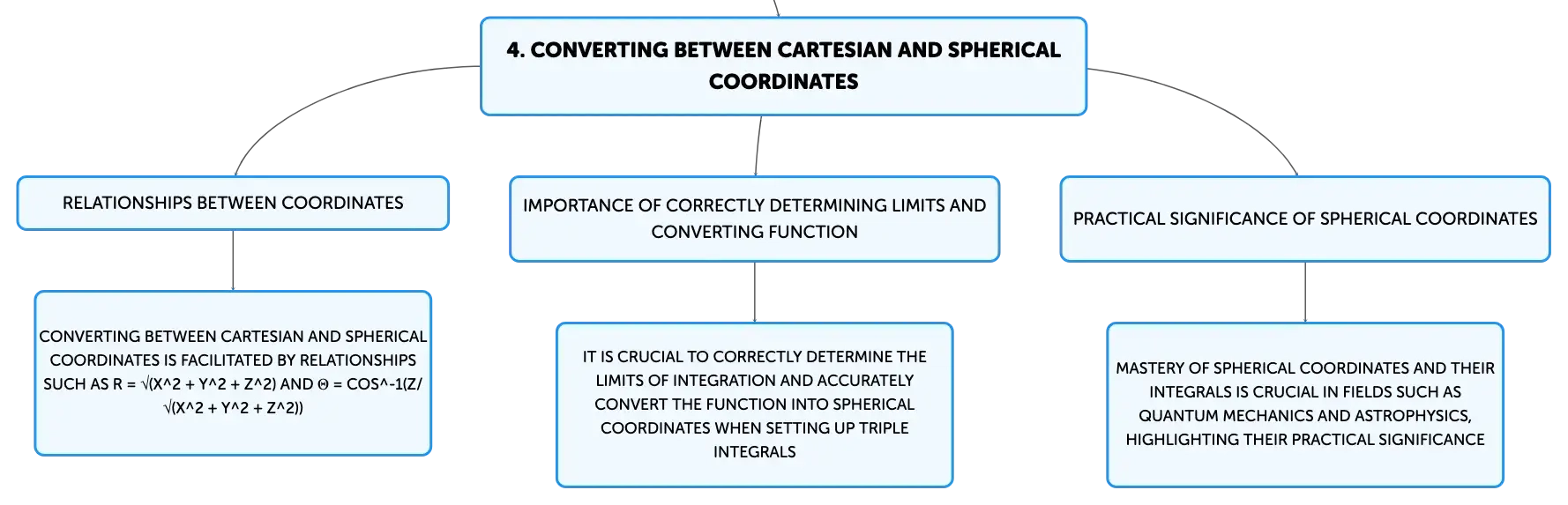

Converting Between Cartesian and Spherical Coordinates

Relationships Between Coordinates

Converting between Cartesian and spherical coordinates is facilitated by relationships such as r = √(x^2 + y^2 + z^2) and θ = cos^-1(z/√(x^2 + y^2 + z^2))

Importance of Correctly Determining Limits and Converting Function

It is crucial to correctly determine the limits of integration and accurately convert the function into spherical coordinates when setting up triple integrals

Practical Significance of Spherical Coordinates

Mastery of spherical coordinates and their integrals is crucial in fields such as quantum mechanics and astrophysics, highlighting their practical significance

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Define spherical coordinates.

Spherical coordinates are defined by radial distance (r), polar angle (θ), and azimuthal angle (φ).

Applications of triple integrals in spherical coordinates.

Used for calculating volumes of spheres, spherical caps, and complex shapes with spherical symmetry.

Comparison of spherical and Cartesian coordinates in integration.

Spherical coordinates align with object symmetry, simplifying integration; Cartesian coordinates are less efficient for spherical shapes.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Classroom with a blank chalkboard, teacher's desk with an apple, water glass, and Newton's cradle, student desks, globe, and potted plant.

The Importance of Equations in Mathematics and Beyond

Close-up view of a whiteboard with colorful geometric shapes, including a blue parabolic curve with red dots, a green circle with a yellow cross, and assorted 3D figures.

Parametric Equations and Integration

Parabolic metallic bridge with reflective surface arching over water against a clear blue sky, highlighted by sunlight at its vertex.

Understanding the Vertex in Quadratic Functions

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring Triple Integrals in Spherical Coordinates

Triple integrals in spherical coordinates offer a powerful tool for evaluating the volume of three-dimensional regions with spherical symmetry. This coordinate system is defined by three variables: the radial distance (r), the polar angle (θ), and the azimuthal angle (φ). These integrals are particularly useful for calculating the volumes of spheres, spherical caps, and other complex shapes that are difficult to handle with Cartesian coordinates (x, y, z). By aligning the coordinate system with the symmetry of the object, spherical coordinates simplify the integration process and make it more efficient.

3D-rendered globe with land and water textures, illuminated on one side, encircled by intersecting red, green, and blue planes, with blurred measuring tools in the foreground.

Elements of Spherical Coordinate System

The spherical coordinate system is composed of three elements: the radial distance (r), which extends from the origin to a point in space; the polar angle (θ), measured from the positive z-axis to the position vector of the point; and the azimuthal angle (φ), which is the angle from the positive x-axis to the projection of the position vector in the xy-plane. When performing triple integrals in spherical coordinates, it is essential to include the Jacobian determinant, \(r^2 \sin(\theta)\), to properly account for the spatial volume element transformation from Cartesian to spherical coordinates.

The Role of the Jacobian in Volume Integration

The Jacobian determinant, \(r^2 \sin(\theta)\), is a scaling factor that adjusts for the non-uniformity of volume elements when converting from Cartesian to spherical coordinates. It ensures that the volume is calculated accurately. For instance, the volume of a sphere with radius \(R\) can be determined by integrating over the appropriate limits for \(r\), \(θ\), and \(φ\), with \(r\) ranging from 0 to \(R\), \(θ\) from 0 to \(\pi\), and \(φ\) from 0 to \(2\pi\), encompassing the entire sphere. This integration yields the familiar volume formula \(V = \frac{4}{3}\pi R^3\).

Constructing a Triple Integral in Spherical Coordinates

To construct a triple integral in spherical coordinates, one must define the region of integration and the function to be integrated within a spherical context. The next step is to establish the limits of integration based on the spherical region and express the integrand in terms of \(r\), \(θ\), and \(φ\). The differential volume element in spherical coordinates, \(r^2 \sin(\theta) dr dθ dφ\), is then incorporated into the integral. The integration is carried out sequentially or simultaneously over the established limits for each variable.

Conversion Between Cartesian and Spherical Coordinates

Converting between Cartesian and spherical coordinates is facilitated by the following relationships: \(r = \sqrt{x^2 + y^2 + z^2}\), \(θ = \cos^{-1}\left(\frac{z}{\sqrt{x^2 + y^2 + z^2}}\right)\) or \(θ = \tan^{-1}\left(\frac{\sqrt{x^2 + y^2}}{z}\right)\) for \(z \neq 0\), and \(φ = \tan^{-1}\left(\frac{y}{x}\right)\) for \(x \neq 0\). When setting up triple integrals, it is crucial to correctly determine the limits of integration, accurately convert the function into spherical coordinates, and include the Jacobian determinant. These steps are vital to ensure the integrity of the integration process.

Applications of Triple Integrals in Spherical Coordinates

Beyond volume calculations, triple integrals in spherical coordinates are extensively used in various scientific disciplines where spherical symmetry is common. In quantum mechanics, they are employed to solve the Schrödinger equation for atoms with spherical electron clouds, aiding in the prediction of electron distribution probabilities. In astrophysics, they are essential for modeling the gravitational fields of celestial bodies and understanding their dynamics. Mastery of spherical coordinates and their integrals is therefore crucial for students and professionals in these fields, highlighting the practical significance of this mathematical concept.
